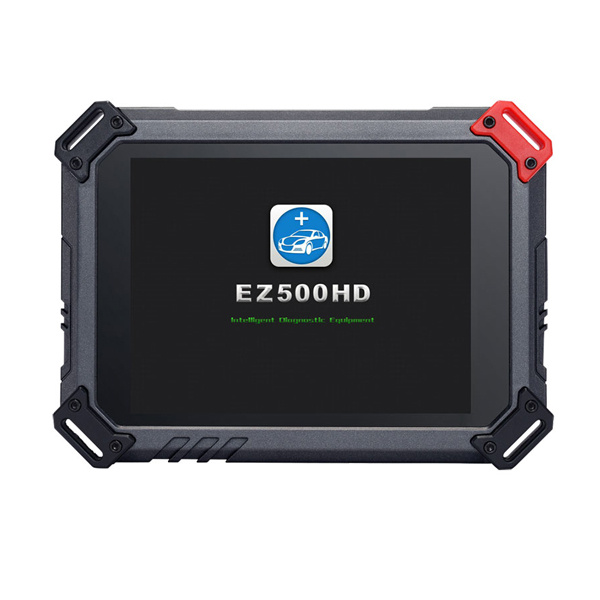

Name: XTOOL EZ500HD Heavy Duty Full System Diagnosis with Special Function
Description:
XTOOL EZ500 HD is a high-end and new style auto diagnostic device developed by XTOOL based on Android system. Its open source Android operating system provides fast boot-up and multitasking. EZ500 HD provides extensive vehicle coverage for most US, Asian and European makes, which makes it the best solution for workshops.
Features:
Easy registration with EZ500 HD connected to WIFI. Do not need to use PC for registration.
One click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!
Remote access which is perfect for training, demonstration and even remote diagnosis.
Diagnosis reports in PDF file. Print out the diagnosis report and show it to vehicle owners when they come and fetch their vehicles. They will be really happy knowing what kinds of problems have been fixed for their vehicles.
Extensive vehicle coverage for most US, Asian and European vehicle makes.

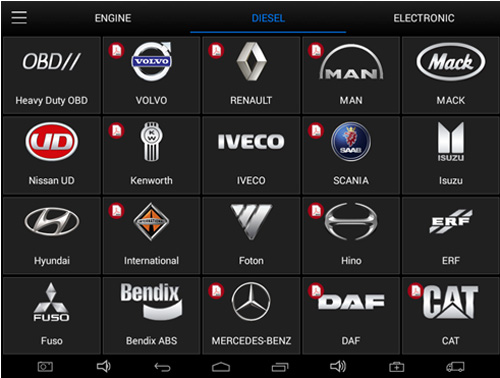

Diesel: Volvo, Allison, Bendix, Mercedes-Benz, CAT, DAF, ERF, Foton, Fuso, Hino, Hyundai, International, Isuzu, Iveco, Kenworth, MACK, MAN, Renault, Scania, Nissan UD, Wabco, etc.
Diagnose trucks via ENGINE: Cummins, Detroit Diesel, MaxxForce, etc
Diagnose trucks via ELECTRONIC: Cummins and more…
Full System Diagnosis: Engine, ABS, ACM, CDS, COM, SRS, etc.
Basic Function: Read Fault Codes, Clear Fault Codes, Live Data, Actuation, Active Test
Accurate Live Data in Both Wave and Dashboard Form
Special Function: Service Reset, DPF & AdBlue Reset, Injector Coding, Cylinder Cutoff, Fuel Pump Calibration, ERG Learning, Learned Value Reset, Maximum Vehicle Speed Setting, Limited Hand Throttle...
Specifications:
Operating System: Android 4.4.4
Memory: 1GB RAM; 16GB Flash
CPU: Quad Core; 1.6GHz
Display: 8.0 Inch IPS 10-Point Multi-touch Screen with 1024*600P Resolution
Sensors: Gravity Sensor; Light Sensor

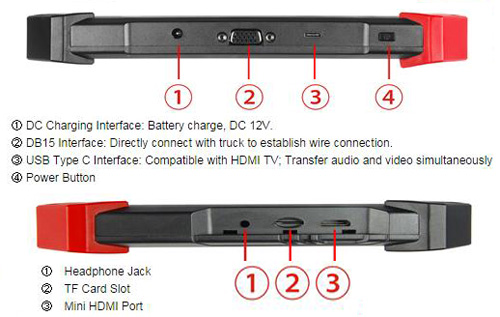

Input/Output: Microphone, Dual Speakers, 3.5mm Headset Jack, Mini HDMI Port, DC5.5V, TF Card Slot
Battery: 4000mAh; 7.4V
WiFi: 2.4GHz
Power Voltage: 12V
Power Consumption: 29.6W
Operating Temperature: -20 to 50 degree centigrade
Humidity: <90%
Dimension(L*W*H): 240*177*30mm

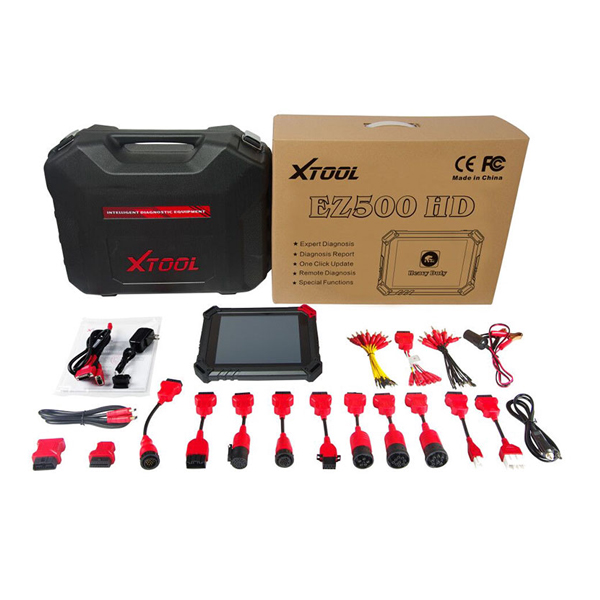

Packing List:
XTOOL EZ500 HD Tablet
OBD II-16
Self Test
OBD-R16
CAT-9
ISUZU-3
ISUZU-20
DENSO-12
CUMMINS-6
CUMMINS-9
IVECO-30
VOLVO-8
BENZ-14
DB15 Main Cable
USB Type-C Cable
Universal Cable
Battery Cable
Cigar Lighter Cable
Charger for Tablet
US Power Adapter
EU Power Adapter
User Manual
Certificate of Quality
Packing List
Carrying Case
|
