Name: Benz IR NEC Key Programmer with ESL Key Programmer

Description:

MB IR NEC Key Programmer with ESL Key Programmer is working with smart key (old and new) used since 1997 up to 2005 (without Keyless Go system).

You can program new key (or used one) in car and program own key if it can not work more.

Operation Steps:

1. Read and program EEPROM of CPU from steering blocking module via diagnostic connector (38 pins).

2. Desolder and read in programming tool two CPU from Electronic Ignition Control Module. Load these EEPROMs to program.

3. Desolder NEC CPU from the key. Solder it on the device, select the number of key and program it. Solder all CPUs back on their places and start the car.

Notice:

1. You can program new keys without the car - only with EIS and steering blocking modules.
2. You can read these CPUs with help of programming tool (for example: ETL) for Motorola CPU 68HC705X16(32).

Features:

1. Easy and convenient generator of microprocessor software dumps
2. Support of keys based on the NEC controller. Such as 0x28, 0x35, 0x40, 0x51, 0x57, 0x61, 0x71, 0x81, 0x229.
3. Ability to check status and proper operation of Electronic Steering Lock (ESL)
4. Ability to program ESL right on a car (No need to replace it)

Supported Models:

W202 (MC68HC05X32 x 2 controller)
W203 (MC68HC908AZ60 controller)
W208 (MC68HC05X32 x 2 controller)
W209 (MC9S12DG128 controller)
W210 (MC68HC05X32 x 2 controller)
W211 (MC68HC912DG128A controller)
W215 (MC68HC908AZ60 controller)
W220 (MC68HC908AZ60, MC68HC05X32 x 2 controller)
W230 (MC68HC908AZ60, MC68HC05X32 x 2 controller)
W639 Vito (MC68HC908AZ60 controller)

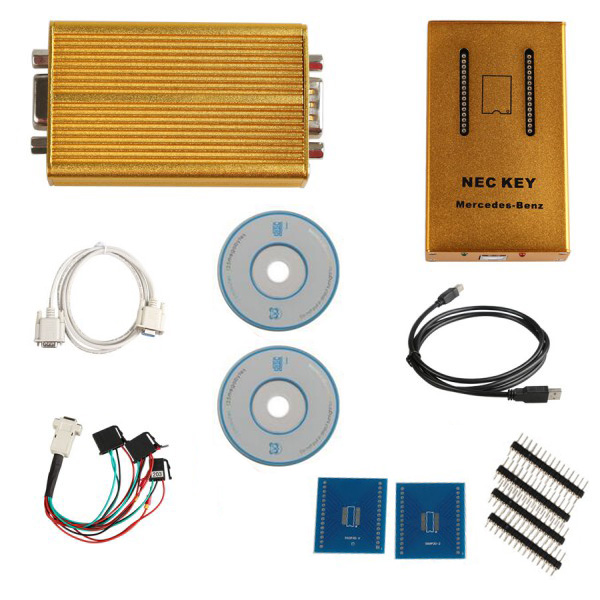

Packing List:

NEC Controller Programming Tool
ESL (Electronic Steering Lock) Programmer (via K-Line)
EEPROM Calculator (Calculator for microcontroller software dumps: EIS, ESL,  ESM)
Adapters to work with NEC Controllers (for soldering)
ESL 3 pin/4 pin/5 pin cable
RS232 cable
USB cable
Software CD
