Name: GQ-4X USB Universal Programmer



Description:



GQ-4X True USB Universal Programmer with complete new professional design. True USB PRO 40-pin Willem Programmer GQ-4X is the first & exclusive Willem universal programmer in the market.



The application-oriented & application-enhanced design facilitates GQ-4X supports thousands of most popular application devices (growing) and ideally suits the portable/convenient applications that includes: car automotive field ECU chip tuning, airbag reset, mileage, satellite devices, BIOS refreshing, motherboard BIOS in-circuit upgrade, xBox, Wii gaming machines EPROM duplicate, Altera Xilinx JTAG, PIC/MCU development, newer laptop technology and newer desktop PC etc.



It has outstanding performance which supports the devices that other similar products are not capable of supporting: such as 25LF SPI series, PSOP44,TSOP48, 25VF SPI series, Altera Xilinx CPLD JTAG, PLCC84,SST39VF3201, TE28F102, 27C1024, 27C1028,HD6475,29F800, 29LV800, 29F032...



Supported Languages: Chinese, Czech, English, French, German, Spanish, Portuguese



Supported OS: Windows XP 64bit; Vista 32bit/64bit; Windows7 32bit/64bit



Features:



1. Neat robust enclosure; 40pin ZIF socket, fully automatic; JTAG support; Fast mode SPI support;

2. Real True USB interface for both data transfer and power supply;

3. High speed/fastest; most-user-friendly; simplest-to-use;

4. Software updates regularly; free life-time software upgrade/download;



Key & Unique Features:



1. Complete new professional design with own robust enclosure and 40-pin ZIF socket



Neat rebust enclosure is designed to suit the portable and field convenient applications

40 pin of the ZIF socket supports more chips without adapter

First and only Willem programmer with 40pin ZIF socket, other models use 32pin ZIF

The software & hardware are Designed/developed by MCUmall Electronics Inc. Canada

Asembled in Canada and post-sales support by MCUmall Electronics Inc.



2. Fully automatic & no manual set-up needed (eliminate all jumpers & DIP-switch)



Fully automatic for efficient use and expends the programmer life time

Eliminates all jumpers on board, manual set-up for jumpers are no longer needed (all non-USB willem use jumpers: 16 jumpers on PCB5.0C, 48 jumpers on Willem 1.5)

Eliminate the on-board DIP switch, manual set-up for DIP switch is no longer needed.

This also makes much easier & very simple to use for end users.

Plug-and-play reduces the learning curve and save your precious time.



3. Fast mode SPI programming & JTAG support wider the application



Useful for motherboard BIOS in-circuit upgrade

Altera Xilinx CPLD JTAG support



4. True USB data transfer interface with PC/Laptop for newer laptop use as well as portable application



Uses only one USB cable to connect with PC/Laptop USB port for both data transfer and power supply. The bulky DB25 data cable is eliminated & no longer needed for data transfer between PC and programmer board

It is True/Real USB data transmission protocol (USB-USB), Not via Fake/Pseudo-USB data communication.

Fake/Pseudo USB data transfer needs the middle serial or parallel port conversion: USB-Serial-USB conversion or LPT-USB conversion, this limits the programming speed significantly.

GQ-4X features the same revolutionary data interface as GQ-3X, the True USB data transmission with PC/Laptop.



5. Exponentially speed increase up to 20 times faster



Connects PC via high-speed USB link, provides the fastest possible data transfer rates for programming/reading data from target IC's.

It is capable of being up to 20 times faster than other existing printer port Willem (parrellel LPT Willems: PCB6.xx,PCB5.0C,PCB4.5C) programmers on reading & verification a high density flash device, this significantly saves your time and increases work efficiency as well as facilitates small scale production

Assembly language written programming algorithms run fast and reliable. Not affected by the PC speed changes and Windows 0/S variations.



6. Dual power supply capability: USB port & AC/DC and automatic voltage control



Vcc supported among: 3.6V, 5V, 5.5V, 6.5V

On-Board MCU for stable performance & automatic/accurate voltage control

Works best among other programmers for EPROMs



7. The GQUSB software is especially developed for True USB Willem Programmers GQ-4X,GQ-3X, GQ-2X.



Free Life-time software download/upgrade, please click here for software revision history

Updates software and device algorithm regularly

Free IC device updates via web

Advanced software engineered to provide most user-friendly interface & simplest and easiest-to-use Willem programmer version to save time and confort to use

Programming history memory function on-board

Supports most popular ECU, Satellite, xBox, Wii, BIOS, EPROM chips: SST39VF3201, TE28F102, 27C1024, 29F800, 29LV800...

Supports the chips that LPT Willem are not capable of supporting, like 24RF08, 28F102, 87C257 and more

Supports TSOP48, PSOP44, 16bit EPROM chips that 40 pin TOP, EasyPro, Wellon are not capable of supporting

Supports 25LF SPI series, 25VF SPI series, Altera Xilinx CPLD JTAG, PLCC84, 29F032...

Allows end users add in their own chips/devices easily (editing .txt file)



8. Working with the adapters further expands the supported devices list



Accommodate the existing adapters (GQ-3X/2X and parallel LPT Willem adapter)

Packaging supported: TSOP48 (16bit & 8 bit), TSOP32, PSOP44, DIP8 to DIP40, PLCC, SOP, SOIC, MCS-51+, PLCC84, and etc.



9. Covers the widest application areas amount all Willem programmers



Car/automotive ECU chip tuning, airbag reset, mileage, memory device code read/write/program

Satellite large capacity device applications

On-spot/Field/portable applications & Small scale production

Motherboard BIOS in-circuit upgrading

xBox, Wii gaming chip refreshing & upgrading

PIC & MCU programming & development

Duplicate EPROM chips & Game machine repairing

Copier/Fax machine/printer main board repairing

VCD, DVD, color TV maintaining& repairing



10. Programmers Comparison



True USB Programmer series GQ-4X versus GQ-3X versus. GQ-2X

True USB Programmer versus other Willems PCB4.5C/5.0C/5.0E and PCB5.5C

True USB Programmer versus other brands: 40pin TOP, EasyRPO, Wellon



Packing List:

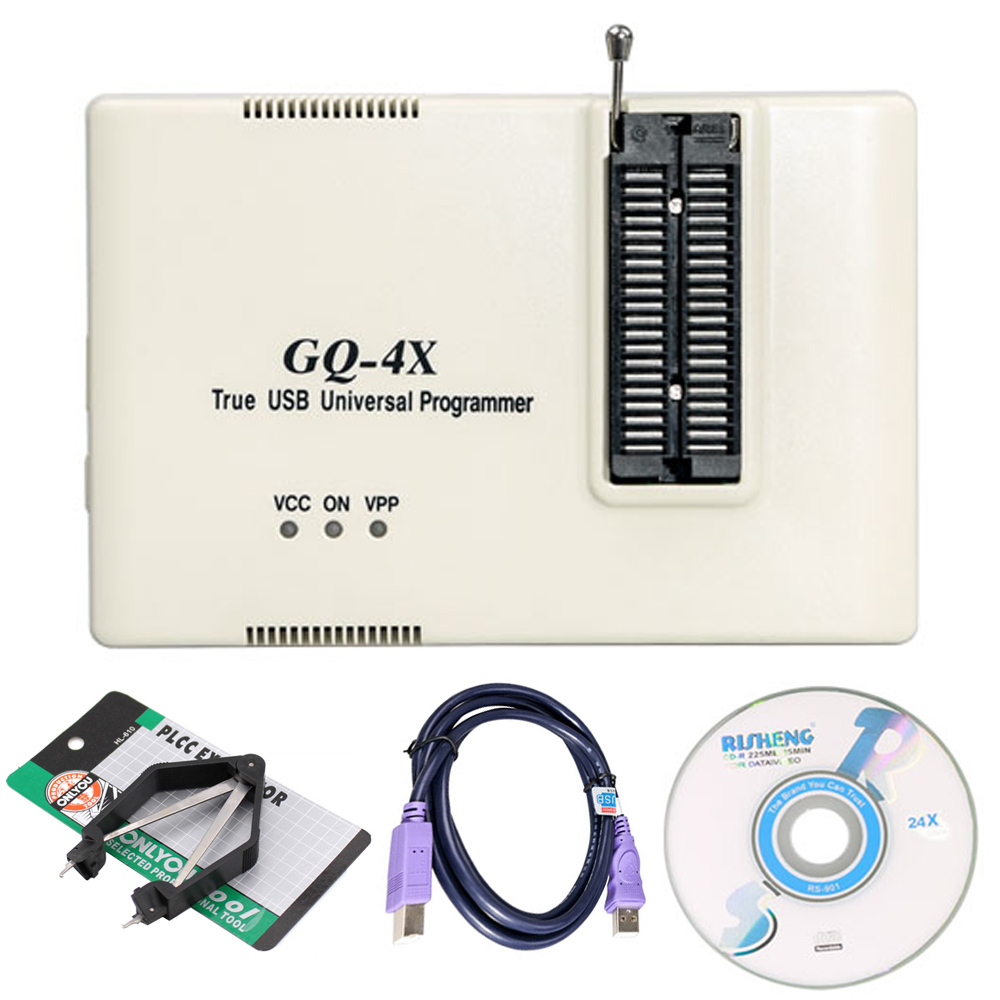

GQ 4X True USB Universal Programmer with high quality 40-pin ZIF socket

USB cable (for both power supply and data communication)

PLCC IC extractor

CD with latest GQ USB Prog software & PDF manual

Packing box
