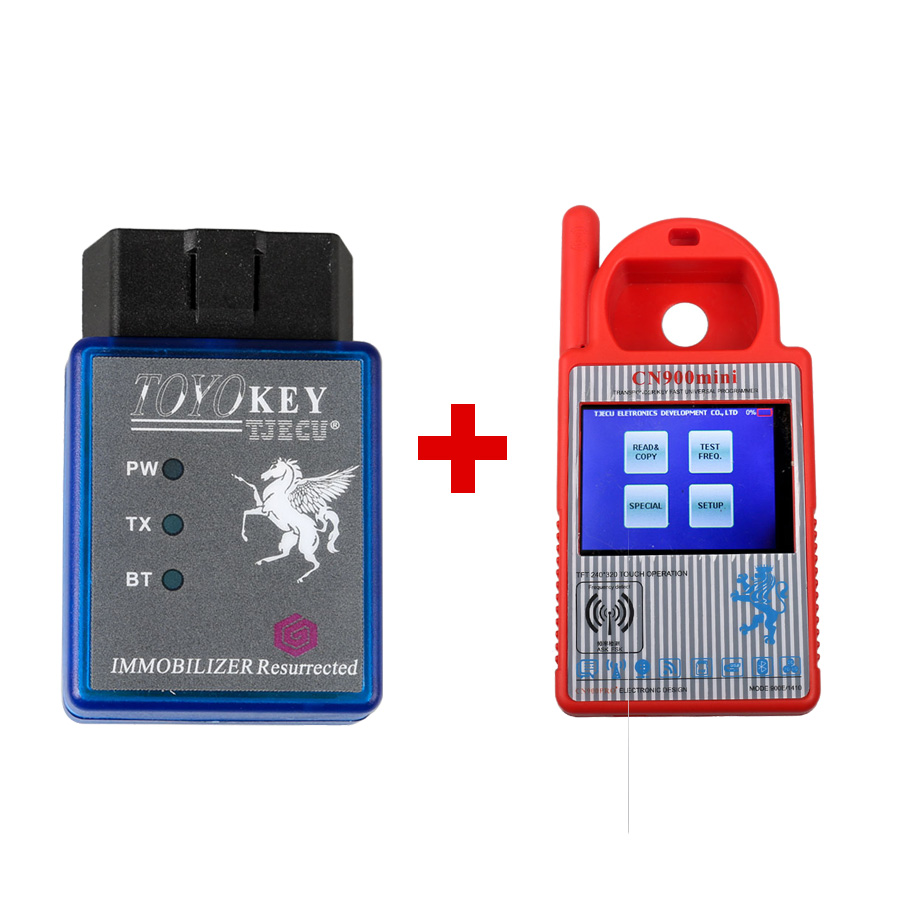

Name: Mini CN900 Transponder Key Programmer Plus TOYO KEY OBD-II Key Pro for 4C 46 4D 48 G H Chips

Description:

1. Can directly copy 4C and other chips like Toyota 4D67.
2. Supports to copy 4D chips.
3. Can recognize locked ID48 and can unlock ID48.
4. Supports to copy 46 chips.
5. Supports 72G chip.

Features:

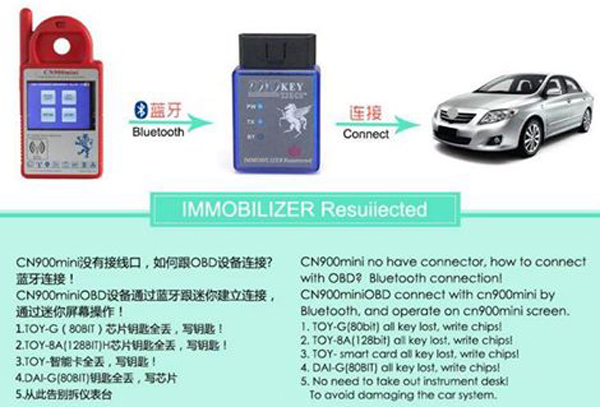

1. TOYO-G(80bit) all key lost, write chips!
2. TOYO-8A(128bit) all key lost, write chips!
3. TOYO-smart card all key lost, write chips!
4. DAI-G(80BIT) all key lost, write chips!
5. No need to disassemble the dashboard and avoid the car system damage.

Highlights:

RFID identify 125KHz 134.2KHz 13MHz
RF data reception 27-900MHz
RF radio frequency identification, supports all kinds of remote controls
RF Data transmission, supports all kinds of remote control simulation test
Various types of vehicle anti-the fault detection, matching detection
Super long standby time
Supports 4 kinds of frequency 850/900/1800/1900MHz
GSM/GPRS SIM
USB 2.0
Bluetooth 4.0

CN900 Mini can use CN5 Chip to copy Toyota G Chip and 4D Chip.

Notice:

It requires token to copy Toyota G Chip, CN900 Mini has 12 tokens as default for G Chip, when you use it up, you can contact us to recharge another 12 tokens for free. And for the more tokens in future, you need to pay.)

TOYO KEY can program new key on:
Toyota ID72(G) all key lost
Toyota 8A(H) all key lost

In the coming days, TOYO KEY is able to program key on:
Toyota smart card all key lost
VW Audi 48 chip all key lost

Example:

TOYO with G all key lost, how to program new key by TJECU CN900 Mini and Bluetooth TOYO Key OBD II Key Pro?

Step 01: Program new key and then turn on ignition, then plug TOYO KEY OBD into the car.
Step 02: Use the option 72G of CN900 Mini to connect, then start to initialize data, the IMMO indictor is on for a long time, then follow the CN900 Mini prompt menu to operate.
Step 03: When it prompts “Complete/ Success”, then the IMMO indicator is on for a long time again.
Step 04: Turn on and off ignition for 5 times quickly, IMMO indicator is off. Done.

How to activate TOYO KEY OBD-II to work with CN900 Mini in order to Program Toyota G Key?

Before programming Toyota G all keys lost, you need to activate and register TOYO KEY OBD-II with CN900 Mini.

To use TOYO KEY OBD2 KEY Pro with CN900 Mini/ND900 Mini, you are required to update CN900 Mini/ND900 Mini to the newest version 1.20.2.15.

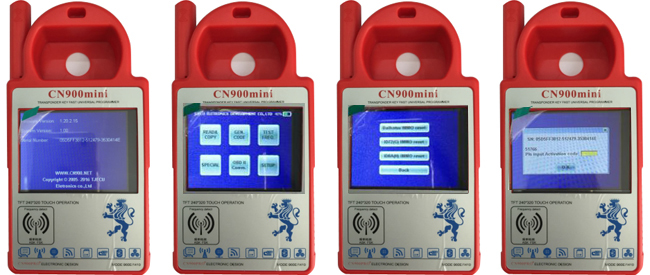

Step 01: Connect CN900 Mini to PC, and updated to Version 1.20.2.15, then back to CN900 main menu and click “OBD II Comm.”
Step 02: Click “ID72(G) IMMO reset”.
Step 03: CN900 Mini main menu display serial number and asks for activation code. Please take a photo of this and send to your seller for getting activation code for registration.

Notice:

One activation code just can register only one CN900 Mini machine, please operate according user manual. If user does not operate in accordance with the instructions, it may cause machine damage problems, and user has to undertake the cost of freight and maintenance.

Packing List:

Mini CN900 Car Key Programmer
TOYO KEY OBD2 KEY Pro
