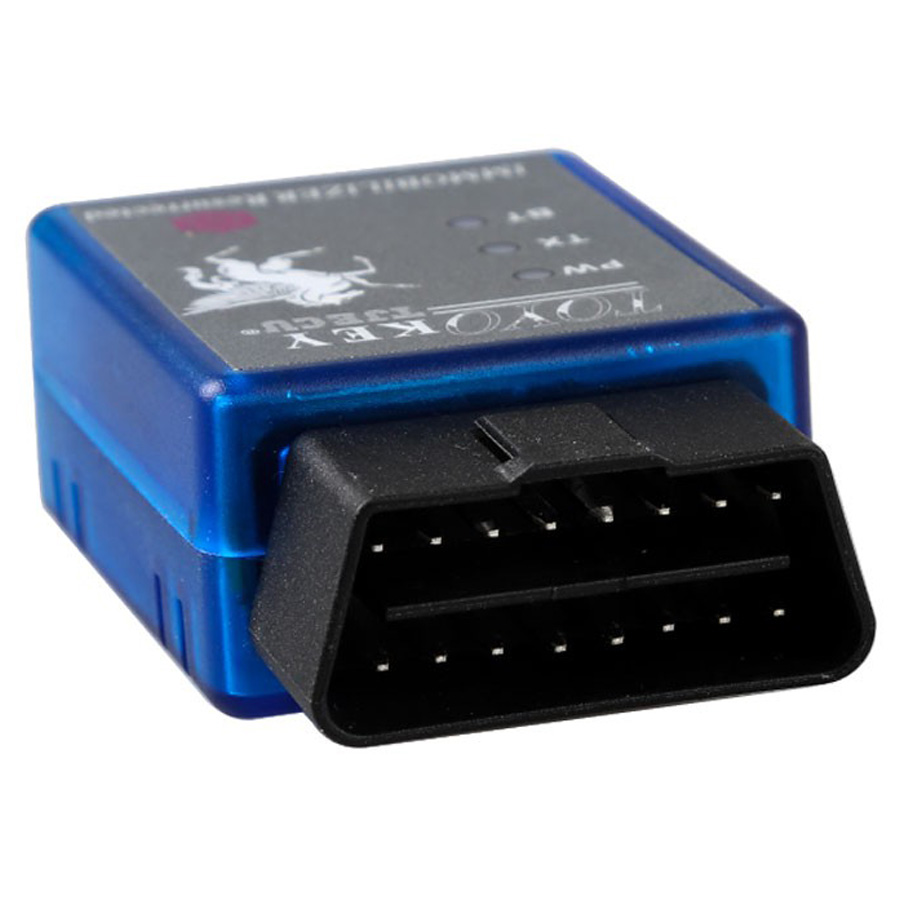

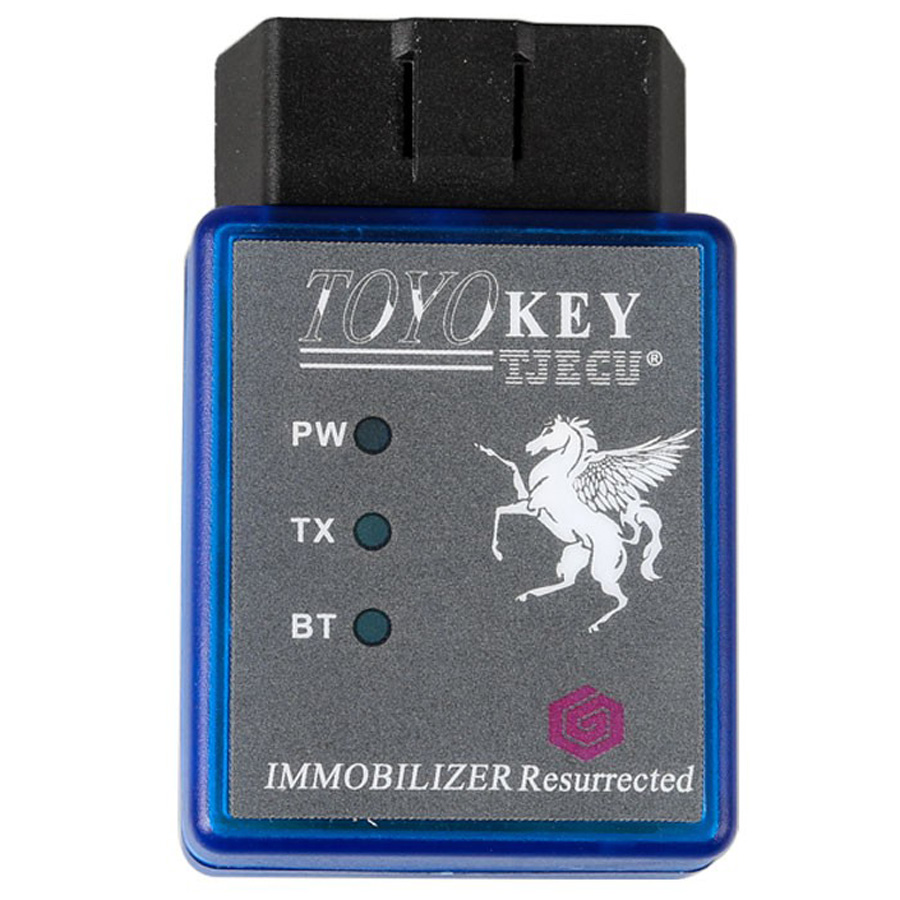

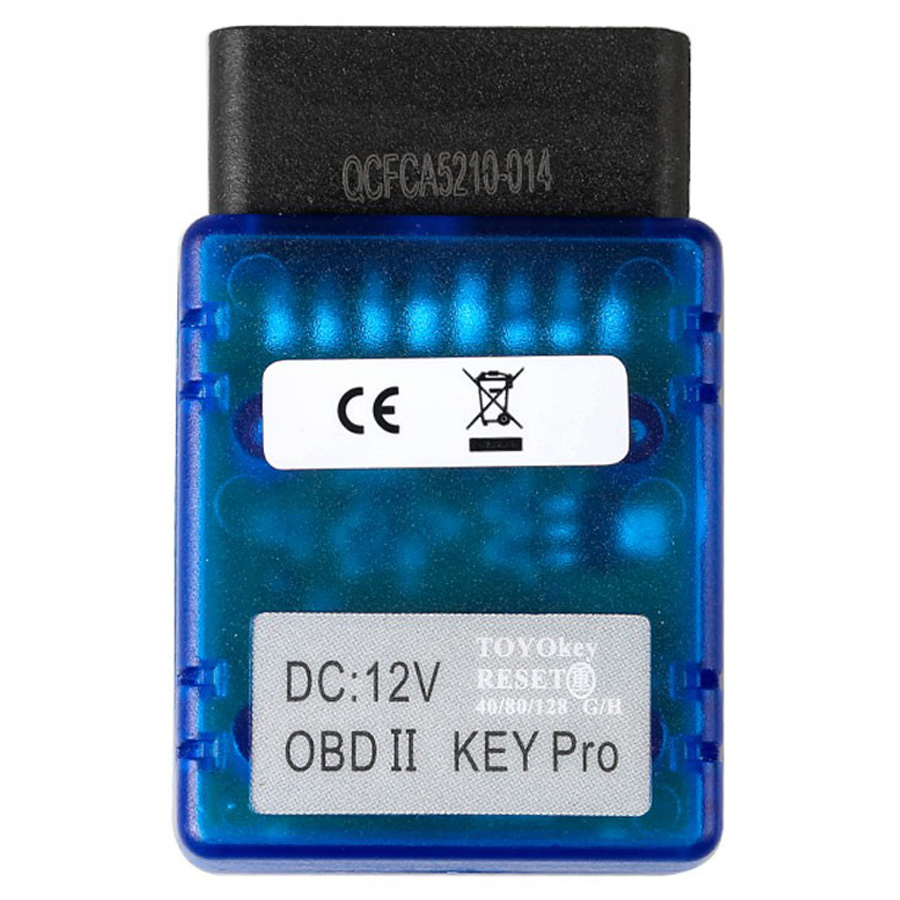

Name: TOYO KEY OBD-II KEY Pro Supports Toyota G and H All Key Lost

Description:

TOYO KEY OBD II KEY Pro supports Toyota G & H all key lost works with Mini CN900 & Mini ND900.

Features:

1. TOYO-G(80bit) all key lost, write chips!
2. TOYO-8A(128bit) all key lost, write chips!
3. TOYO-smart card all key lost, write chips!
4. DAI-G(80BIT) all key lost, write chips!
5. No need to disassemble the dashboard and avoid the car system damage.

TOYO KEY can program new key on:

Toyota ID72(G) all key lost
Toyota 8A(H) all key lost

In the coming days, TOYO KEY is able to program key on:

Toyota smart card all key lost
VW Audi 48 chip all key lost

Example:

TOYO with G all key lost, how to program new key by TJECU CN900 Mini and Bluetooth TOYO Key OBD II Key Pro?

Step 01: Program new key and then turn on ignition, then plug TOYO KEY OBD into the car.
Step 02: Use the option 72G of CN900 Mini to connect, then start to initialize data, the IMMO indictor is on for a long time, then follow the CN900 Mini prompt menu to operate.
Step 03: When it prompts “Complete/ Success”, then the IMMO indicator is on for a long time again.
Step 04: Turn on and off ignition for 5 times quickly, IMMO indicator is off. Done.

How to activate TOYO KEY OBD-II to work with CN900 Mini in order to Program Toyota G Key?

Before programming Toyota G all keys lost, you need to activate and register TOYO KEY OBD-II with CN900 Mini.

To use TOYO KEY OBD2 KEY Pro with CN900 Mini/ND900 Mini, you are required to update CN900 Mini/ND900 Mini to the newest version 1.20.2.15.

Step 01: Connect CN900 Mini to PC, and updated to Version 1.20.2.15, then back to CN900 main menu and click “OBD II Comm.”
Step 02: Click “ID72(G) IMMO reset”.
Step 03: CN900 Mini main menu display serial number and asks for activation code. Please take a photo of this and send to your seller for getting activation code for registration.

Notice:

One activation code just can register only one CN900 Mini machine, please operate according user manual. If user does not operate in accordance with the instructions, it may cause machine damage problems, and user has to undertake the cost of freight and maintenance.
