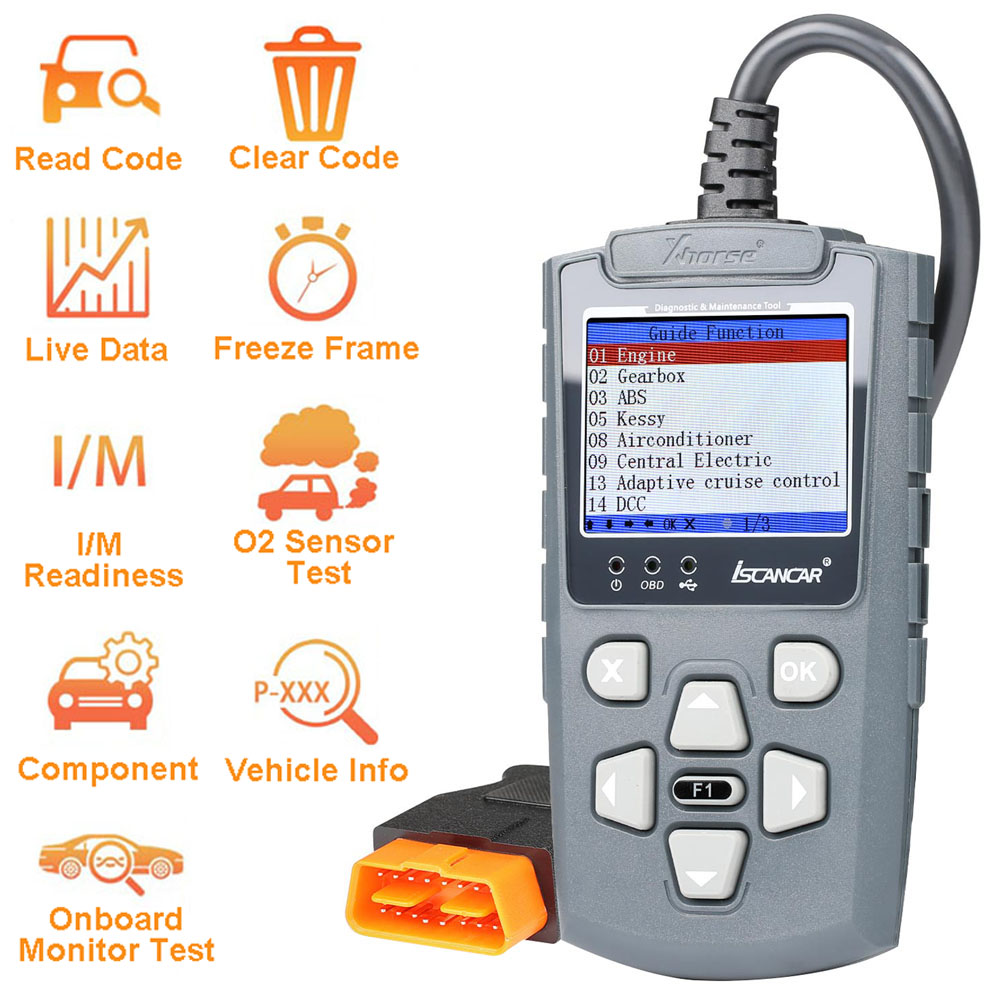

Name: XHorse ISCANCAR VAG MM-007 Diagnostic and Maintenance Tool

Description:

XHorse ISCANCAR VAG MM007 Diagnostic and Maintenance Tool for VW Audi Skoda Seat supports Offline Refresh.

Functions:

1. Support all used accessories replacement for VW, Audi, Skoda, Seat, and Offline Refresh all module parameters, no need to be online.

2. Basic Function:
Support controller diagnostic, such as basic setting, channel adaption, read DTC, clear DTC, system login etc.

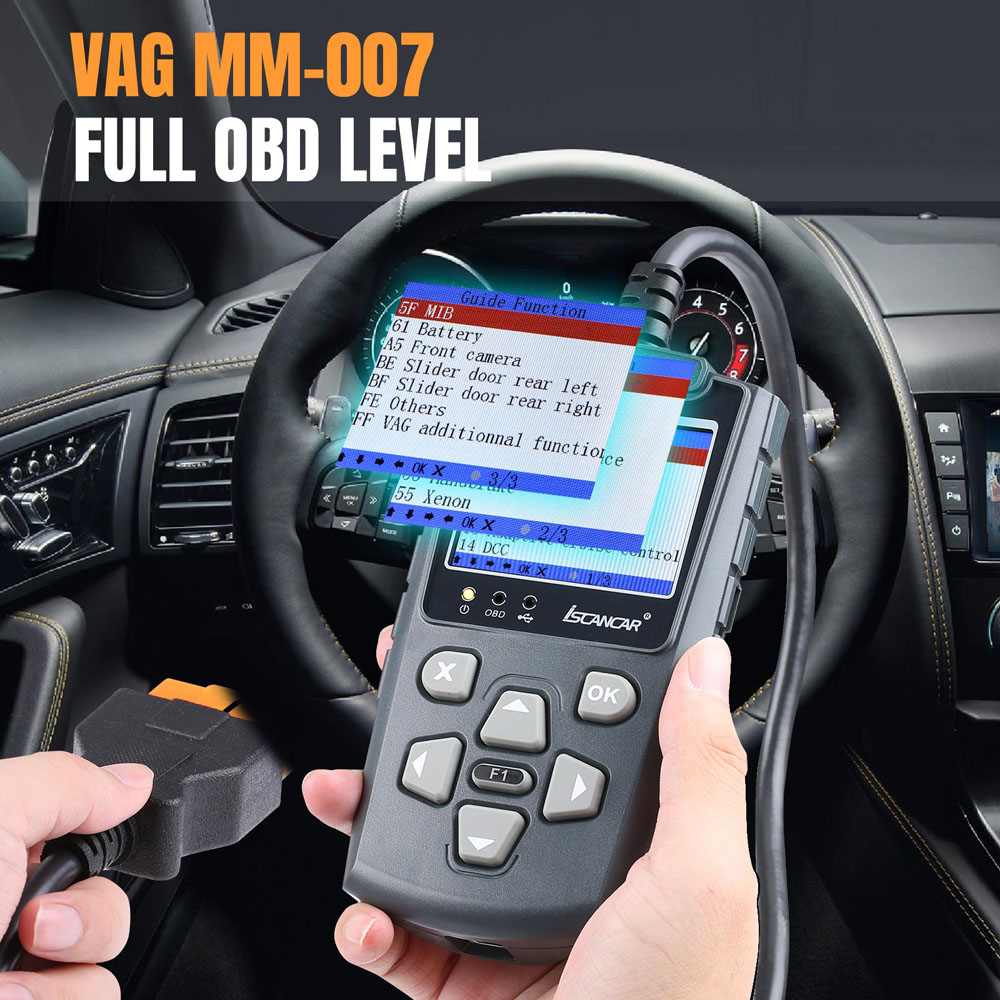

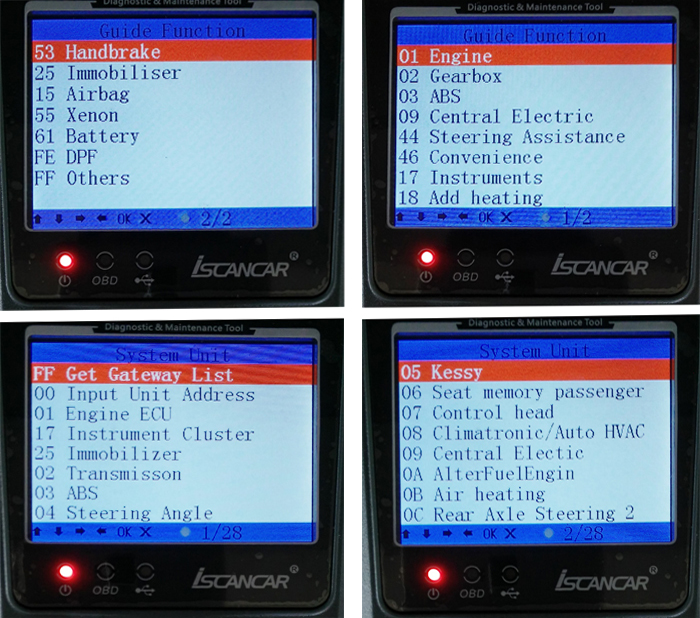

3. Guide Function:
There are many commonly used functions. We have simplified the process so you can follow more easily.

4. Special Function:

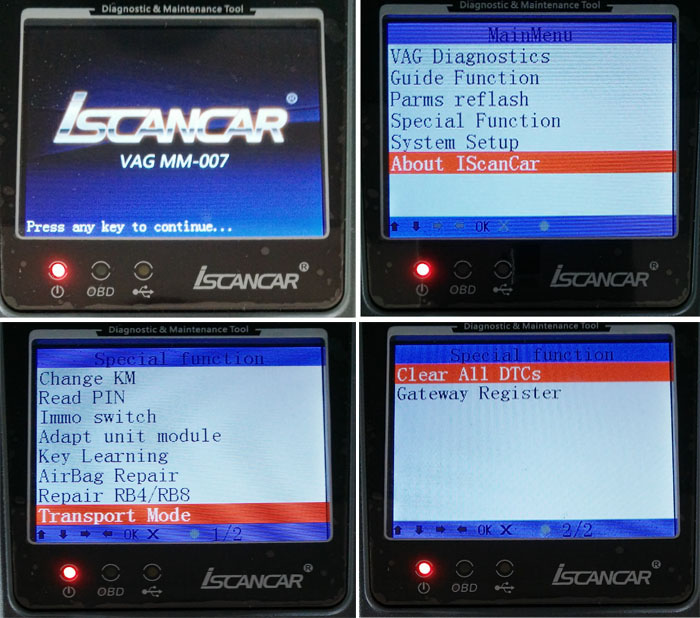

Change VIN, read pin, IMMO switch, adapt unit module, key learning, fix Audi RB4/RB8 not start, transport mode, sync dashboard time, clear all DTCs and gateway register.

5. Supported Modules:

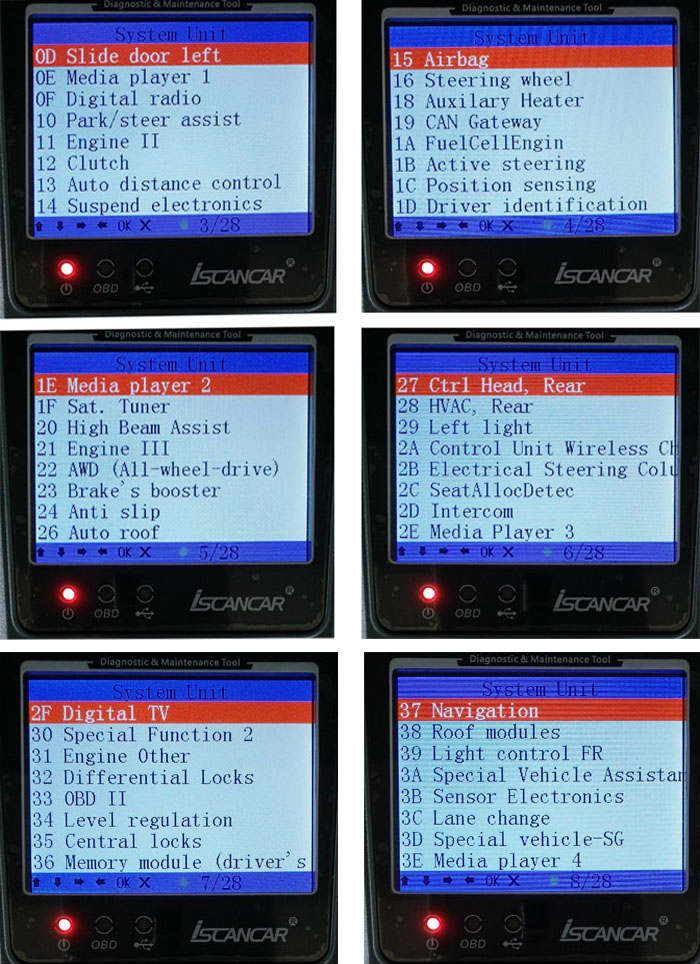

Kessy Entry and Start Permission, BCM Electronic Control Unit, Parking / Steering Assist, ACC Automatic Distance Control, DCC Electronic Control Suspension, Gateway, Sound System, Infotainment System, Xenon Headlamp, Tire Pressure Monitoring, Driving Auxiliary Camera and other 28 kinds of modules, with nearly 500 kinds of parameters file.

6. Write Data Record:
When replacing new controller, you must write data record online or the controller will not work correctly. Now you can use this diagnostic tool to write data record offline. And you can active some functions like MKE, etc.

Examples for Writing Data Records:

1). PQ35 gateway 7N0907530AN: active MKE. after writing data record, you can set MKE on dashboard.
2). MQB gateway 5Q0907530AJ: active MKE. after writing data record, you can set MKE on dashboard.
3). PQ35 replace Kessy 5K0959434B: before writing data, there’s a DTC “no basic setting”, the car can’t find keys. After writing data the DTC disappear, the car can find keys.
4). MQB replace Kessy 5Q0959435A: before writing data, there’s a DTC 10478040(invalid data record), the car can’t find keys. After writing data the DTC disappear, the car can find keys.
5). MQB front camera 5Q0980653G: before writing data, there’s a DTC 0649 (invalid data record), after writing data the DTC disappear.
6). MQB new ACC 5Q0907561A: before writing data, there’s a DTC” invalid data record”, after writing data the DTC disappear.
7). PQ Xenon 5M0907273F: before writing data, there’s a DTC 10478040 (invalid data record), after writing data the DTC disappear.
8). PQ tire pressure monitor 3AA907273D: before writing data, there’s a DTC 12652550 (invalid data record), the controller don’t work, after writing data the DTC disappear, you can set tire pressure on the dashboard.
9). MQB new DCC 5Q0907376: before writing date, there’s a DTC 813056 (invalid data record), after writing data the DTC disappear.
10). MQB parking assistance 5Q0919298K: before writing data, there is a DTC 10478040 (invalid data record), after writing data the DTC disappear.

7. Essential Function of Refitment and Maintenance:
Many functions are very useful for refitment and maintenance, such as controller replacement, throttle adaptation and EPB replace brake pads. In addition, further functions will be added continuously.

8. Built-In Database:
There is a built-in database in the diagnostic tool. Users can write data record without online account. It has already supported many controllers, and more data will be continuously added.

9. Online Upgrade:
VAG-MM007 can be upgraded on Internet.

10. Technical Support:
XHorse technical support team is professional and efficient, online technical support for free. Provide lifelong after-sale perfect service guarantee customer trouble free operation of machine.

11. Newly Add MQB Mileage Correction Function

Specifications:

Voltage: 5V USB / 12V OBD
LCD Resolution: 320*240
USB Standard: USB 2.0
Working Temperature: 0 to 60 degree centigrade
OBD Cable Length: 1.5M
Power Consumption: 80mA/12V

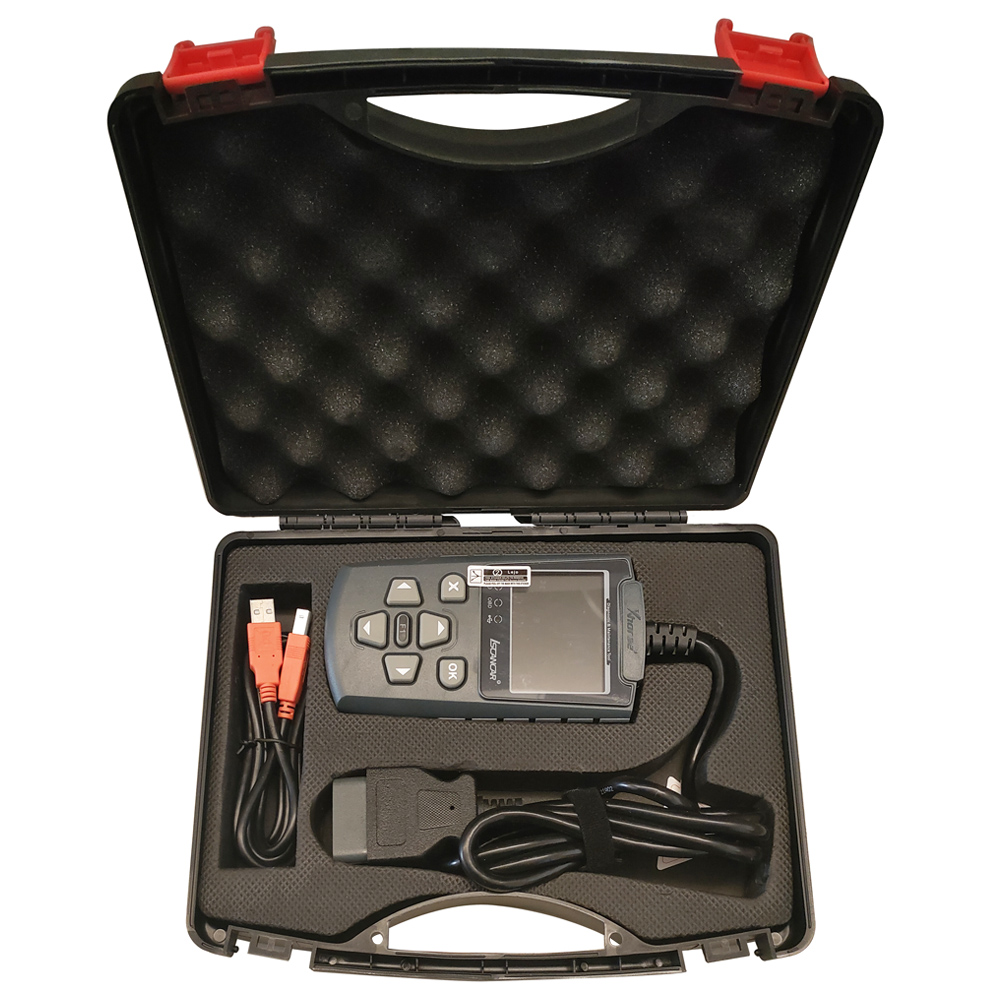

Packing List:

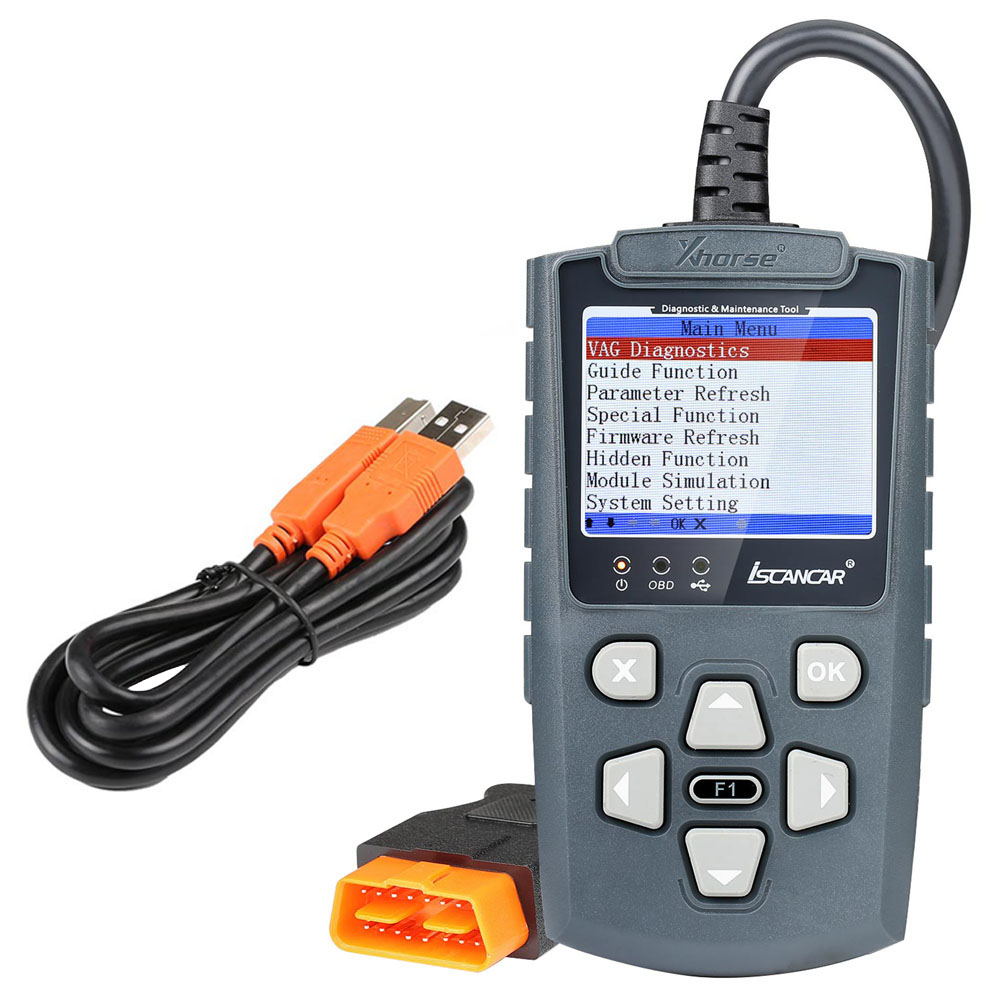

XHorse ISCANCAR VAG MM-007 with OBD2 Cable
USB Cable

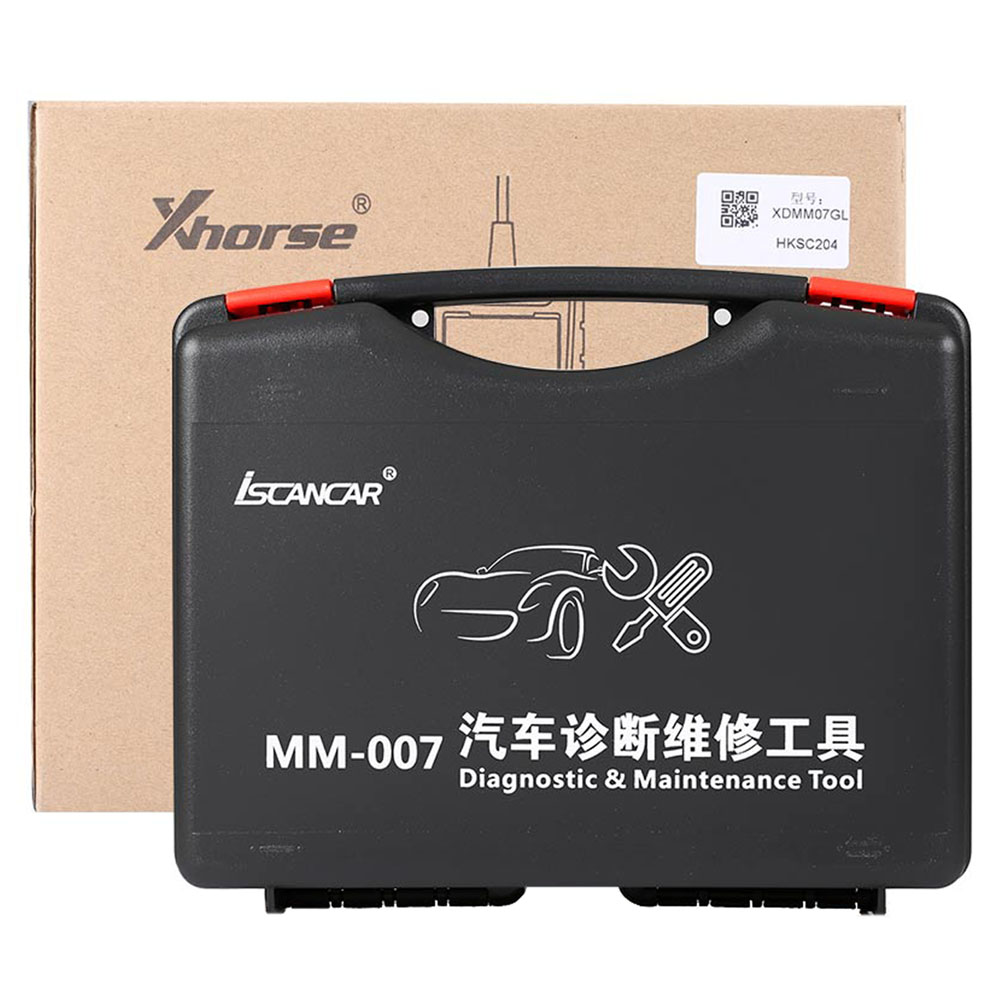

Plastic Toolbox
Packing Box
