Name: Renault CAN Clip with Chip AN2135SC AN2136SC

Description:

Best Quality Renault CAN Clip V195 with full chip AN2135SC AN2136SC.

Advantages:

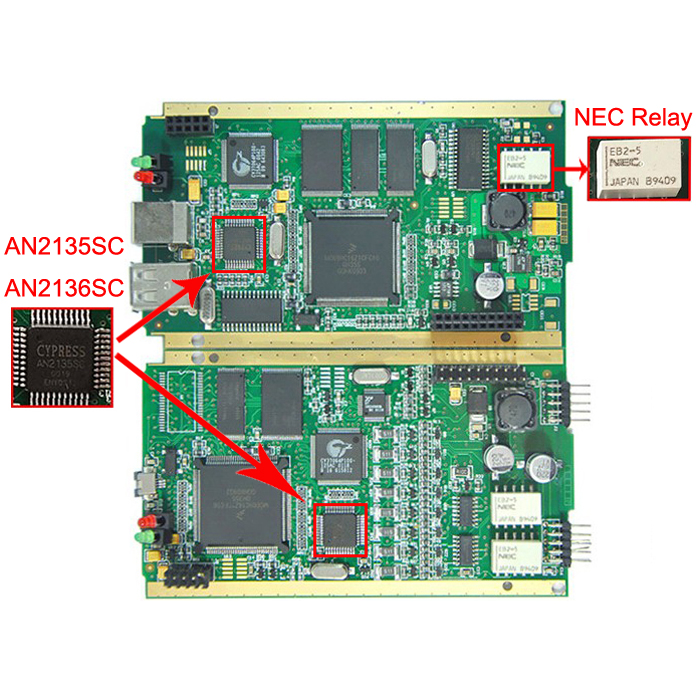

This high quality Renault CAN Clip comes with chip CYPRESS AN2135SC or CYPRESS AN2136SC for more stable performance and a longer life.

Supported OS: Windows XP / 7

Support Languages:

English, German, Danish, Spanish, Finnish, French, Italian, Norwegian, Dutch, Portuguese, Romania, Swedish

Functions:

1. See all the information related to the vehicle
2. Computer test
3. Automatic test of all computers
4. Airbag test
5. Scantool (OBD tests)
6. Base Doc (access to Technical Notes)
7. Physical measurements
8. Antipollution
9. Multimeter

System Coverage:

Engine
Automatic Gear Shifting
Air Conditioning System
SRS
ABS
ASR
MPL
GM
IMMO
KEYZESS GO System
OBD-II
…

Frequently Asked Questions:

Q1: CAN Clip for Renault all four indicator light flash, but when I enter the diagnosis menu, the CAN indicator light off and can not establish connection, while the other three lights go on flashing. What should I do?
A1: Try to diagnose K-line protocol car, if it works, but can not diagnose CAN BUS car, you may return it back to us for checking.

Q2: How can I change English into French?
A2: When install the CAN Clip Renault software, you can select the French, but after you complete installation you cannot change the language. So, you have to uninstall the software and reinstall it, during installation, select language French.

Q3: I try to open CAN Clip CD in several different computers, nothing in the CD.
A3: Check whether it has the carving trace at the back of CD, or if the CD Boot Sector is broken.

Q4: Connected to the car and four lights are lit prompted for this content: 5800 window, units of measurement appear 104 Error 5800: Please check the power supply is connected, the normal connection indicator light red flashes. If it is any problem of these two situations: reconnect, wait about 10 seconds before verification.
A4: Please follow the next two instructions to solve the problem:
1) The installed software can not run in your computer system stably, there is no communication between the software and the device.
2). the computer USB interface does not work, try to use another one.

Q5: Does CAN Clip for Renault support analyze and test the status of Renault Megane II 2003 year up, and test the switch of electric windows?
A5: Yes, it can do.

Q6: Can it do my car Renault 1995? Thanks.
A6: Yes, it can do Renault cars before 1996, but please tell me your car information in details, and then I can check for you!

Q7: I try to install the CAN Clip software on different computers, but it always shows me this error reading “SPX CLIP Registration Client”.
A7: Please follow our install video or PDF instruction to correctly step-by-step install the software, and also install the software on the computer with Windows XP operation system, better American English Professional version system.

 Q8: Does Renault CAN Clip work with Renault Megage 2 Phase 2 2008-2010? Can it read out and set wheel valve information? Can make key and support wiper blade?
 A8: Renault CAN clip only support diagnosing, it can not make key.

Q9: When I try to program with Renault CAN Clip, no communication, what is the problem?
A9: Renault CAN Clip supports only diagnosis. It does not support programming.

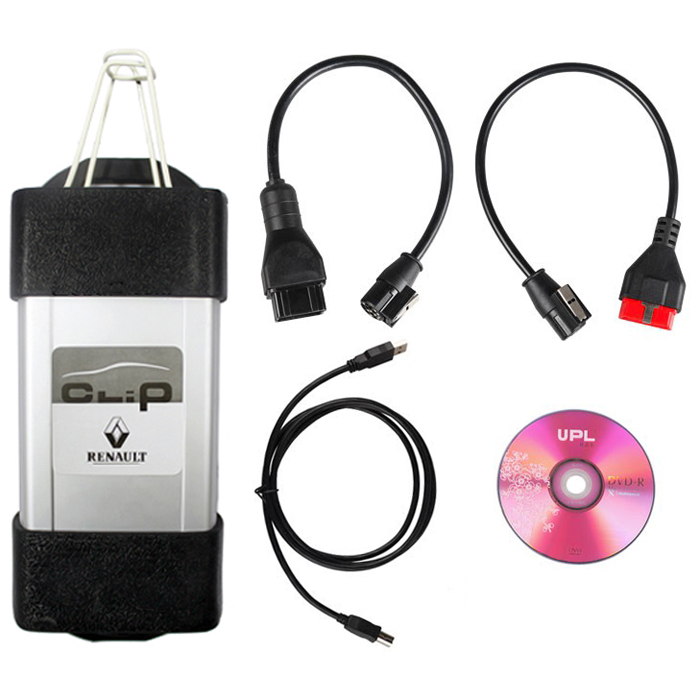

Packing List:

Renault CAN Clip
12-pin diagnostic cable
OBD-II 16-pin diagnostic cable
USB cable
Software CD
