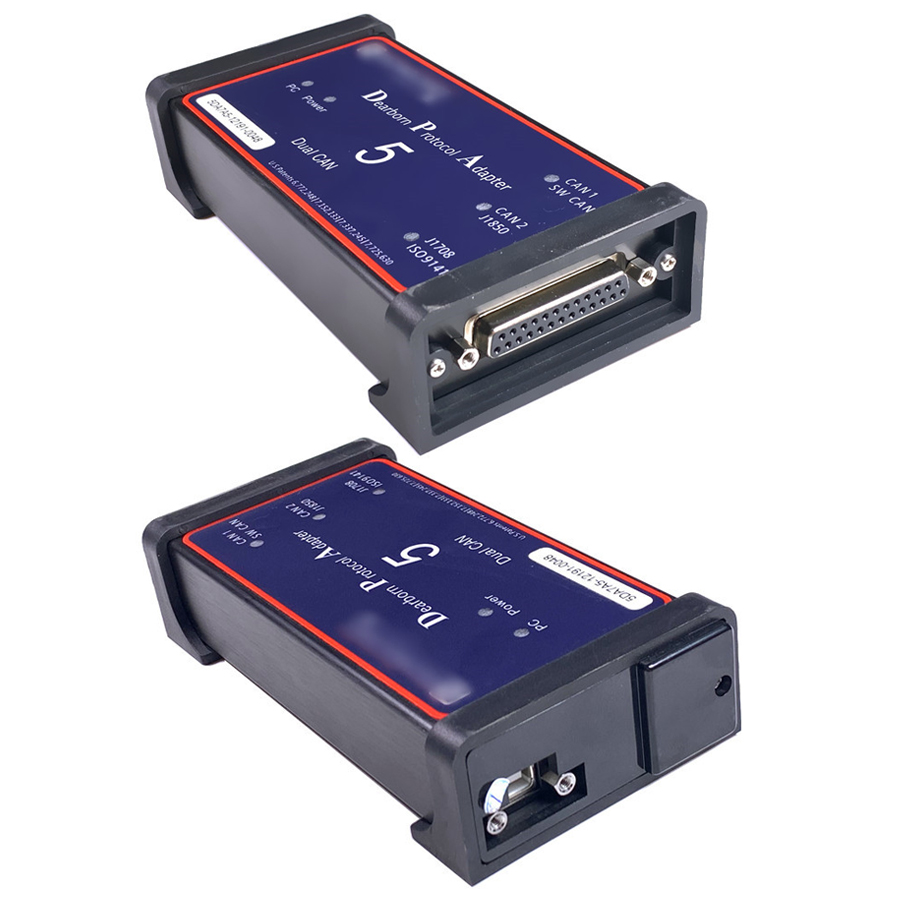

Name: DPA5 Heavy Duty Truck Scanner
Description:
DPA5 Dearborn Protocol Adapter 5 is designed to help manufacturer diagnostic the fault of trucks, trailers, buses and light commercial vehicles. It covers multiple systems and widely used.
Dearborn Protocol Adapter 5 is a professional tool for the maintenance of the commercial vehicle manufacturers. It covering all critical systems including engines, transmissions, brake warning device, comfort, safety, emissions, air suspension, trailer and maintenance, to provide in-depth functionality for each application. It is based on the DS tool technology, it can use for the following hardware platforms: PC, Pocket PC (PDA) or notebook (UMPC, also known as Ultra Mobile PC), and provide information update for customers by regularly upgraded the supporting software.
Heavy-Duty Truck Diagnostic Applications:
1. Volvo Truck: FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6, FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12 , F16, NL10, NL12,
VOLVO BUSES: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY
2. Volvo Bus: B12B, B12M, B12R, B6R, B7L, B7R, B9L, B9R, B9S, B9TL, PREVH, PREVX,
3. Mack Truck: V-MAC I, V-MAC II, V-MAC III, V-MAC IV, Service Diagnostic
4. Volvo Construction Equipment (CE):
Wheel Loader:
L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F, L60E, L60F, L70E, L70F, L90E, L90F
Articulated Hauler:
A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D,
Excavator:
EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B, EC360C, EC460B, EC460C, EC700C, EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B, EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611
Grader:
G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 , G970, G976, G990
5. Navistar: ALL Diamond Logic Builder (DLB) ServiceMaxx
6. International: ALL Intune, MD32,
7. Freightliner: ALL ServiceLink: Cascadia, Century, Columbia, Coronado, classic, FLDSD, 4900FA, 4900SA, 4900EX.
Engines:
1. Detroit Diesel Diagnostic Link™ (DDDL)
All DDEC VI equipped engines ,
DD13, DD15, DD16, SERIES60, MBE4000, MBE900 and RS9, RSX9-A, RSX9-B, RSX9-R, RS10, RSX10 J1939 engine brake level for Series 2000 and 4000 Engines with USA and ISO firing order selection
2. Caterpillar (on high way engine for j1939)
3126, 3406, 3306B, 3512C, C4.4, C6.6, C7, C9, C11, C13

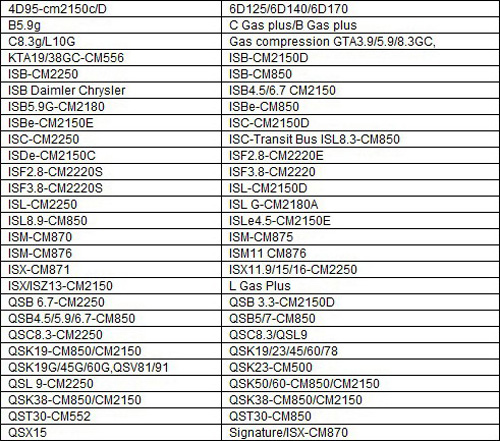

3. Cummins INSITE7.6 / Insite7.5

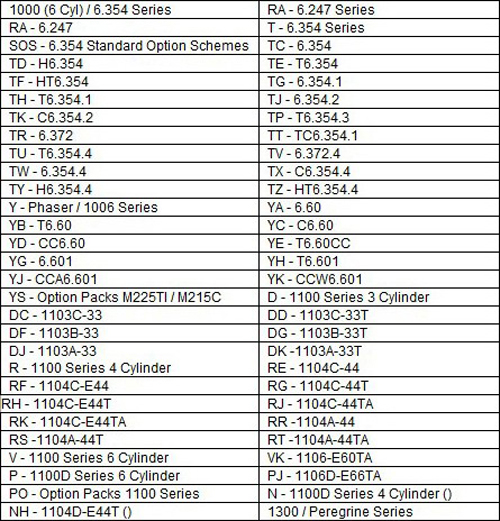

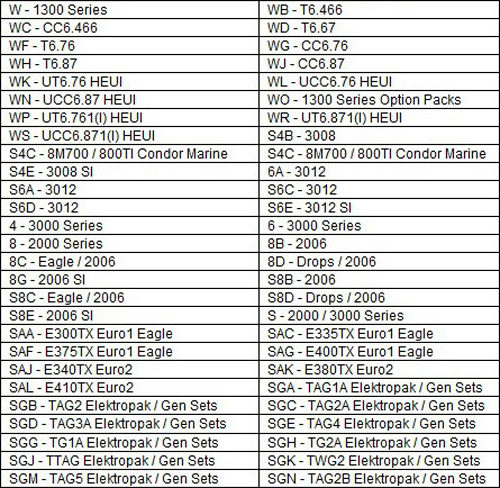

4. Perkins Engines
Transmissions Brakes:
1. Meritor WABCO toolbox
D and E Versions, HABS, hpb, ESC, RSC, ECAS
2. Bendix ACom Diagnostics
EC-17T, Generation 4 and 5, EC-30T, EC-60T (standard, premium and advanced), A-18T,MC-30T and the trailer antilock braking TABS-6 unit
3. Meritor ZF
4. Eaton Service Ranger
Vorad VS-400 Collision Warning System
Generation 2 Auto shift and Ultra shift Transmissions
Generation 3 Auto shift and Ultra shift Transmissions
Ultra Shift PLUS Transmissions
Lightning Transmissions
Hybrid Drivetrain Systems
5. Allison DOC
Allison1000,2000,3000,4000,
Cec2-5610,6610,8610,9610
CEC-MTB600,CLBT-V,HT700,B700
CEC-5,CEC-6,CEC-8,CEC9000
Supported OS: Windows XP, Windows 7 32/64bit, Windows CE
Protocol Coverage:
CAN - J1939/CAN125/CAN250/CAN500/CAN1000
2nd CAN - J1939/CAN125/CAN250/CAN500/CAN1000
J1587/J1708 J1850 J2534
ISO 15765 (Diagnostic CAN)
ISO 14230 (KWP2000 over ISO9141) ALDL ATEC 160 (160 baud)

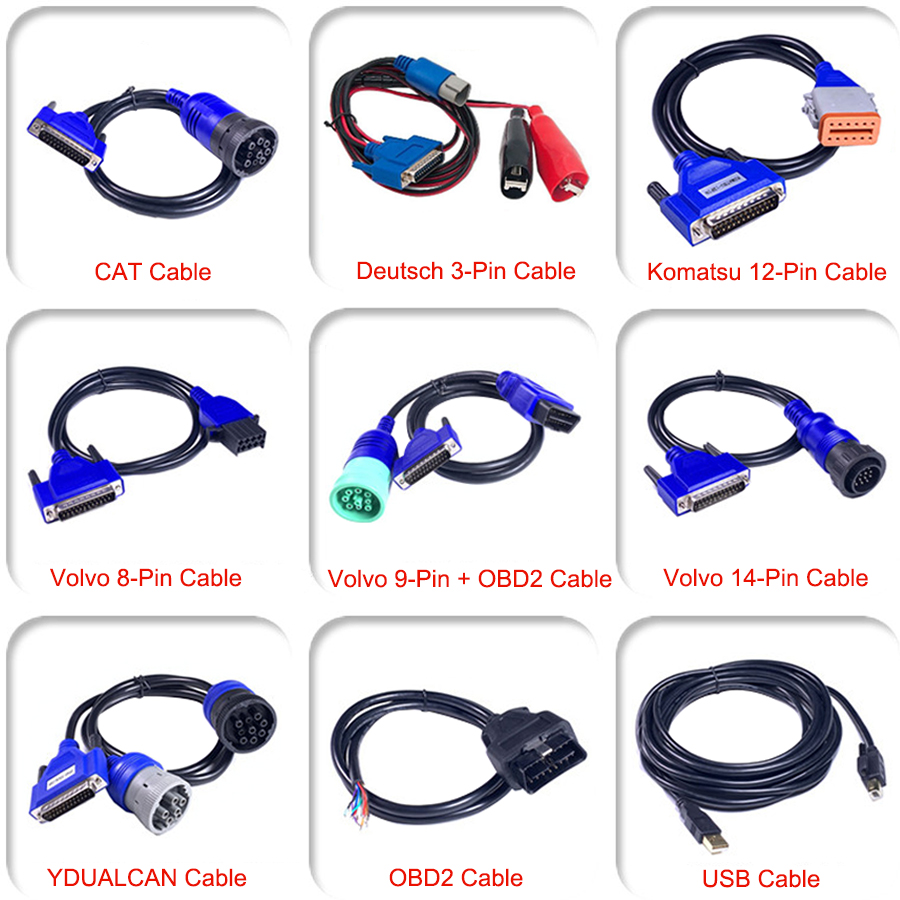

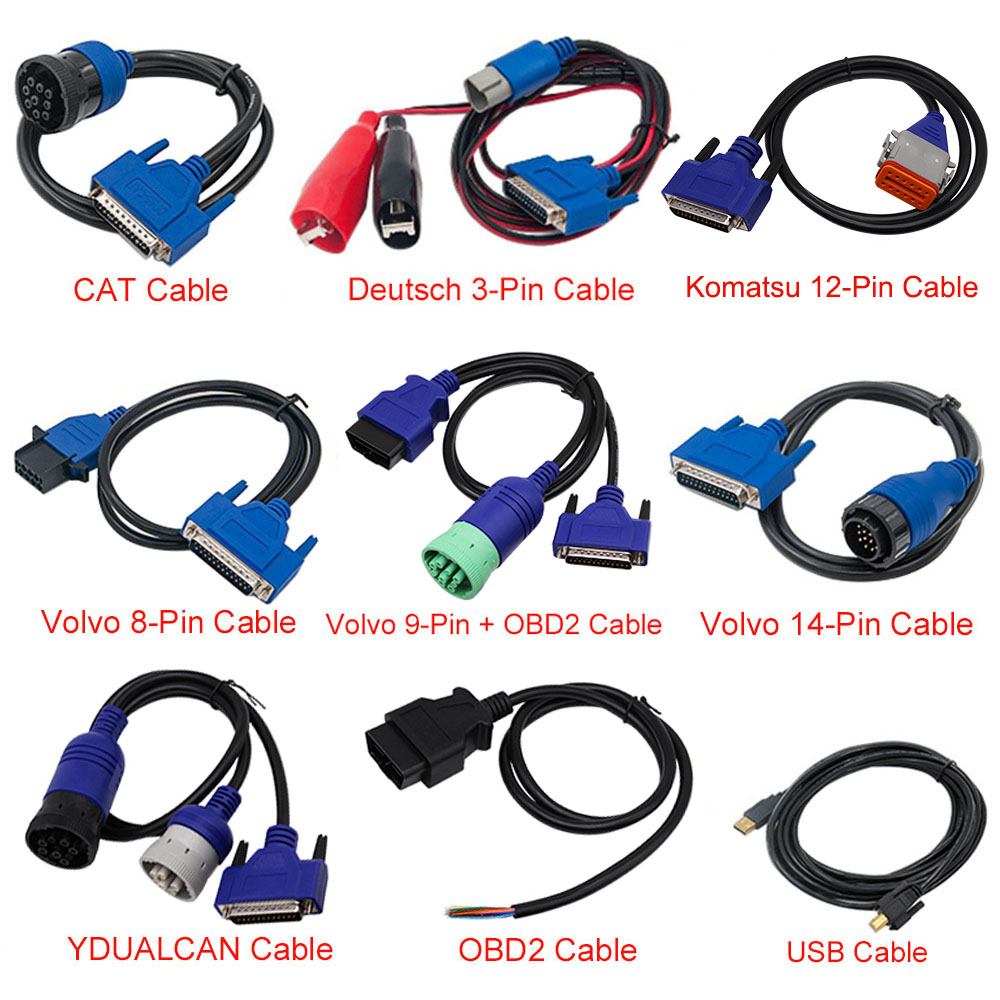

Cables and Accessories:
DG-DPA5-YDUALCAN
DG-DPA5-CAT
DG-DPA5-9OBD-II_Volvo
DG-DPA5-VOLVO 8PIN
DG-DPA5-VOLVO 14PIN
DG-DPA5 KOMATSU
DG-DPA5-3PIN_Deutsch
DG-OBD2-Cable
DG-DPA5-15USB

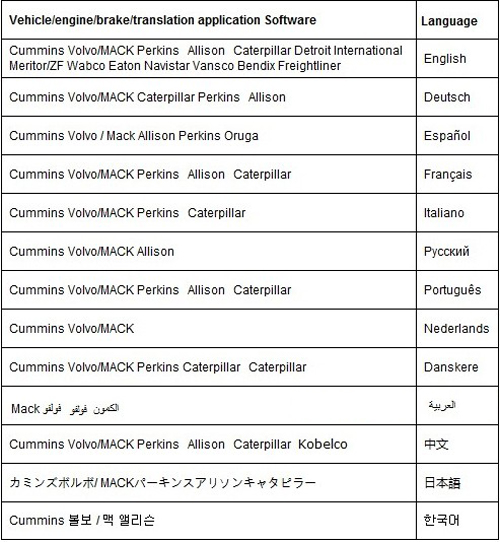

Compatible Software:
Allison DOC for PC-Service Tool - Protocols Supported: J1939, GMLAN, J1708/J1587, J1850, ATEC160
Allison DOC for PC (AED) - Protocols Supported: J1939
Allison DOC for Fleets (1000/2000) - Protocols Supported: J1939, J1850, GMLAN
Allison DOC for Fleets (3000/4000) - Protocols Supported: J1939, J1708/J1587
Bendix Acom
Caterpillar Electronic Technician 2010B
Cummins Insite 7.5(Windows XP and 7), Insite 7.6(only for Windows 7)
Detroit Diesel Diagnostic Link 7.05
Eaton ServiceRanger 3.2
International ABS
International DLB
International Intune
International IPC v2.02
International - ServiceMAXX Fleet Pro
Perkins EST Diagnostic Interface 2010
V-MAC Service Tools
VCADS /Elite Mack/Volvo 2.35
Volvo PTT 2.40
ZF-Meritor TransSoft / WABCO Toolbox
...
Notice:
1. Above all software has KeyGen or crack files in DVD
2. Next we will supply freely software of New Holland and Others
3. Not all applications are included. If compatibility confirmation is required, more information is needed, or there are questions about an unlisted application, please contact your dealer, he will send E-mail to us,. A specialist will help you make the right choice.
J2534 OEM Software (Does Not Include Software)
J2534 OEM Diagnostic Software Compatibility
The adapter you have purchased is provided with an SAE J2534-compliant interface (an SAE standard for electronic module reprogramming). The DPA5 should be able to reprogram all CAN/ISO15765 vehicles, GM vehicles using the J1850 Variable Pulse Width (VPW) protocol, or other vehicles using the DPA5 J2534-supported protocols (i.e. ISO9141/KWP2000).
DPA 5 Heavy Duty Truck Scanner has been validated against the following OEM and component applications:
Cummins PowerSpec
Freightliner ServiceLink
Vansco VMMS
Dana Diagnostic Tool
Mitchell1 RepairConnect
General Motors TIS2Web
Ford Module Programming (FMP)
Chrysler J2534 Application
Toyota TIS (Technical Information System)
Honda Service Express
Mazda Module Programming (MMP)
Kia J2534 KMA
Hyundai 2534 HMA
Volkswagen Erwin
Audi Erwin
Nissan J2534 ECU Reprogramming Software (NERS)
All J2534 reprogramming and diagnostic software packages that are J2534-1 and J2534-2 compliant and use a protocol supported by the DPA5 should work as long as the operating system is supported by the application. Note that not all OEMs have released J2534-2 compliant software.

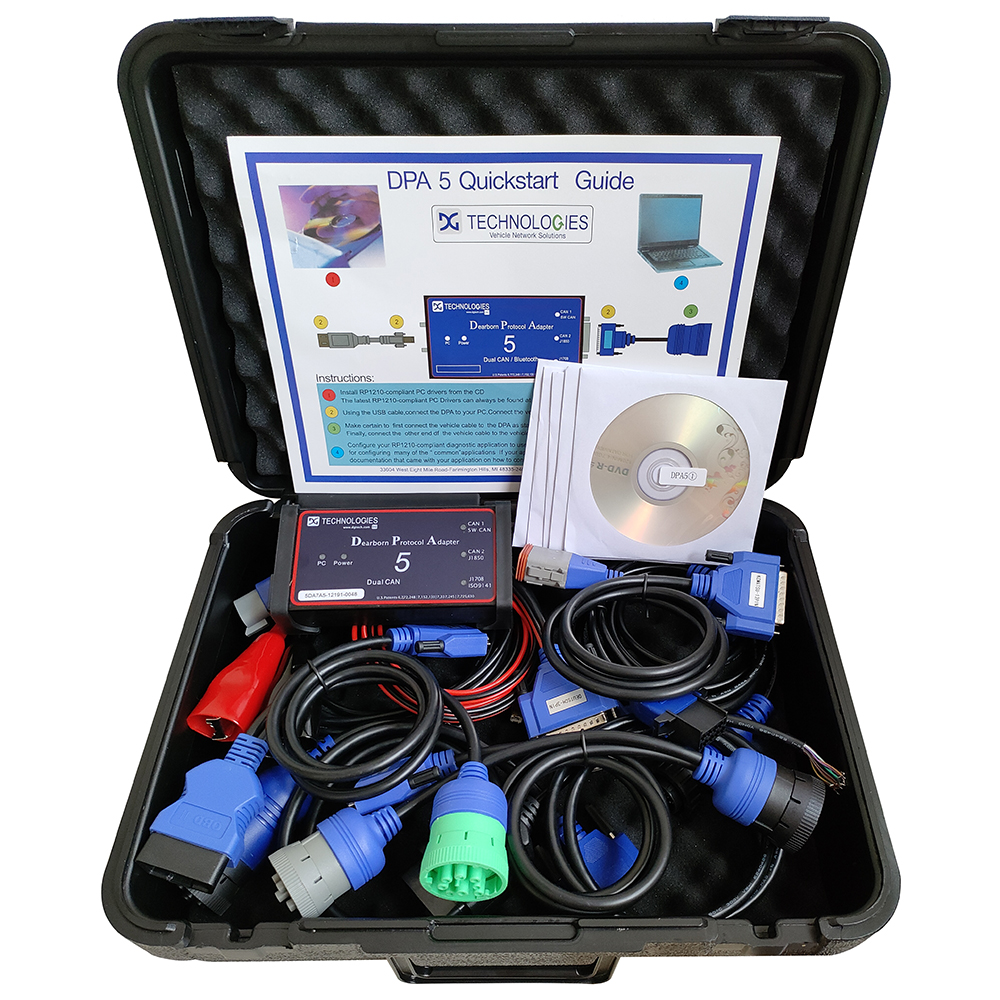

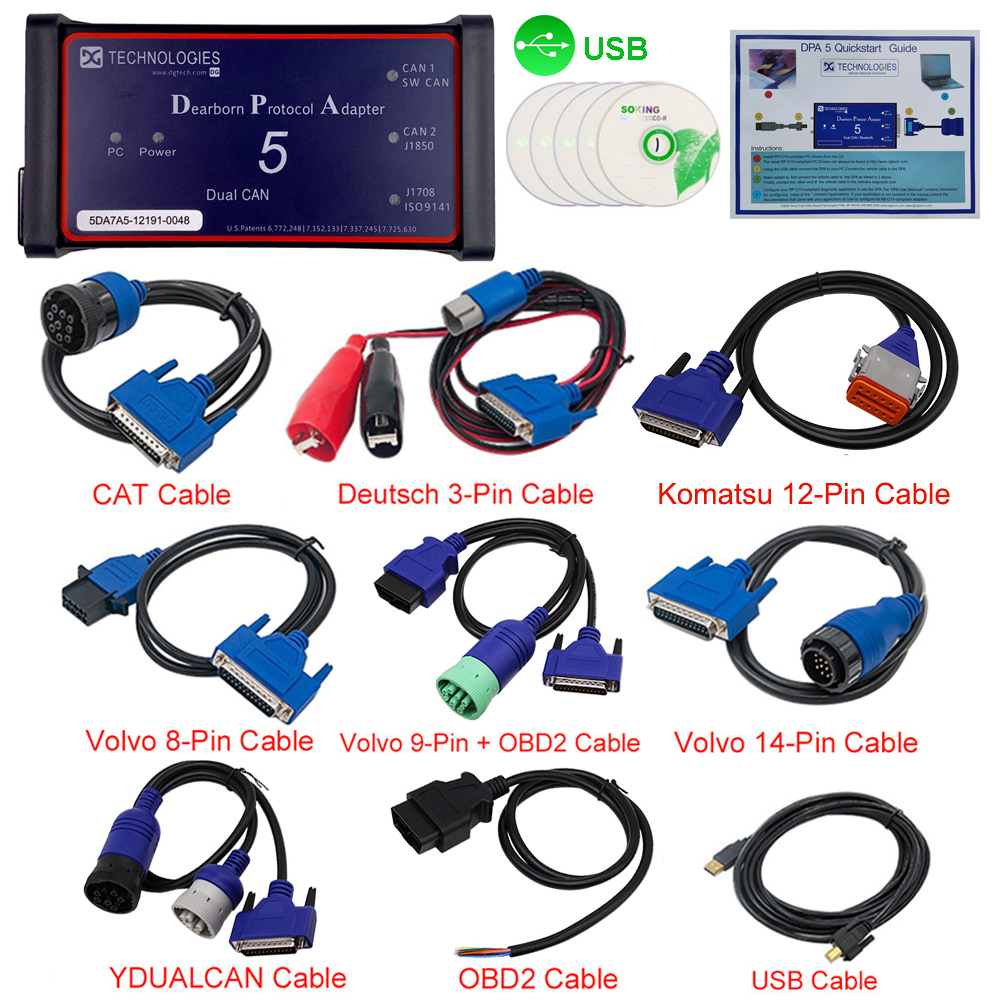

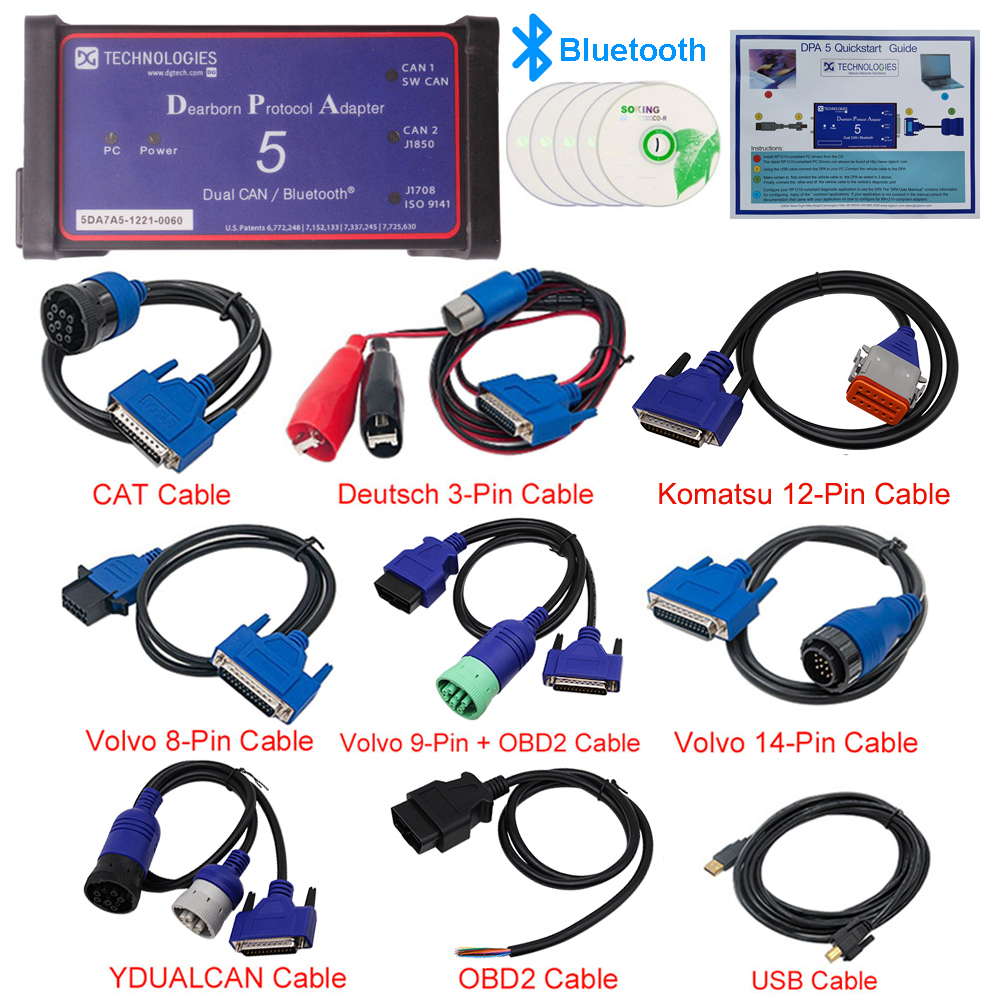

Packing List:

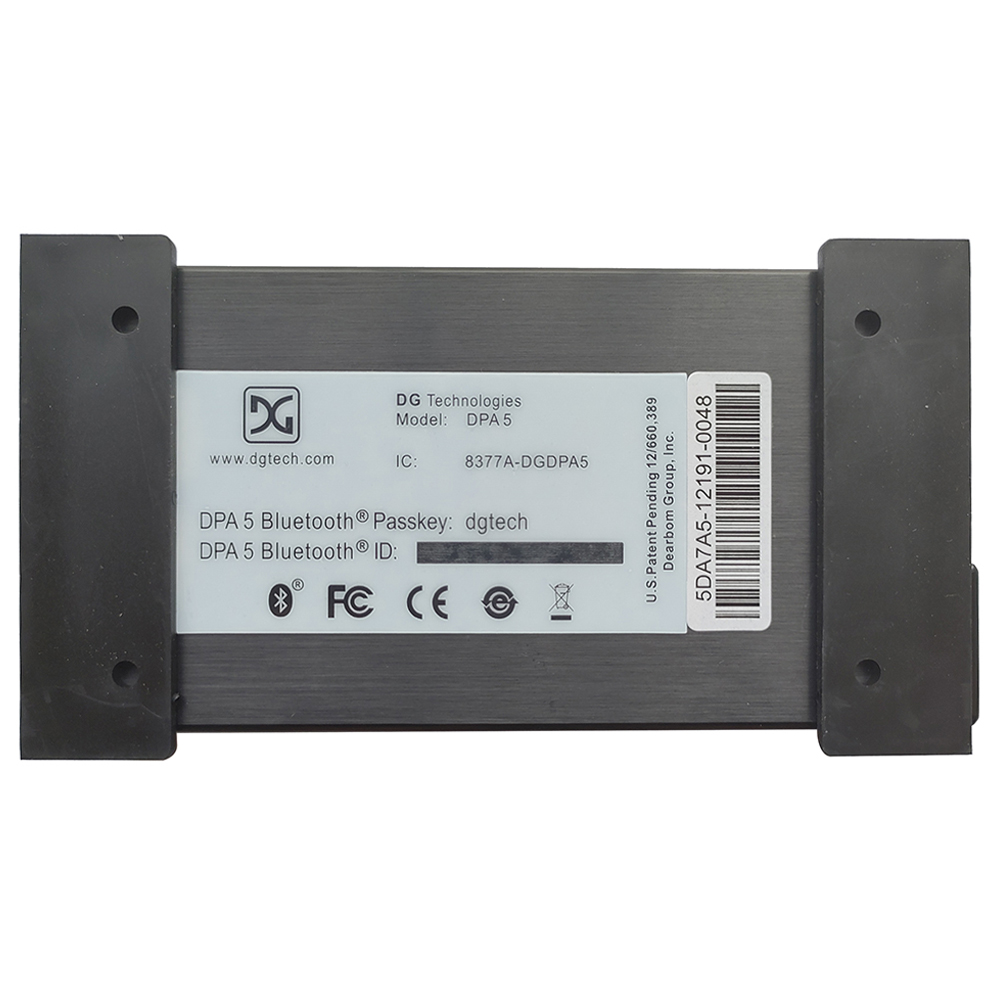

DPA5 Bluetooth / DPA5 USB
CAT Cable
Deutsch 3-Pin Cable
Komatsu Cable
Volvo 8-Pin Cable
Volvo 9-Pin + OBD2 Cable
Volvo 14-Pin Cable
YDUALCAN Cable
OBD2 Cable
USB Cable
Software CDs

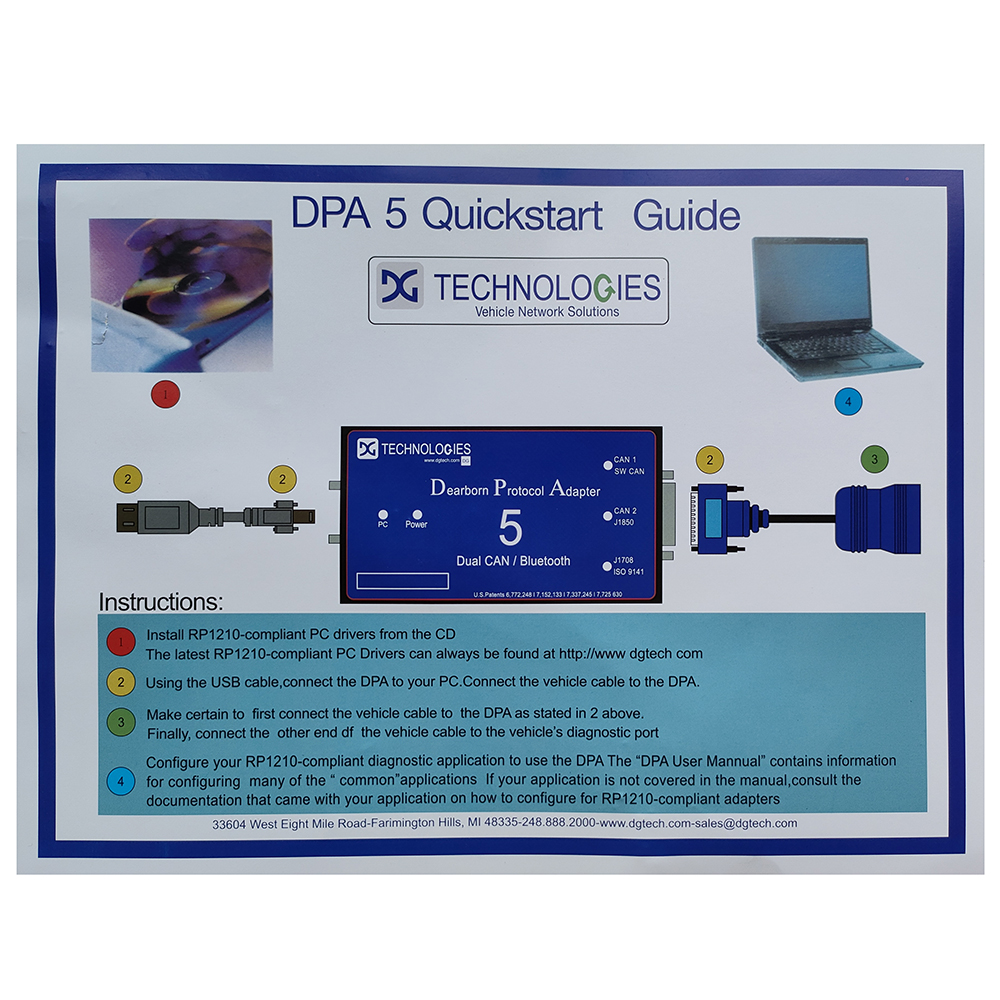

DPA 5 Quick Start Guide

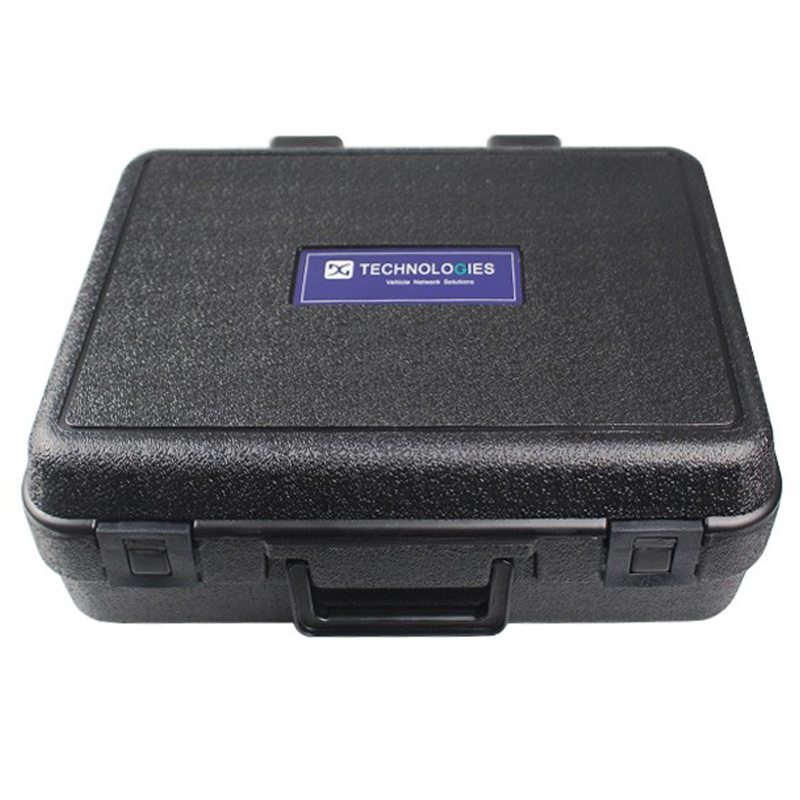

Plastic Toolbox
Packing Box
|
