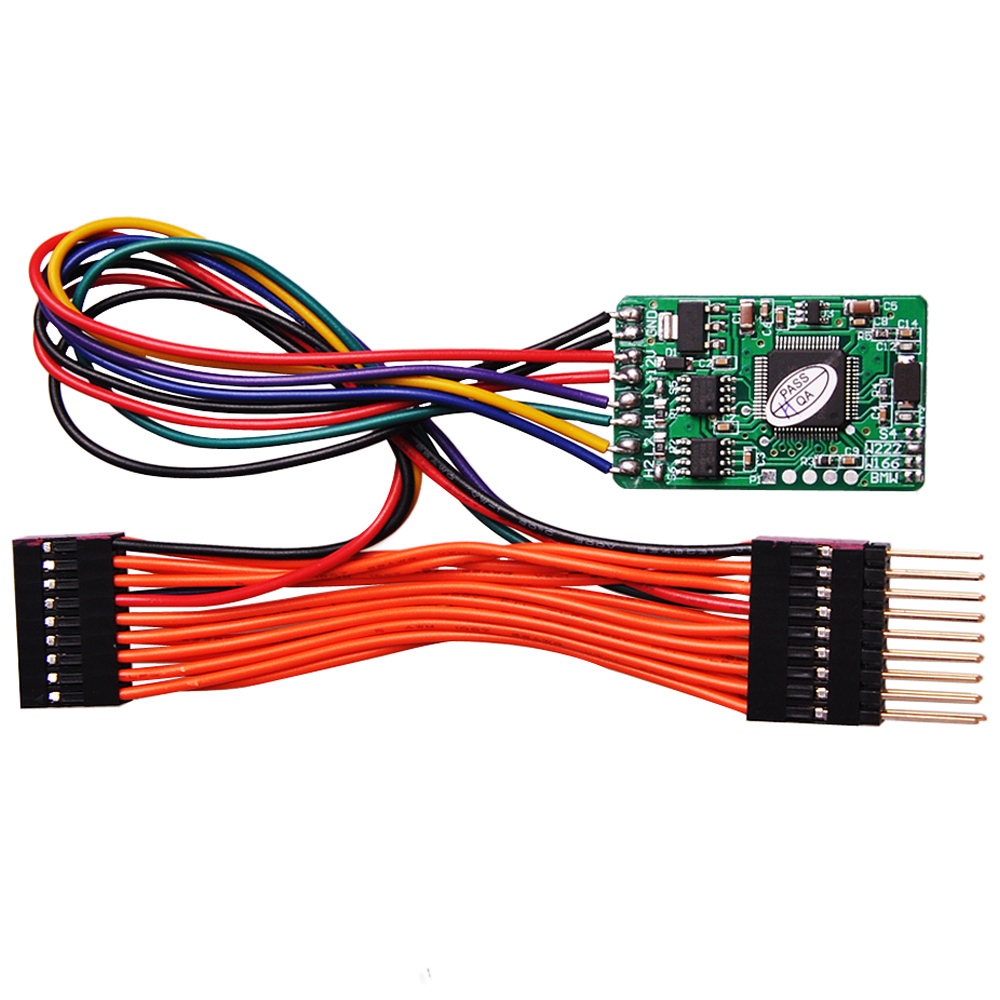

Name: MB CAN Filter 18-in-1 Benz BMW Universal Filter

Description:

MB CAN Filter 18 in 1 Benz/BMW Universal Filter should be added to car after odometer adjustment for most chassis model except W222/W205/W44(Those 3 chassis models should add CAN Filter before odometer adjustment.)

Benz CAN Filter 18 in 1 is universal for many Benz/BMW models, small and convenient, easy operate, with stable performance and reliability.

Supported Models:

Benz 18 types chassis model: S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)

BMW: CAS4/FEM Fxx

BMW 1 series F2X, 3 series F3X, BMW X5 etc., FEM mileage adjustment(no need to remove FEM, connect directly to instrument panel.);

BMW 5 series F10, 7 series F01/02 etc., CAS4 Fxx chassis.(F01, F02, F07, F18, F10, F20, F25, X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).

Important Notice:

CHECK the car model correctly before adjust.

New style: 222/205/217
Old style: 166/212/463

Old style W166 short circuit to GND
New style W222 short circuit to GND
Black wire connect to plug 1

Notice:

Please connect the 2 BMW dot together(short circuit) before connecting to car!

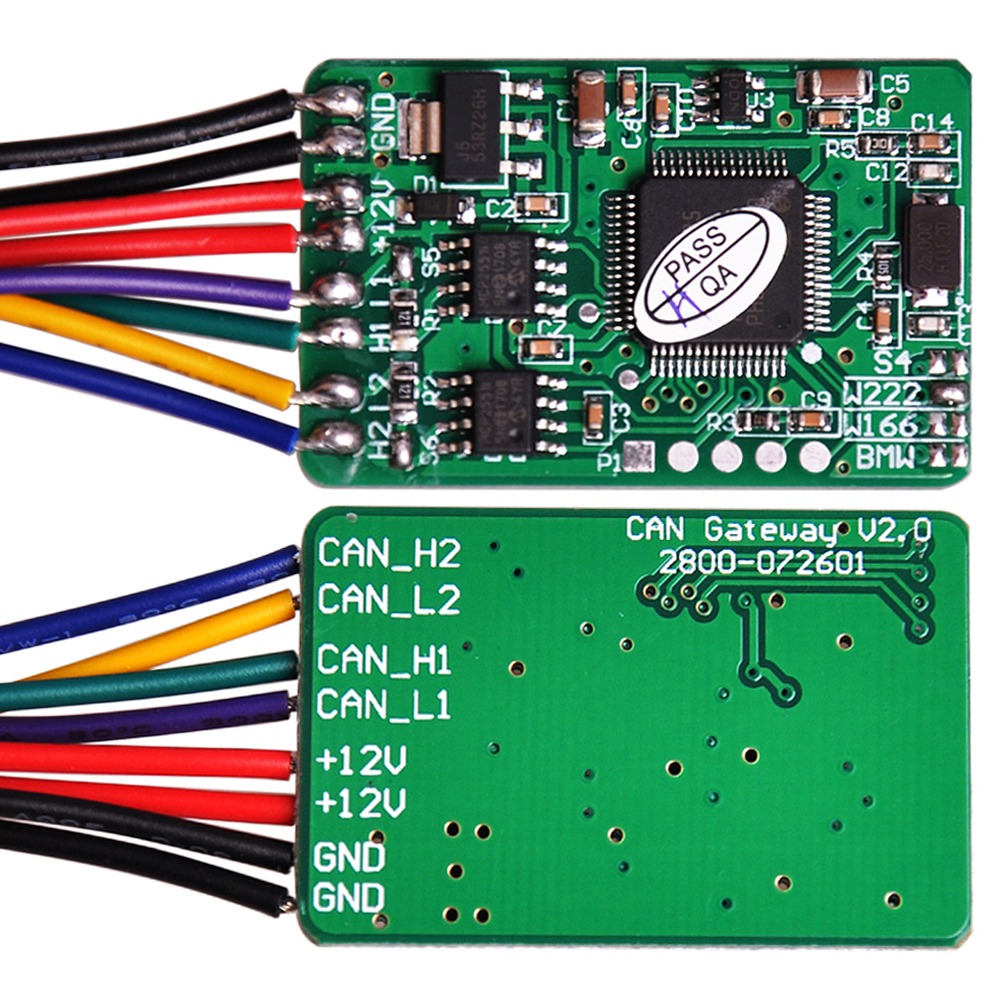

Diagram for BMW:

Black –GND
Red - +12V
White - +5V
Purple - L1(CAN_L1)
Green- H1(CAN_H1)
Yellow - L2(CAN_L2)
Blue - H2(CAN_H1)

BMW 1 series F20

BMW 3 series F30

BMW X5 F15

BMW FEM

BMW CAS4(1L15Y/5M48H/1N35H)
