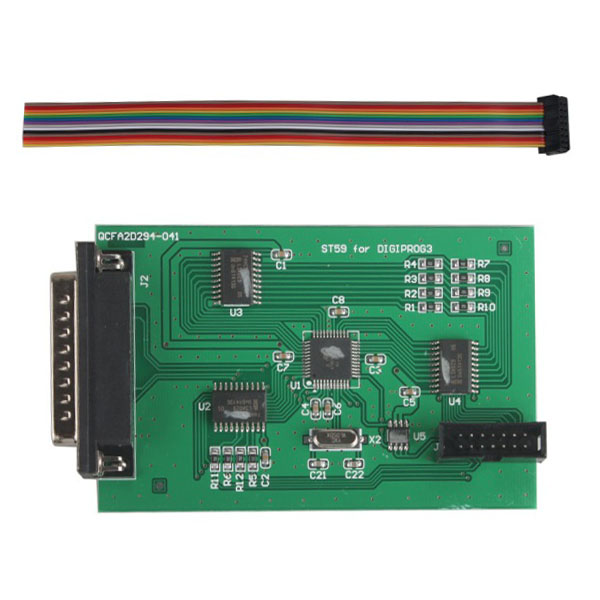

Name: ST59 Adapter for Digi Prog 3 for NEC Cluster
Description:
ST59 Plug works together with DigiProg 3 for vehicles with NEC chips, like Ford, Renault and so on.
We use cardiag.ru solution to make this ST59 plug. It has been tested by different countries customer and confirmed OK.
Easy connect and operation.
Installation Example for Ford NEC:
1. Remove the dashboard and open it. Search on dash the Soldering Points.

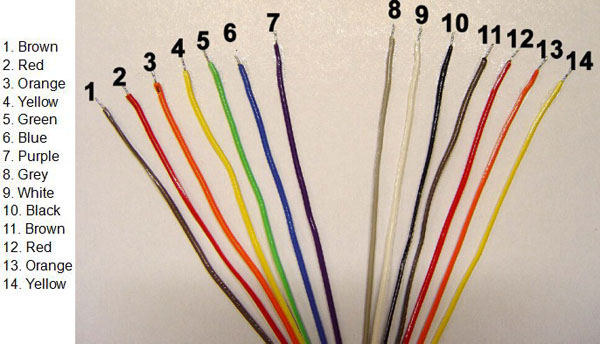

2. Solder cables from ST59 Adapter as following picture. All Pins must be lift up from board.
3. Connect the cables to ST59.
4. Now connect the ST 59 with the DigiProg.
5. Select the program: cars / trucks - FORD - KA NEC.
6. The DigiProg3 denotes old / wrong Mileage.
7. Program and completed the new / correct Mileage.
|
