  OBDSOS PRODUCTS Airbag / Oil / EPB / SBC Tool Car Service Light Reset Tool

Product ID SR24
Product Name Auto Enginuity Service Reset Tool for BMW
Product Price USD55
Actual Weight (Kg)
Volumetric Weight (Kg) 0.5
Package Size (cm)
Related Download
Order Quantity:
In Stock



Description

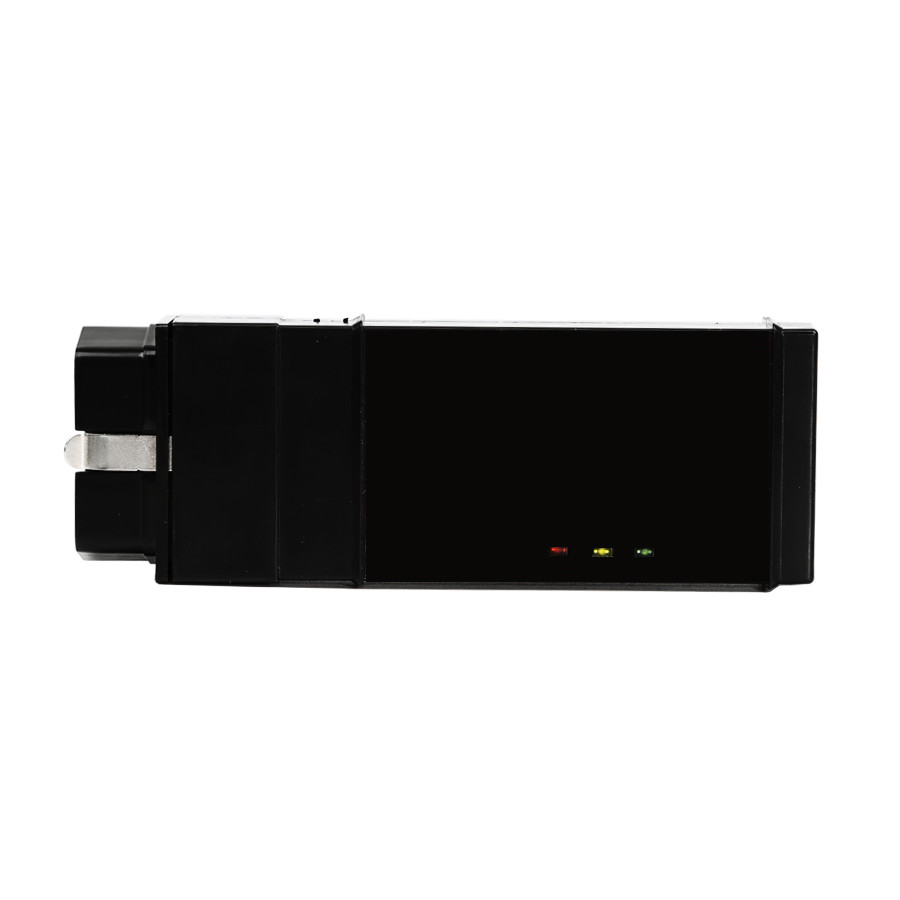

Name: Auto Enginuity Service Reset Tool for BMW

Description:

AutoEnginuity Service Reset Tool for BMW does not require a computer or require you to enter the make, model, or year of the vehicle; with a push of a button the hardware will intelligently determine the correct protocol and commands. It is a true one-touch reset tool.

Features:

1. Allow to perform the BMW Service Inspection Rest (SIR) and Conditional Based Service (CBS) Oil Service Reset.
2. Allow to perform the battery replacement registration required by latest BMW model battery replacement.
3. One-touch reset tool.
4. Updatable. No need to purchase a new reset tool when you have newer BMW models.

Service Reset Tool for BMW Operation Instructions:

1. Connect the AutoEnginuity Service Reset Tool to the vehicle DLC. The AutoEnginuity Service Reset Tool should illuminate the red LED on the top of the hardware (If the LED is blinking, means the power level is too low to properly operate the AutoEnginuity Service Reset Tool. You can connect a battery charger to the vehicle or run the vehicle long enough to resolve this issue.)

2. Turn your vehicle ignition to the On position. This should illuminate the instrument cluster. Do not run the vehicle otherwise the operation will fail.

3. There are 2 operational functions contained within the AutoEnginuity Reset Oil service Rest:

1). To reset the Oil Service on your 2001 and later BMW models, press the black button on the bottom of the AutoEnginuity Reset Service Tool.

It will be labeled OIL. The green LED will briefly illuminate after pressing the black button, and then will go off. If the green LED is blinking, a failure code was returned by the vehicle. In some cases, an error code can be returned by the vehicle because the service interval is already too short and unnecessary. The two most common reasons for failure are engine running or the service reset is unnecessary because the engine oil is above 80%.

Once the process completes, cycle the key from the On position to Off and back to the On position.

On some models you can verify that the process has completed successfully.

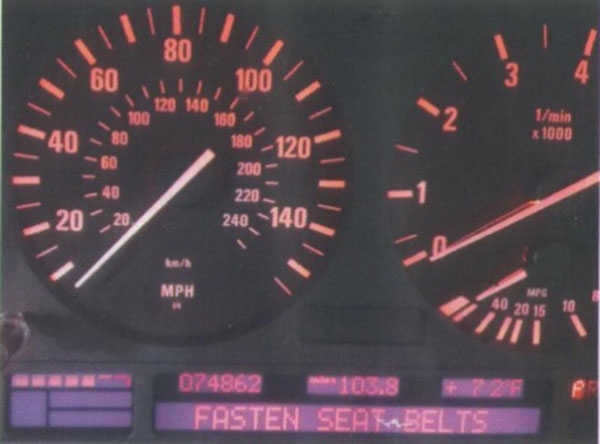

For older BMW models, a color-coded bar on the lower-left position of the instrument cluster will display the oil service state. If all the green bars are illuminated, then the process completed successfully.

On newer BMW models, the CBS will reset the internal counter to 100%. If a service indicator was illuminated on the vehicle when this process started, it should not appear when the process completes and the ignition key is cycled.

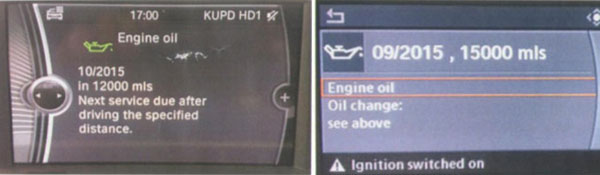

You can verify this on some models with the iDrive. Simply select the menu item Vehicle Info or Service Info (depending on the model), then select Vehicle Status. Finally, select Engine Oil. Your model may be set for 12,000 or 15,000, then the process completed successfully.

02). Battery Replacement Registration:

WARNING: DO NOT USE A BATTERY OTHER THAN THE EXACT AGM BMW-EQUIVA- LENT REPLACEMENT WHEN PERFORMING A BATTERY REPLACEMENT . THIS TOOL WILL NOT ALLOW CHANGES FOR BATTERY TYPE OR CAPACITY.

To replace a battery on your modern BMW, you will require registering the replacement with the microcontroller monitoring the Intelligent Battery Sensor (IBS). Performing this replacement registration is necessary because the IBS learns the battery state of charge, driving habits, and builds a history of the state of charge. The IBSuses that history to determine the operating speed of the variable speed alternator. This operation is used to properly balance the charge and discharge current of the battery. Without registering a replacement, several problems can arise as a result such as over charging the battery, reduced fuel mileage due to unnecessary charging.

To perform the Battery Replacement Registration on your late model BMW:
Press the white button on the bottom of AutoEnginuity Service Reset Tool it will be labeled BATTERY.

The green LED will briefly illuminate and then go out. If the green LED is blinking, a failure code was returned by the vehicle. In case of error, double-check that your vehicle requires this process to be performed and that you are doing this without issues on the vehicle that could cause an error.

Finally, if the problem persists, check your BMW service information for more details about correct operational requirements.
