Name: Vgate MaxiScan VS890

Description:

Vgate Scan Tool MaxiScan VS890 is fully complies with ISO 15031 and is compliant with SAE J1979. It supports a large number of vehicles made by 70 manufacturers.

Functions:

Fully functional Mode$01~Mode$09 operation.
DTC includes  generic (P0, P2, P3, B0, U0 and C0) & manufacturer specific (P1, P3, B1, B2 ,U1 and C1, C2,) codes.
Detailed DTC library: DTCs are explained in easy to understand words rather than obscure jargons. Online help information is available for 80% of all the DTCs which shows the probable cause of the codes.
Support manually input DTC Look-up
Read DTCs
Clear DTCs
Data stream
Freeze Frame
I/M Readiness
O2 Monitor Test
On-Board Mon Test
Component Test
Vehicle Info.
Modules Present
Unit of Measure
State Emission
Read All DTCs
Read Stored DTCs
Read Pending DTCs
Detailed help information
Capable of showing probable cause of a DTCs.
Up to 161 data items, each of them is with online help information.
Reset engine MIL
This operation will  erase all DTCs , freeze frame Data , oxygen sensor data, and reset  IM Monitors and MIL.

Supported Languages:

English, German, French, Spanish, Portuguese, Italian, Hebrew, Finnish, Dutch, Danish, Chinese, Korean, Japanese

Supported Protocols:

SAE J1850 PWM
SAE J1850 VPW
ISO9141
KWP FAST INIT
KWP 5BAUD INIT
CAN 11BIT 500K
CAN 29BIT 500K
CAN 11BIT 250K
CAN 29BIT 250K
CAN_USER1 11B 125K
CAN_USER1 29B 125K
CAN_USER2 11B 50K
CAN_USER2 29B 50K
Full CAN BUS support for new cars
11 Bit and 29 Bit CAN
Capable of communicating with multi-ECU System

Feature:

3 inch black mask LCD, wide visible area, high contrast .The contents is readable even in strong sun shine.
ABS+PC Engineer Plastic Housing (passed 6-meter free fall test.) (Patent No. 200830010963.5).
Harmless fade-resistant paint.
Rubber oil sprayed housing; slide, dirty, and vibration proof.
Passed EMI/EMC test.
High quality PET 6-key film keypad.(3M harmless glue)
CE,FCC,RoHs Certified

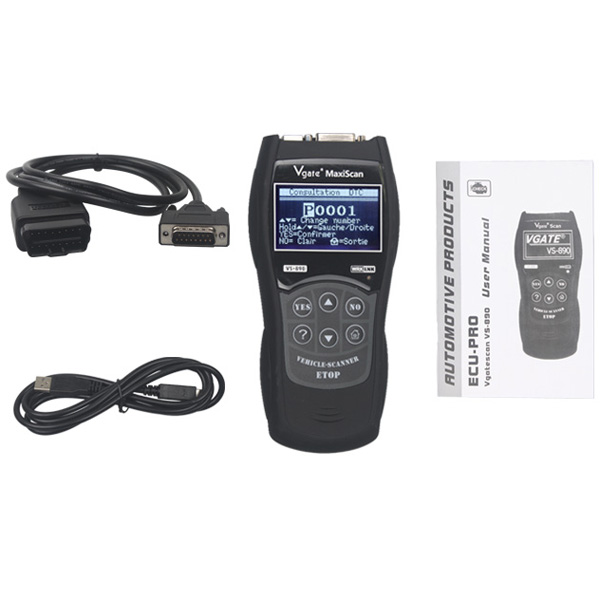

Packing List:

Vgate MaxiScan VS890
OBD2 cable
USB cable
User manual
Carrying case
