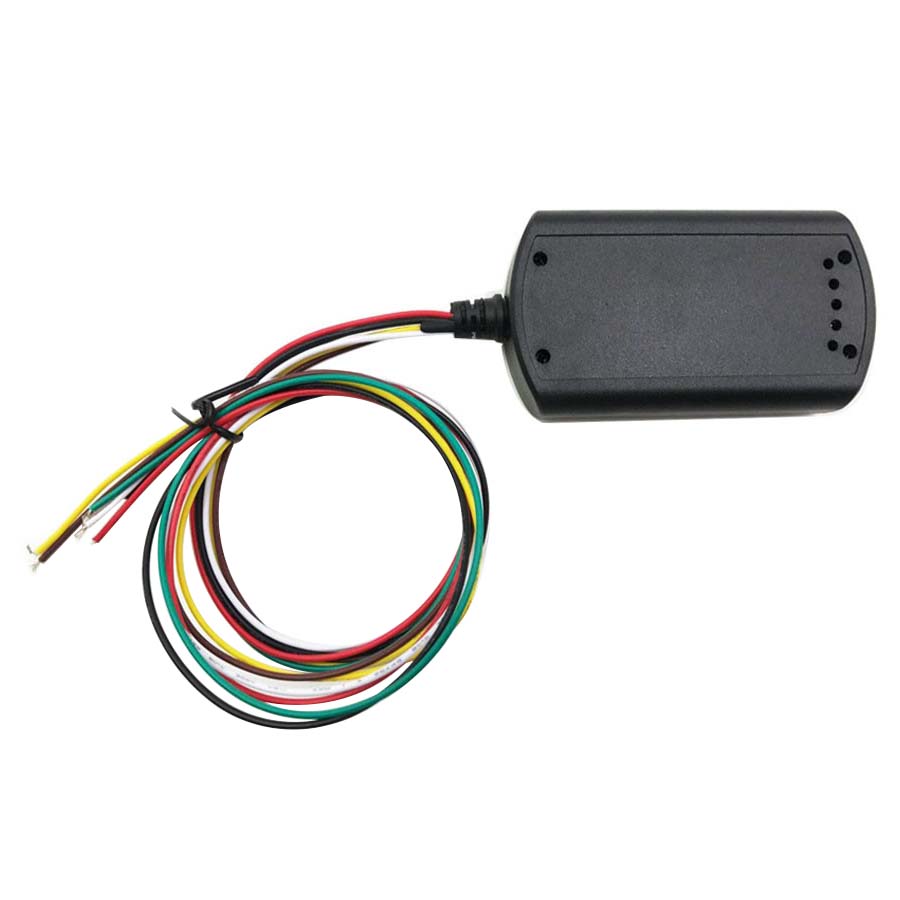

Name: AdBlueOBD2 Volvo Euro6 Adblue Emulator
Description:
Trucks generally give AdBlue or Nox system errors. Your truck can be problem because of some AdBlue errors or fault lights.
These problems cost you money and time. After installing Volvo Euro 6 AdBlue Emulator, you will not get AdBlue errors and you do not need to add AdBlue fuel. After the installation, your AdBlue fuel level will be up automatically.
Functions:
Avoid all of AdBlue system errors.
Do not need AdBlue fuel.
Do not get and AdBlue or Nox fault.
Prevent torque loss.
AdBlue Remove Emulator disables following systems:
AdxBlue system (All)
AdxBlue NOX sensor
DPF system
DPF temperature sensors
DPF Regeneration Supported Models:
Euro 6 for Volvo FMX Series
Euro 6 for Volvo FH Series
Euro 6 for Volvo FM Series
How to install?

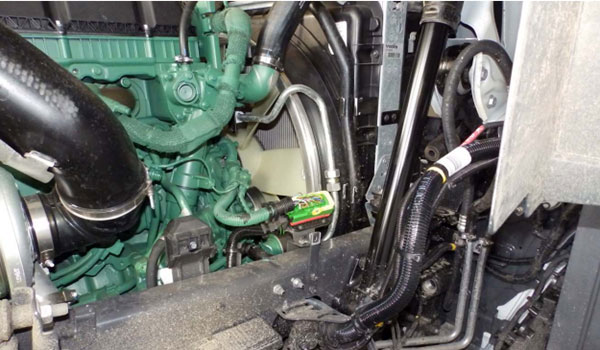

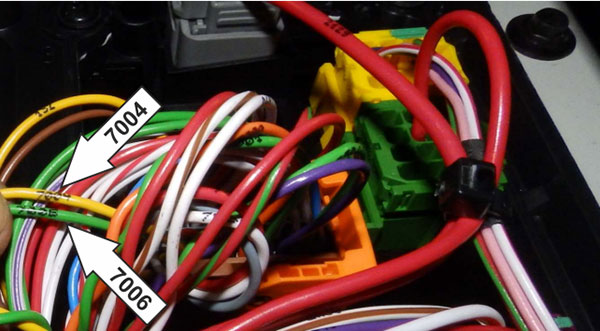

1. Find wire number 7004(CAN High) and 7006(CAN Low) located on the front of car.
2. Connect wires from the emulator as follows:
Yellow Cable from emulator -->7004(CAN High)
Green Cable from emulator -->7006(CAN Low)

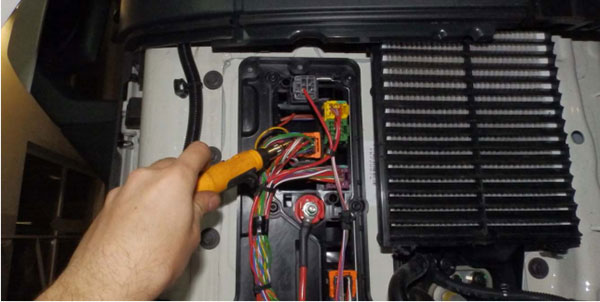

3. On the right side of the frame, locate the plug.
4. Connect cables from the emulator (2 long cables in black isolation) as follows:

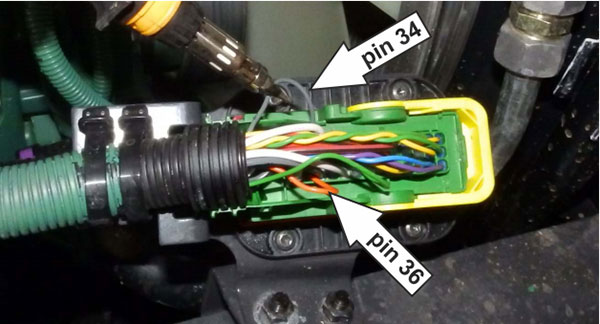

White Cable from emulator --> Grey Cable to pin number 34 (CAN High)
Brown Cable from emulator --> Orange Cable to pin number 34 (CAN Low)
5. You should connect the power supply(single wires) to the unit.
Brown Cable from emulator - Ground
White Cable from emulator - +24V(after the ignition)

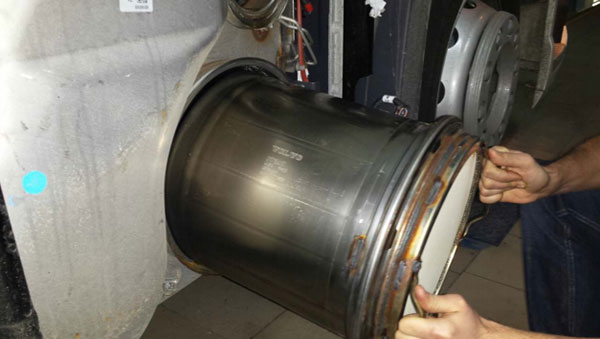

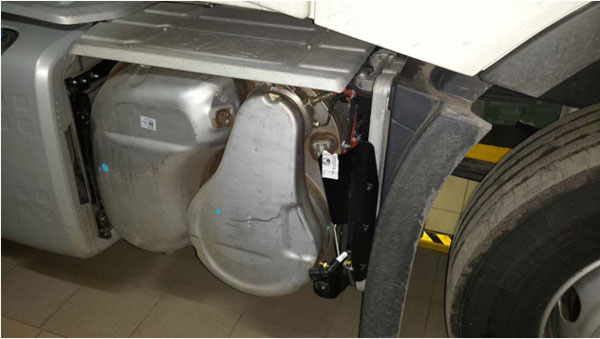

6. You should disconnect plug from the pump and remove DPF. If car has any errors, remove them from ECU.
|
