Name: 7 Pin Trailer Plug Tester Wiring Circuit Light Tester
Description:
7 Pin Trailer Tester is designed to indicate a failure in the wiring on both towing vehicles and trailers/caravans etc.
It is suitable for 7 pin European standard trailer. Test for 7 pins plug and socket connection N style.

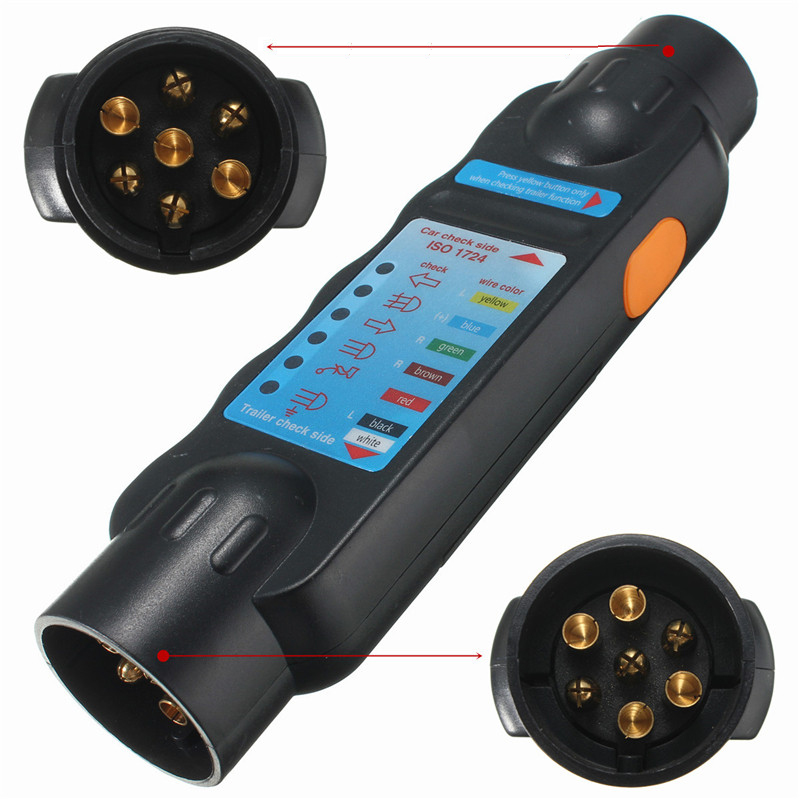

Simply plug the tester into 7 pin plug of the trailer or caravan and press the yellow button on the side of the tester.
Features:

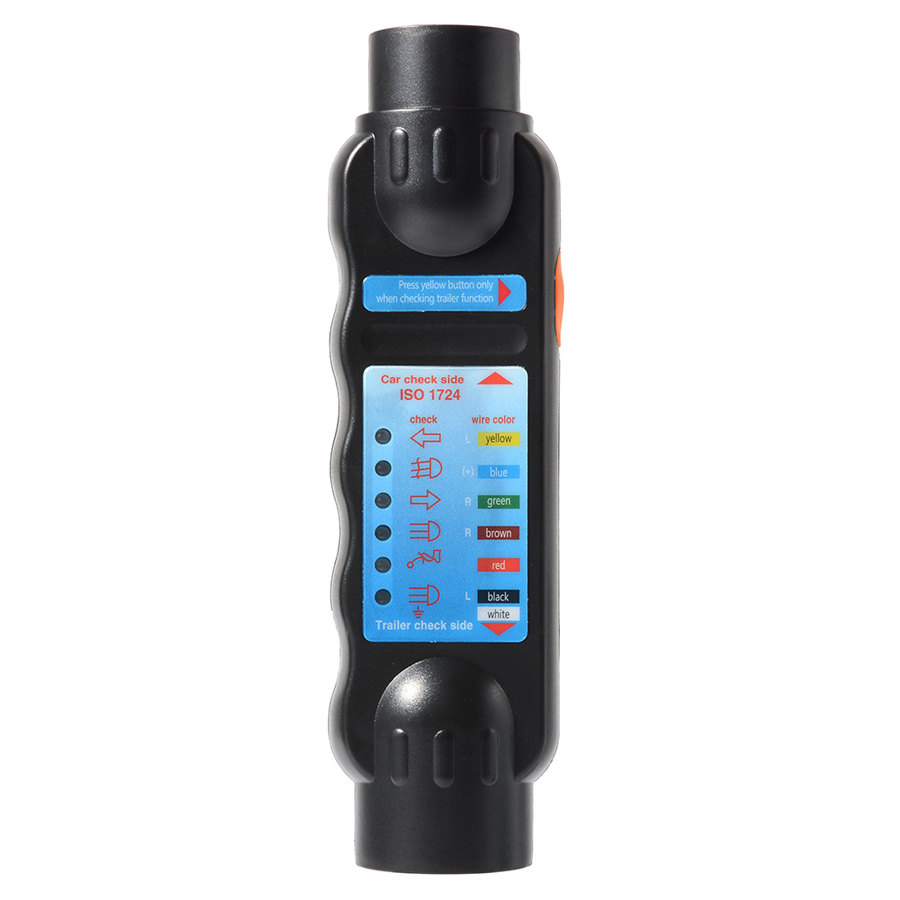

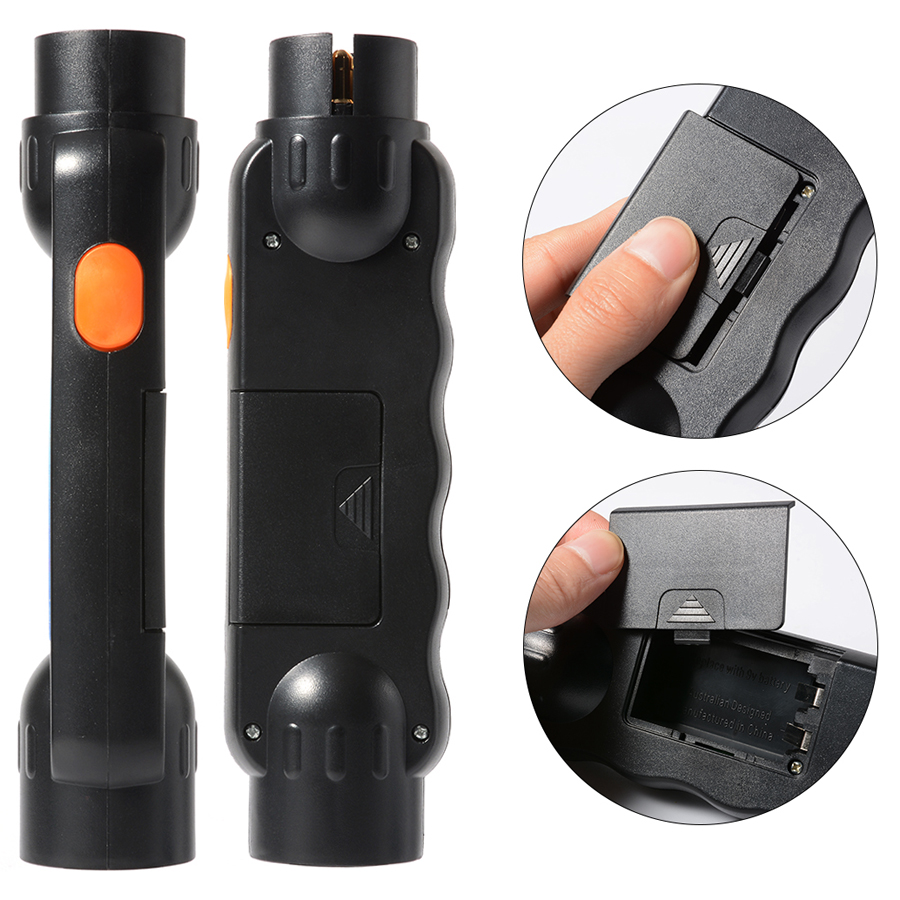

Transfers the electronic signal lights from the vehicle to trailer. Supplies power to your caravan, towing and truck. Brass pins in a durable housing. Tester lights will quickly show whether truck or car coil is connected properly. Waterproof for all road and weather conditions. With a 6 light LED system. All the LEDs light up when the wiring is good. Makes the checking of the wiring quick, easy and very simple. Durable black plastic construction Portable handheld size design(20*6 *4cm). Voltage: 12V Can powered by 9V battery(not included) . Certification: CE, RoHS, PAHS
Pin Definition:
Pin 1: Yellow (Left Turn Light) Pin 2: Blue (Rear Fog Light) Pin 3: White (Earth Return) Pin 4: Green (Right Turn Light) Pin 5: Brown (Right Tail / Side Light) Pin 6: Red (Brake / Stop Lights) Pin 7: Black (Left Tail / Side Light) Pin 8: Pink, (Reversing Light) Pin 9: Orange (12V Permanent Power from Battery) Pin 10: Grey (12V Ignition On (Battery Charging or Fridge) Pin 11: White/Black (Earth for Terminal 10) Pin 12: White/Blue (not usually used) Pin 13: White/Red (Earth for Terminal 9)
|
