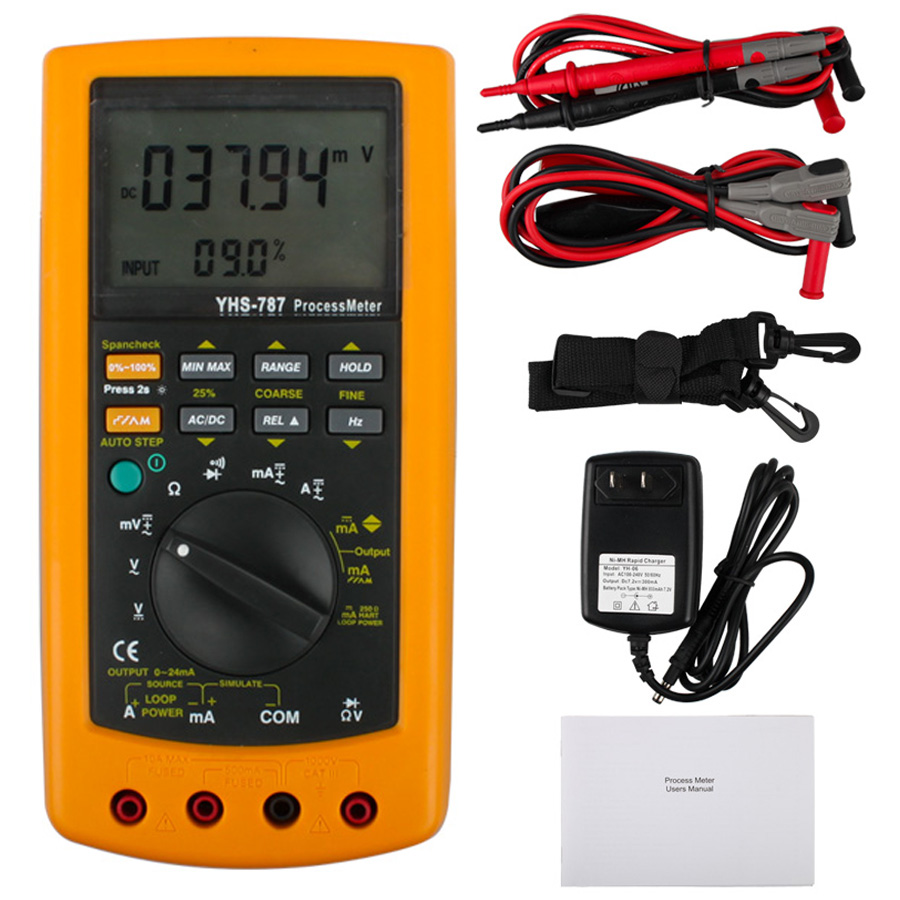

Name: YHS-787 Digital Process Calibration Multimeter Tester

Description:

Original YHS-787 Digital Process Calibration Multimeter Tester is cost-effective device. It is 2 in 1 digital multimeter and loop calibration tool.

On the basis of multimeter, it adds function as measurement, output, and analog DC loop current. It has high accuracy, and also safe and easy to operate.

Features:

1. Multimeter and loop calibrator in one tool
2. CAT1000 V safety- rated, true-RMS multimeter
3. Simultaneous mA and % of scale readout
4. 25% Manual Step plus Auto Step and Auto Ramp on mA output.
5. Simultaneous mA and % of scale readout
6. Min/Max/Average/TouchHold/Relative modes
7. Clear LCD with backlight; 4,000 counts (30,000 counts for DC current)
8. Ni – MH  rechargeable  batteries
9. 1000V overload protection on V, ohms, frequency.

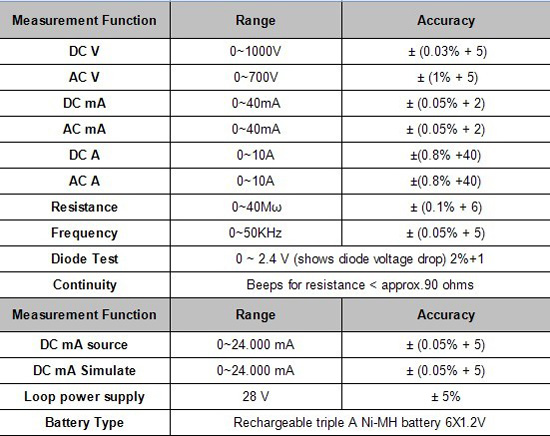

10. Precision 1000V, 400 mA digital multimeter
11. Measure AC and DC volts, AC and DC current, resistance, continuity, and frequency
12. 0.1% DC voltage accuracy
13. 0.05% DC current accuracy, 1A resolution to 30mA
14. True RMS AC voltage measurement to 1KHz
15. Frequency measurement to 20KHz
16. Diode test and continuity beeper
17. DC current source/loop calibrator
18. 20mA current source/simulator
