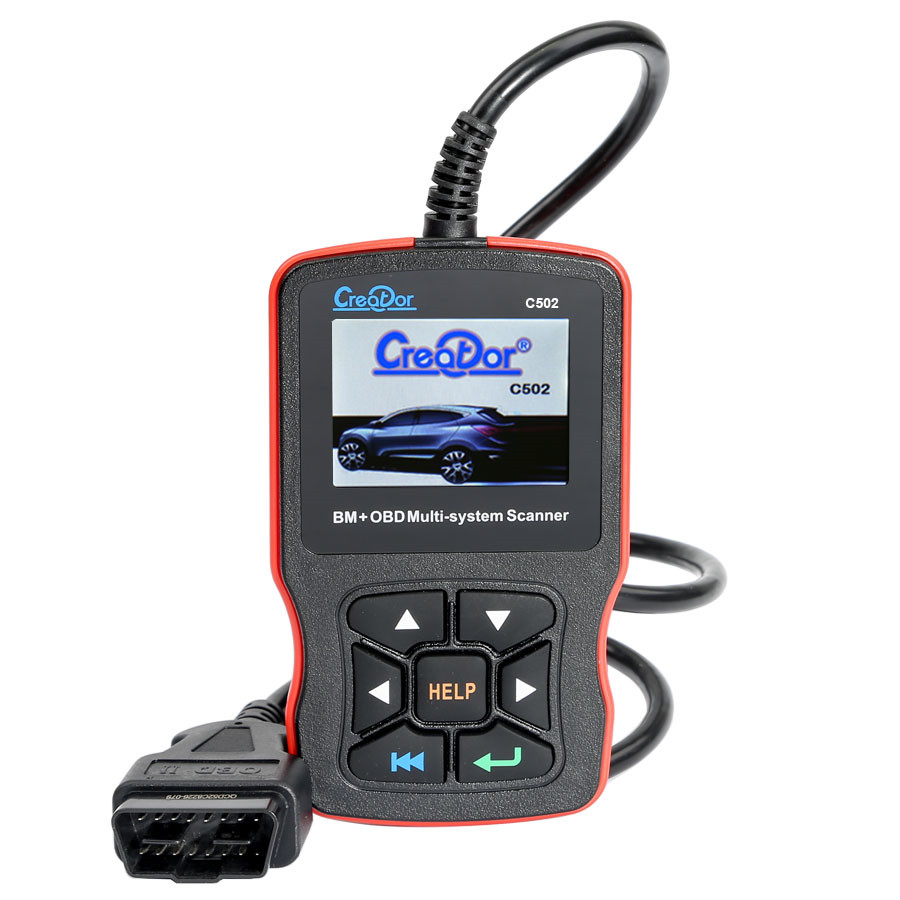

Name: Creator C502 Benz & OBD2/EOBD Scanner
Description:
Benz Software:
Supports all the Benz models before 2016.
Chassis: 117, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 197, 199, 202, 203, 204, 205, 207, 208, 209, 210, 211, 212, 215, 216, 217, 218, 219, 220, 221, 222, 230, 231, 240, 245, 246, 251, 253, 292, 461, 463, X 164, X 204
Functions: Read codes, Erase codes, ECU information
OBD-II & EOBD Software: Works on all 2001 and later OBD-II compliant Petrol European vehicles Works on all 2004 and later OBD-II compliant Diesel European vehicles Works on all 1996 and later OBD-II compliant US and Asian vehicles Easily determines the cause of the "Check Engine Light ( MIL)" Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3,and U1) codes Turns off Check Engine Light (MIL), clears codes and resets monitors Displays DTC definitions on unit screen Views freeze frame data Identifies pending codes Reads live PCM datastream Graph displays live PCM datastream Read I/M Readiness Status Displays live O2 sensor test data Performs modules present test Retrieves vehicle information (VIN, CIN and CVN) Supports CAN (Controller Area Network) and all other current OBD-II protocols Specifications: Display: 320*240 pixel color display with contrast adjustment Operation Temperature: -20 to 75 degree centigrade Storage Temperature: -40 to 120 degree centigrade Power: 8 to 24V Troubleshooting:
1. Vehicle Linking Error A communication error occurs if the scan tool fails to communicate with the vehicle ECU (Engine Control Unit).
You need to do the following to check up:
A). Verify that the ignition is ON; B). Check if the scan tool OBD-II connector is securely connected to the vehicle’s DLC; C). Verify that the vehicle is OBD2 compliant; D). Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and continue the testing. E). Verify the control module is not defective 2. Scan tool does not power up
If the scan tool does not power up or operates incorrectly in any other way, you need to do the following to check up:
A). Check if the scan tool OBD-II connector is securely connected to the vehicle DLC; B). Check if the DLC pins are bent or broken. Clean the DLC pins if necessary. C). Check vehicle battery to make sure it is still good with at least 8.0 volts. Packing List: Creator C502 Benz & OBD2/EOBD Scanner User Manual
|
