Name: XTUNER AM1011 OBD-II/EOBD Plus Code Reader
Description:
Supported Languages:
English, Spanish, French, Portuguese, Swedish, German, Polish, Russian, Italian, Hungarian, Dutch
Supported Cars: compatible with all 1996 & newer vehicles (OBD-II and EOBD)
Supported Protocols:
J1859-PWM, J1850-VPW, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)
Functions:
Retrieves Manufacturers Specific & Pending Codes automatically by VIN code Reads, Displays and Clears Diagnostic Trouble Codes Reads & Displays Vehicle Identification Number (VIN) Reads & Display Inspection/Maintenance Monitor Status (I/M) Live Data-Display complete OBD-II vehicle data stream Live Data-Records and Plays back complete OBD-II vehicle data stream DTC Lookup Data Graphing Print via PC for Live data, DTCs & Vehicle Information I/M Readiness Key Enhanced OBD-II Mode 6
How to update?

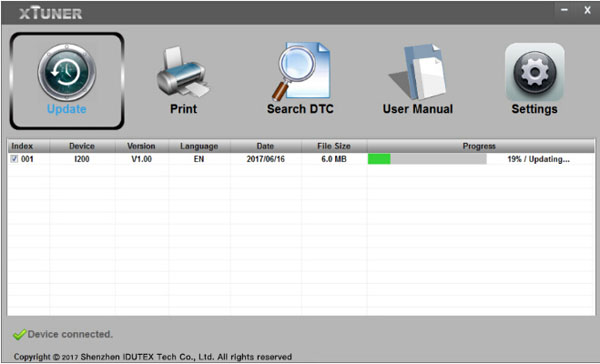

1. Download the Update Tool and update files from our website and save the applications and files in computer disk. 2. Unzip the update tool file. Follow instructions to install the tool and driver. 3. Double click the Update Tool icon on desktop to launch the application. 4. Click Setting and select the language you want to update. 5. Connects the XTUNER AM1011 to computer with the USB cable provided(Please press and hold the ? Key before connecting the USB cable). 6. When the tool enters the Update Mode, the application would detect it automatically. 7. After entering update mode successfully, there are two different ways for you to update the device. The update tool will detect these local files automatically and display them in a list. Ticking one of them will start update process. 8. A Update Finished message will be shown when the update is completed.
Specifications:
Display: 2.8 inch TFT color display Working Temperature: 0 to 60 degree centigrade Storage Temperature: -20 to 70 degree centigrade Power Supply: 8 to 18V vehicle power Dimension: 125*80*24mm Weight: 0.5Kg
Packing List:

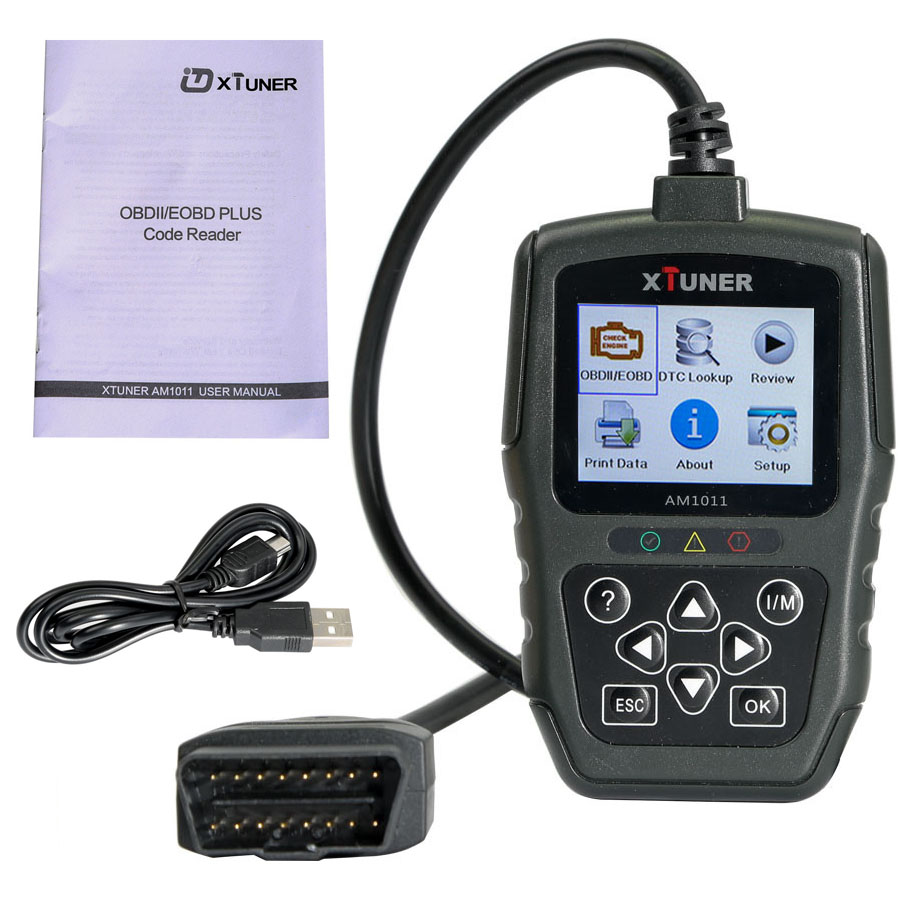

XTUNER AM1011 OBD-II/EOBD Plus Code Reader USB Cable User Manual Carrying Case

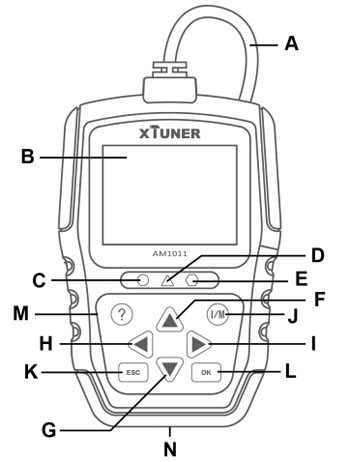

A. OBD-II Cable - provides communication for vehicle DLC B. LCD Display - shows menus, test results and operation tips C. Green LED Display- indicates the engine system is working normally (all monitors on the vehicles are active and performing their diagnostic testing), and no DTCs are found. D. Yellow LED Display - shows the tool finds a possible problem. Pending DTCs exist or/and some of the vehicle’s emission monitors have not run their diagnostic testing. E. Red LED Display - indicates there are some problems in one or more of the vehicle’s systems. In this case, the MIL lamp on the instrument panel is on. F. Up Key - quick access to the Read Codes function before going to diagnostic menu and moves selection up. When looking up DTC, it is used to change value of selected character. G. Down Key - Quick access to the Clear Codes function before going to diagnostic menu and moves selection down. When looking up DTC, it is used to change value of selected character. H. Left Scroll Key - goes to previous character when looking up DTCs. Scrolls back and forth through codes found and through different screens of data. Also it is used to make selection of PIDs when viewing custom PID list, and to view PID graphs. I. Right Scroll Key - goes to next character when looking up DTCs. Scrolls back and forth through codes found and through different screens of data. Also it is used to cancel all selections of PIDs when viewing custom PID list. J. I/M Key - quick checks state emissions readiness and drive cycle verification. K. ESC Key - cancels an action and returns to previous screen or level. L. OK Key - confirms an action or movement and moves to next level. M. ? Key - accesses to the help function and it is also used to update the code reader when long pressed. N. USB Port – provides a USB connection between the code reader and PC or laptop.
|
