Name: OBDSTAR H110 VAG I+C for MQB VAG IMMO + KM Tool
Description:
OBDSTAR H110 is first released device in china specially for MQB. Equipped with RFID Adapter, it provides users with good solution to 4th and 5th generation of VW. With combining immobilizer and cluster calibrate, it can be widely applied to after market, auto repair shops, auto technicians, individuals.
Features:
1. First released in China
2. Used for MQB
3. Supports NEC+24C64 2014 to now (including old models)
4. Supports immobilizer and dashboard
5. Much cheaper than others
Hardware Parameter:
Display: 320*240 TFT
Dimension(L*W*H): 156*86*28mm
CPU: Cortex M3
Power Supply: DC12V
Operation Power: DC12V
Operation Temperature: -20 to 60 degree centigrade

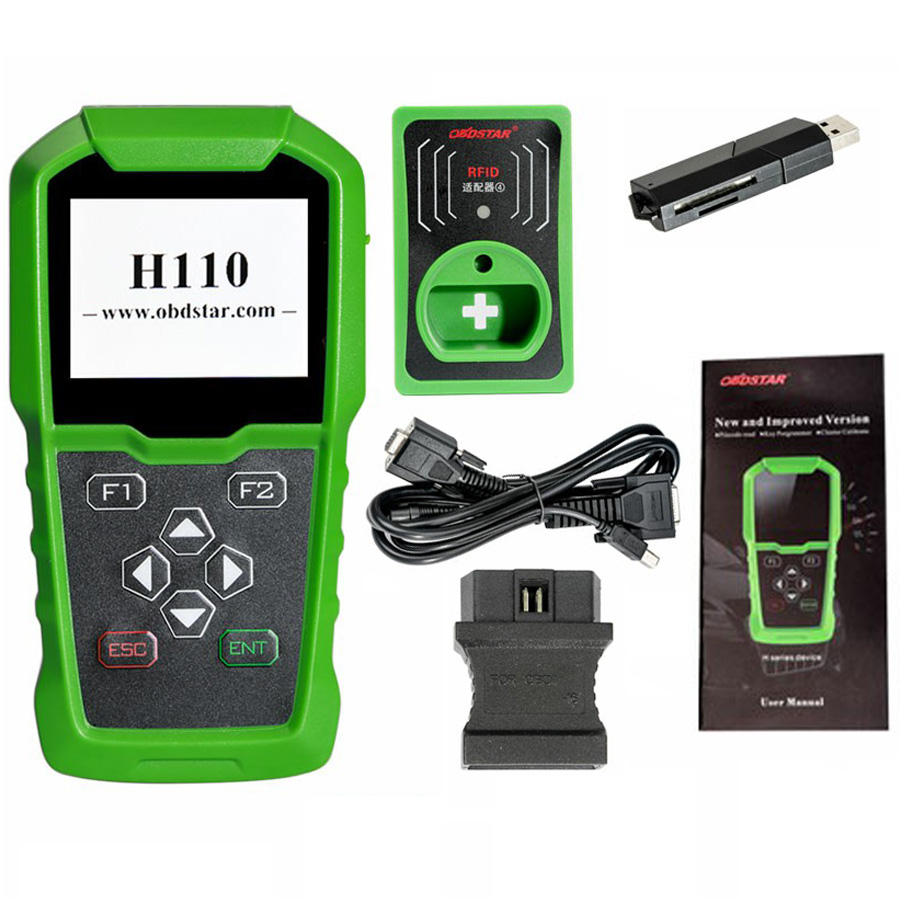

Packing List:
OBDSTAR H110 VAG I+C for MQB
RFID Adapter
Main Cable
OBD2 16-Pin Connector
Carrying Case
Cluster Calibrate Car List:
Audi MQB 35XX 2014.06-
Audi A3 2014.06-
Audi Q2 2014.06-
(Note: Continental and VDO dashboard supported only, Chinese Johson and virtual cockpit not supported.)
VW MQB 35XX 2014.06-
GOLF SPORTSVAN 2014.06-
GOLF7 2014.06-
GOLF PASSAT B80 2014.06-
GOLF POLO 2014.06-
Tiguan 2014.06-
Touran 2014.06-
(Note: Continental and VDO dashboard supported only, Chinese Johson and virtual cockpit not supported.)
Skoda MQB 35XX 2014.06-
Skoda Fabia 2014.06-
Skoda Rapid 2014.06-
Skoda Octavia 2014.06-
Skoda Superb 201.06-
(Note: Continental and VDO dashboard supported only, Chinese Johson and virtual cockpit not supported.)
Seat MQB 35XX 2014.06-
Seat IBIZA 2014.06-
Seat TOLEDO 2014.06-
Seat LEON 2014.06-
(Note: Continental and VDO dashboard supported only, Chinese Johson and virtual cockpit not supported.)
Immobilizer Car List:
(1) 2 - 3.5 Generation Immo
17 Dashboard
25 Immobilizer
(2) 4 Generation Immo
Audi A1:NEC+24C64 2013, 2014.6-
Audi A3/TT/R8(CDC+24C32/3217/3297)
Audi A4 RB4 Audi A4 RB8
Audi Q3: NEC+24C64 2013 Models, 2014.06-
Audi Q7/A6L(C6): 9S12DT(G)128, 9S12DT256
VW/SKODA/SEAT: CDC+24C32
VW/SKODA/SEAT: NEC+24C32
VW/SKODA/SEAT: 2013 Johnson
VW/SKODA/SEAT: Motorola 9S12XHZ512
VW/SKODA/SEAT: NEC +24C64
VW/SKODA/SEAT: NEC+95320
VW/SKODA/SEAT: NEC+35XX
VW/SKODA/SEAT: Magotan/CC
(3) 5 Generation Immo Audi A4L/A5/Q5 Audi A6/A7/A8
VW New Touareg
(4) Remote
09 Central control
B5 Central door lock(KWP1281)
46 Central comfort module(kwp1281) 46 Central comfort module(CAN BUS)
(5) Read PIN
17 Dashboard Jetta Passat Bora
Golf Sharan Polo Lavida 3.5
Sagitar 3.5 2007-, 2006
Touran 3.5
Caddy 3.5
VW 2007-
25 Immobilizer
01 Engine
|
