Name: Wellon VP698 Universal Programmer

Description:

Wellon VP-698 Universal Programmer is replacement and upgrade version of VP-498. It is am original Wellon programmer with high quality.

Features:

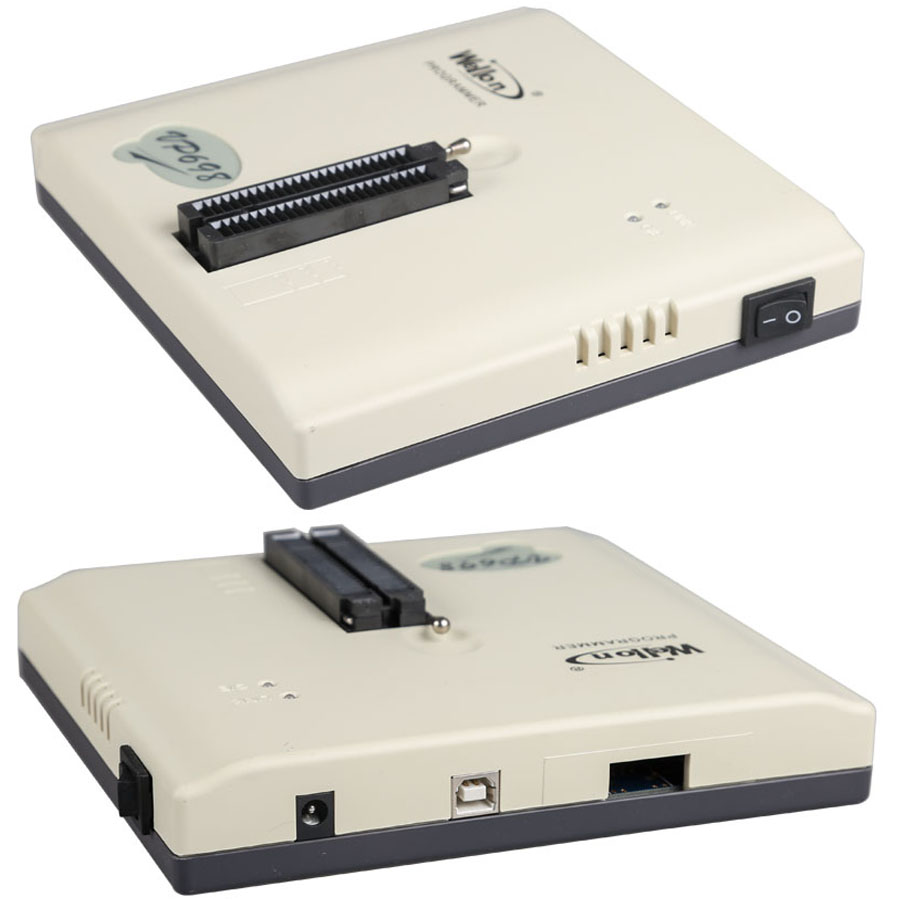

1. 48 Pin ZIF socket with universal pin-drivers.
2. Interface with laptop, PC or compatibles through USB port
3. Accepts standard file formats: JEDEC, INTEL (Extended) HEX, HOLTEK, EMC(.CDS), INTEL HEX16, Motorola S record
4. Manages 16 and 32-bit word split (Set Programming)
5. Features Test Vector capability and multiarray fuse map editor
6. Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices
7. Optimum programming for each individual device
8. Automatically Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC
9. Device insertion and poor-pin-contact check
10. Support 1.5V low voltage devices
11.  Not need exterior adapter for mostly devices.
12. Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters
13. Auto-run mode starts programming automatically upon detection of chip insertion

Supported OS: WindowsXP/Vista/7/8/10

Supports Languages: English, Italian, Portuguese，Dutch, Turkish, Hungary, Korean, Polish, Chinese(Simplified), Chinese(Traditional)

Software Update: free online update

Supported Devices:

PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory
PLD: CPLD, EPLD, GAL,PEEL,PALCE and more
Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc.

IC Test:

TTL (74 series), CMOS (40/45 series) Logic IC
SRAM (2114, 6116 ...) memory device

Specifications:

Dimension:168*180*32mm,
Weight: 450g.
AC Adapter: AC input 100V to 240V; 50/60Hz
DC Output: 9V/2.0A
Power:18W

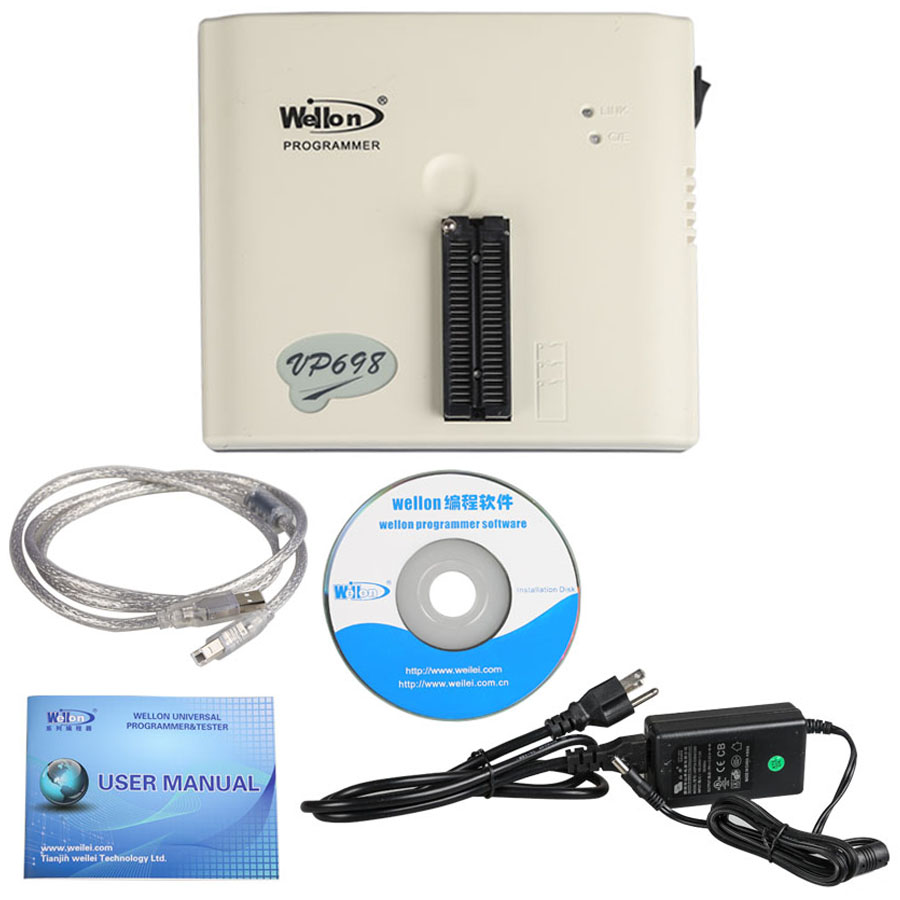

Packing List:

Original Wellon VP-698 Universal Programmer
USB Cable
Power Supply Adapter
Software CD
User Manual
Carrying Case
