Name: Autel MaxiDiag MD808 Pro All Modules Scanner Code Reader (MD802 ALL + MaxiCheck Pro)

Description:

Autel MaxiDiag MD808 Pro is built to take your diagnostic experience to a whole new level. Loaded with oil service reset, battery registration and reset, parking brake pad relearn after replacement, steering angle sensor relearn and diesel particulate filter regeneration functions. MD808 Pro can access ALL available modules for the best diagnosis operations. With all that enclosed in a 4-inch hand-held device, there is no better multi functional scan tool on the market.

Features:

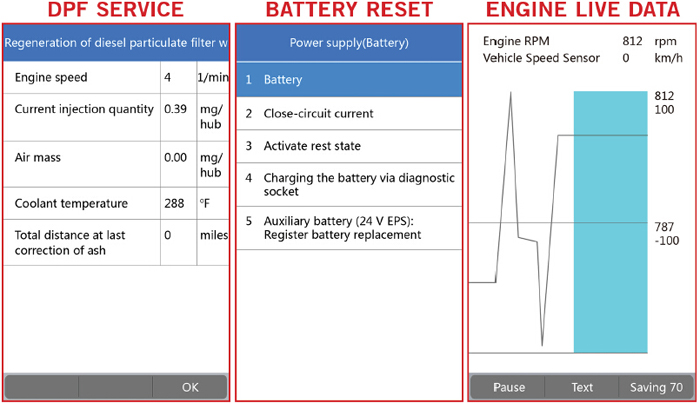

1. Read and clear trouble codes, control and test BMS/EPB/SAS/Oil Reset/DPF systems
2. Diesel particulate/including forced regeneration
3. Reset steering angle sensor(SAS) functionality
4. Reset oil service and battery registration
5. Reset service mileage and service intervals
6. Perform OLS/oil service resets
7. Set inspection 1 & 2 service intervals
8. Open and close EPB(electronic brake calipers) for pad removal and service
9. Read and clear EPB/SBC trouble codes
10. Diagnose EPB/SBC(Sensotronic Brake Control) caliper functionality with bi-directional control
11. Perform O2 monitor, on-board monitor I/M readiness and component testing.

Functions List:

1. Read/Test/Clear trouble code all modules: Powertrain System, Body System, Chassis System, INFO & Communication
2. Auto VIN Detection
3. Auto Scan all major system
4. Live Data to test individual systems
5. Communicate with door modules, body controllers, electronic modules
6. Graph,record and playback freeze frame data.
7. Freeze Frame, Enhanced Mode 6,Vehicle Info, I/M Readiness, Onboard Monitor and Component Tests

Supported Cars:

On the basis of all OBD-II compliant vehicles, including those equipped with universal protocol - Control Area Network(CAN), Autel MaxiDiag MD808/808 Pro Scanners expand vehicle system coverage and offer more diagnostic power to the vehicle technicians. Featuring expanded global vehicle coverage, the scan tools offer technicians a significant improvement on model years covered by supported manufactures.

Acura, Benz, Chrysler, Ford, Honda, Hyundai, Infiniti, Kia, Lexus, Renault, Scion, Toyota, VW...

For a complete listing of all the added cars, please check on www.auteltech.com.

How to use Autel MD808 Pro to Perform Oil Reset?

Select Oil Reset icon on the Service screen and wait for the vehicle manufacturer screen. Choose the correct vehicle make.

There are 2 ways to perform the reset service:

1. Manual Reset:

Almost all Asian vehicles and most American and European vehicles can be reset manually by technicians. To finish this procedure, please follow these steps (Take Ford as an example):

1) Select Ford from the vehicle make screen and press OK.
2) Select the right options for your vehicle step by step according to each
screen that appears until the vehicle information is identified.
3) After entering the vehicle information, the scan tool will display a manual reset message, press OK to continue.
4) Follow the instructions to reset the service manually.
5) Press ESC to exit.

2. Auto Reset:

Most American and European vehicles can be reset automatically by the scan tool. To finish this procedure, please follow these steps (Take Peugeot as an example):

1) Select Peugeot from the vehicle make screen and press OK.
2) Select the right options for your vehicle step by step according to each screen that appears until the vehicle information is identified.
3) After entering the vehicle information, the scan tool displays manual reset message.

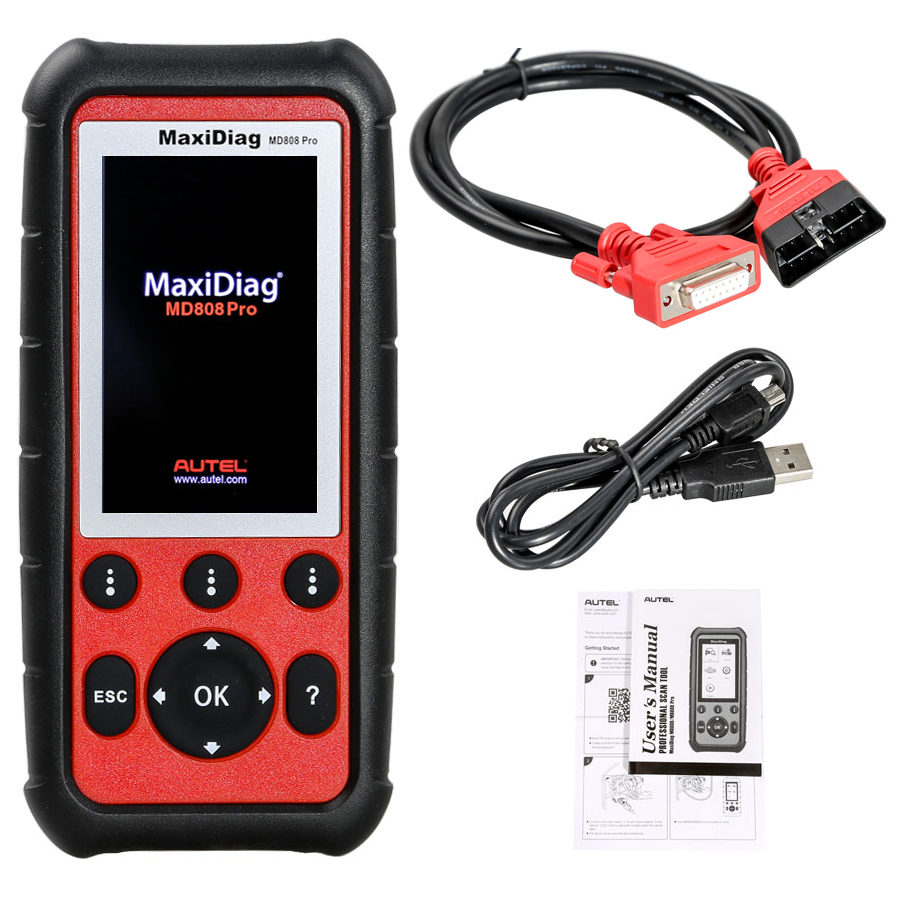

Packing List:

Autel MaxiDiag MD808 Pro
Main Cable
USB Cable
Micro SD Card
User Manual
Quick Reference Guide

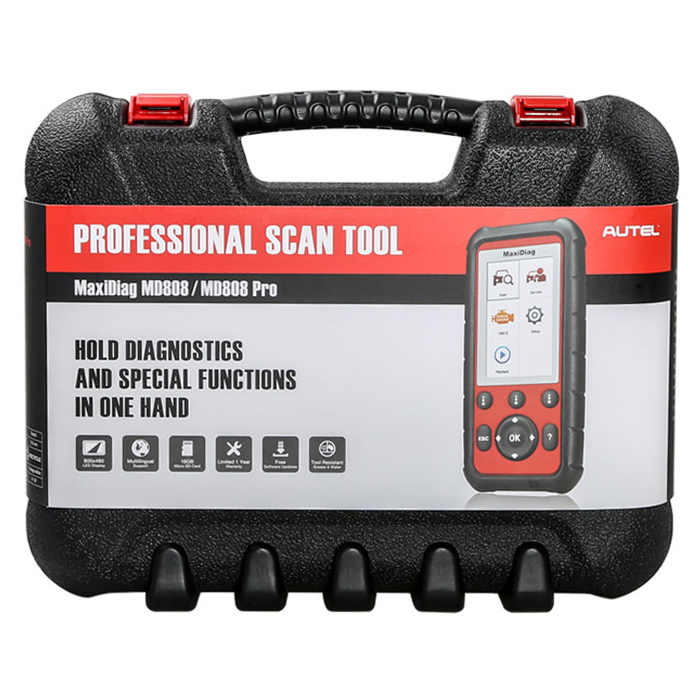

Carrying Case

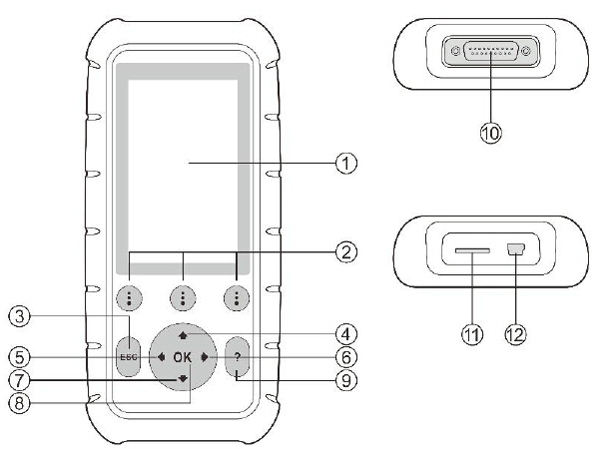

1. TFT color LCD Display (800*480 dpi) - Indicates test results.

2. Function Button - Corresponds with "buttons" on screen for executing commands.

3. ESC Button - Cancels a selection (or an action) from a menu or returns to the previous screen.

4. Up Scroll Button - Moves up through menu and submenu items in menu mode. When more than one screen of data is retrieved, moves up through the current screen to the previous screens for additional data. When looking up DTC, it is used to change value of selected character.

5. Left Scroll Button - When look up DTC definitions, moves to previous character and views additional information on previous screens if DTC definition covers more than one screen; views previous screen or previous frames of recorded data. It is also used to view previous trouble code when viewing DTCs.

6. Right Scroll Button - When look up DTC definitions, moves to next character and view additional information on next screens if DTC definition covers more than one screen; views next screen or next frames of recorded data.. It is also used to view next trouble code when viewing DTCs.

7. Down Scroll Button - Moves down through menu and submenu items in menu mode. When more than one screen of data is retrieved, moves down through the current screen to next screens for additional data. When looking up DTC, it is used to change value of selected character.

8. OK Button - Confirms a selection (or an action) from a menu.

9. Help Button - Provides help information for the function conducted on the screen.

10. Connector Port - Connects the scan tool to the vehicle Data Link Connector (DLC) via OBD-II cable.

11. Micro SD Card Slot - Holds the System Micro SD card.
