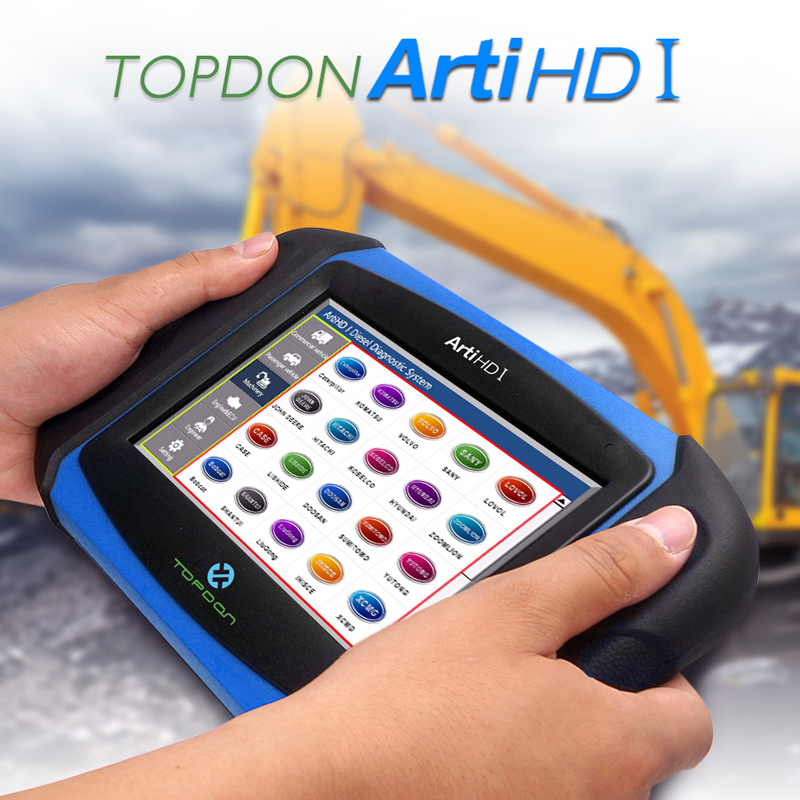

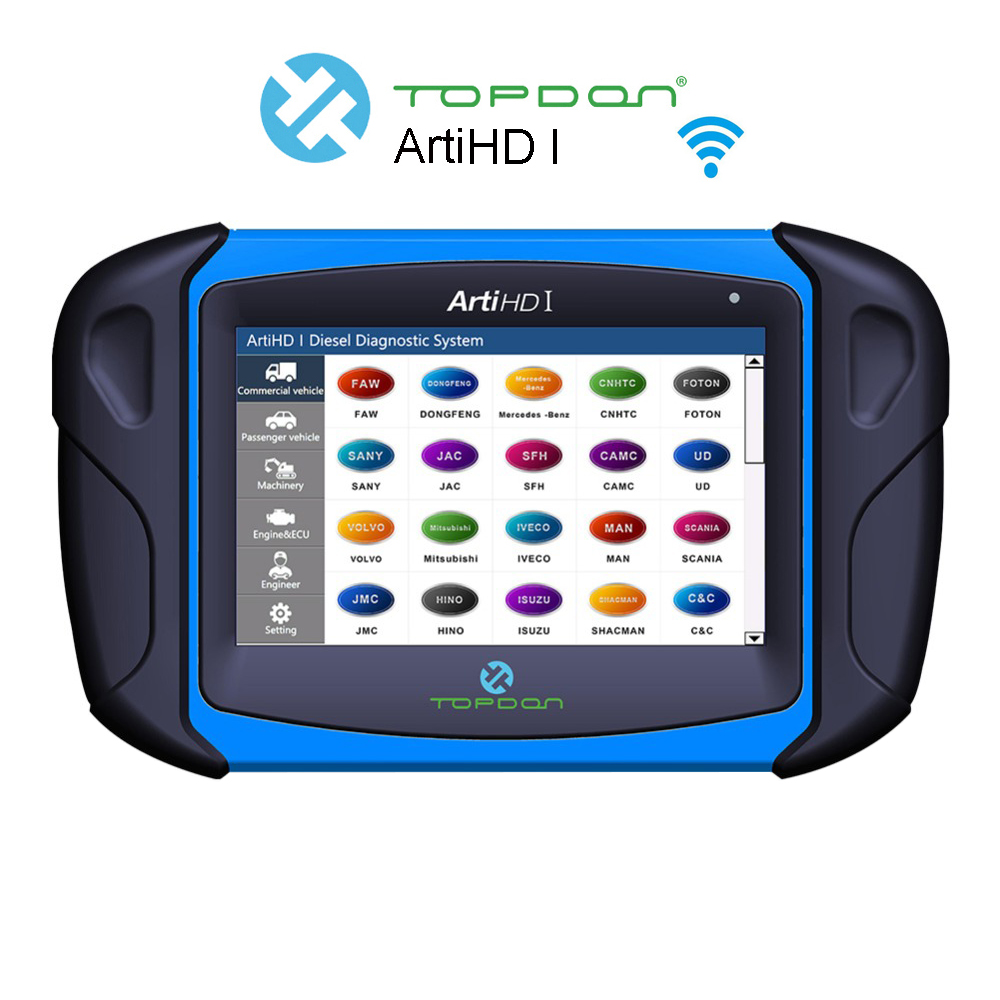

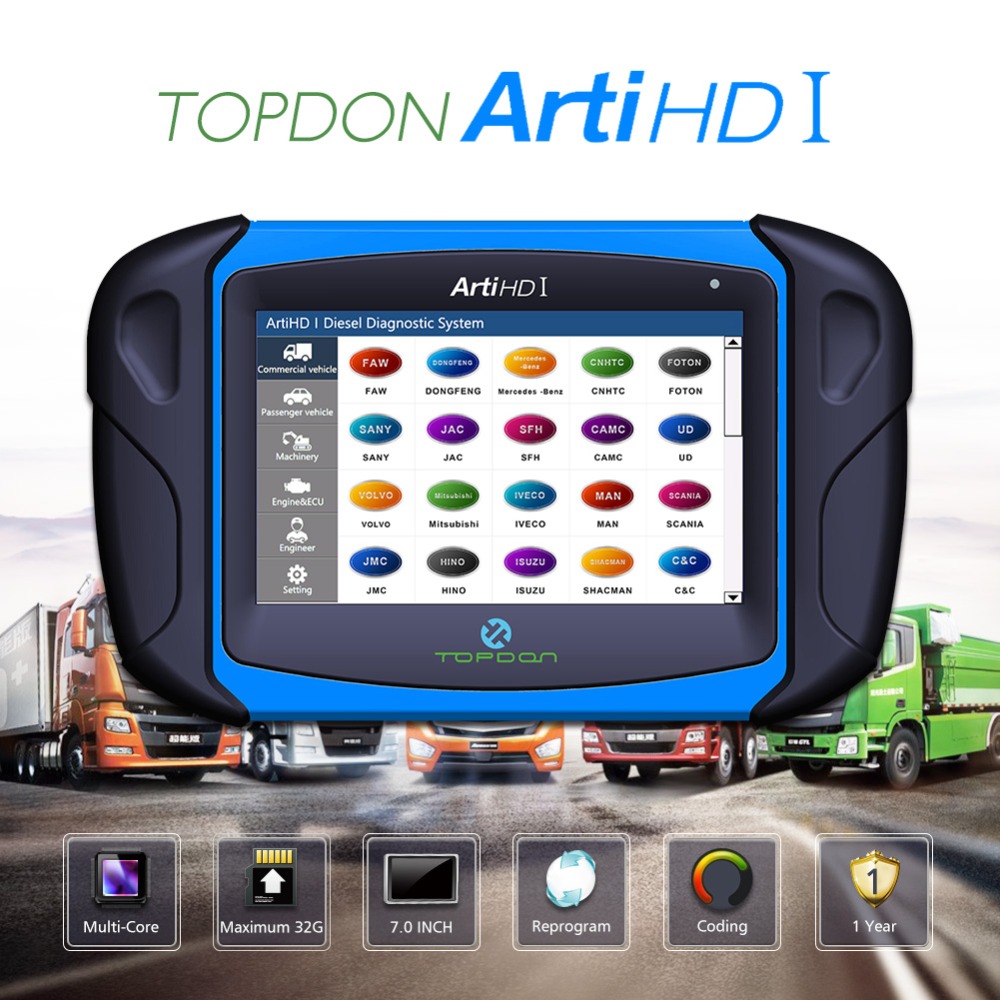

Name: Topdon Arti HD I Heavy Duty Diagnostic Tool for Truck, Bus, Car ECU Reprogram/Calibration/Data Stream, Actuation Test

Description:

Topdon ArtiHD 1 is a completely Independent R & D product for Heavy Duty and Commercial vehicles. It is a professional diagnostic scan tool for Automotive Aftermarket.

Topdon ArtiHD I is fully optimized based on the OEM scanner, which enhances the comprehensive diagnostic capability of the diesel vehicle. Some of the functions are based on the advanced technology accumulated by the R & D team for many years and are superior to other similar diagnostic products in the industry. The main diagnostic functions include reading the version information, reading/clearing fault code, actual values, actuators, advanced function (special function, matching settings, functional test, diesel calibration) and so on. You do not have to rely on the original diagnostic apparatus, you can provide customers with more comprehensive and professional and efficient diagnostic services.

Features:

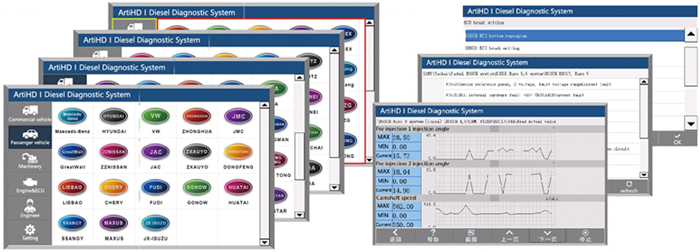

1. Manage on-road vehicle with strong repair function: detect critical problems through live data graphing, check out component malfunctions and implement repairs via special tests as well as program vehicle operation and components replacement from custom parameters.

2. Offer multiple-system data comparison as well as real-time data graph.

3. High-speed processor ensures fast results and data display.

4. Diagnostic hardware is designed according to international standard, compatible with Diagnostic interfaces of worldwide model, including wide-range connector and cables.

Functions:

Diagnosis:

Euro 5: Cummins, Weichai, Yuchai, Shangchai, Xichai, Yunnei, Foton, FAW, JMC, Qingling, IVECO, etc. (Read Code, Clear Code, Data Stream, Actuation Test)

Gas: WeiChai Woodard Natural Gas system, WeiChai BOSCH Natural Gas system, YuChai Natural Gas system, FAWDE Natural Gas system, SDEC Natural Gas system, CNHTC Natural Gas system, Nanchong Natural Gas system, Cummins Natural Gas system, etc.

Machinery: Engine and Hydraulic diagnosis on Caterpillar, KOMATSU, VOLVO, SANY, HITACHI, Hyundai, etc.

Post-Processing: Urea Pump Drive/Injection Test: BOSCH, Kailong, ACT BLUE, Tenneco, Henghe, BJ Cats, CNHTC, SHACMAN, etc.

ABS: WABCO, Kormee, BOSCH, WanAn, HongDing, CNHTC, YaTai, FAW, Qinqi, FAW, DELPHI, Jingxi Heavy, Knorr, DongFeng, etc.

ECU Reprogram:

1. Support all Euro 3 Bosch EDC 7 across the bottom of the brand reprogram;

2. Support all Euro 4 Bosch EDC17 bottom cross-version reprogram;

3. Support EDC16UC40 bottom reprogram (Dongfeng, Xichai, Yuchai, Cha Cha, Cloud, etc.);

4. Support the country 4 Bosch EDC17 ECU read reprogram write data, the country 3 Bosch EDC7 / EDC16 read and write;(Weichai, Xichai, Yuchai, Chaichai, Dachai , Dongfeng, cloud, on the red, heavy truck, Valin, Fukuda, JAC, the whole firewood, Chai Chai, Yang Chai, etc.)

5. Support the Hino Denso, on the diesel and other equipment,

6. Support Weichai country 5, the country 6 ECU reprogram write, Yuchai 5 ECU reprogram to write;

7. Support CBCU reprogram: China National Heavy Duty Truck, Fukuda Auman, etc.

8. Support DCU reprogram to write: Tenneco, Hino, Weichai autonomy;

Calibration:

Weichai, Xichai, Yuchai, Cha Chai, Dafa, Dongfeng, cloud, heavy truck, Valin, Fukuda, JAC, the whole firewood, on the firewood, Yang Chai and other engine calibration function (Euro III IV Bosch EOL) :(Idle speed adjustment, clutch switch, main and auxiliary brake switch, the maximum speed adjustment, preheat control, exhaust brake, fuel oil alarm, starter control, air conditioning control, cruise control, Car start and stop switch, oil pressure sensor, oil in the water sensor, fuel oil alarm, engine alarm light, PTO speed, K value, intake preheat, bridge speed ratio, etc.)

Exclusive starting Bosch 4, the Euro 5 post-processing history fault removal function

Exclusive starting the highest speed adjustment calibration function, support Bosch / Cummins 4, the Euro 5 and CBCU (heavy truck, Dongfeng, liberation, on the red)

Euro 4, Euro 5 urea injection temperature setting function, used to reduce the consumption of urea (support Weichai, FAW, Xichai, heavy truck, Yuchai, Chai and other DNOX 2.2 / 6.5)

New Weichai, Yuchai, Dongfeng, Cummins and other nitrogen sensor test calibration function (test nitrogen and oxygen sensor is good or bad)

China National Heavy Duty Truck CBCU, CBCU3 system calibration, Weichai Euro five engine calibration; Cummins Euro five all the calibration function

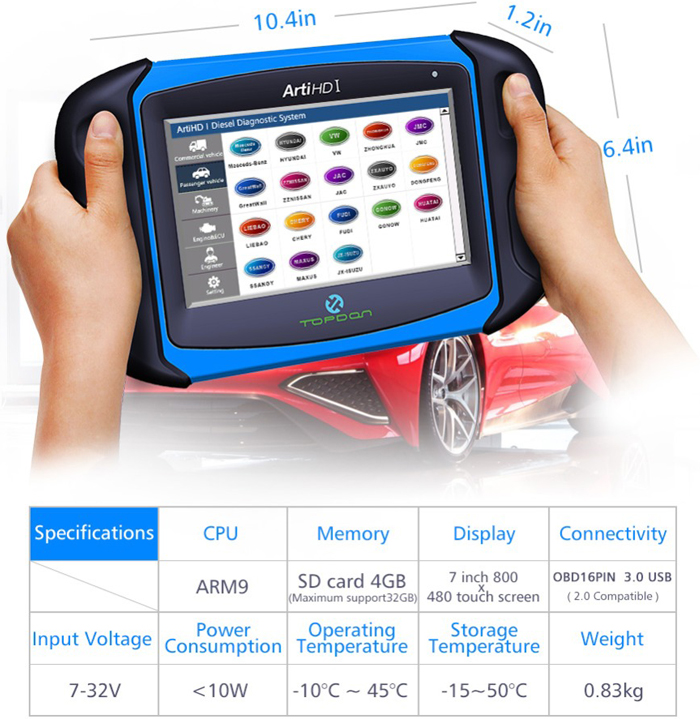

Specifications:

CPU: ARM9
Memory: 4GB SD card, maximum support up to 32GB
Display: 7 inch 800*480 touch screen
Connectivity: OBD-II 16-pin, 3.0 USB (2.0 compatible)
Input Voltage: 7-32V
Power Consumption: <10W
Operating Temperature: -10 to 45 degree centigrade
Storage temperature: -15 to 50 degree centigrade
Dimensions(W*H*D): 265*162*31mm
Weight: 0.83Kg

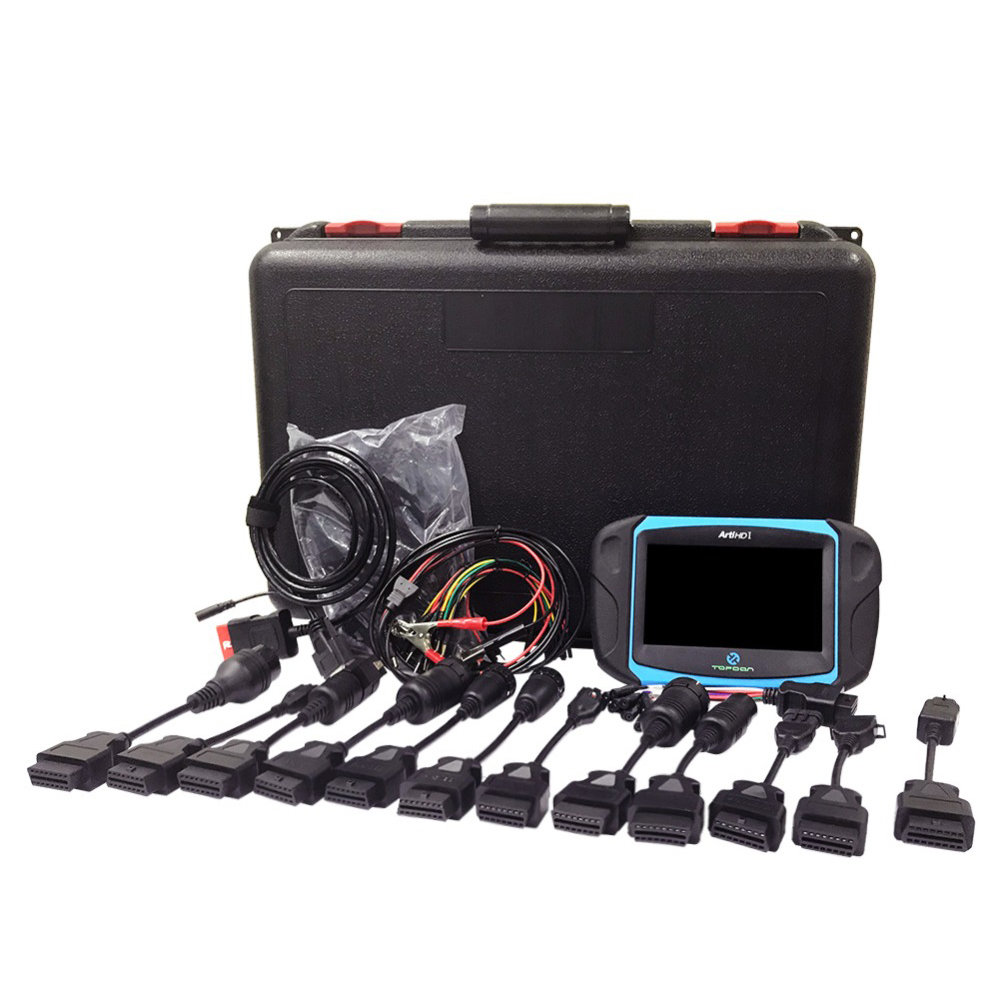

Packing List:

Topdon ArtiHD I
Test Extension Cable with OBD Connector)
OBD2 16-Pin Circular Adapter
BENZ-14
CAT-9
CUMMINS-9
IVECO-38
KOMATSU-12
VOLVO-8
VOLVO-14
Multi-functions Jumper Adapter
Power Supply Adapter Kit
Power Supply Extension Cable
Battery Clip Cable
Cigarette Lighter Cable
SD Card
SD Card Reader
User Manual
Plastic Box
Carrying Case
