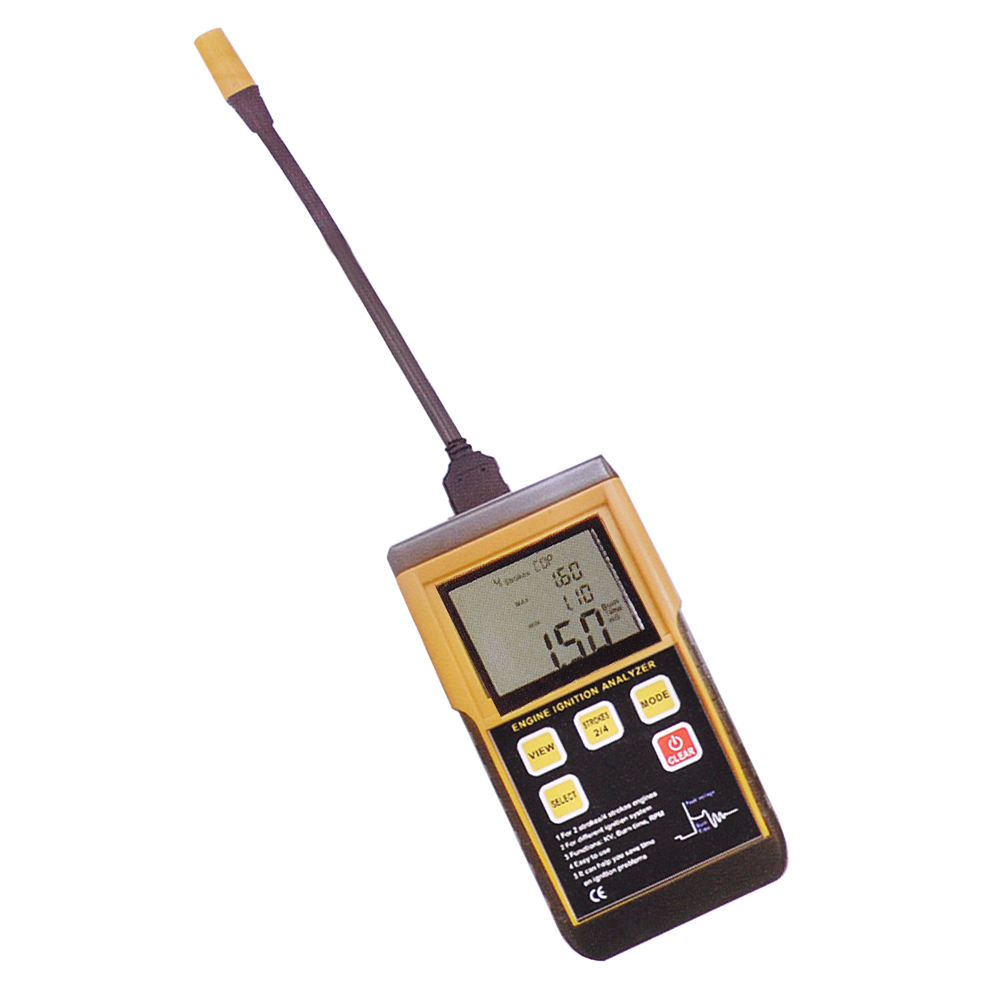

Name: OTI800 Engine Ignition Analyzer

Description:

OTI800 Engine Ignition Analyzer can carry out a quick and easy diagnosis of following:

-Non-starts
-Misfires
-Defective coils
-Fouled or damaged spark plugs
-Damaged spark plug wires

A small handheld analyzer like this one could read and display so many parameters of the ignition status. Just touch the COP with the magic wand and you learn a lot about the firing in that cylinder. It deals with the secondary of the coil mostly but that is enough info to troubleshoot a dead or misfiring cylinder.

LCD display is amazingly clear and easy to read. Fast to diagnose problems.

So far has been tested on cars, motorcycles, mowers, weed wackers and small engines

You can use it at work for testing spark strength in ignition wires on gasoline engine. It is very quick and effective for this task.

The Engine Ignition Analyzer was created specially to perform quick and reliable diagnostics of non-starts, misfires, fouled up or damaged spark plugs or spark plug wires, by comparing digital read-outs of the spark plug voltage and spark burn time between cylinders on engines using coil on plug, coil near plug.

Measures spark peak voltage, for finding primary and secondary coil faults.

Displays ignition waveforms in real time, allowing for detailed analysis.

Detects ramp time (or dwell angle), for diagnosis of timing issues and primary coil faults.

It has chart and comparison functions, allowing the user to find intermittent issues.

How to use?

1. Select the ignition system to measured (spark plug wire or coil on plug), and the number of cycles.

2. Select the measurement to show in the main display (RPM, spark burn time and spark plug voltage) and secondary display (Minimum and Maximum of the main display or the complementary measurements).

3. Place the antenna's capacitive pick-up on top of the coil on plug module, or over a spark plug or ignition coil wire, and then read the measurements on the LCD display.

Technical Specifications:

Display:
Main display and secondary display
Function indicator
Measurement units indicator
Spark detection indicator
Number of strokes indicator
Ignition system indicator
Low battery indicator

Ignition System Comp:
coil on plug, coil near plug, DIS, conventional and magneto

Engine Strokes:
2 and 4 strokes and DIS

Specifications:

Power: type MN1604 9V battery
Auto Power Off: automatically power off after 3 minutes of no operation
Battery Life: approximately 15 hours
Probe Length: 25cm including capacitive pick-up

Packing List:

OTI800 Engine Ignition Analyzer
Capacitive Pick-up
User Manual
9V Alkaline Battery
Carrying Case
