Name: SVCI J2534 for Ford / Mazda Supports Online Module Programming
Description:
SVCI J2534 is a vehicle communication interface device that full compatible with SAE J2534-1 and partly compatible with SAE J2534-2.
SVCI J2534 supports most of vehicle communication protocols and can be used as PassThru device for much dealer level diagnostic software. And it can be used as a ELM327 device and it supports most of ELM327 software.

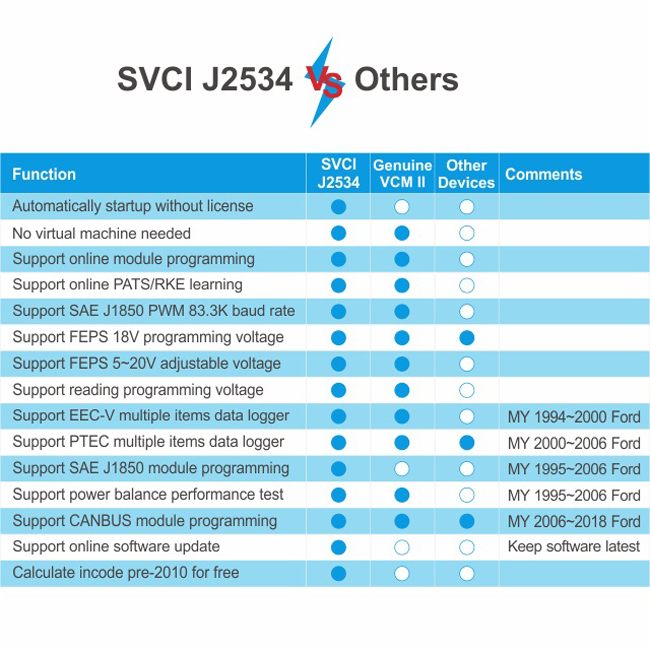

Features:
1. High speed host communication.(3Mbps)
2. Stable host communication.(with RTS/CTS flow control)
3. Automatically register software and no virtual machine needed.
4. Online software update and keep software latest always.
5. Online firmware update.
6. USB 802.11 selectable host communication.
7. Support ELM327 software by one device.

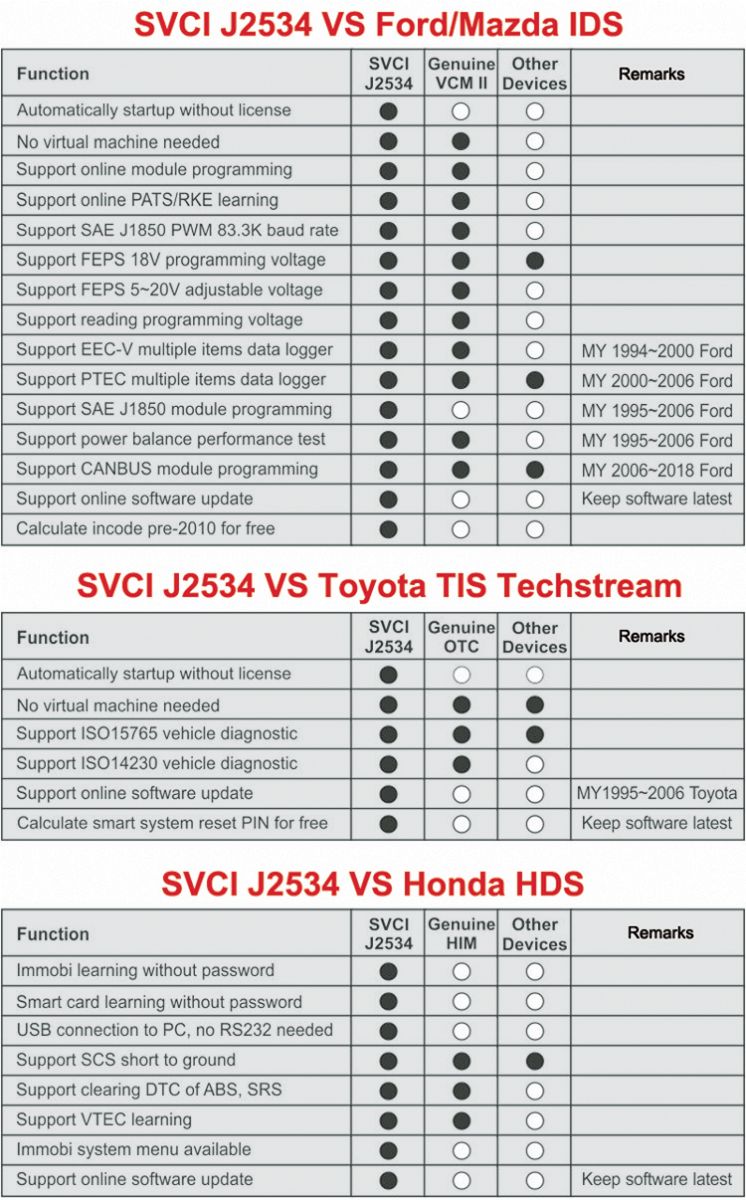

Supported Software:
J2534 Ford IDS V114
Mazda IDS V114
Toyota TIS V13.00.022
Land Rover/Jaguar SDD2 V154.01
(Notice: Please notice that we offer only Ford/Mazda IDS software and offer only technique supports for Ford/Mazda IDS software!)
Supported ELM327 Software:
ELMconfig
Forscan
FOCCCUS
FF2

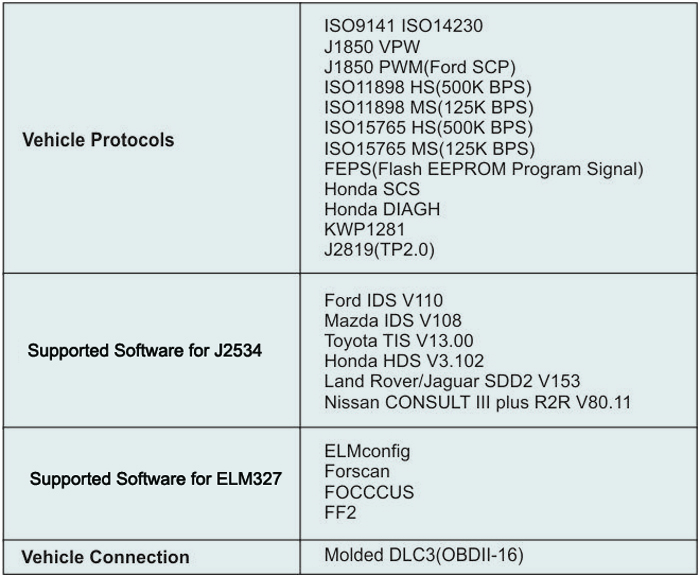

Supported Protocols:
ISO9141 IS014230
J1850 VPW
J1850 PWM(Ford SCP)
IS011898 HS(500K BPS)
IS011898 MS(125K BPS)
IS015765 HS(500K BPS)
IS015765 MS(125K BPS)
FEPS(Flash EEPROM Program Signal)
Honda SCS
Honda DIAGH
KWP1281
J2819(TP2.0)
Specifications:

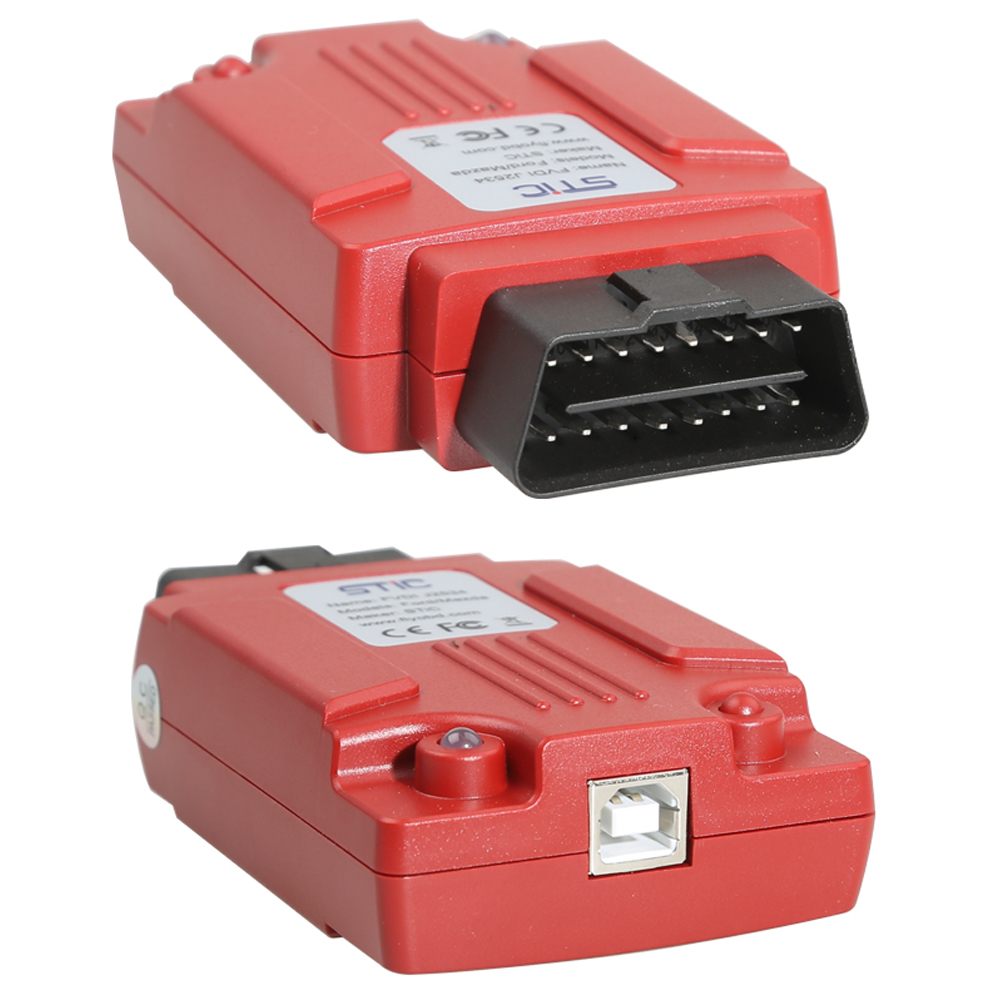

Vehicle Connection: OBD2 port
Environmental: -20 to 45 degree centigrade at 15% to 85% humidity
Voltage Requirements: 8 to 32V DC, 10mA(max); 0.6W @ 12V DC

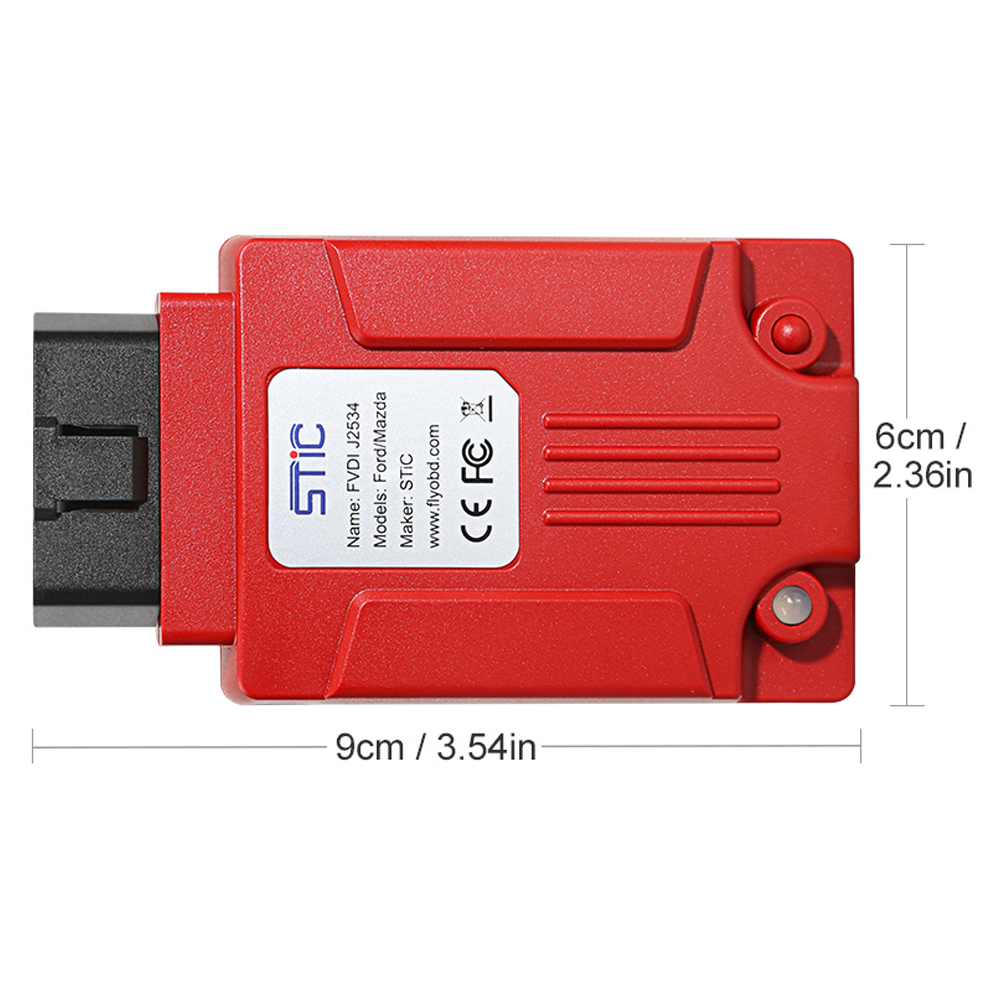

Dimension(L*W*H): 76mm*54mm*22mm

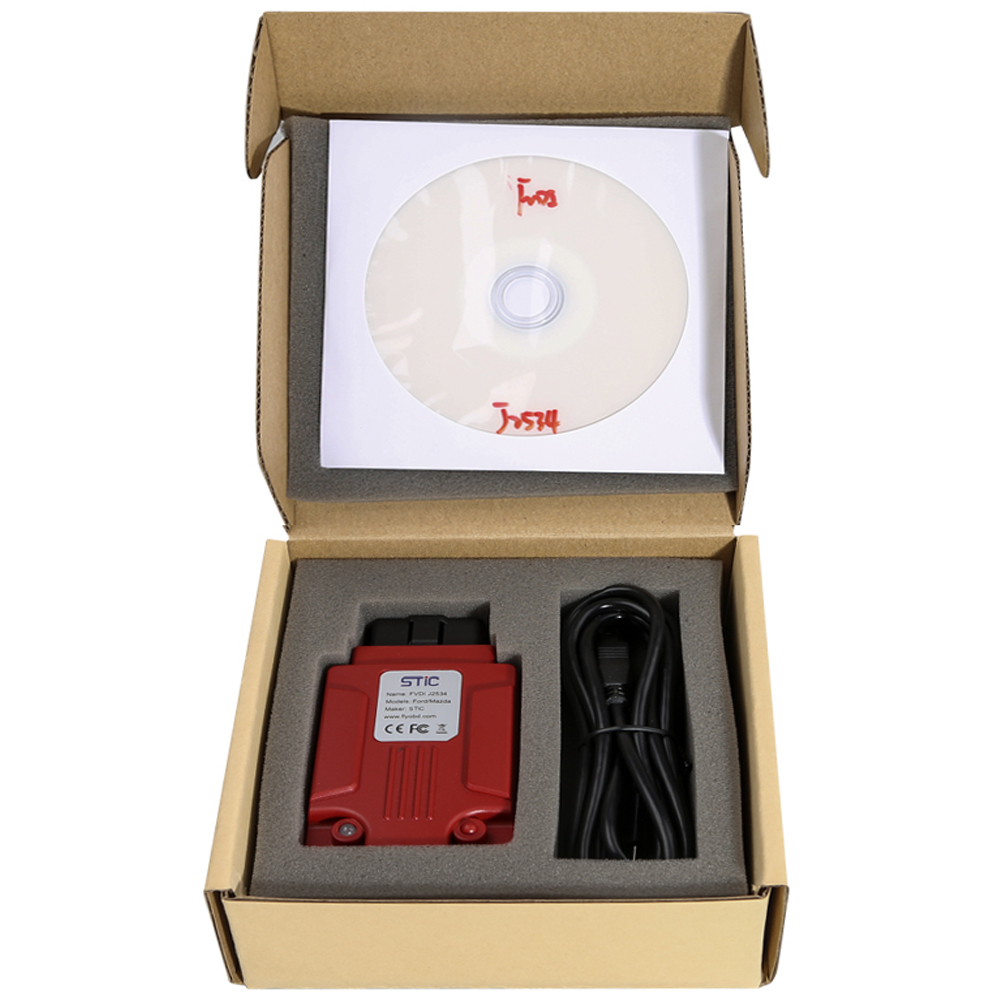

Packing List:
SVCI J2534
USB Cable
Ford/Mazda IDS Software CD
User Manual
|
