Name: Original JLR DoIP VCI Pathfinder for Jaguar Land Rover with WiFi
Description:
The new JLR approved DoIP VCI is the only unit that will be compatible with Pathfinder and all JLR vehicles with the new vehicle architectures (from the Range Rover / Range Rover Sport (L405 / L494) 17MY onwards) and Jaguar S-Type Jaguar F-Pace 17MY onwards or allow the enhanced diagnostics that Pathfinder will offer the retailer.
Functions:
Work with all Jaguar & Land Rover models after 2005 year.

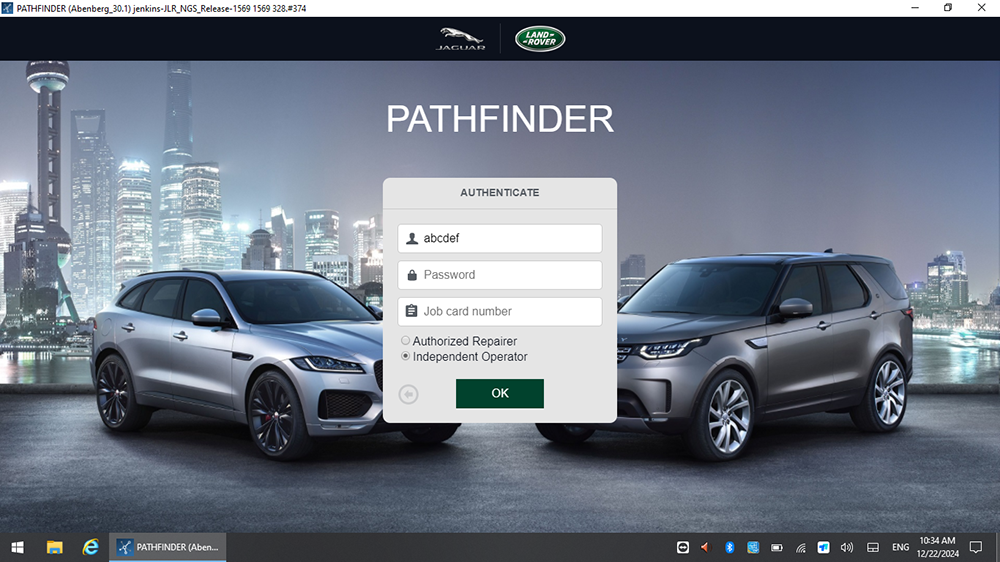

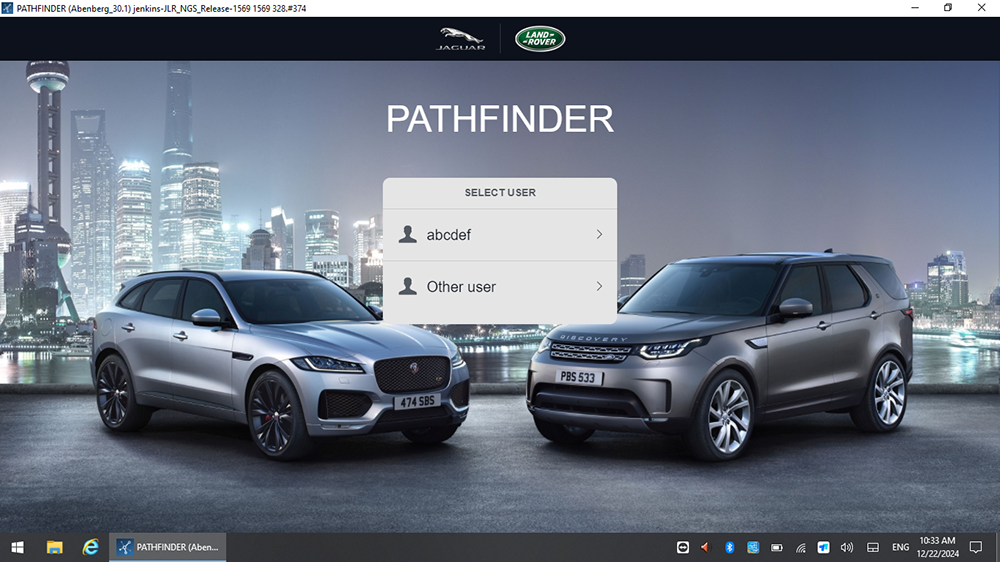

Work with the models after 2017, support Pathfinder software application

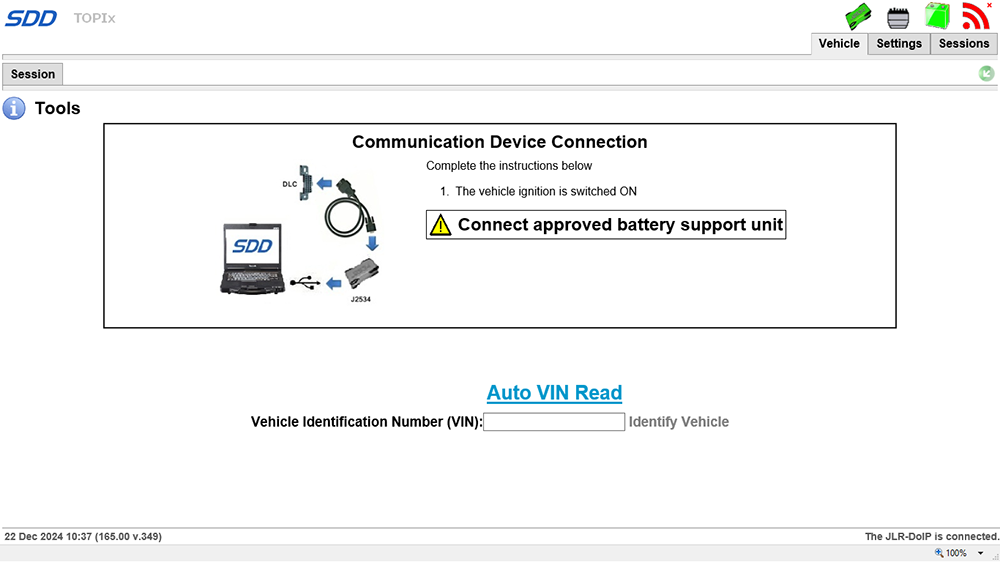

Work with the models before 2016, support SDD software.
Support all of the SDD diagnostic & programming protocol.
Support all of the Pathfinder's diagnostic & programming protocol
Support Pathfinder activation service offline.

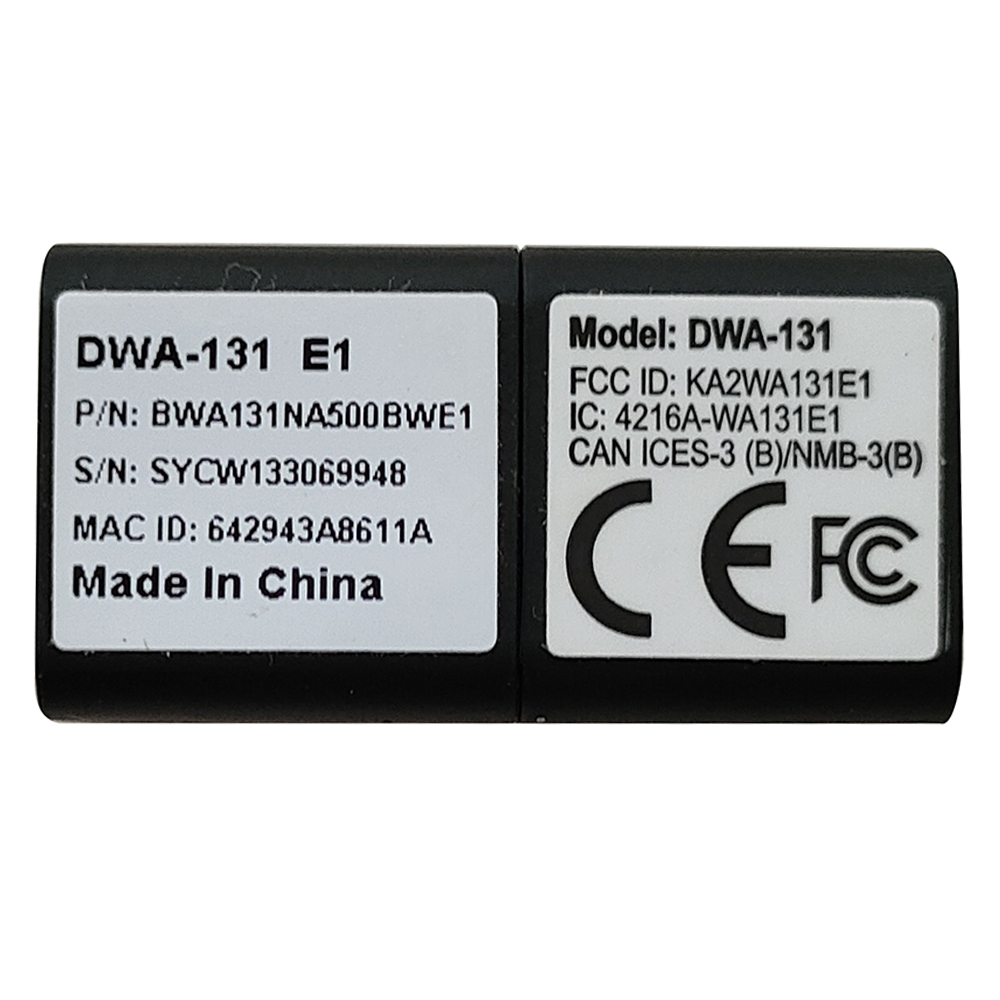

Support WiFi connection
Support VBF file edit
Support EXML file edit
Support SDD engineering software application
Support Pathfinder engineering software application
Support online programming, coding & key programming
SDD software can update to the newest version in the assistance of manufactures engineer, and perform online programming.
Pathfinder can update to the newest version in the assistance of manufactures engineer, and perform online programming.
Can replace JLR VCI
Can replace JLR DoIP VCI
Features:
Jaguar Land Rover approved device
Replacement for JLR SDD VCI
Covers CAN, MultiCAN, ISO9141 and SCP Vehicle Networks
Suitable for Legacy, Current and future vehicles
2 meter USB cable as standard included
Easy to update for J2534 new functionality. The JLR VCI connects directly to the vehicle OBD-II (Diagnostic) connector, it then connects to the laptop via a USB cable for using with SDD. Once the J2534 DLL files are loaded, this product will allow normal operation with JLR SDD Diagnostic Tool. All communication is possible on with this device.
How does the Original JLR DoIP VCI get updated for future Software Updates?
Periodically, JLR will release updates to its products drivers and software. These updates are necessary to either release further device functionality or to resolve field issues.
The updating of the drivers and software is handled by the diagnostic test application which will install the updates on request.
If problems are experienced during device use, always make sure that the latest device software and drivers have been installed.
Supported Models:
In addition to the 2017MY vehicle line applications, the DoIP VCI will be capable of interfacing with 2014 - 2016MY Multi-CAN architecture vehicle lines on the Pathfinder diagnostic system.
The JLR VCI is suitable for use with all JLR vehicle models with the following exceptions:
1. Flash programming of Engine Control Modules (ECMs) on XJS and pre-2003 XJ and XK models (AJ16, AJ26, AJ27 engines).
2. Simultaneous logging of ECM and TCM datalogger signals on 2006my Range Rover.
FAQs:
Q1: Must I have the JLR online dealer account to use this tool?
A1: Yes
Q2: Which laptop do you recommend to work with JLR DoIP VCI Pathfinder Tool?
A2: No particular laptop, the higher configuration, the better.
Q3: There are 2 kinds of software?
A3: Yes, Pathfinder software for JLR vehicle after MY2018, and JLR SDD software for MY2014 - 2018.
Notice:
1. Pre-2014 MY vehicles will continue to use the current diagnostic system and VCIs and uses SDD software.

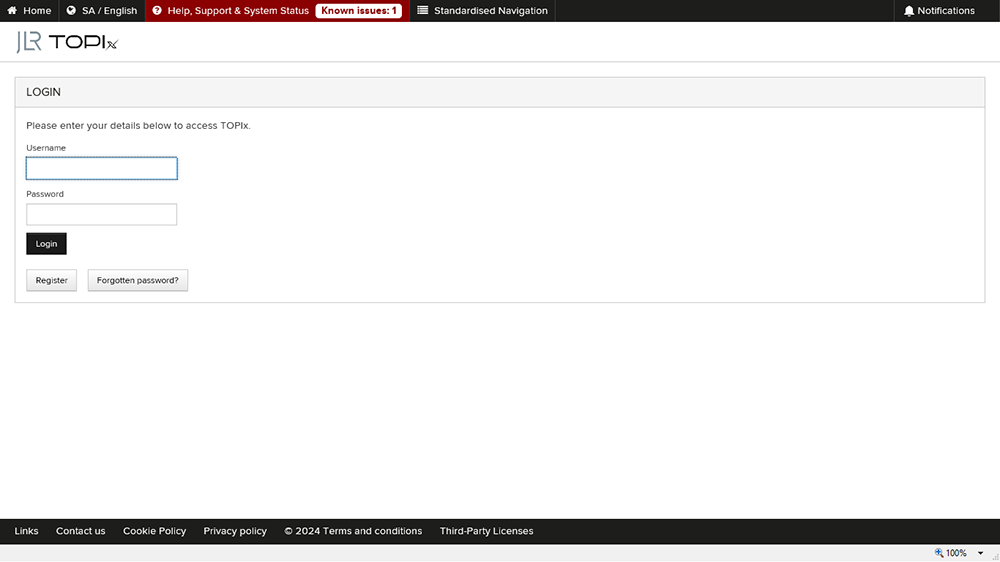

2. The above interface is to be used with Pathfinder which can be downloaded and subscribed via the JLR ToPIX official website.
3. User needs to use his own online account for Pathfinder.

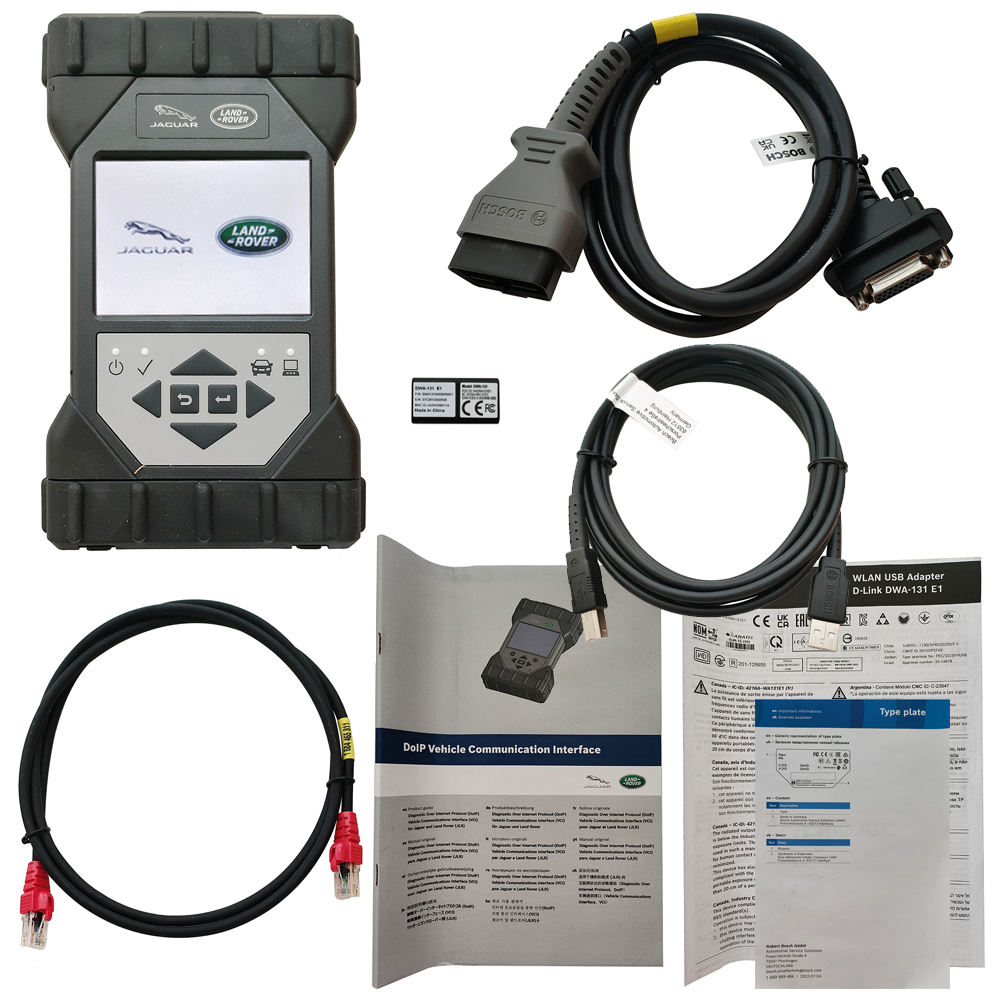

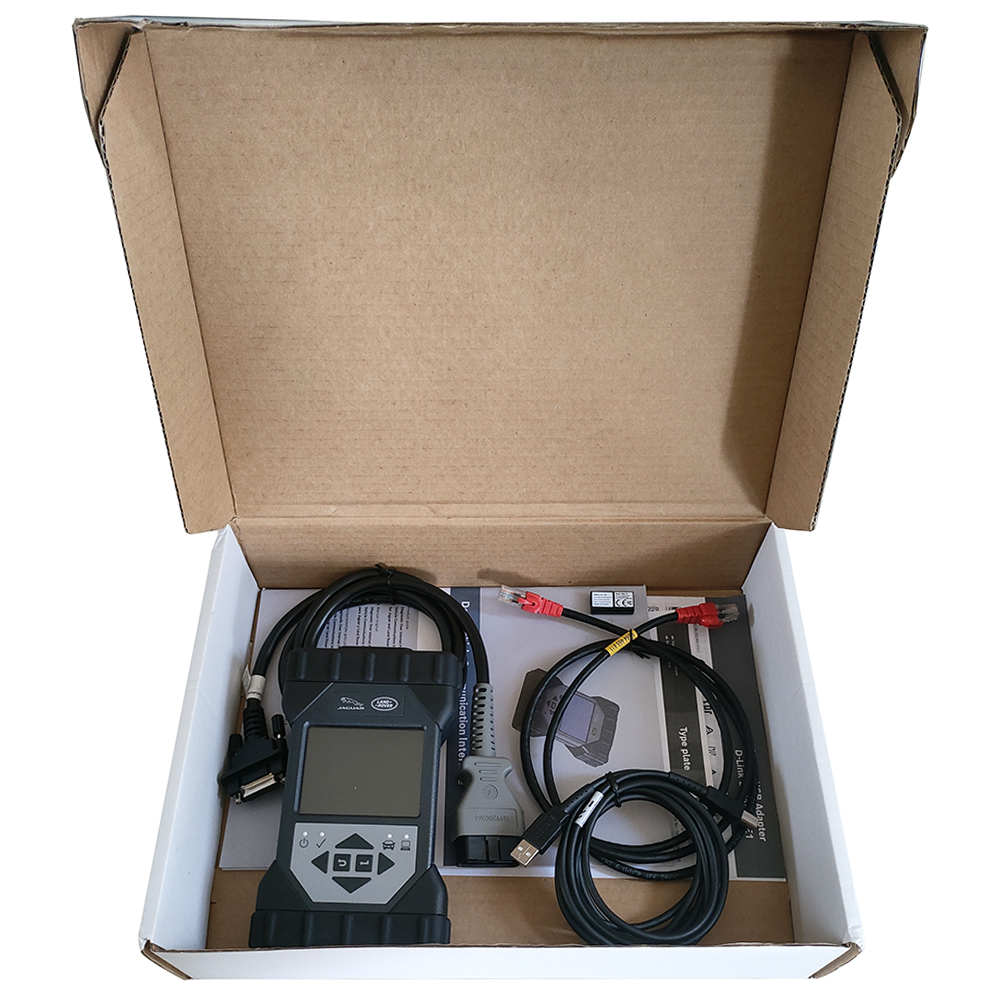

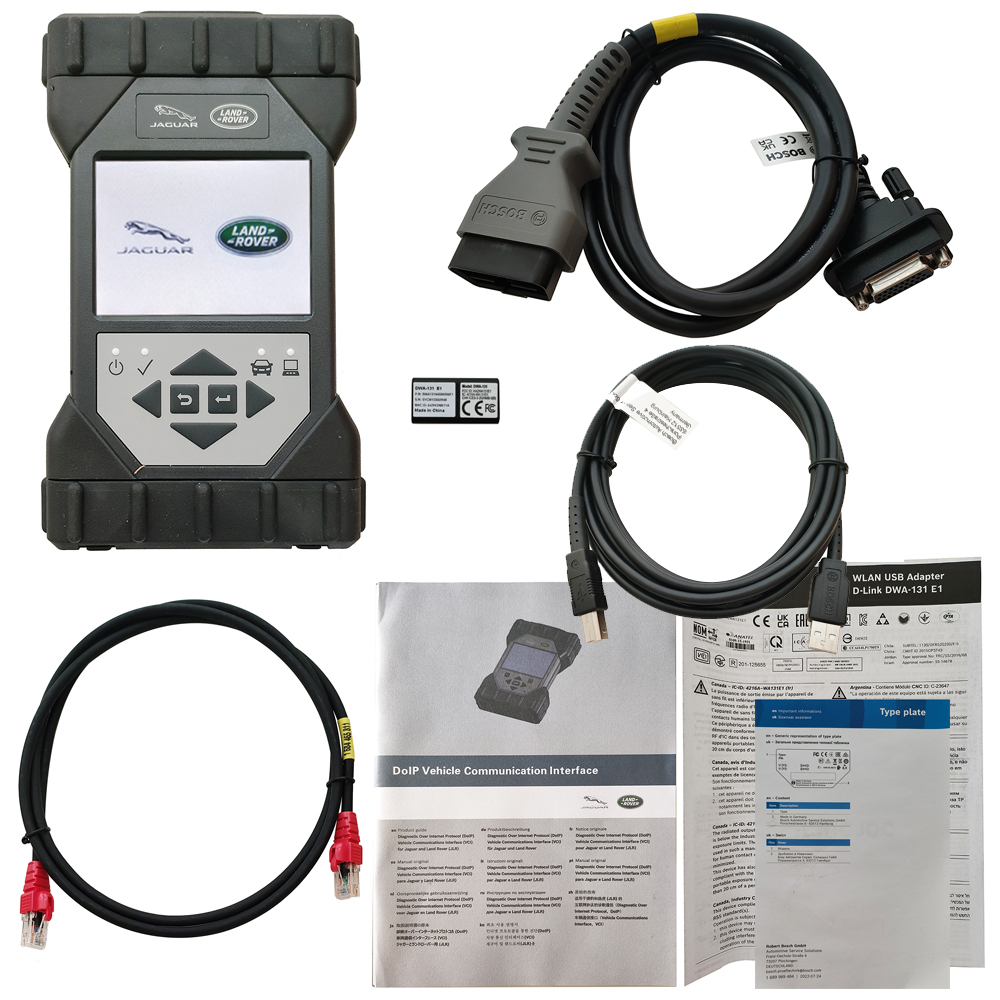

Packing List:

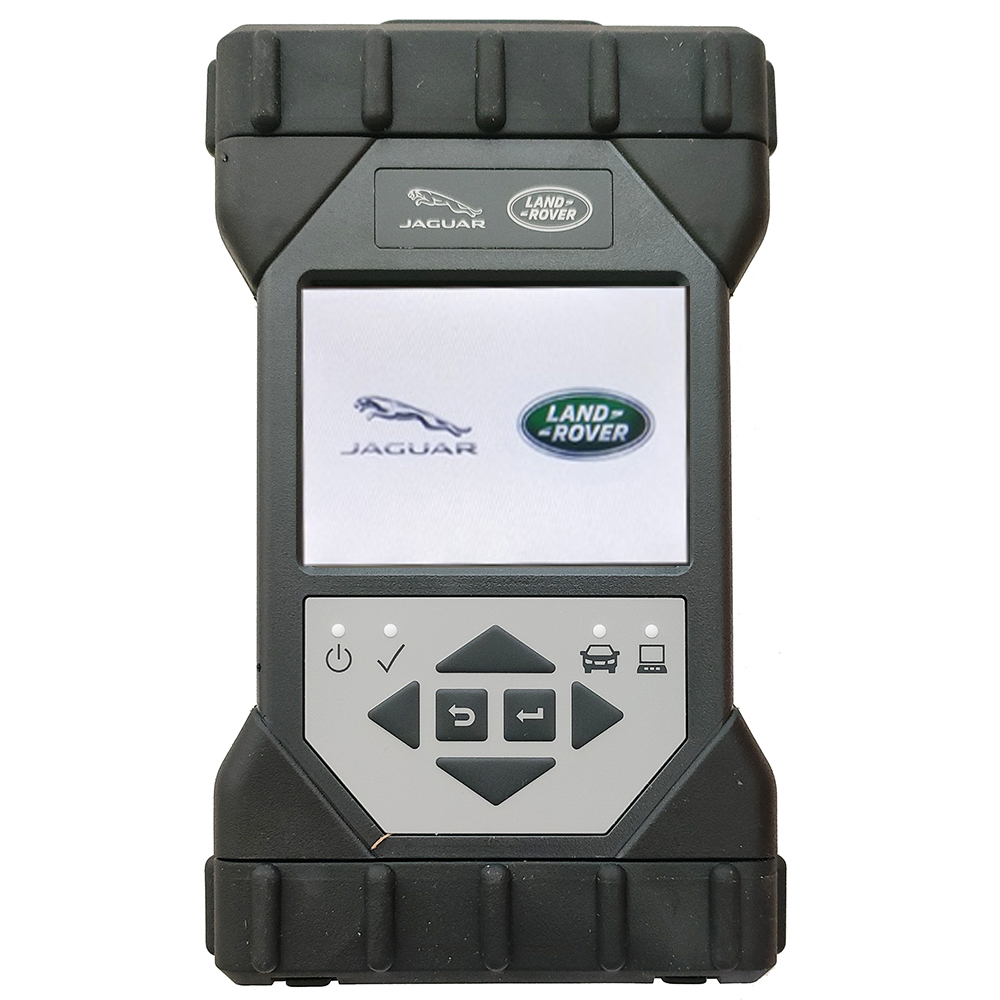

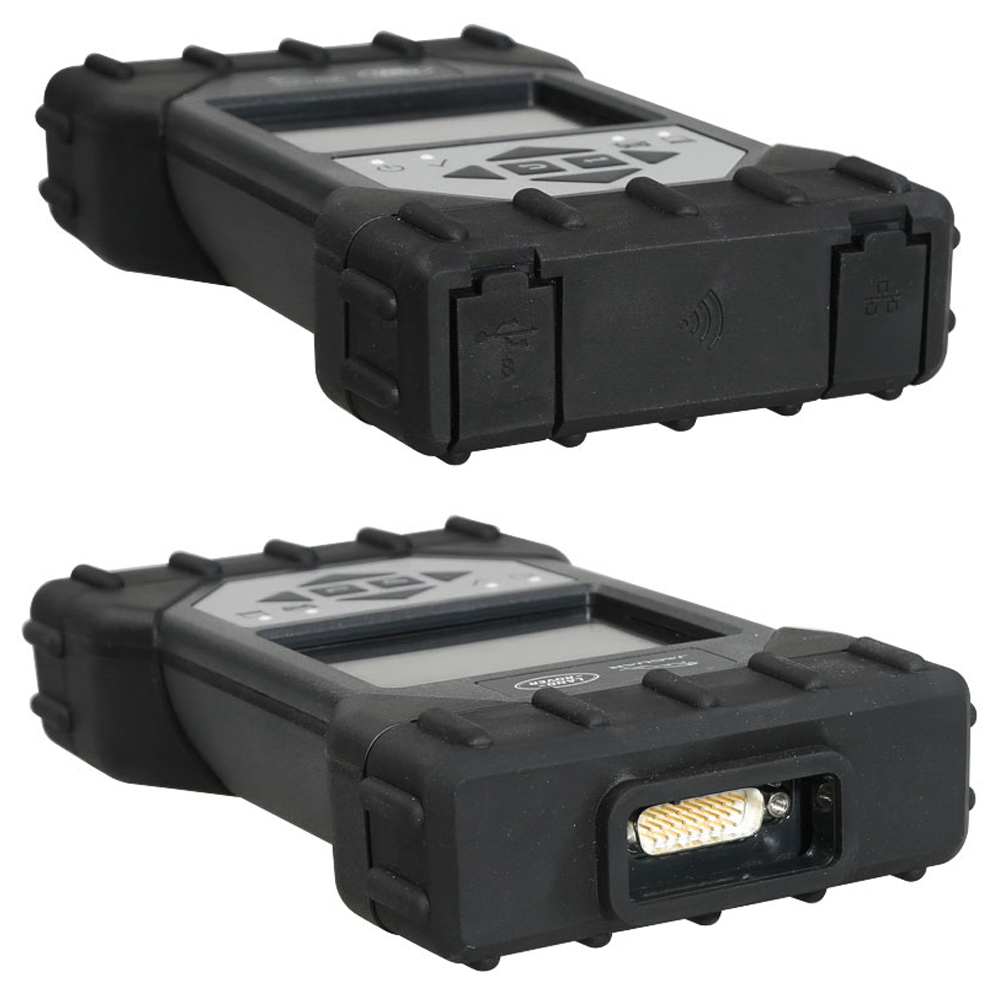

JLR DoIP VCI Pathfinder Interface

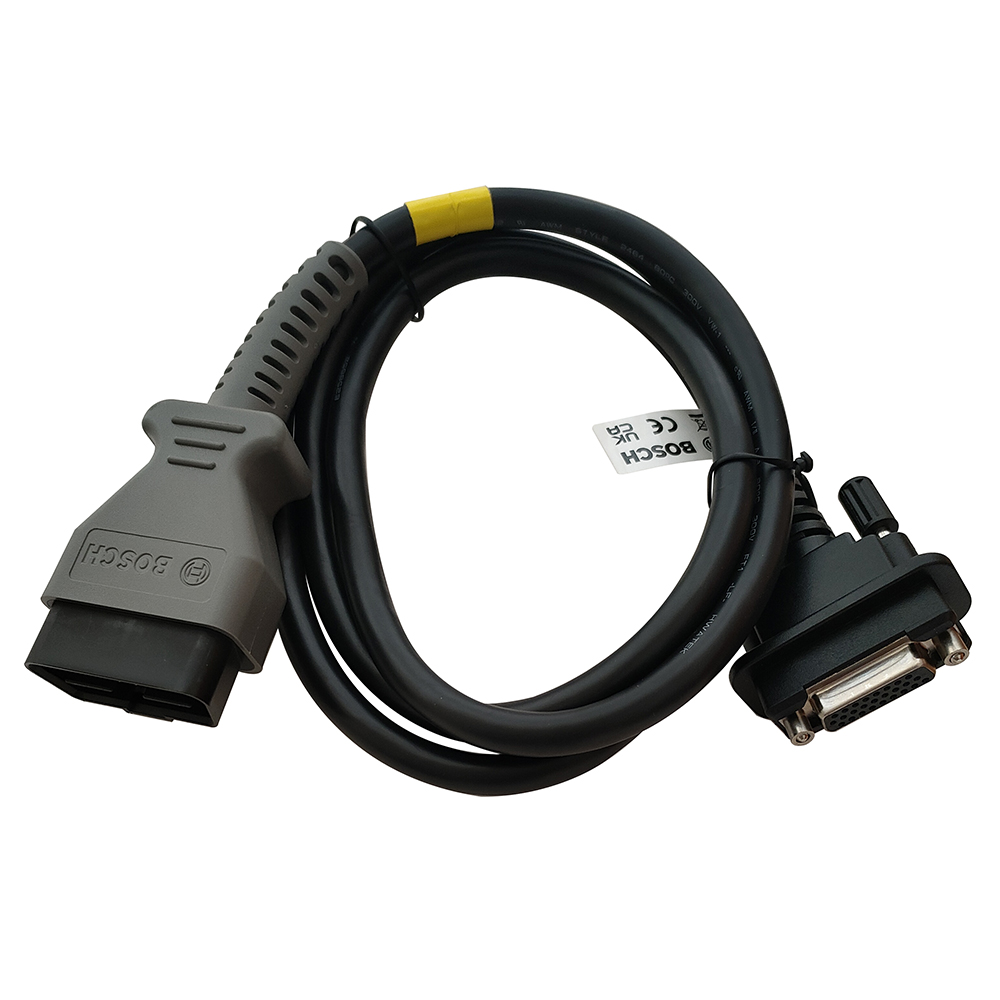

16-Pin OBD2 Cable

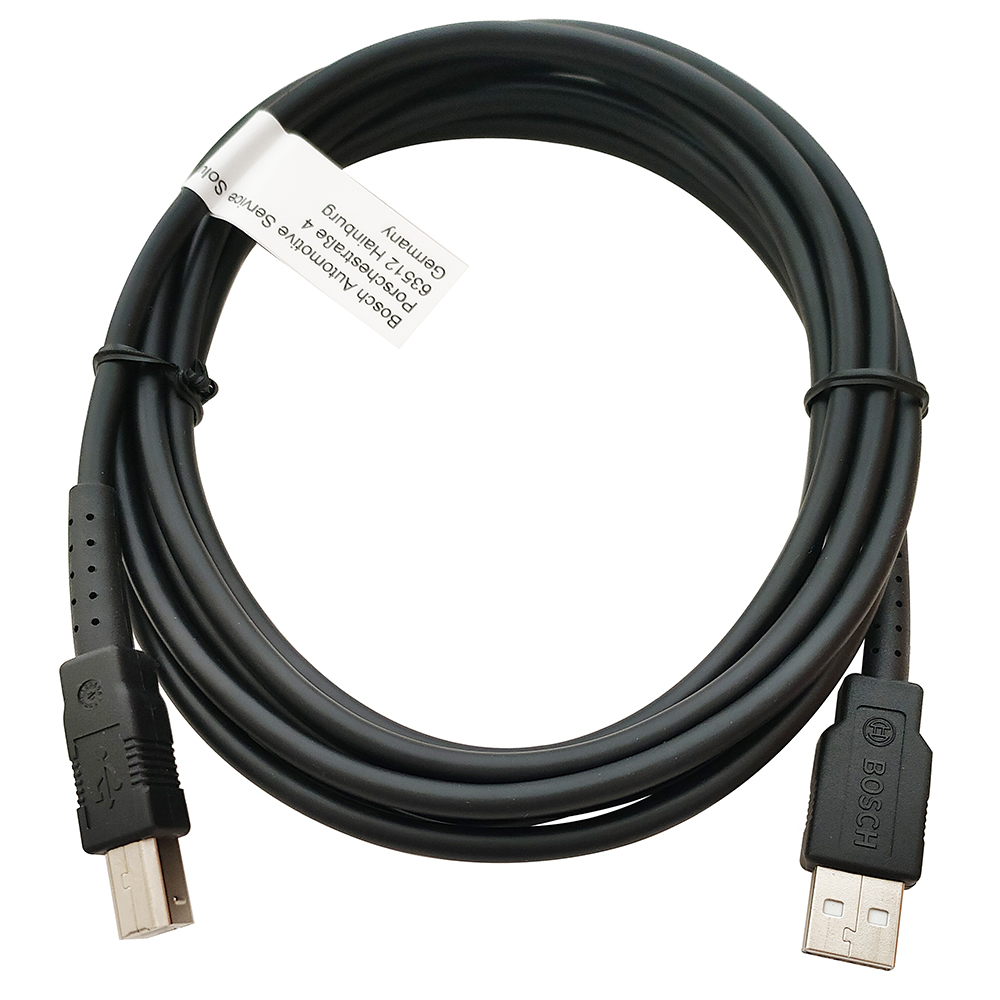

USB Cable

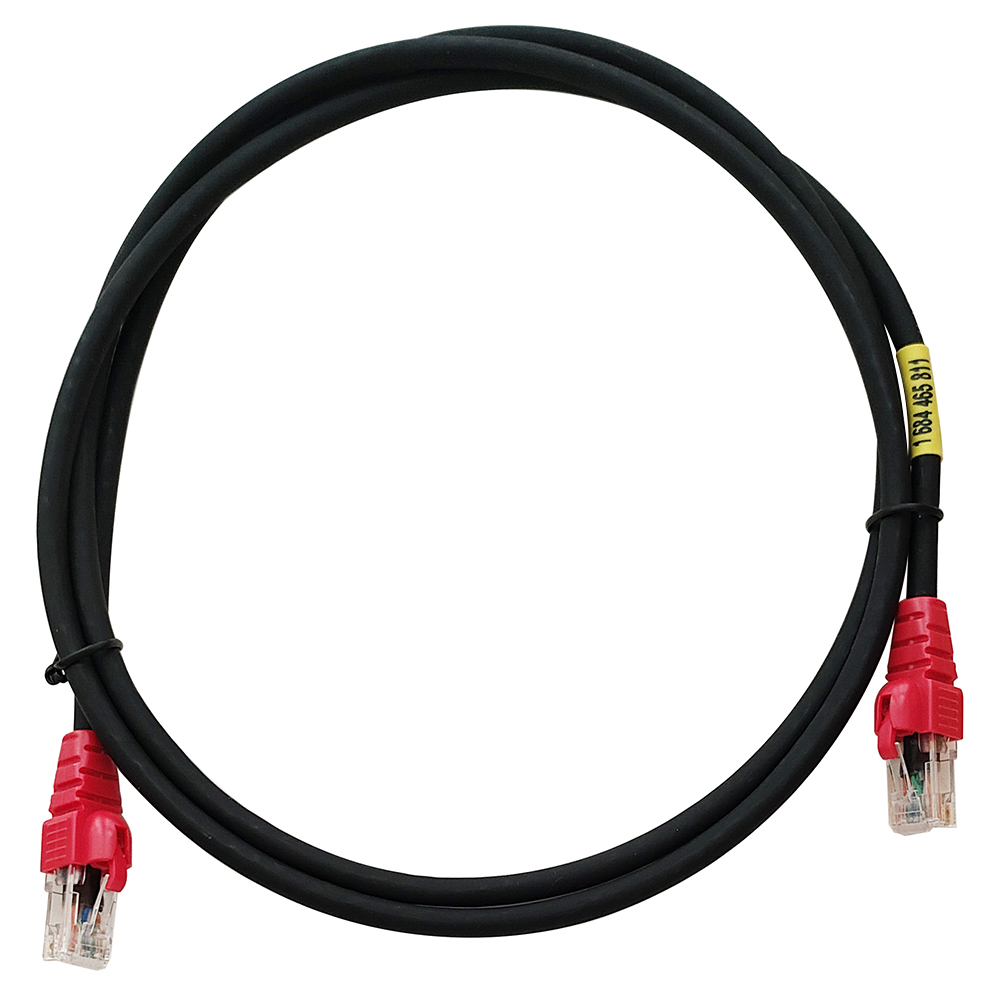

LAN Cable

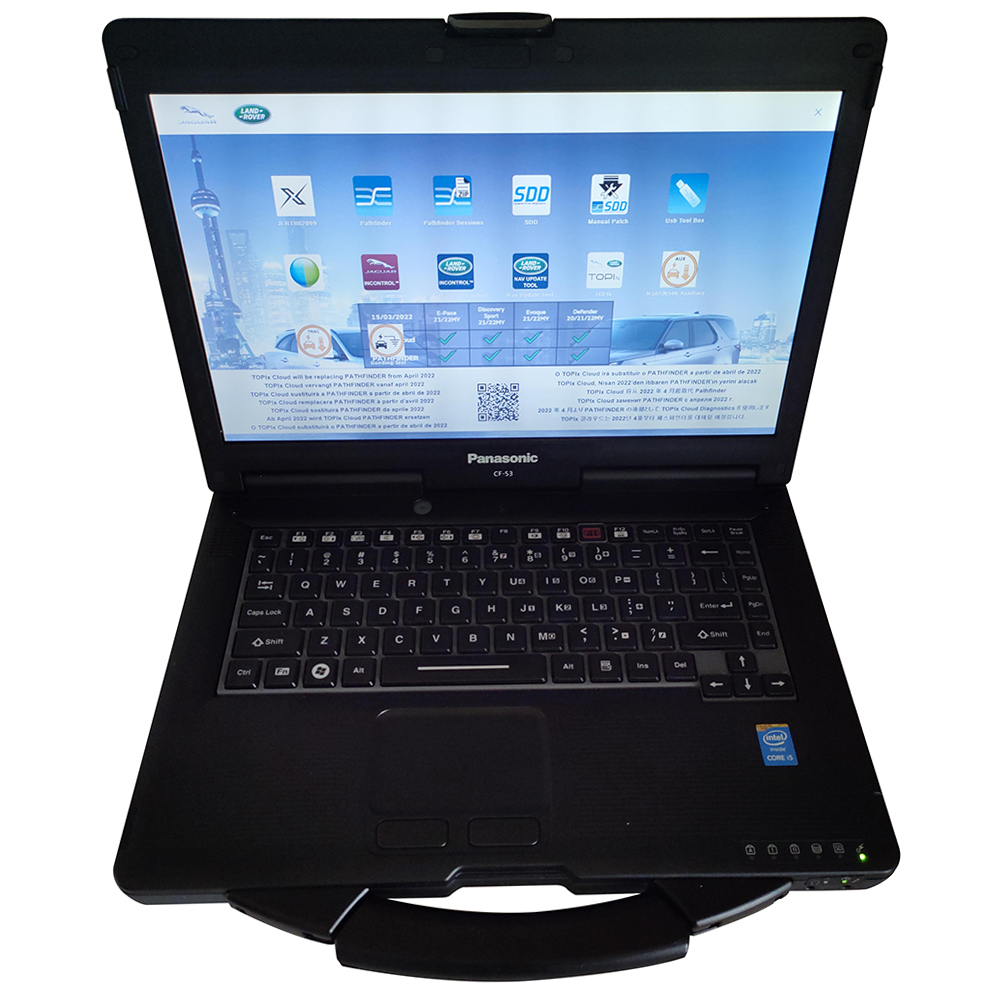

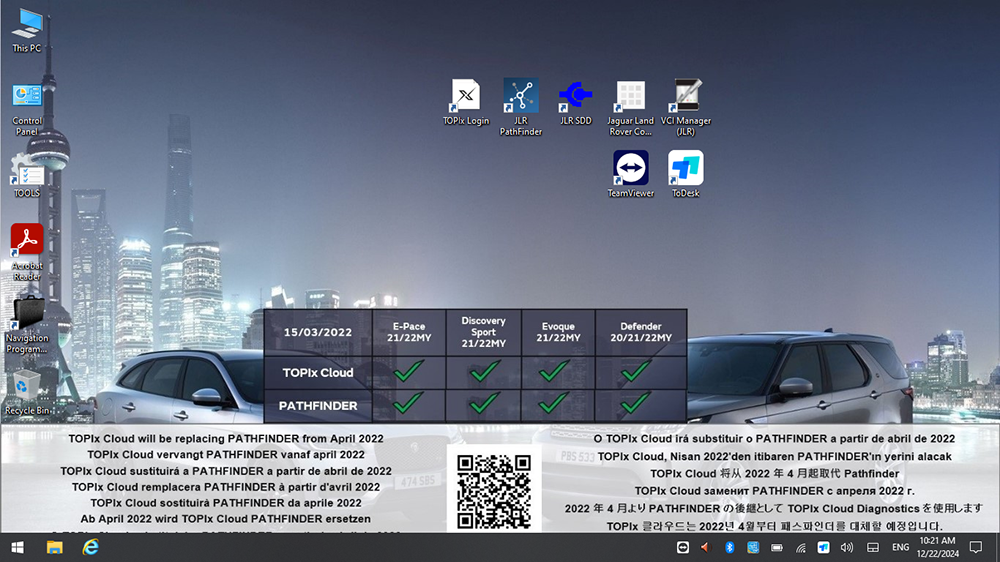

Panasonic CF53 laptop with software (optional)
|
