Name: NexLink NL102 Heavy Duty and OBD EOBD CAN Diagnostic Tool
Description:
NexLink NL102 Heavy Duty diagnostic scanner from NEXAS supports all heavy duty trucks in compliance with standard protocols like J1587, J1939 and J1708.
Supported Vehicles:
Cummings, Detroit, Caterpillar, Freightliner, International, Kenworth, John Deere, Peterbilt, Sterling, Mack, Paccar, Westernstar, Mercedes Benz, Volvo, Scania, Man, Renault, ERF, Foden, Seddon-Atkinson, Iveco, DAF, Sisu, Steyr, Isuzu
Supported ECUs: Engine, Transmission, Instrument Panel, Drivetrain, Braking System, Suspension, ESP, EPS, Fuel System…
Supported Protocols: J1587, J1939, J1708, CAN, J1850 PWM, J1850 VPW, ISO9141 and KWP2000
Supported Languages: English, French, Spanish
Software Update: online update via Internet
Features:
1. Supports all heavy duty trucks in compliance with standard protocols ( J1587, J1939 and J1708).
2. Works on all cars, mini vans and light duty vehicles (OBD-II & CAN) from 1996 to present in European, American and Asian markets.
3. Support all OBD-II protocols: CAN, J1850 PWM, J1850 VPW, ISO9141 and KWP2000
4. Uniquely featured with battery power monitor function.
5. Troubleshooting tips guide technicians to the root of problems faster, saving diagnosis and repair time.
6. Read and erase generic codes (P0, P2, P3 and U0), manufacturer specific codes(P1, P3 and U1) and pending codes.
7. Easily determine the cause of the Check Engine Light(MIL) and turn off Check Engine Light (MIL), clear troubles codes and reset monitors.
8. Display DTC definition, freeze frame data, monitor and I/M readiness status (emissions) and vehicle information (VIN, CIN and CVN)
9. Read live O2 sensor test data.
10. Read PCM live data stream with graphic data display.
11. Enhanced OBD-II Mode 6.
Specifications:
Display: 320*240 2.8 inch TFT color display
Working Temperature: 0 to 60 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Input Power: 8 to 30V via vehicles battery
Dimensions: 255*190*70mm
Weight: 750g

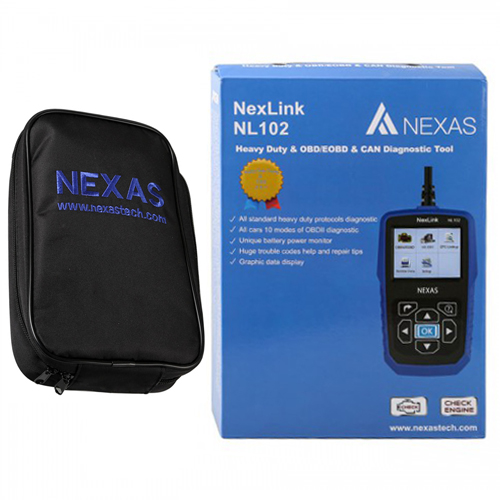

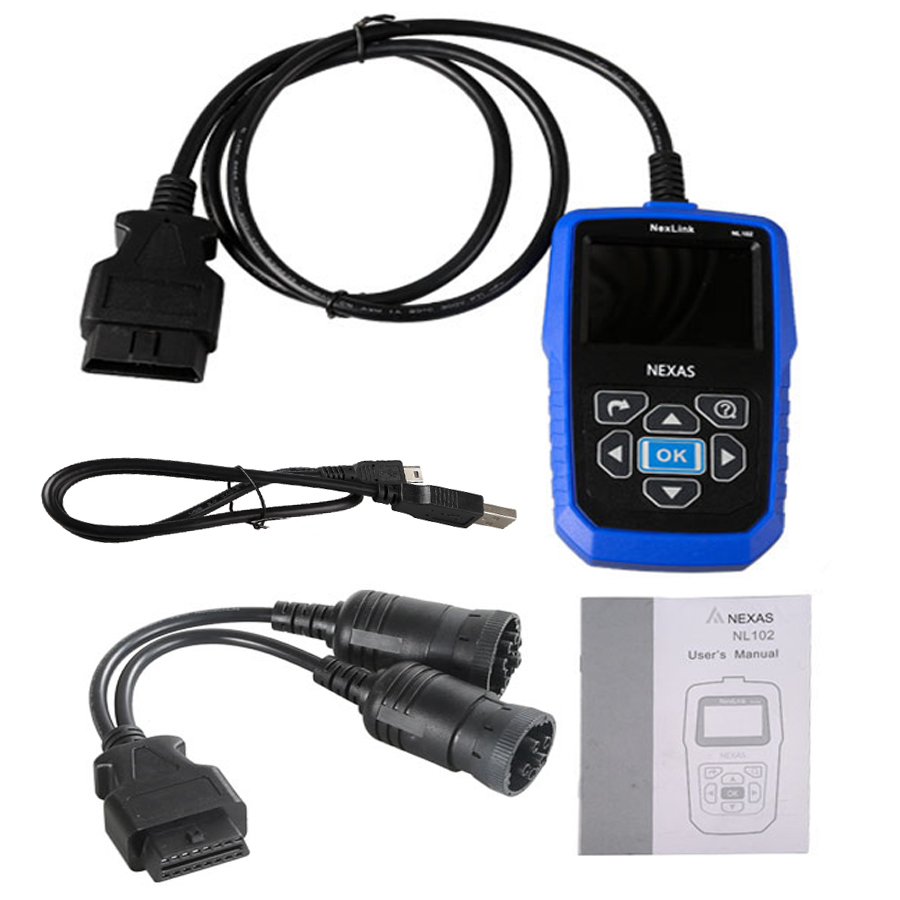

Packing List:
NexLink NL102 Heavy Duty Scanner
6-Pin Connector
9-Pin Connector
USB Cable
Protective Nylon Pouch
User Manual
Packing Box
|
