Description:

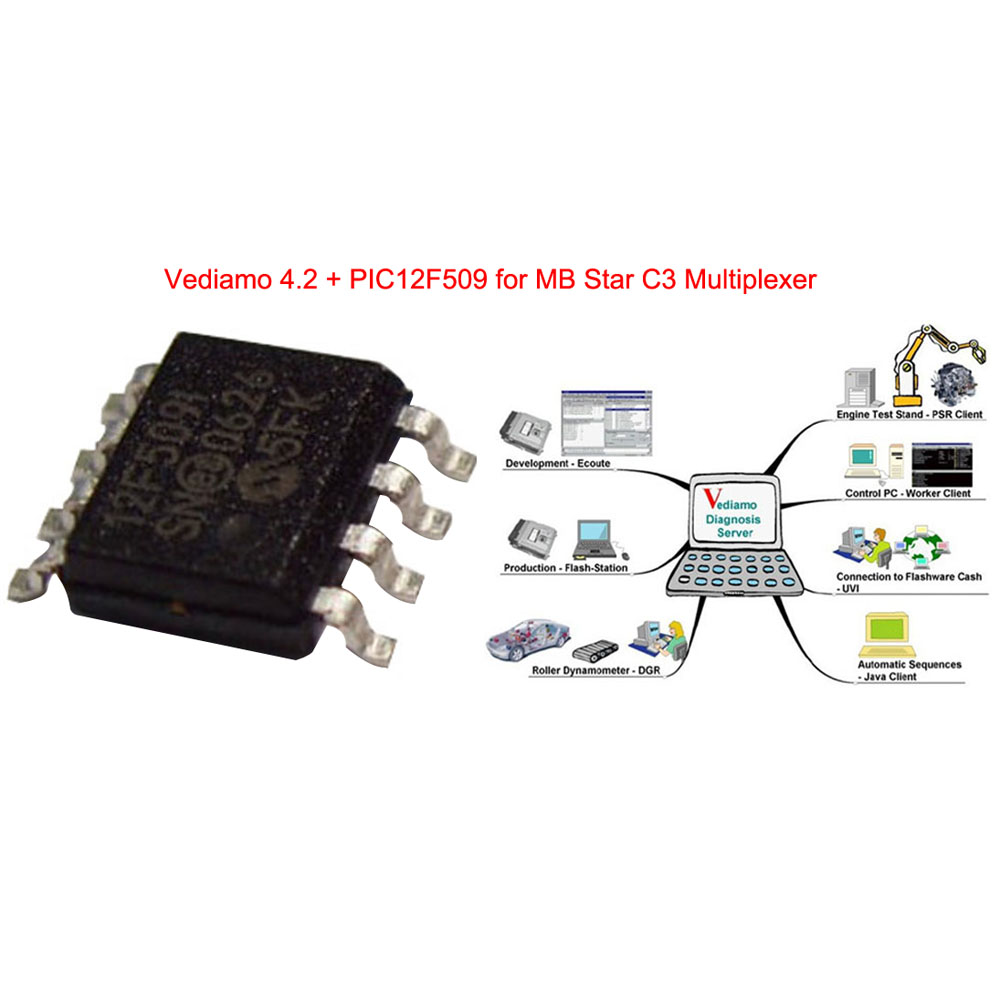

This PIC12F509 chip will make your Star MB Multiplexer C3 more powerful for diagnose and coding, not only for engine ECU diagnose, now it supports any ECU for K-line and CAN and encompasses all established protocols from RTMD+, MBISO, KWFB, KW2000 to UDS.



Software Version: V4.2 (no need dongle)



After you replaced the chip, just run the software. Software has license itself. No need activate again.



Notice:



1. This chip is especially for MB Star C3 Compact 3 Star and Super MB Star C3. If you have MB C3 Star DAS/XENTRY software and MB Star C3 Multiplexer contains PIC12F(C,CE)5xx chip, then you can use this one.



2. It can not be used on MB SDconnect C4 or ordinary MB Star C4.



3. You need to have the basic skills for disassemble and soldering in order to desolder and solder the chip on Multiplexer.



What is Vediamo?



Vediamo - the distributed diagnostic application for engines (Verteilte Diagnose Anwendung für Motoren) - is a software system for electronic control unit (ECU) diagnostics which is integrated in the CAESAR/DIOGENES process chain.



Vediamo is based on the Mercedes Benz DCDI standard communication platform CAESAR and hence supports all communication hardware such as, e.g., Part C, Part A, Part Y, etc. DIOGENES data, used by all diagnostics applications in the company and which can be drawn from the central TAMINO data base, can be used as diagnostics data.



Vediamo V4.2 Functions:



1. Vediamo originally had two user groups in mind: Development and Production.



2. The system configuration is used to adapt the available ECUs to the user's specific requirements, e.g., by selecting the standard connector, integration of automatically executed initialization services, selection of selected services from a longer list, and much more.



3. The architecture of the system allows it to be expanded easily by additional functionalities and even complete applications. This is done primarily using Java programs, for which Vediamo possesses a simple yet comprehensive connection, encompassing all ECU functions. Even users with limited programming skills in the standard language Java can develop their own applications. Generally applicable functions can subsequently be integrated in the clients by the Vediamo developers (e.g., graphic measurement display or the quick test) or be developed as new DCOM clients.



How to install the chip and software?



1. Replace PIC12F509 on your Multiplexer (It is not exactly same as the one on C3 multiplexer, but fit perfectly).



2. Extract and install Setup_040202.exe



3. Copy "Vediamo" from installed folder to C:\Documents and Settings\All Users\Application



4. Extract DATA archyve and Copy "VediamoData" and "VediamoShortTestData" to C:\



5. IF HAVE ANY PROBLEMS: Copy "Vediamo (Program files)" to C:\Program files\ and rename to Vediamo

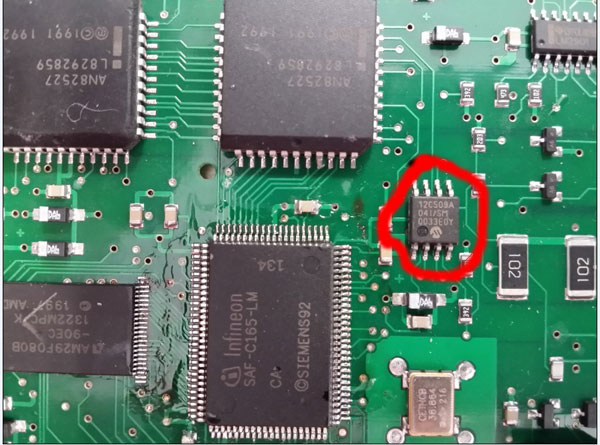

6. If your C3 is genuine Super MB Star C3, please replace following chip:



Packing List:



PIC12F509 chip

Vediamo V4.2
