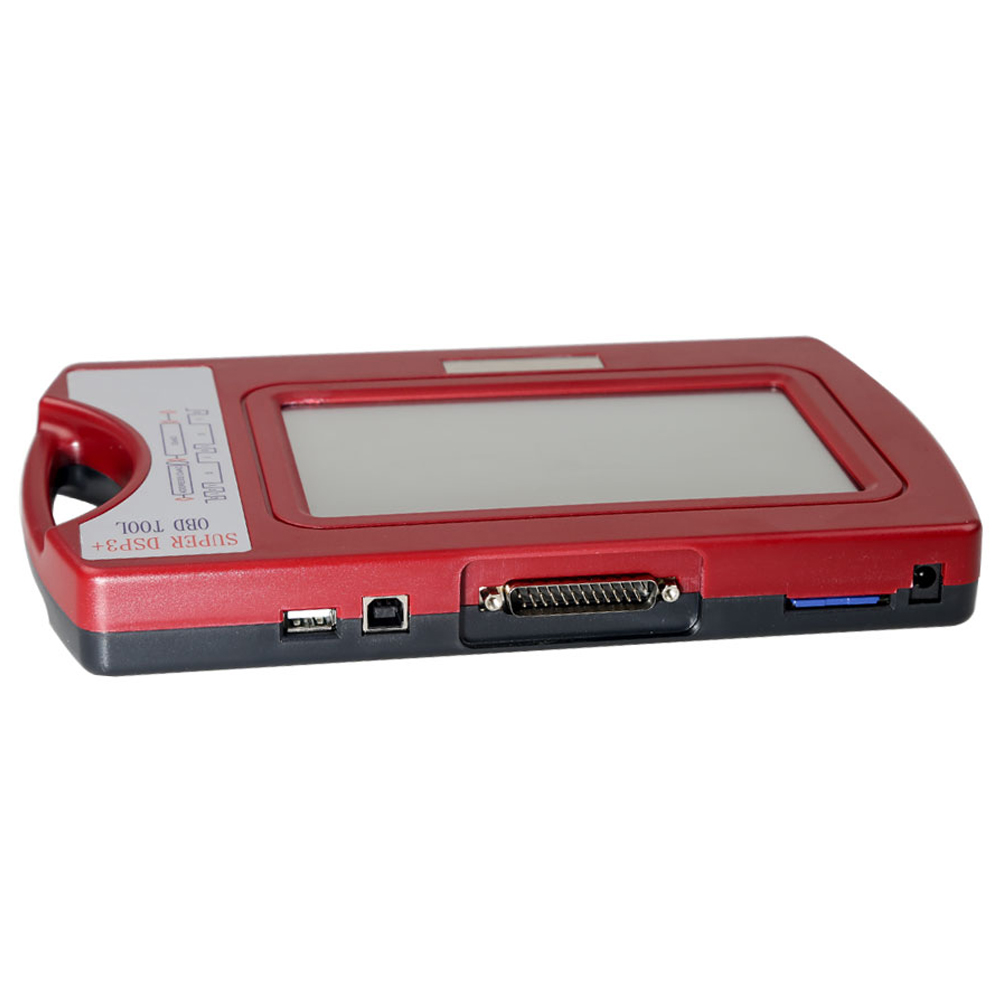

Name: Super DSP3+ OBD Tool Supports VAG MQB Platform
Description:
Super DSP III Plus is the most complete programming device for digital odometers. It is a high-quality embedded system which offers a maximum of flexibility and working comfort.
Features:
Super DSP3+ is powered by industrial grade core board with Freescale i.MX28x processor, speeds up to 650MHZ, 800*480 TFT LCD and touch screen(7.0".16:9). It has convenient keyset. USB host and USB device. SD card interface. 128MB NandFlash, 128MB DDR-II.
We use industrial grade components to ensure the stability and reliability under a wide temperature range, from -40 to +85 degree centigrade.
Whole machine passed EMC industry 4 grade quality assurance and durable performance, the product stability greatly improved.
The WinCE 6.0 operating system can ensure the software platform reliability and compatibility.
Self-check function is integrated in system.
Enhanced OBD functions including CAN-BUS / J1850 / CCD-BUS / ISO9141 / SPI protocols.
Intuitive operability by full menu and picture guidance. All data can be edited, stored and loaded.
Color connection picture is on the screen whenever you need.
The stored data can be transferred to a PC via USB port or SD card, and also can be transfer to wherever you want directly via Internet.

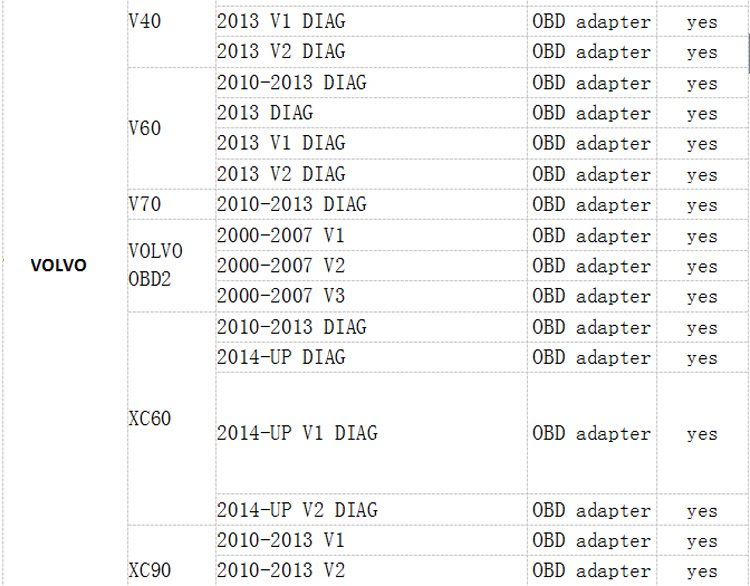

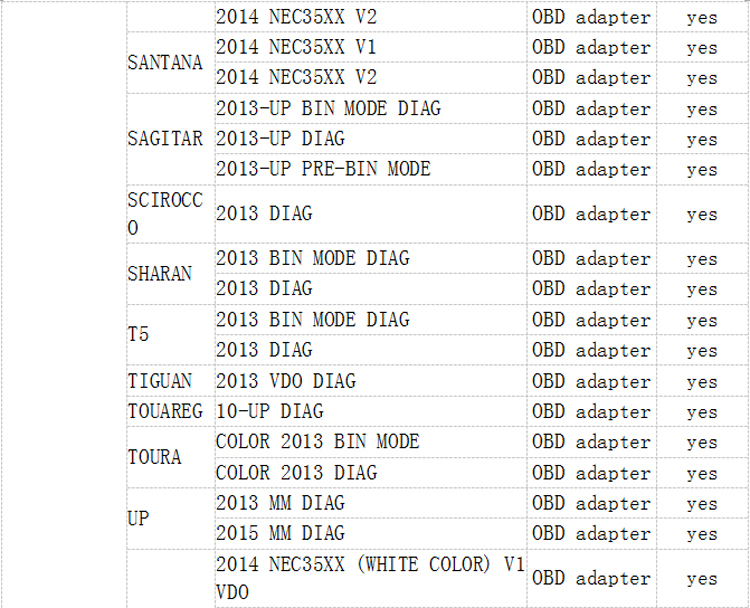

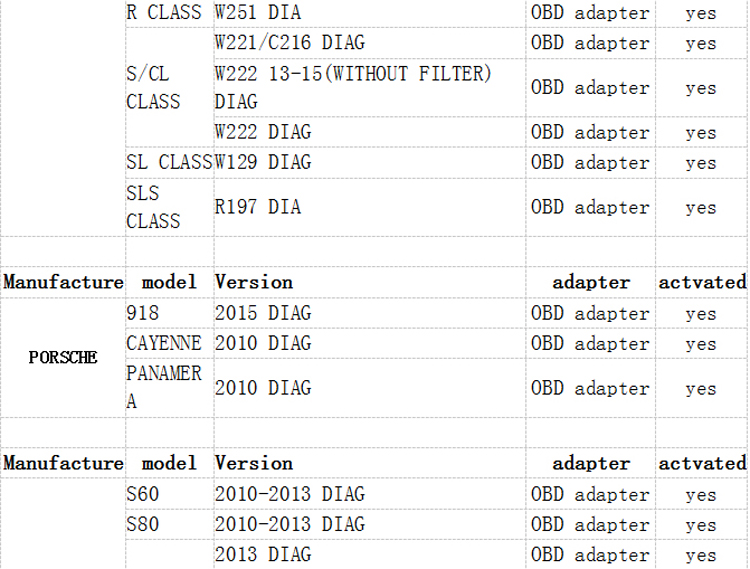

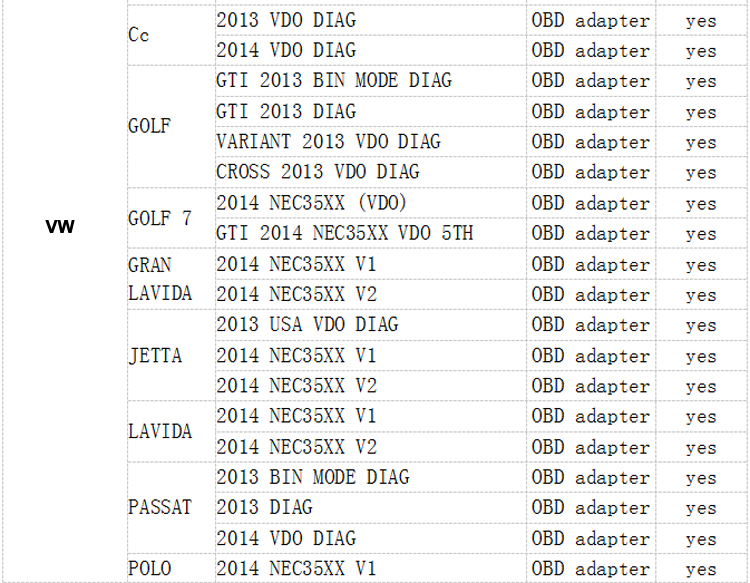

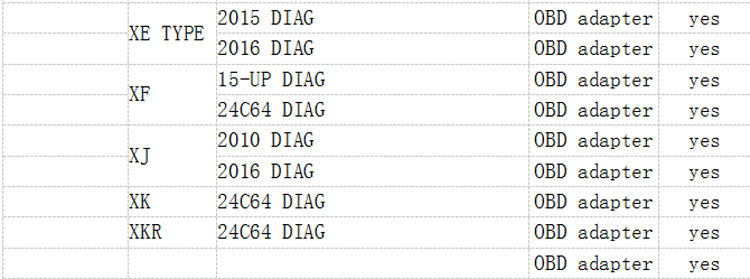

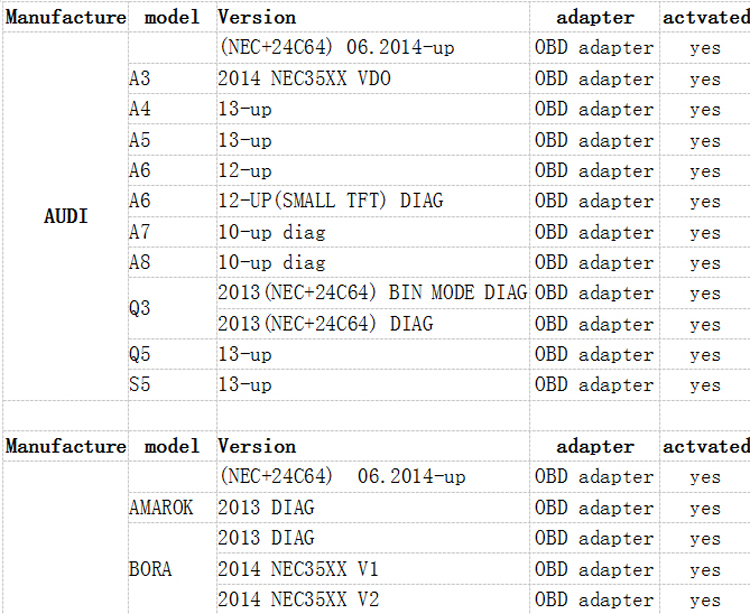

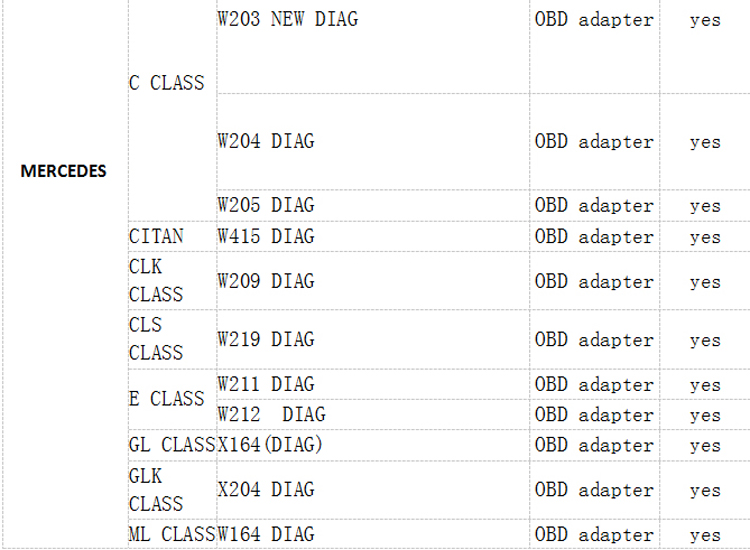

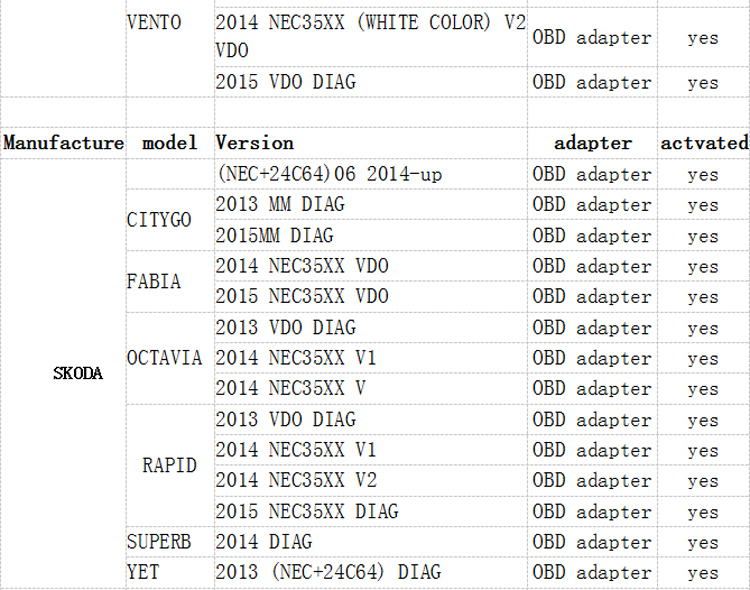

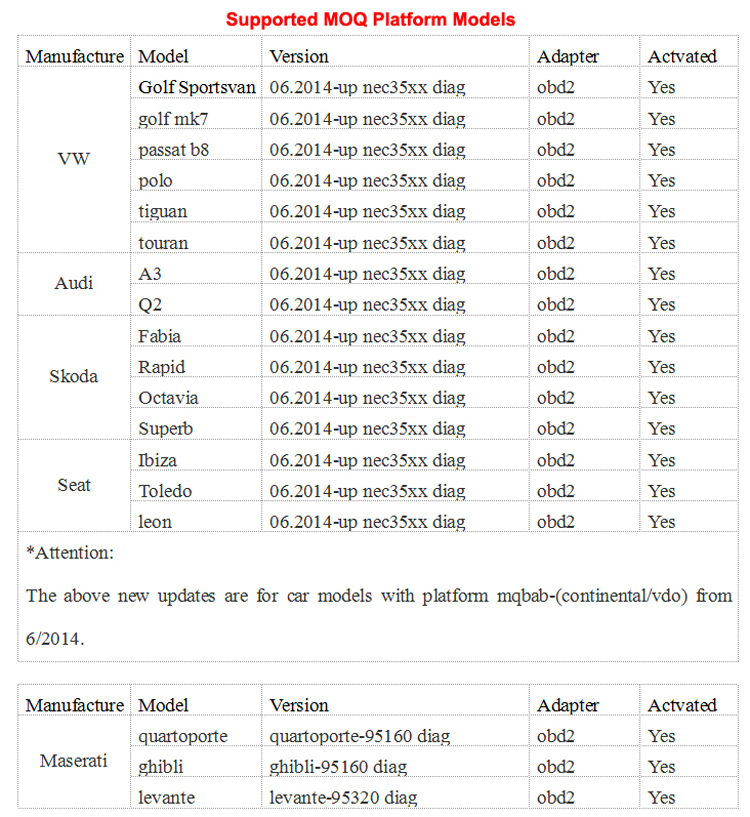

Compare with V2017 DSP III, V2019 Super DSP 3 Plus adds following models:
MASERATI / QUARTOPORTE-95160 DIAG via OBD2
MASERATI / GHIBLI-95160 DIAG via OBD2
MASERATI / LEVANTE-95320 DIAG via OBD2
VW/GOLF SPORTSVAN 06.2014- NEC35XX DIAG via OBD2
VW/GOLF MK7 06.2014- NEC35XX DIAG via OBD2
VW/PASSAT B8 06.2014- NEC35XX DIAG via OBD2
VW/POLO 06.2014- NEC35XX DIAG via OBD2
VW/TIGUAN 06.2014- NEC35XX DIAG via OBD2
VW/TOURAN 06.2014- NEC35XX DIAG via OBD2
AUDI/A3 06.2014- NEC35XX DIAG via OBD2
AUDI/Q2 06.2014- NEC35XX DIAG via OBD2
SKODA/FABIA 06.2014- NEC35XX DIAG via OBD2
SKODA/RAPID 06.2014- NEC35XX DIAG via OBD2
SKODA/OCTAVIA 06.2014- NEC35XX DIAG via OBD2
SKODA/SUPERB 06.2014- NEC35XX DIAG via OBD2
SEAT/IBIZA 06.2014- NEC35XX DIAG via OBD2
SEAT/TOLEDO 06.2014- NEC35XX DIAG via OBD2
SEAT/LEON 06.2014- NEC35XX DIAG via OBD2
*ATTENTION: The above new updates are for car models with platform MQBAB-(Continental/VDO) from 2014.06.
Packing List:
Super DSP3+
OBD2 Adapter
Main Cable
Stylus Pen
Plastic Toolbox
|
