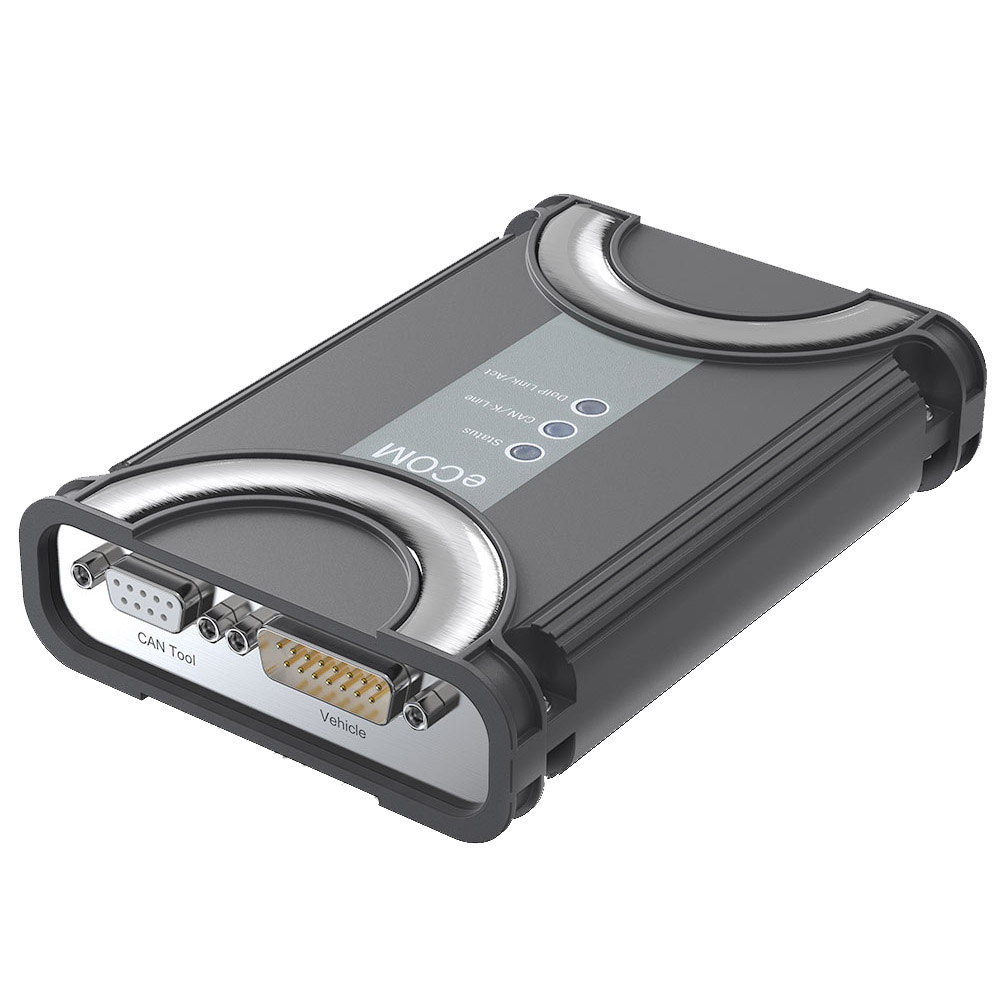

Name: Benz eCOM Diagnostic and Programming Tool

Description:

eCOM is the diagnostic and swipe communication interface used by Daimler-Benz production and R & D department. It supports the after sales diagnostic software XENTRY, Vediamo, and the Monaco DTS, the exclusive development software, with higher access rights than SDconnect C4.

eCOM supports the CAN/DoIP network, which CAN be used for the diagnosis and brushing of new car audio and video entertainment systems. Vediamo for Mercedes engineers is engineering software used by Mercedes engineers to develop diagnostic software, that is, XENTRY now in use is developed based on Vediamo and delivered to general after-sales dealers. For this reason, using the Mercedes super engineering version is open to all diagnosis /coding/retrofit/flashing programming features. It is possible to add or reduce SA codes freely without going through VEDOC(the process of the original factory applying for modifying the equipment code), so as to achieve the purpose of modifying the vehicle equipment, such as adding SA500 electric rearview mirror.

XENTRY and Developer mode, commonly known as: exploit data engineering version after 2010, has added many restrictions on functions. Therefore, people may encounter that the vehicle version is too new to enter the control unit, or they cannot make any special modifications after entering the control unit. For example, the w204/212 2012 meter may need to be configured in the regional language, or turn on other convenience functions.

The database of diagnosis /coding/retrofit/flashing for the Mercedes engineer version USES the XENTRY database, so the Mercedes engineer version is dependent on the XENTRY version. As long as the database is new, the Mercedes engineer version can use the V4.00 version on the new model, and Compact 3 / SDconnect does not support the ODX document. The latest V5.00 supports ODX files with eCom. It is recommended to use eCom with DoIP function, which is faster and more stable.

Features:

1. Supports DoIP, works on latest Mercedes to year 2019
2. Supports XENTRY / Vediamo / DTS Engineering / EPC / WIS / StarFinder
3. Software SSD comes in package with free activation
4. Supports

Benz ECOM DoIP Functions:

1. Perfect DoIP/CAN communication.
2. Quick Test: Quick test of the whole vehicle ECU, you can choose to edit more functions at the same time.
3. Variant Coding: With variant code to add VO-delete VO function.
4. Identification: One-click to read all module programming numbers of the entire car and save.
5. Complete Variant Coding: Read all ECU coding data of the vehicle at one time, can be written to the vehicle again, completely offline operation.
6. Diagnostic Services: Advanced Features view internal and external data for the module you chose, turn on computer authorization (not driving authorization), activate the ECU, reset the ECU, and modify the original chassis number.
7. Flash Programming: Achieve complete offline programming.
8. Diagnostic Trouble Code: Diagnostic module DTC
9. ECU Exchange: Two identical ECUs exchange
10. Automatic performance: Automatically activate DTS Monaco 8.14 software when connected to the device.

Benz ECOM DoIP Information:

Perfect support programming coding
Retrofit folding mirror
Airbag unlock
Turn off the start and stop function
Open corner auxiliary light
Keyless entry modification
Turn off the engine fault light
Turn off the seat belt sound reminder
Change the ESP computer chassis number
Daytime running lights lit at night
Add original atmosphere lamp
Low with headlights upgraded with high headlights
Add folding mirrors
Add seat memory
Add reversing image
Change the host boot screen
Open sound and light synchronization
Turn off the seat belt sound reminder
Cancel driving to watch DVD
Change the blinking frequency of the turn signal
Cancel the urea system
Urea Alarm Solution*************
Original high quality power chip correct identification voltage

Benz ECOM DoIP Manual:

ECom supports the CAN/DoIP network, which can be used for the diagnosis and brushing of new car audio and video entertainment systems.
The XENTRY currently in use are developed based on Vediamo and delivered to general after-sales dealers.
Therefore, it's possible to use Mercedes super engineering software Vediamo for diagnosis, coding, programming, retrofitting.
It is possible to add or reduce SA codes freely without going through VEDOC (the process of the original factory applying for modifying the equipment code),so as to achieve the purpose of modifying the vehicle equipment, such as adding SA500 electric rearview mirror.

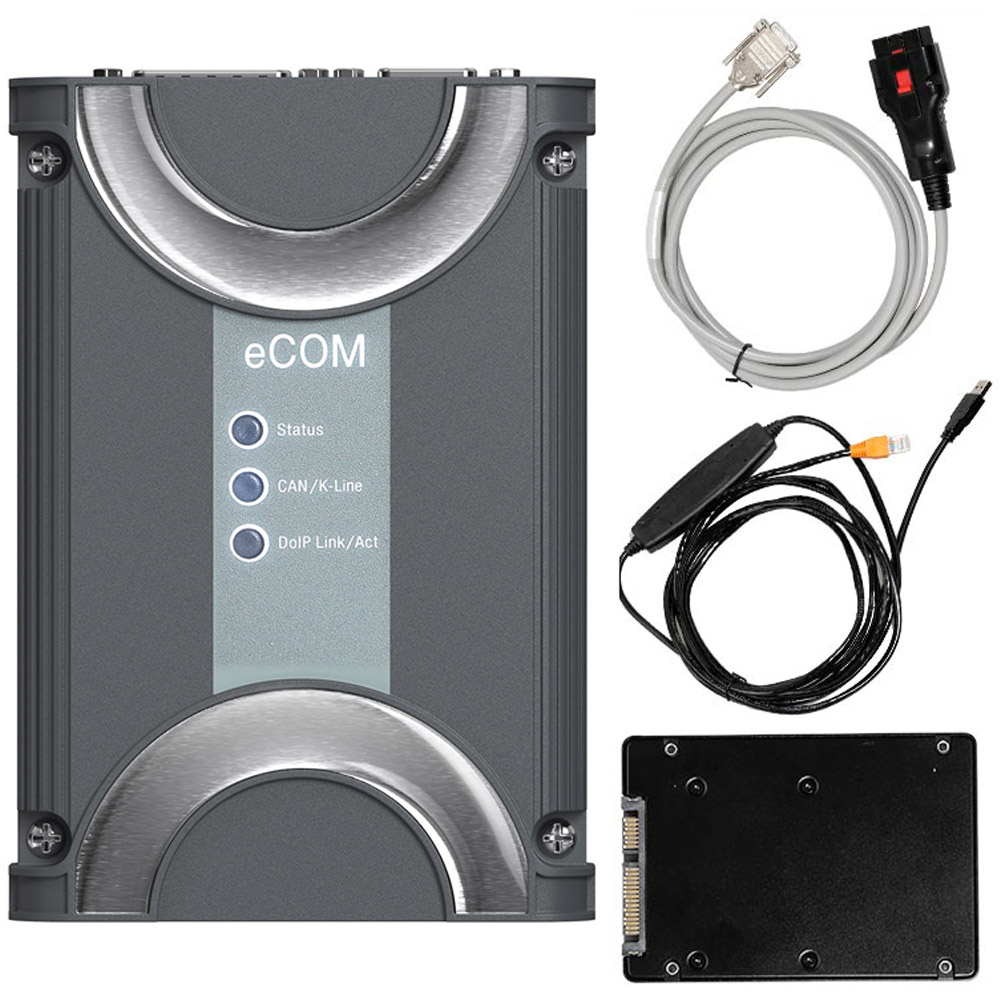

Packing List:

Benz ECOM multiplexer
OBD2 cable
USB cable
Software SSD
Packing Box
