Description:

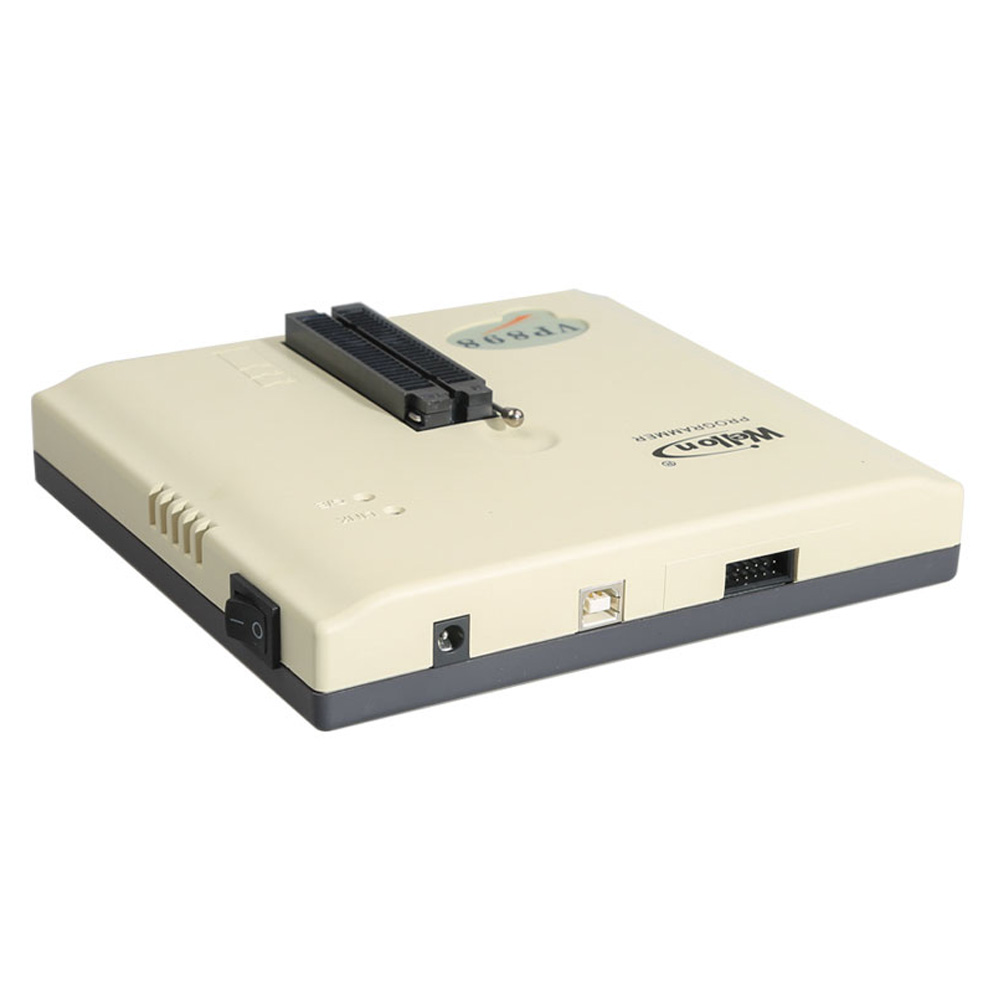

Original Wellon VP 898 is a high reliability, fast, and high performance ratio advanced general-purpose programmer. It is extremely convenient to load, edit, and save files. Thousands of programmable devices such as PLD, E (E) PROM, FLASH and MCU are supported from dozens of manufacturers. Test TTL & CMOS standard logic devices and memory. This program is suitable for electronic product development, batch burn chip, mobile phone, computer, auto maintenance etc.



Supported Languages: English, Portuguese, Italian, Dutch, Turkish, Poland, Hungarian, Korean, Chinese(Simplified), Chinese(Traditional).



Supported Operating System: Windows XP/Vista/7/8/10



Software Update: free online update



Features:



1. Built-in high-speed microcontroller, automatic calibration data, to ensure system reliability.

2. Supports dozens of manufacturers of PLD, E (E) PROM, FLASH, MCU and other tens of thousands of programmable devices.

3. Can be used as signal generator generates a square wave signal as a frequency meter can measure the frequency.

4. Suitable for electronic product development, mass burning chips, mobile phones, computers, car repair and so on.

5. English online help system, user-friendly.



Advantages:



1. File formats automatically recognized

2. Automatically recognize memory manufacturers and models.

3. Chip serial number automatically increased functionality.

4. Integrated menu-driven interface

5. 48-pin locking socket of US imports.

6. For most chip reader can no external power supply.

7. Testable TTL & CMOS standard logic devices and memory.

8. Programming Module can 4-pin to 48-pin DIP devices for programming or testing.

9. With optional adapter, it can support 4-pin to 64-pin package devices variety.

10. After having set the chip access to reliable automatic programming function, easy to mass production.

11. Using lead-free solder, using a transparent shell, meet environmental standards with flame retardant ABS material functions

12. High-speed programming, burn P89C58, blank check erase + + + programming + authentication encryption, only 1.9 seconds.



Functions:



1. Supports ISP programming.

2. Chip select provides manufacturers logo, can help users quickly find clearer chips.

3. Fast editing buffer, block copy, block fill, high and low byte swapping, the string search functions.

4. Programming parameters can be modified according to the specific conditions of the chip programmed parameters.

5. Chip extremely detailed information, including the package diagram, chip model nomenclature and adapters available.

6. Automatic detection chip inserted backwards, plug the wrong, and poor contact pin chip internal short circuit and other functions.

7. Supports byte (BYTE), word (WORD), double word (DOUBLE WORD) format data files automatically separated.

8. Can test TTL & CMOS standard logic devices and memory. Standard logic devices can automatically determine the model.

9. Contains test vectors Editor provides open to users of the test database structure, users can add their own test.

10. Complete self-test function, to ensure the hardware intact. Programming can be functional testing.

11. Device algorithm entirely by software, USB interface, with automatic online upgrade function, effectively protect user investment interests.

12. Provide flexible document, cache management functions. Enabling file into memory automatically cleared, splicing into multiple files and so on.

13. Supported file formats: JEDEC, BINARY, MOTOROLAS, TEKTRONIX, INTEL, HOLTEK, EMC (. CDS), INTEL HEX16 format.

14. Select the model according to the manufacturer or in accordance with the manufacturer's two-way choice model selection method can automatically search for selected devices.

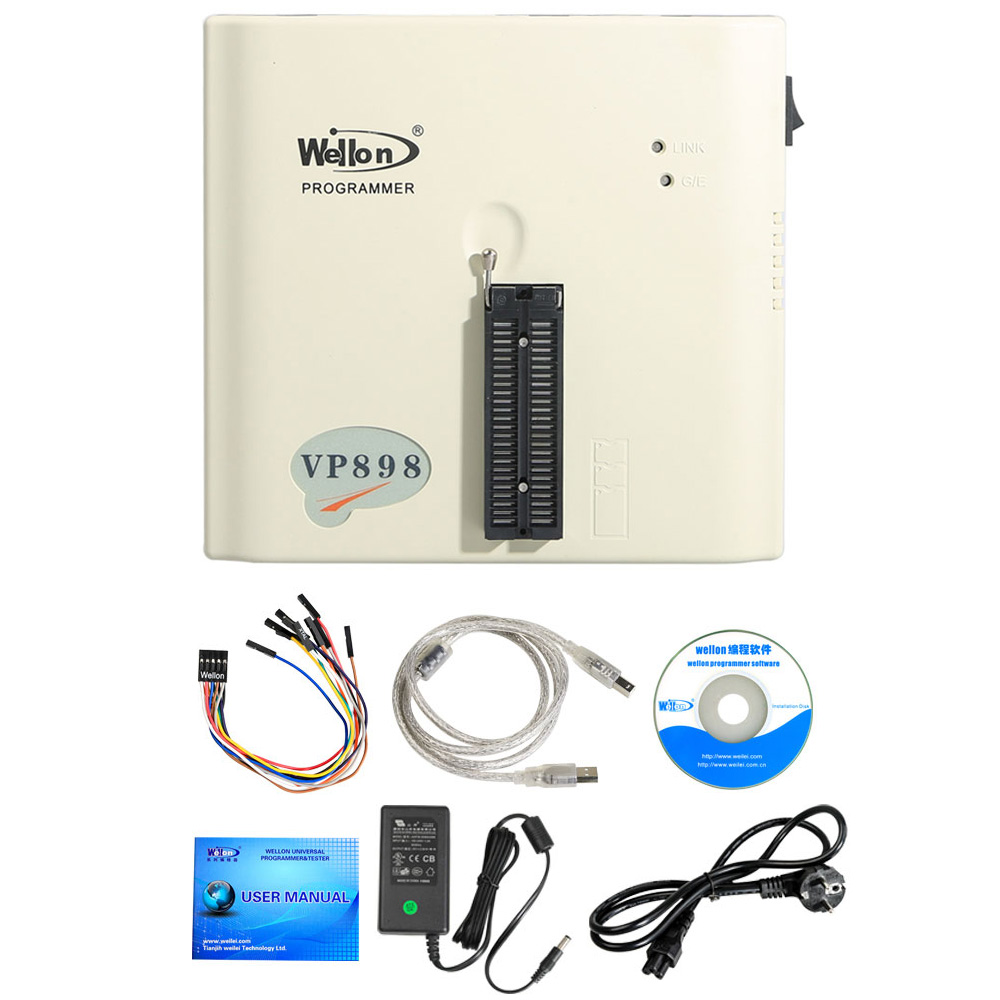

Packing List:



Wellon VP-898 Universal Programmer

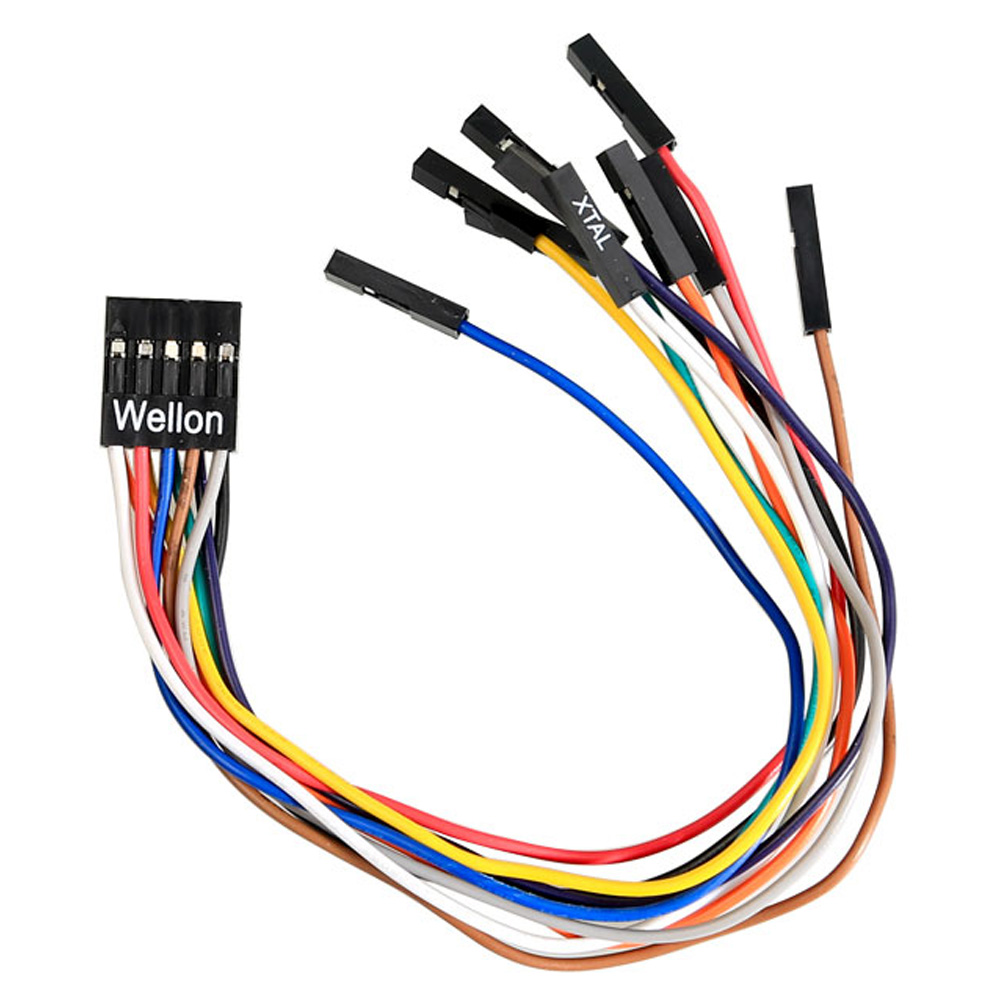

Connection Cable

USB Cable

Power Supply Adapter

Quick Guide

Packing Box
