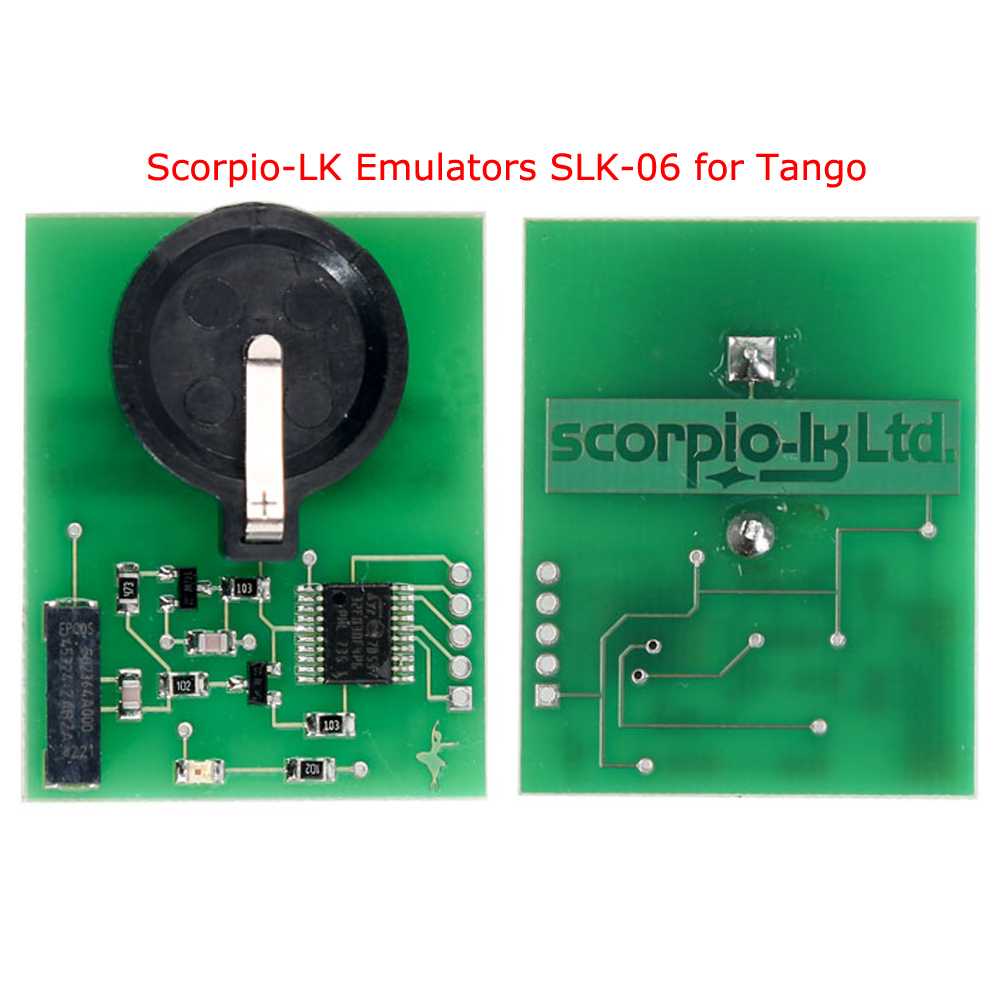

Name: Scorpio-LK Emulators SLK-06 for Tango Key Programmer Including Authorization
Description:
SLK-06 is battery powered. Please note that a battery is not included with an emulator and has to be obtained locally. There are 3 standard types of battery are compatible for our emulators: CR1616, CR1620, CR1632
If battery is removed all data from the emulator will be lost. When power is restored the default data will be loaded into the transponder memory.
Thus the transponder can be cleaned to default state just by taking off the battery.
Supported List:
SLK-06 sniffer for Toyota-H Immobilizer AKL solution
Toyota H-Keys (Page1 3A, 7A)on TRPWS21 transponder
Reset Subaru Smart Key (F3)
Key maker BMW K19 (25160,DST80)
other makers:
Key maker Nissan Micra 2005- (93C56,DST40)
Key maker Nissan Tiida 2005- (93C56,DST40)
Key maker SsangYong Action 2011- (S9S12,DST80)
Key maker Ford Cargo 2014- (24C64,DST40)
Key maker Buick Excelle 2013- (9S12,DST80)
Key maker Fiat Palio 2012- (95160,HITAG)
Key maker SAIC Kai Yue 2013- (9S12,DST80)
Key maker SAIC Datong V80 (95160,HITAG)
Key maker MAN truck (M29W160,MEG13)
Key maker BMW K19 (25160, DST80)*
Some bugs fixed
FAQs:
Q 1: Sniffer(SLK-06)Does not blink?
A 1: Not inserted or low battery/Not placed correctly or next to ignition switch/Low or not connected vehicle battery or some other hardware issue with the vehicle. The sniffer itself can be tested in Tango Place battery, start Tango and press Autodetect.
Q 2: During obtaining data LED on SLK-06 blinks, but then it does not turn solid?
A 2: Data obtaining failure. At present moment roughly 50% of all vehicles equipped with H immobilizer ever produced can be done using our system. Unfortunately they can't be categorized by vehicle model/year/region, or even part number.
Q 3: Error: Calculation error. Please make a new sniffing and try calculate again.
A 3: Blank or no SLK-06 placed in Tango / Obtaining data steps were not performed.
Q 4: Error: Detected zero captured frame. Expected at least two frames.
A 4: During obtaining data steps 1 to 8 were not performed.
Q 5: Error: Detected one captured frame. Expected at least two frames.
A 5: During obtaining data step 8 were not performed.
Q 6: I have vehicle with H IMMO system, key page 1 20.
A 6: At present moment P1 20 are not supported, only the main types P1, 39, 59, 3A, 5A.
|
