Description:

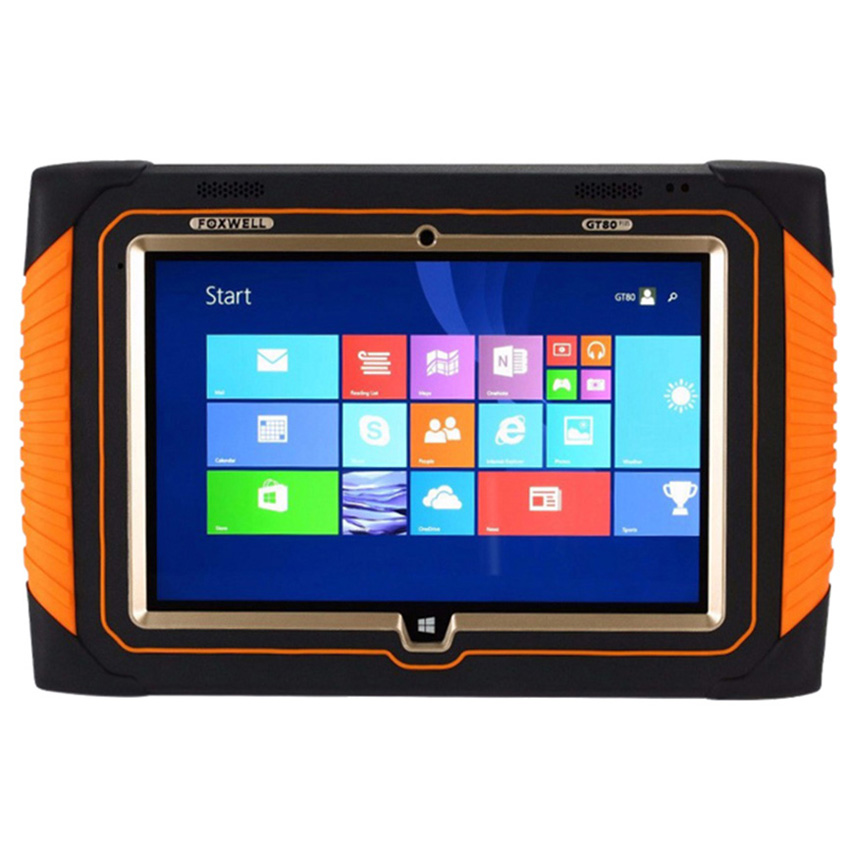

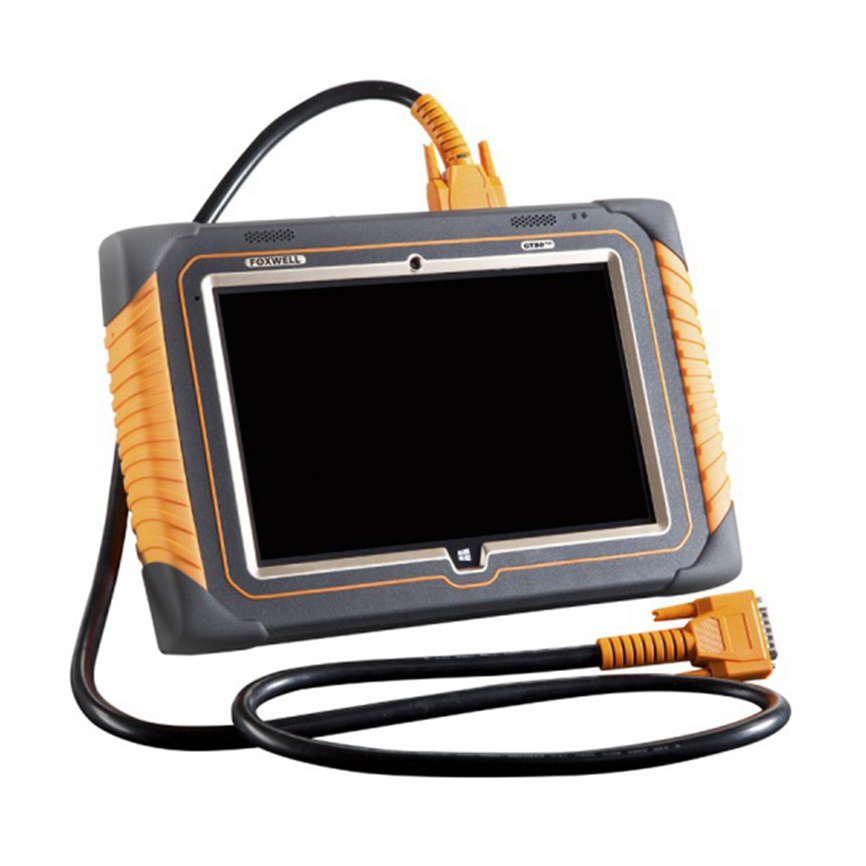

Based on a large 10 inch LED touch screen modern Windows 8.1 tablet computer, FOXWELL next generation automotive tool GT80 Plus provides professional diagnosis on over 59 American, Asian and European vehicle makes. This essential piece of garage equipment offers access to a vast range of controllers (ABS, airbags, instrument cluster, etc.), live sensor data, and system/component-level bi-directional controls to get the job done faster and with a greater degree of accuracy.

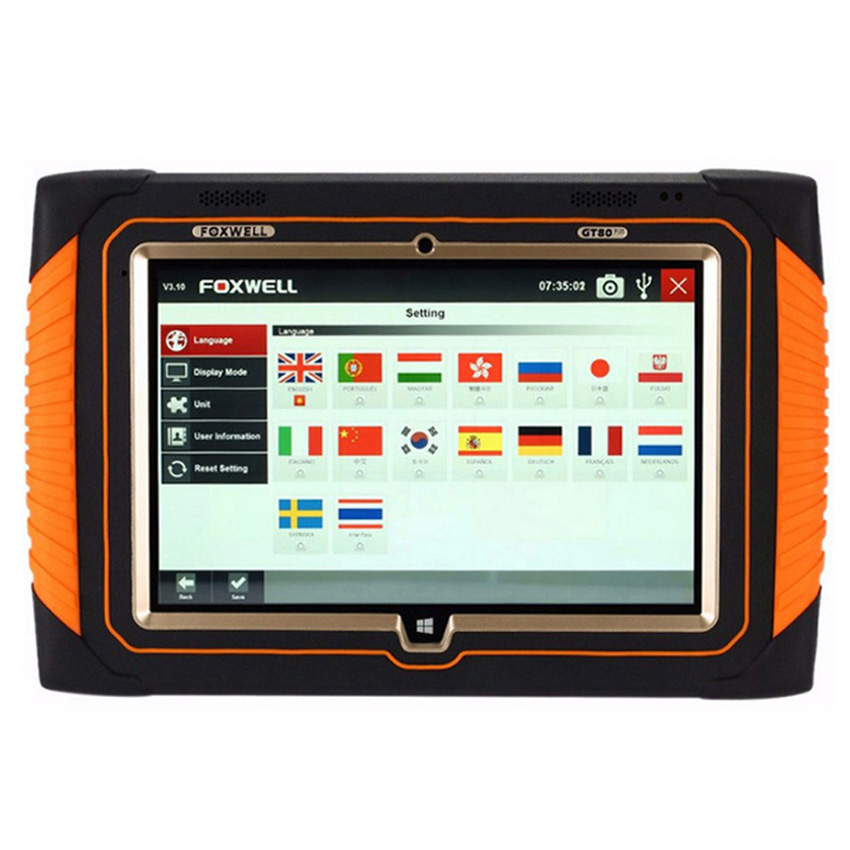

Supported Languages:



English, French, Germany, Spanish, Portuguese, Dutch, Italian, Russian, Swedish, Hungarian, Japanese, Korean, Thai, Traditional Chinese.



Notice:



Default languages will be English and Spanish. If you need other one, please tell us serial number after you receive device.



Features:



1. Compatible with the latest 2015/2016 models

2. Compatible with both OBDI and OBDII cars, SUVs, minivans, light-duty trucks sold worldwide

3. Get access to powertrain, chassis and body systems

4. Quick Test function to test most vehicle systems

5. Read and clear diagnostic trouble codes and resets MIL

6. View live vehicle sensors data in a text, graph and gauge format

7. Merge interactive live sensor graphs for easy and intuitive diagnosis

8. Live data self learning and alarm when live data over range

9. Record and playback your data logs for offline analysis

10. Read and clear freeze frame data

11. Run component/system bi-directional tests

12. Support adaptations and control module coding

13. Key coding for several vehicles

14. Support the most commonly required service features like brake deactivation, service resets, and transmission adaptations

15. Multi-language menus and code definitions for an international marketplace

16. Code troubleshooters provide you faster and easier diagnosis



Supported Cars:



USA Coverage



Chrysler, Ford, GM, Brazilian GM(for Brazilian market only)



Asia Pacific

Au Ford (for Australian market only), Acura, Brilliance, BYD, Chery, Daewoo, Geely, Great Wall, Honda, Holden (for Australian market only), Hyundai, Infiniti, Isuzu, JAC, Kia, Lexus, Mazda, Mitsubishi, Nissan, Perodua, Proton, Scion, Subaru, Suzuki, Toyota



Europe

Audi, Bentley, BMW, Bugatti, EU Ford, Jaguar, Land Rover, Maybach, Mercedes Benz, Mini, Opel, Porsche, Rolls-Royce, SAAB, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, VW



France & Italy



Abarth, Alfa-Romeo, Citroen, Dacia, Ferrari, Fiat, Lancia, Maserati, Peugeot, Renault



Functions:



1. FOXWELL GT80 Plus can find problems more accurately

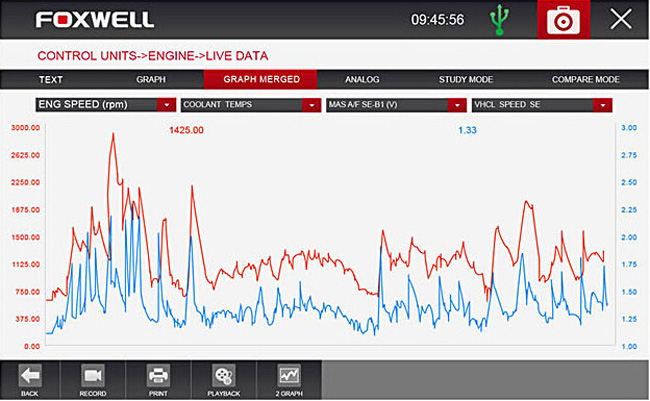

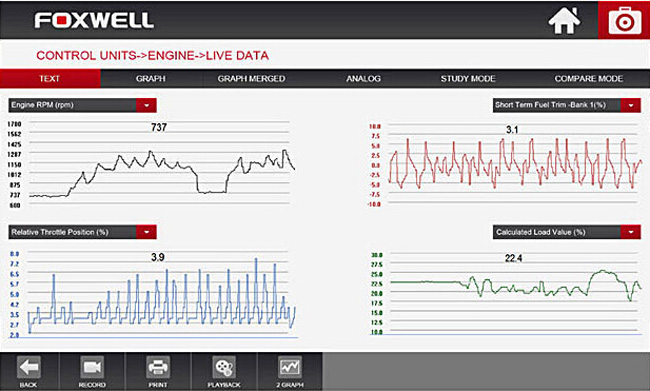

GT80 PLUS shows live vehicle sensors data in text, graph and gauge format and allows you to focus on any suspicious or symptom-specific data parameters. It’s powerful graphing capability gives you the ‘real picture’ of what’s going on in the vehicle. You can view up to 4 parameter graphs simultaneously.  Still you can merge multiple PID plots into one coordinate, so you can easily see how they affect each other, providing you with the most comprehensive and functional look at live data possible.

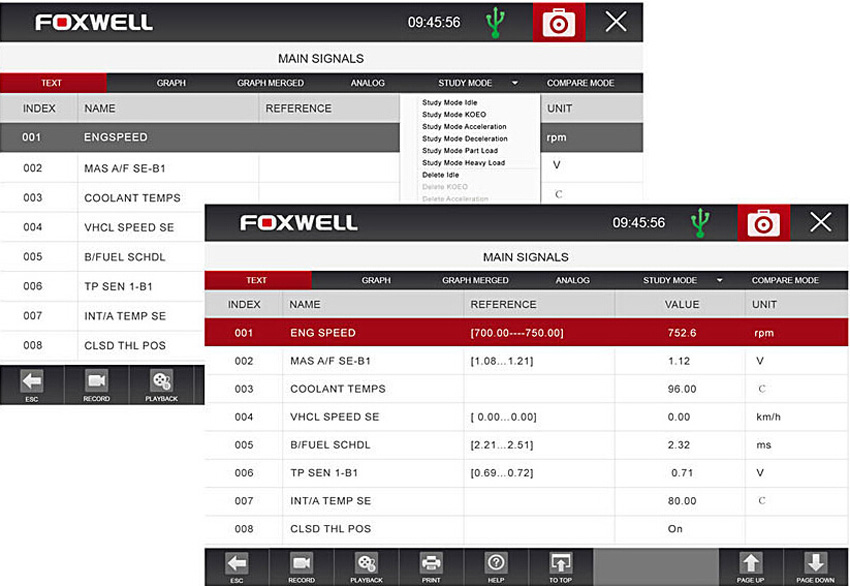

With the unique data parameter self-learning technology from FOXWELL, GT80 PLUS provides unrivalled accurate diagnosis. It gives you the ability to learn good live sensor data values during idle, KEKO, acceleration, deceleration, part load and heavy load on each vehicle comes into your shop and records them for future reference. If that vehicle comes in with a problem, you can easily compare the faulty sensor and parameter readings to the good readings. Through sensor data learning and comparing, diagnostics can be done more quickly, accurately and efficiently, saving both time and money.

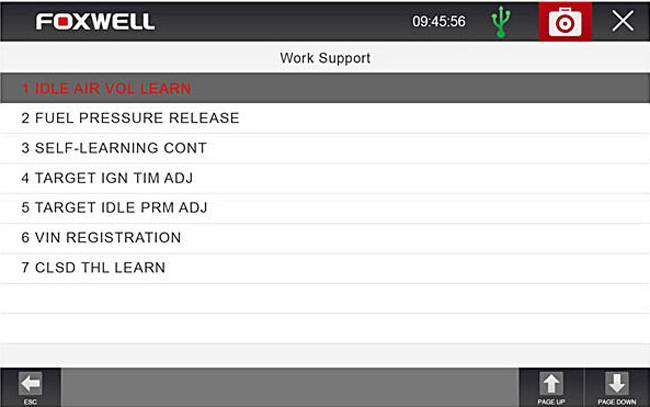

2. GT80 Plus features actuations, adaptations and control module coding

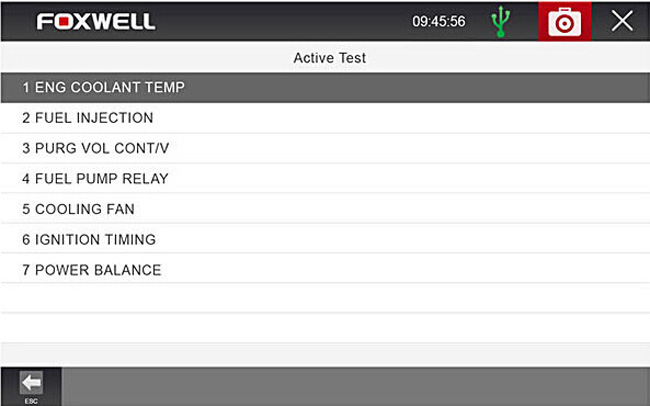

GT80 PLUS cannot only read your codes, but it can also actuate components, run system tests, program control modules. Reading the trouble codes from your vehicle is easy. But without live data, bi-directional controls and other special functions, you may not have enough information to get the problem fixed right. It allows you to use the scan tool temporarily activate or control a vehicle system or component. With GT80 PLUS, the check of electronic components such as switches, sensors, relays, & actuators is made a simple task, saving your time and labor costs. It gives you the ability to ‘flash’ a control unit with new program data.

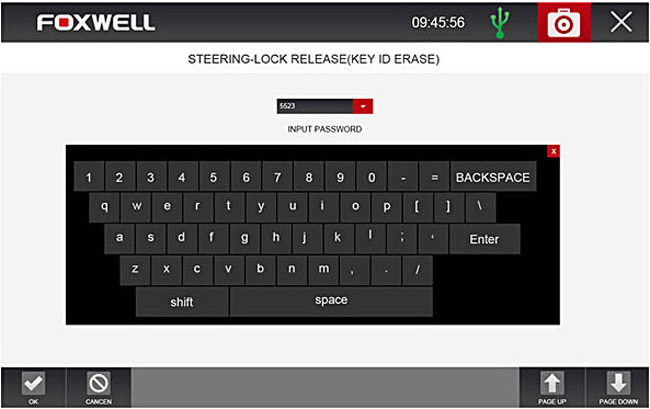

Provided that a module can be re-coded, GT80 Plus allows for the coding and programming of a replacement control module or changing previously stored incorrect coding as expensive factory tools do. In addition, it lets you recode the transponder in a mechanical key or key FOB. When a key for a modern vehicle is replaced, the new unit will often turn the mechanical switch but fail to initialize the system or start the vehicle. If this occurs, it is typically because the transponder inside the key has not been coded to that particular system.



With these factory tool like functions, GT80 Plus is an invaluable tool that allows you to perform complicated repairs faster and easier, boosting your bottom line and customer satisfaction.



3. GT80 Plus is easy to use

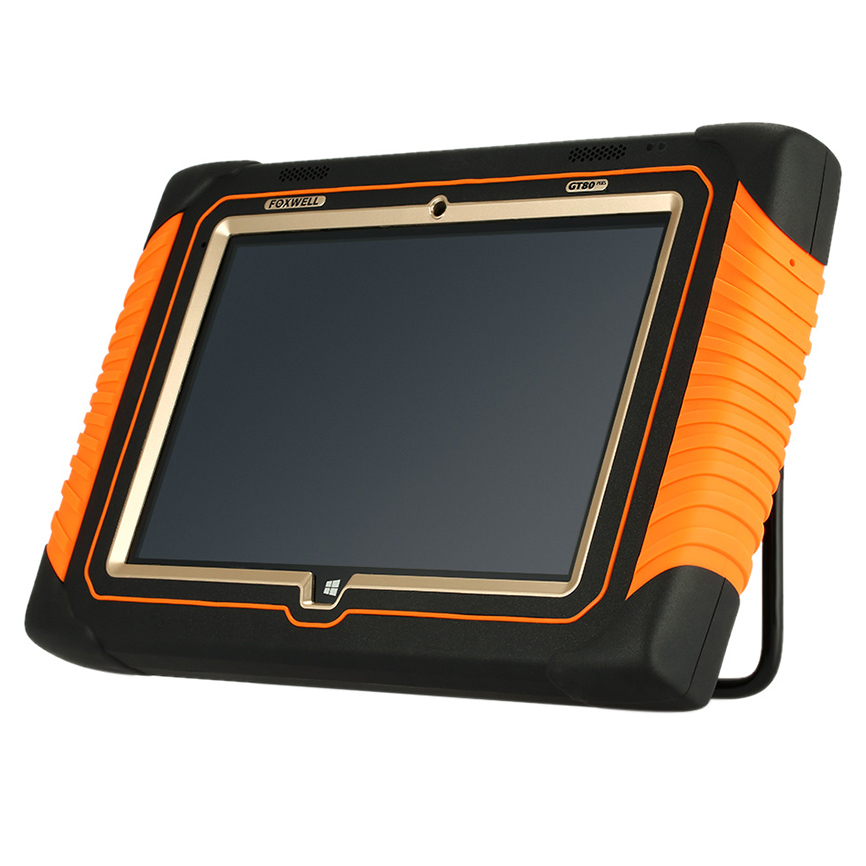

GT80 Plus is designed to be easy to setup and use. With genuine Windows 8.1 operation system, Intel quad-core processor and 10.1 inch LED capacitive touch display, GT80 Plus delivers much faster and easier diagnosis. So you can focus on what is important - servicing the vehicle. It comes with menu-driven navigation and one-click update, so you won’t have to waste your time on learning how to use the scan tool. Vehicle information is so user friendly presented that you can quickly navigate through to find what you need to get the vehicle fixed.



GT80 Plus provides simple ways to get to wherever you want to go from wherever you are.

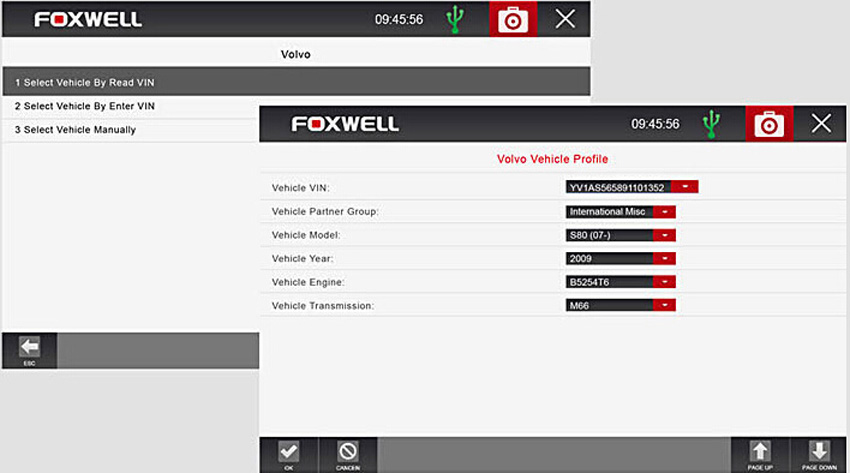

4. GT80 Plus identifies vehicle by VIN



GT80 Plus lets you identify the vehicle you are testing rapidly and accurately on the basis of its VIN number. With the diagnostic tool connected to the vehicle’s OBD socket, it automatically retrieves the VIN code or you can enter it manually to identify the model you are working on.



5. GT80 Plus checks available controllers automatically

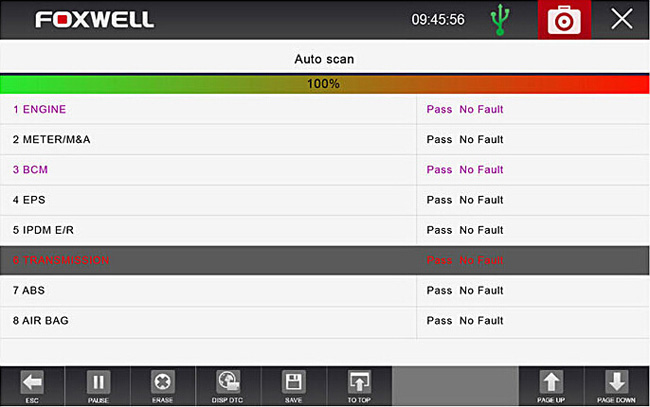

GT80 Plus automatically checks and recognizes all available electronic control units on a vehicle in a matter of seconds. In addition, it instantly displays all the errors detected on the vehicle, and allows errors to be viewed and cleared with just a single click.



6. 18-months free updates



With Internet access, you will always have the latest bug fixes, new vehicles, newly added parameters and functionality at your fingertips. And they are free for the first 18 months after your registration.



Specifications:



Operation System: Windows 8.1 Pro

Processor: Intel(R) Atom (TM) CPU Z3735F 1.33G Hz

Memory: 2GB RAM

SSD: 32GB

System Type: 32-bit operating systems, x64-based processor

Display: 1280*800 pixel 10.1 inch LED capacitive touch screen with backlight

Communication Interface: built-in WiFi 802.11 b/g wireless LAN

USB 2.0

Bluetooth 4.0

Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)

Camera: 2 megapixel front –facing and rear-facing

Audio Input /Output: microphone and dual speaker

Working Temperature: 0 to 60 degree centigrade

Storage Temperature:-20 to 70 degree centigrade

Humidity: ≤90%

External Power: 8-18V powered by vehicle battery

Battery: 7000mAh lithium-polymer batter chargeable via 12V AC/DC power supply

Power Consumption: 5W

Supported Protocols: ISO9141-2, ISO14230-2, ISO15765-4, K/L lines, Double K Line SAE-J1850 VPW, SAE-J1850PWM, CAN ISO 11898, High Speed, Middle Speed, Low Speed and Single wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, SAE J1939, SAE J1939, SAE J1708, Fault-Tolerant CAN.

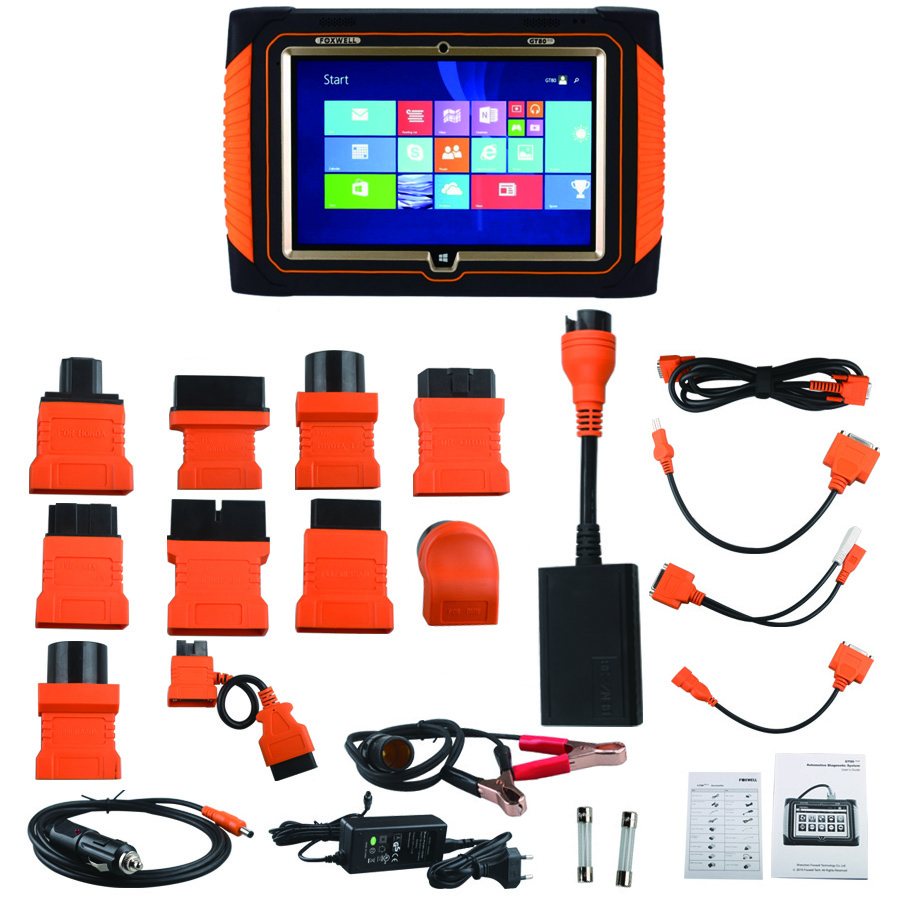

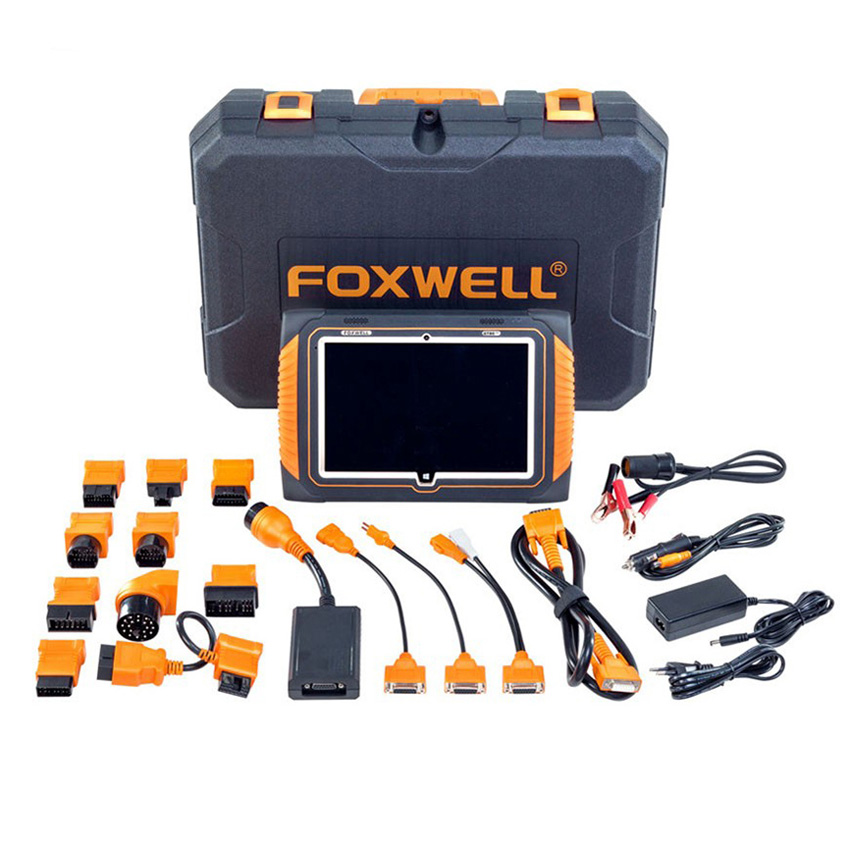

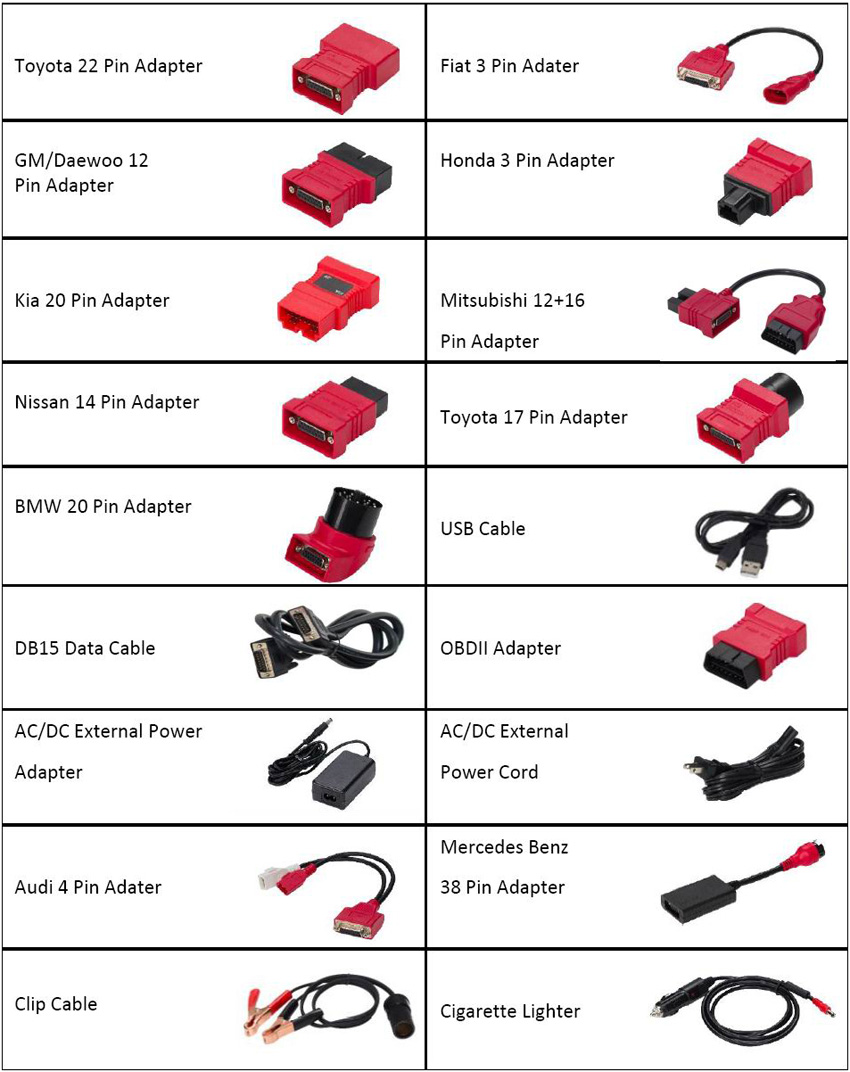

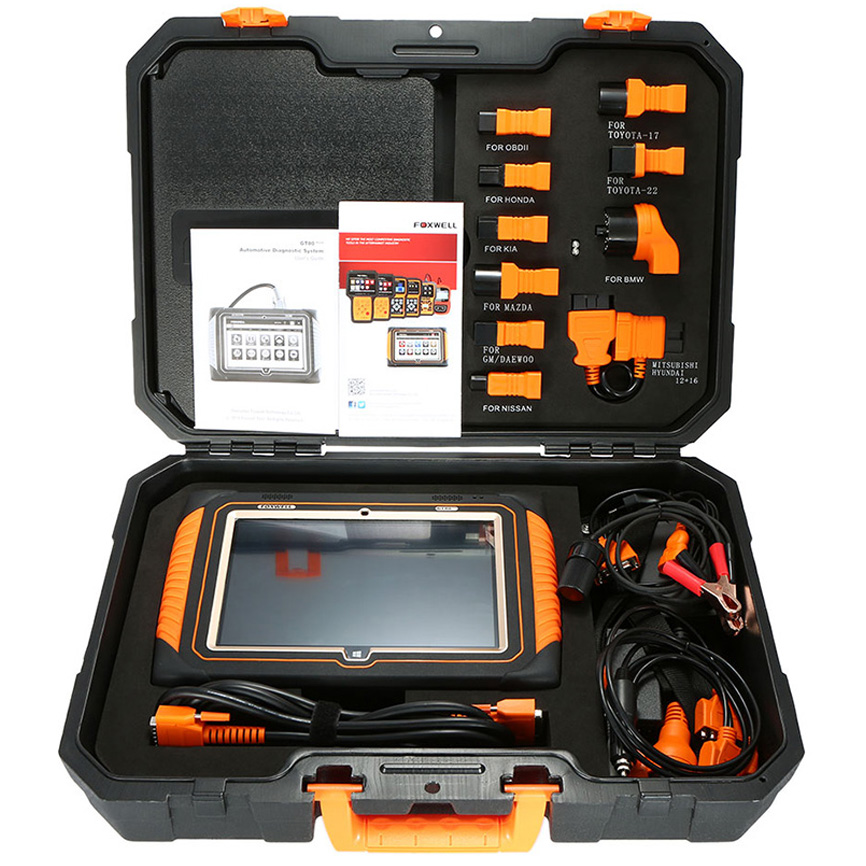

Packing List:



FOXWELL GT80 Plus

Main Diagnostic Cable

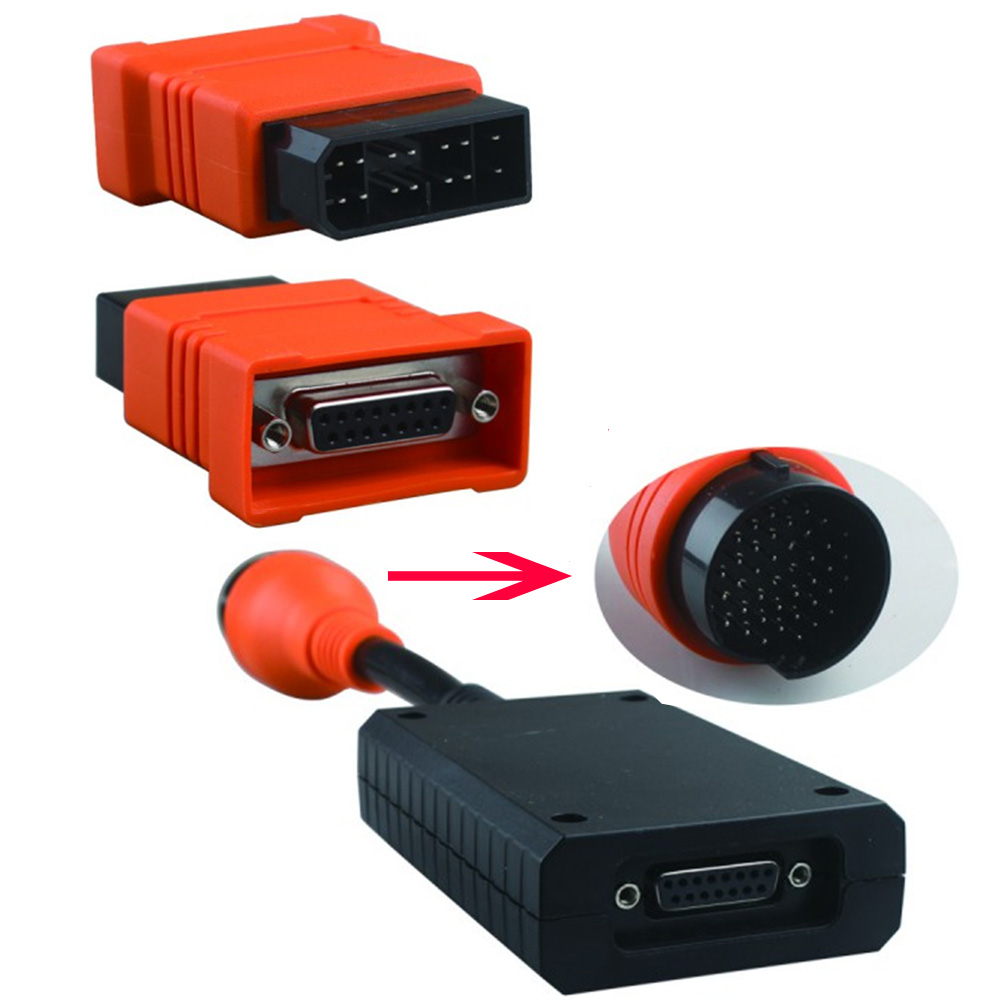

OBD-I/OBD-II Connectors

Power Clip Cable

Cigarette Lighter Cable

AC/DC Power Adapter

Fuse(2 pcs)

User Manual

Plastic Toolbox

Packing Box
