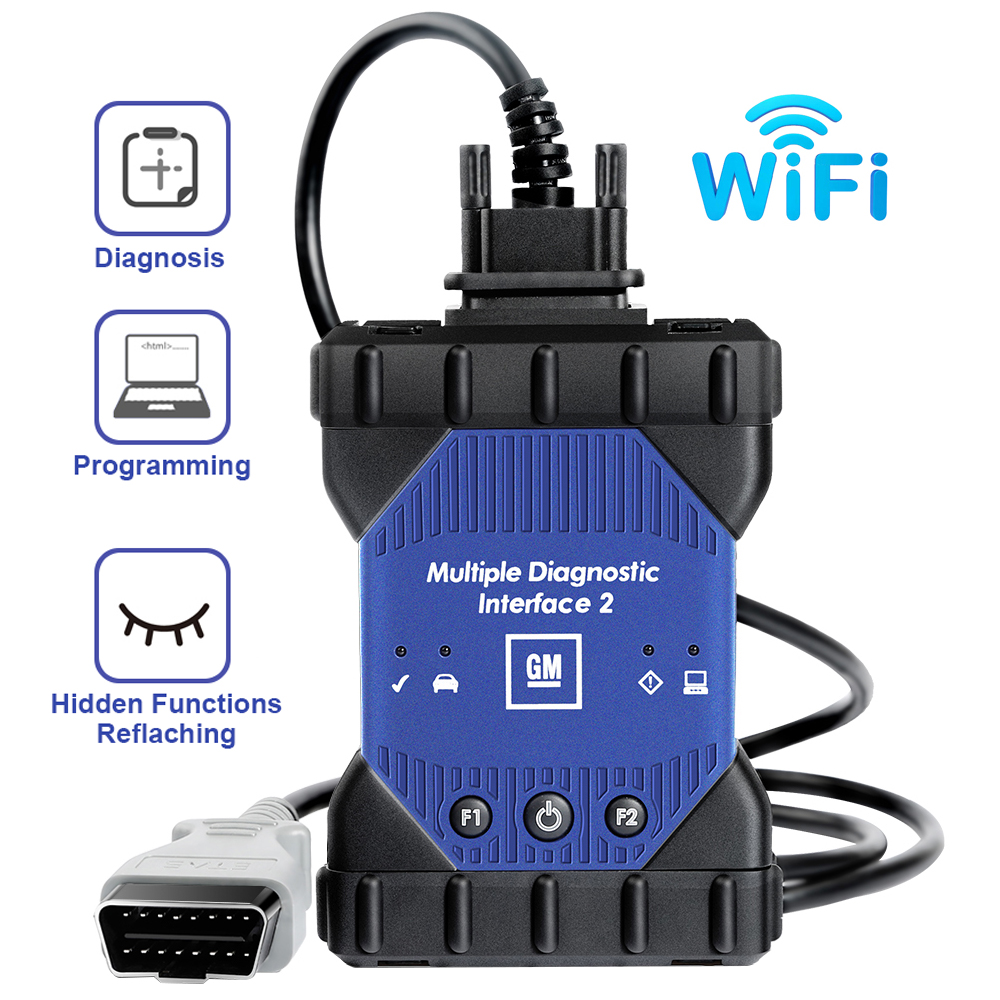

Name: GM MDI 2 Multiple Diagnostic Interface with WiFi Card
Description:

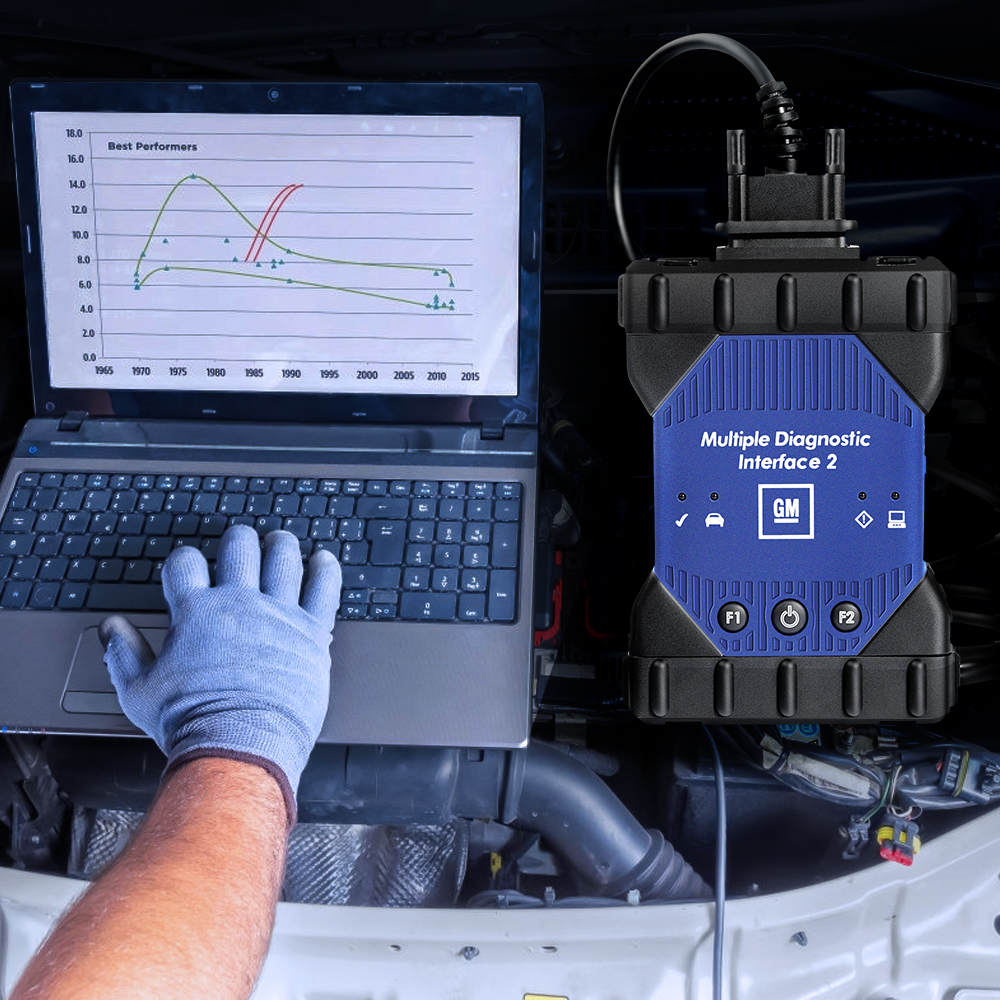

The Multiple Diagnostic Interface 2 (MDI 2) is used by professional technicians as an aid in diagnosing and repairing automotive electrical and electronic systems. GM MDI 2 is designed to connect the vehicle to a host PC computer application, which then functions through the MDI 2 for data transfer and Electronic Control Unit (ECU) reprogramming.
The newest PC-based GM Multiple Diagnostic Interface (MDI 2) offers increased processing power, security, and faster programming speeds on Global A and future Global B vehicles.
GM MDI2 supports diagnostic applications: GDS 2, Data BUS Diagnostic Tool, and Tech2Win. It also supports Pass-Thru programming applications: TIS2Web–SPS. It replaces the first generation MDI introduced in 2007, for Pass-Thru programming on current GM models. The MDI 2 is backward compatible, so it can be used to perform Pass-Thru programming on all vehicles built since 1996 by means of the J1962 connector using a DLC cable. Connection between the MDI 2 and the PC can be accomplished via standalone (USB) and the dealership network (CAT5).
Functions:
1. Automatic vehicle recognition
2. DTC reading and removal
3. Complete list of live data streaming for all main ECU
4. Recordable / playback of live data
5. New software flash for existing ECU to fix drivability issues
6. Programming and installation of new ECU (PCM, ABS, Instrument cluster, air bag, fuel pumps etc.,)
7. Programming new keys
8. Setting / removing speed limiters
9. J2534 pass thru offering ECU re-flash and diagnostics for other vehicle manufacturers, when subscribed to their specified software
10. More dealer specific functions
Features:

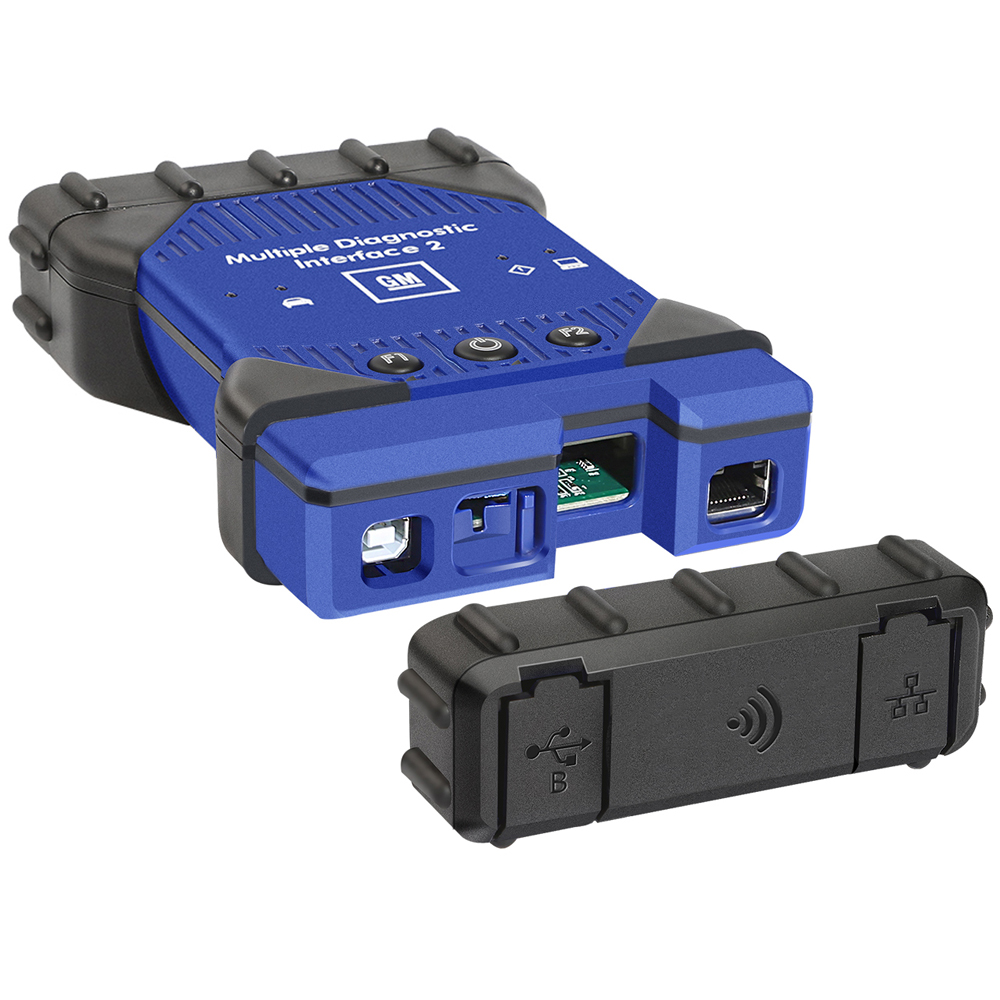

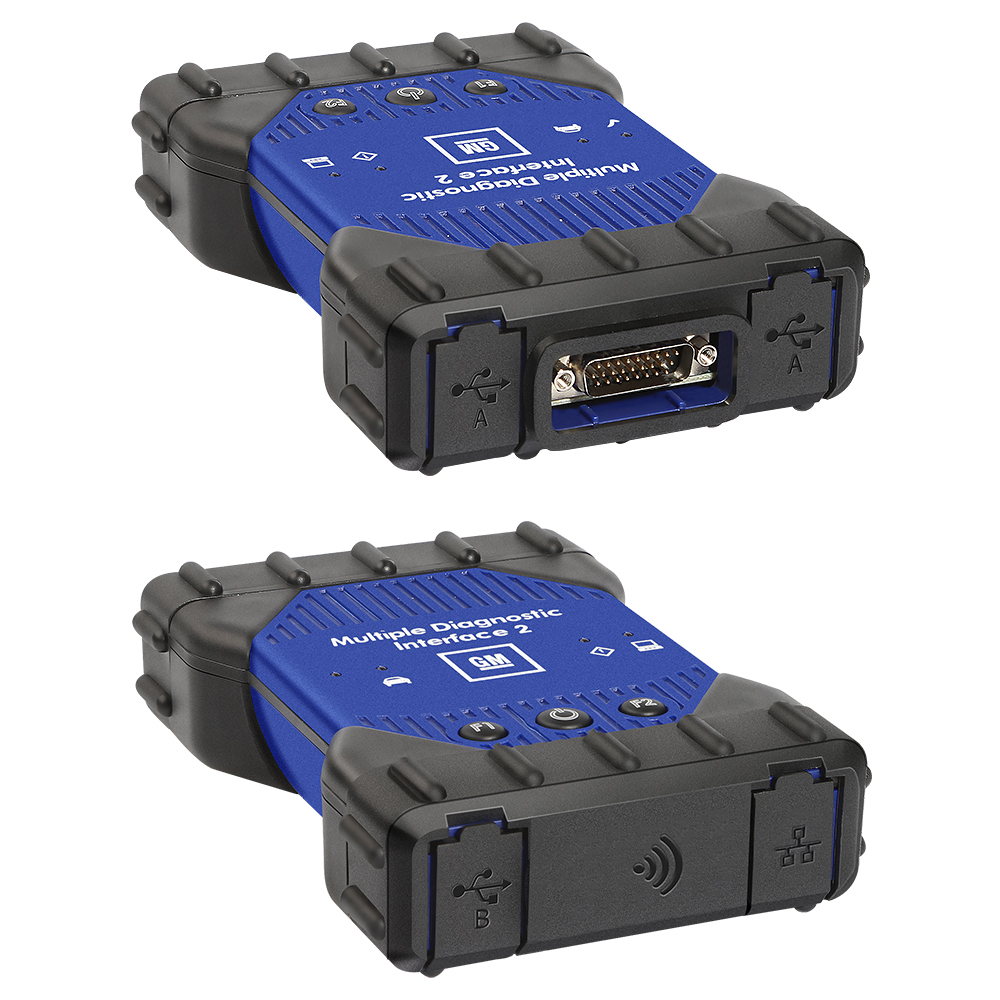

1. Uses a new, more secure Type B connector and Ground Offset Failure protection. A wired connection is recommended for longer programming events.
2. GM MDI 2 is powered from the vehicle battery via the DLC Cable. It may also be powered via USB to perform firmware updates on computer.
3. Uses USB 2.0 for faster firmware downloads.

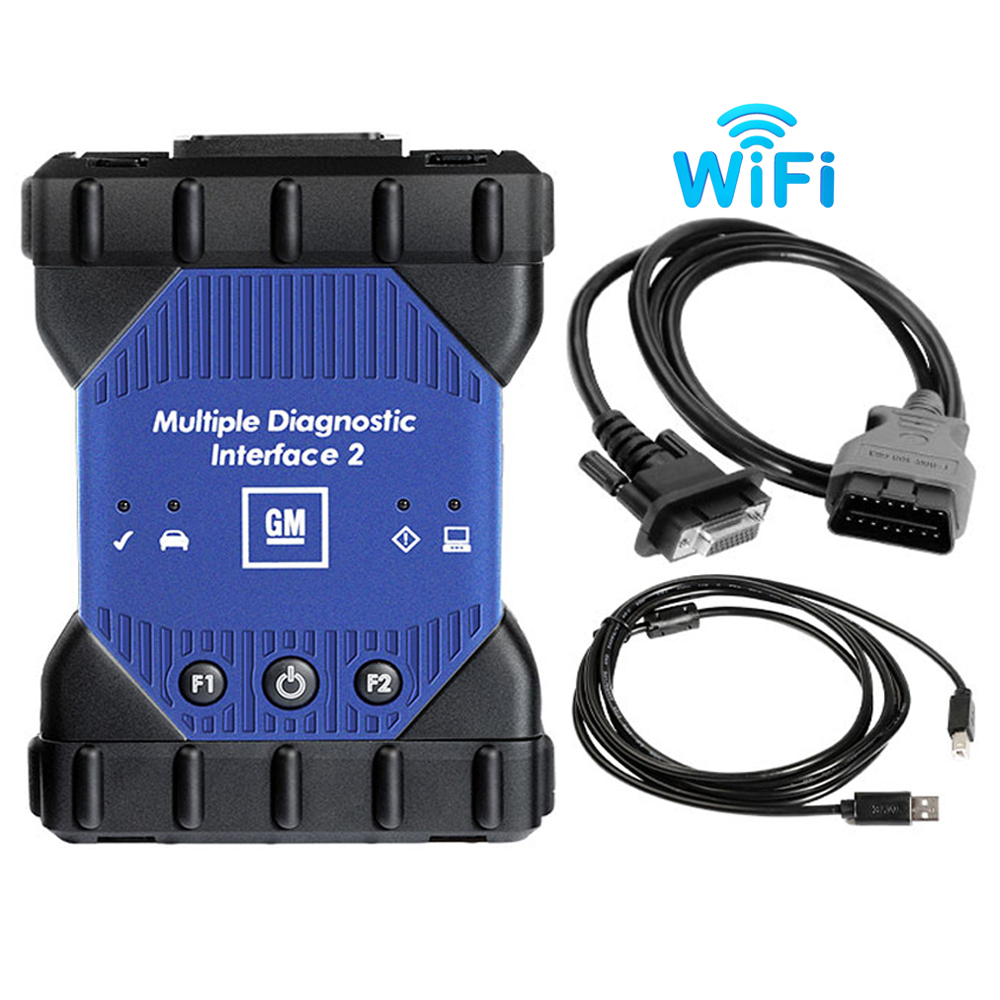

Packing List:
GM MDI 2
DLC cable SAE J1962
USB cable
GDS2 Tech2Win Software HDD (optional)
|
