Supported Series: S Series, ML Series, GL Series, R Series
It is compatible with
XHorse VVDI MB Tool BGA and MBSmartKeyTool software. Other devices are not supported currently..

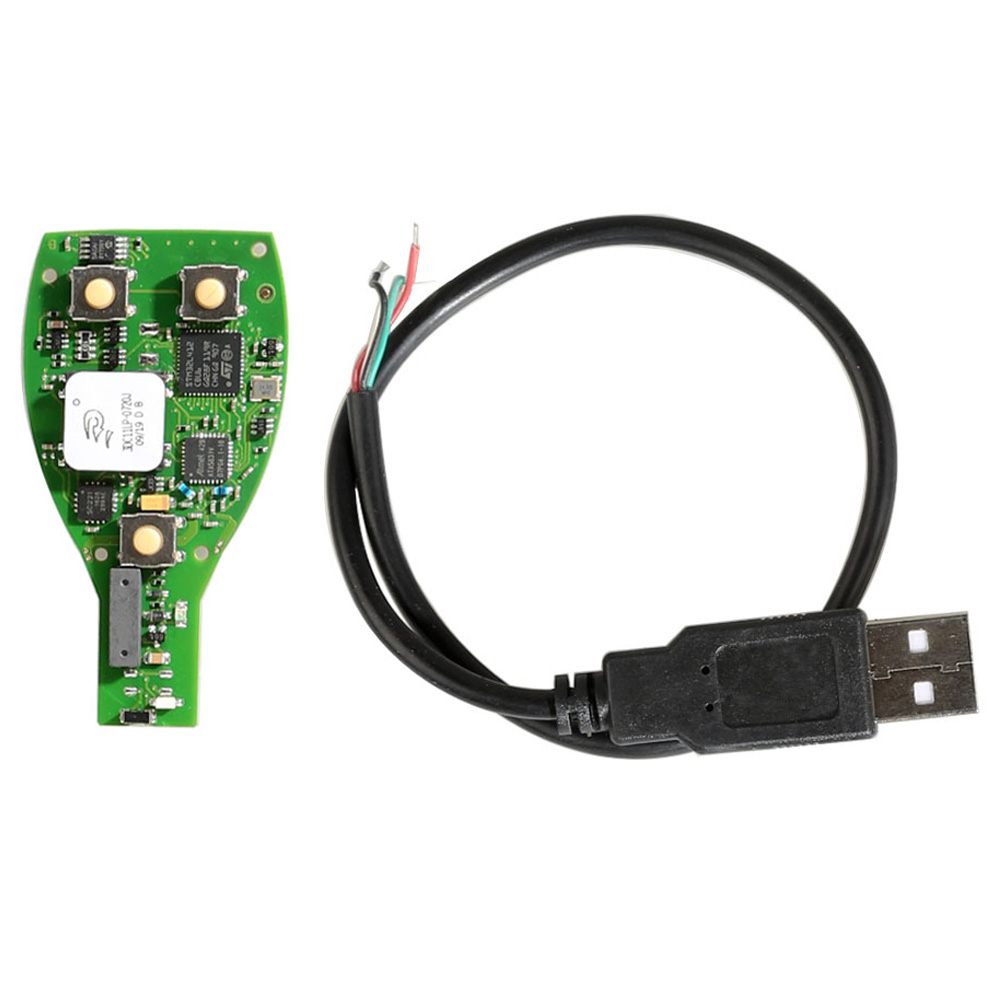

Connection via USB for data reading and writing
As long as you can read the Ignition Switch data and collect the correct password, this key can match the same function as the OEM Keyless Go.
Supported Models:
S-W221(2010-2013)
GL-W164 (2010-2012)
ML-W164(2010-2012)
R-W251(2010-2017)
S Series W221 W216: YES!
ML/G/R Series W164 W251: YES!
2010-2014 C & E Series: NO!
Operation Instructions:
1. Before writing the key data, you must install the battery to test whether all the keys are normal.
2. It is necessary to use 051 key data (When VVDI infrared writing reaches 96%, it will prompt "data writing failure", this is normal!).
3. Remove battery before activating the key, usually insert and remove it 5-6 times for an interval of 5 seconds. After the key can start the vehicle normally, install the battery to test the remote control and keyless start.
Notice:
It can be erased up to 3 times. After 3 times, it can only be returned back to factory for re-burning the key.
