Name: Mercedes EURO6 AdBlue Remove Emulator
Description:

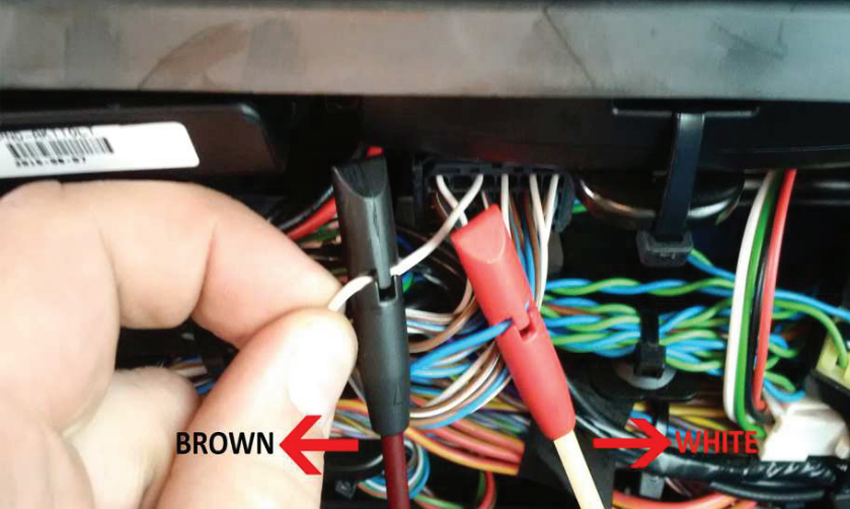

Behind fuses in the middle is a plug- as in the picture. (right side written on manual is wrong).
Installation:

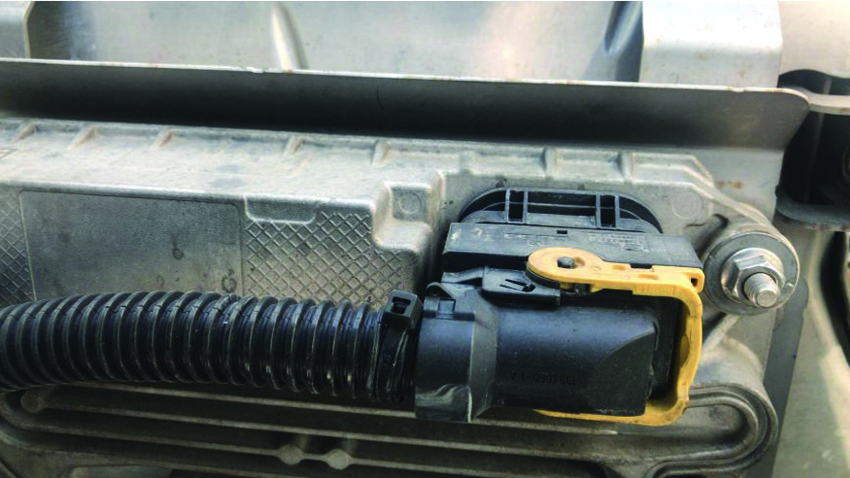

You must locate the ACM Module and remove the socket.

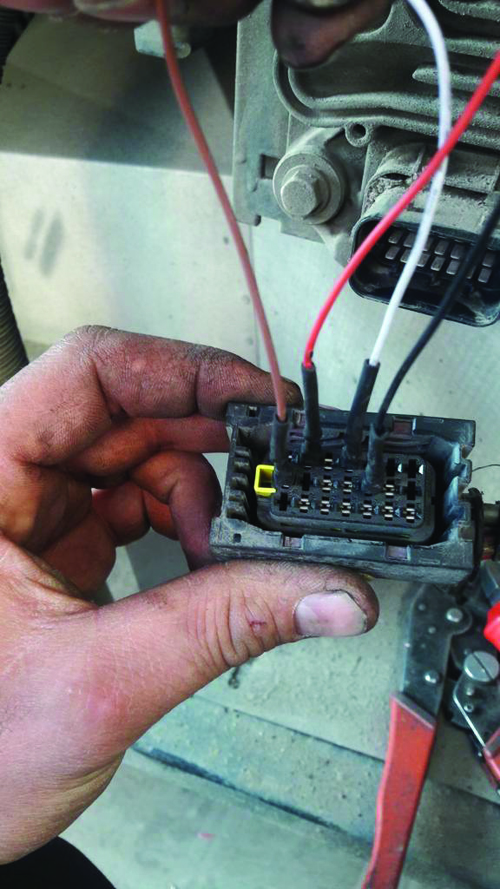

The cable should be installed as shown in the picture below.
Emulator White Cable (CAN H) -----> Atego Socket 10 Pin (CAN H)
Emulator Brown Cable (CAN L) -----> Atego Socket 20 Pin (CAN L)
Emulator Red (+) Cable -----> Atego Positive(+) Cable
Emulator Black(-) -----> Atego GND (-)
After installation, you must remove errors with fault diagnose device.
Do not mount the socket back into the ACM module. Isolate the Atego ACH module without damage.
You should definitely cancel the DPF after installing the AdBlue Removal Emulator.
Packing List:

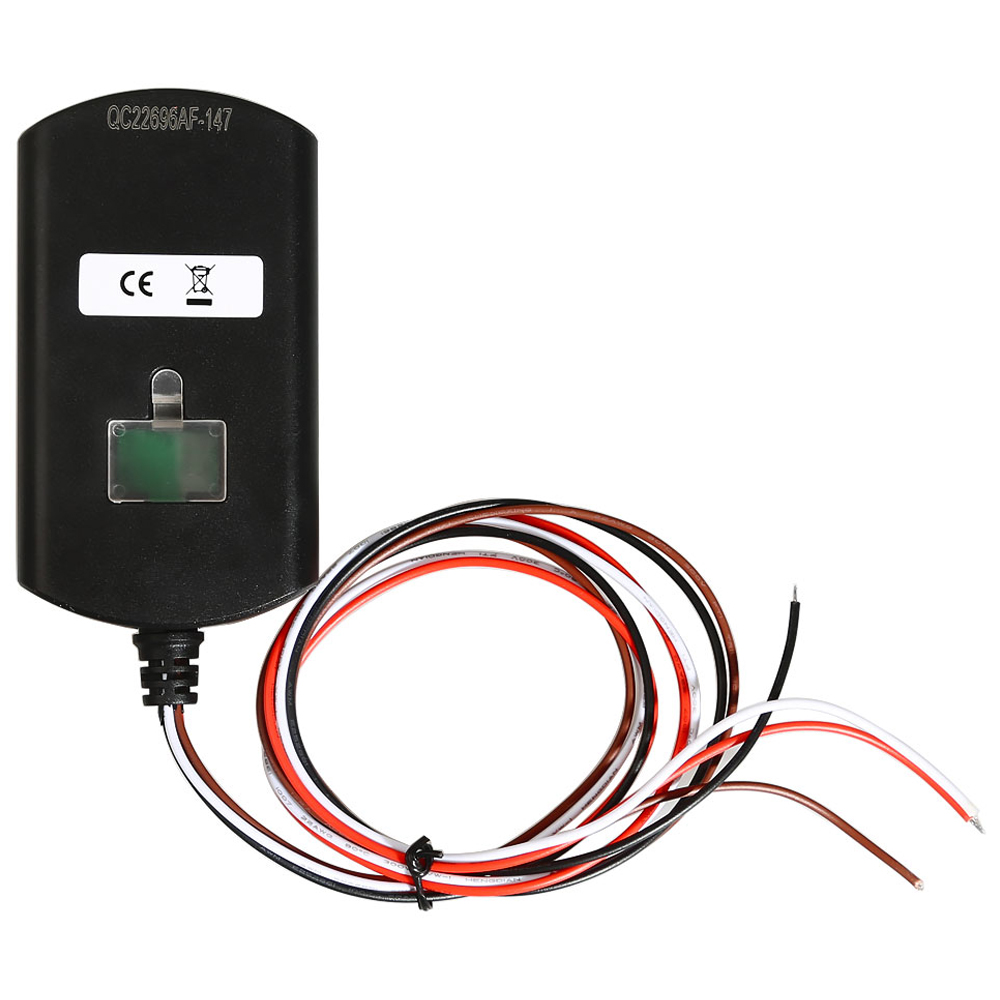

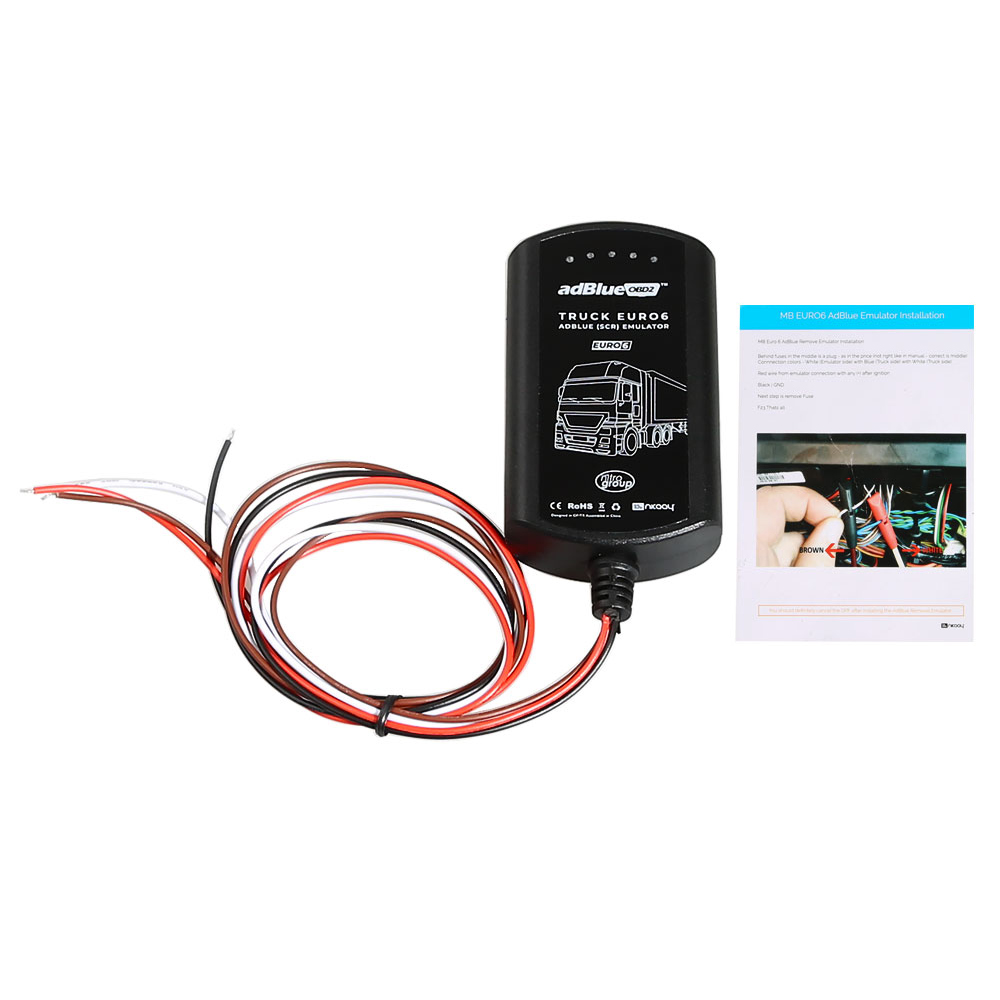

Mercedes Benz EURO6 AdBlue Emulator
|
USD
