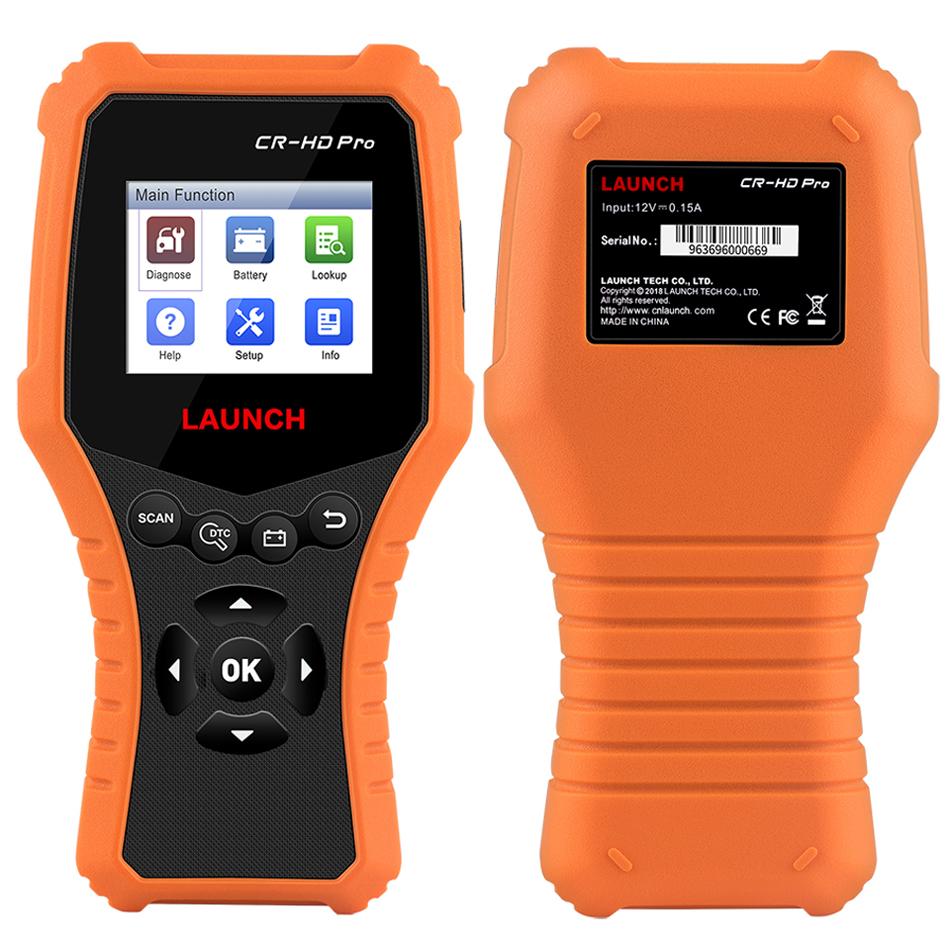

Name: Launch CR-HD Pro Car and Truck OBD2 HOBD Code Reader
Description:

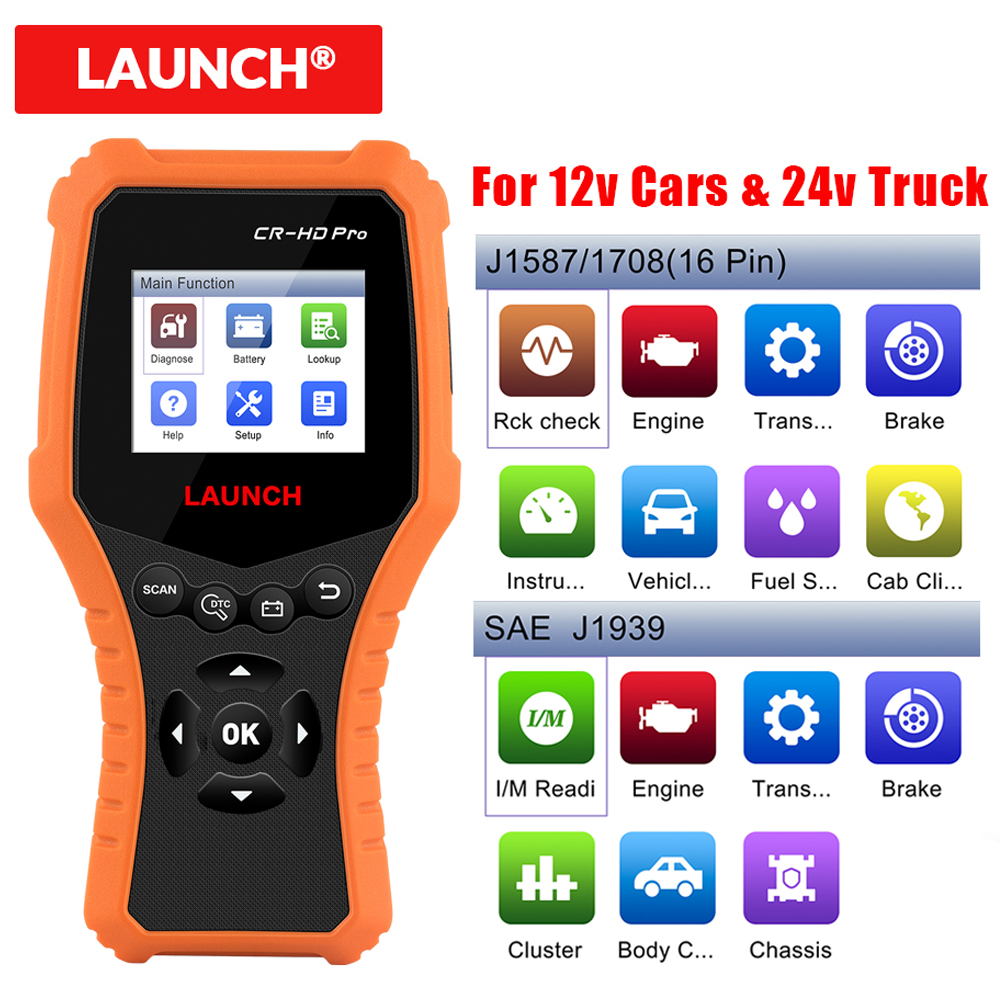

LAUNCH CR-HD PRO is OBD2 Code Reader is a scanner for 12V cars and 24V trucks!

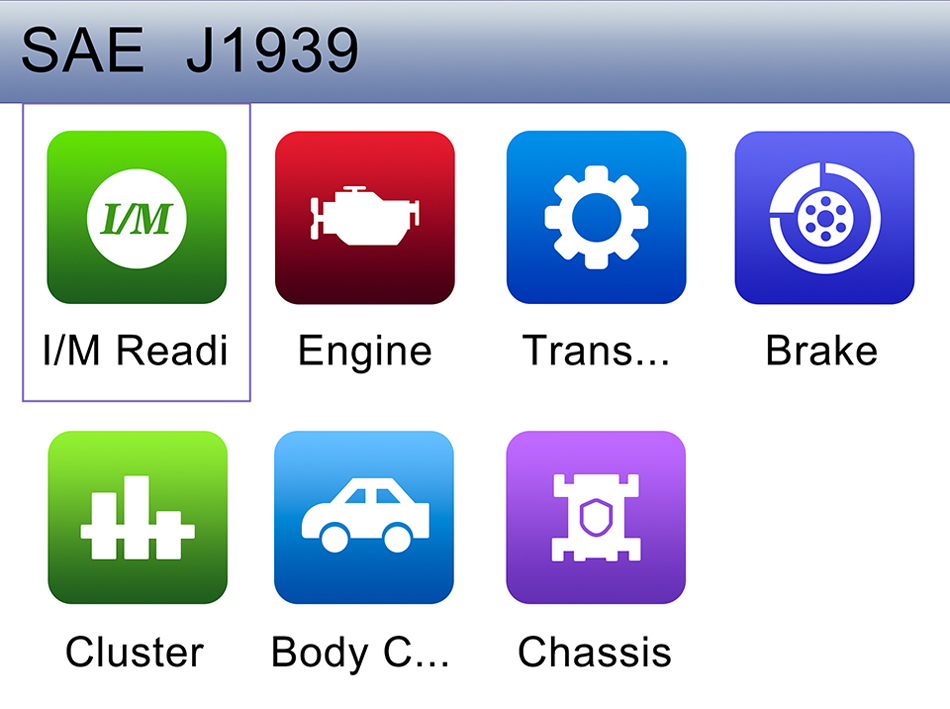

Functions for 24V Trucks:

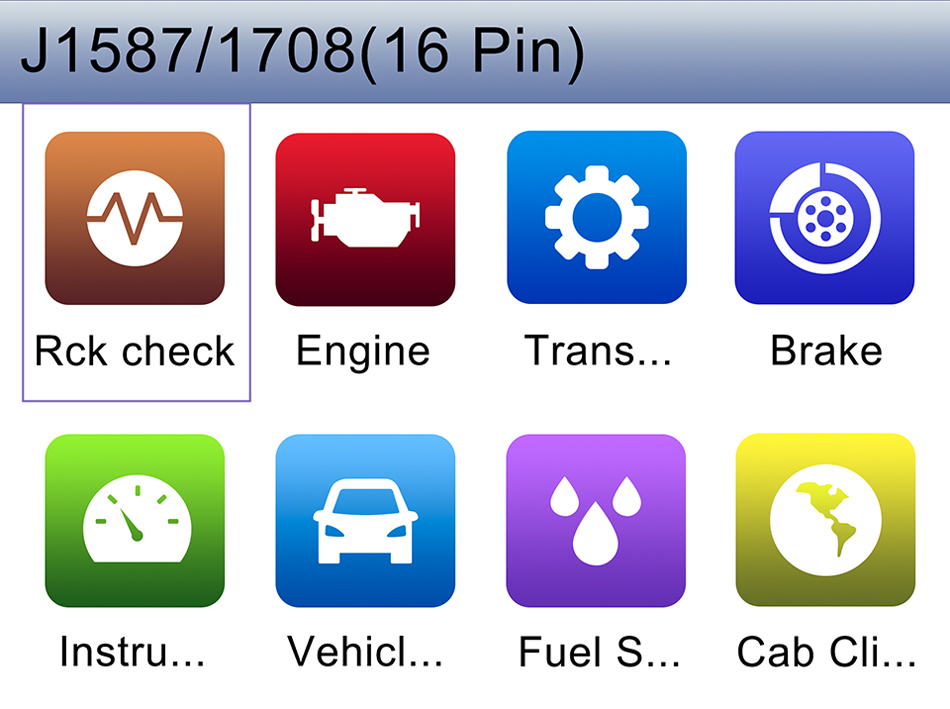

Supported Systems:
Engine System
Transmission System
Instrument Panel System
…
Functions:
Read Trouble Codes
Dlear Trouble Codes
Read Data Stream Information

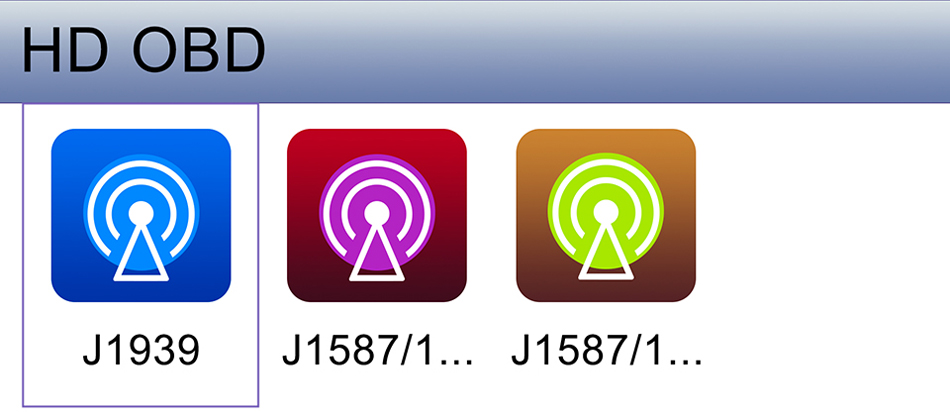

Supported Protocols:
J1939
J1708
SAE J1979(OBD-II)
Functions for 12V Car:
Read Fault
Delete Fault Code
Live Data
Read Vehicle Information
O2 Sensor Test
EVAP System Test
Onboard Monitor Test
DTC Code Lookup
IML Fault Indicator
View Freeze Frame

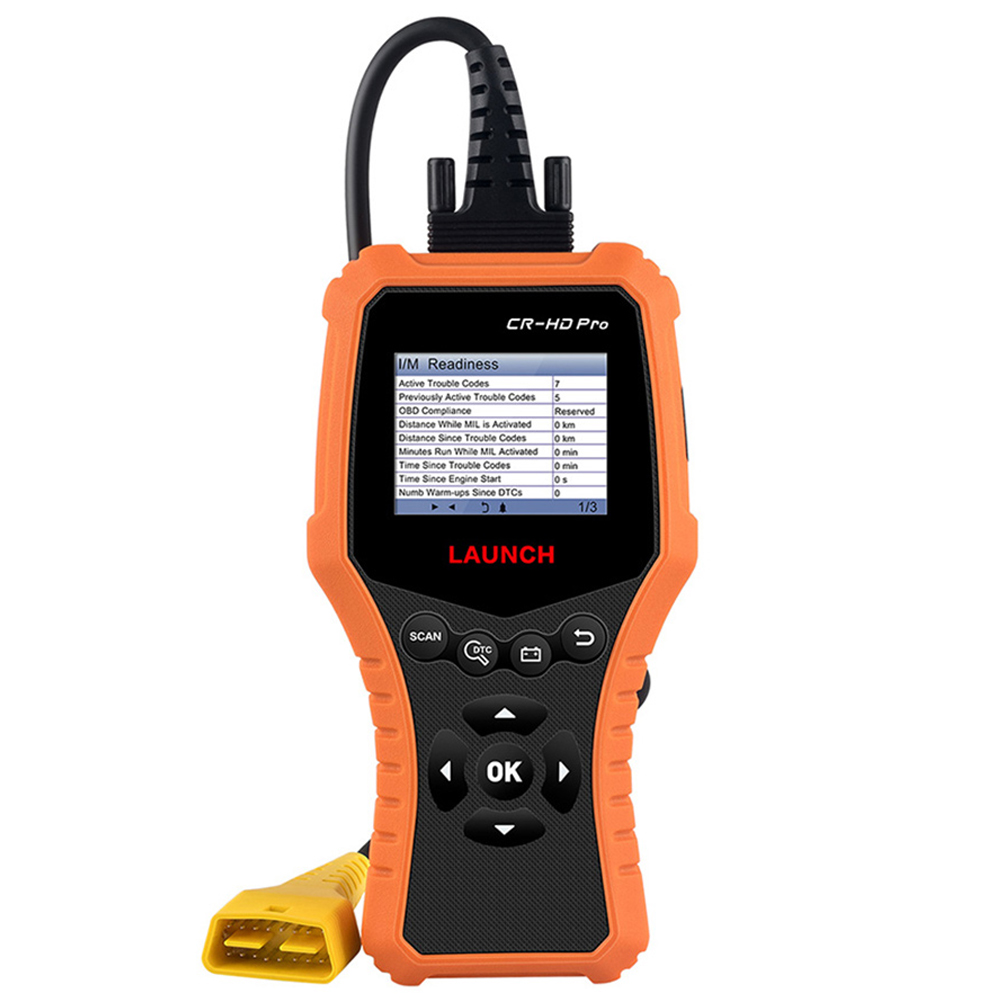

I/M Readiness

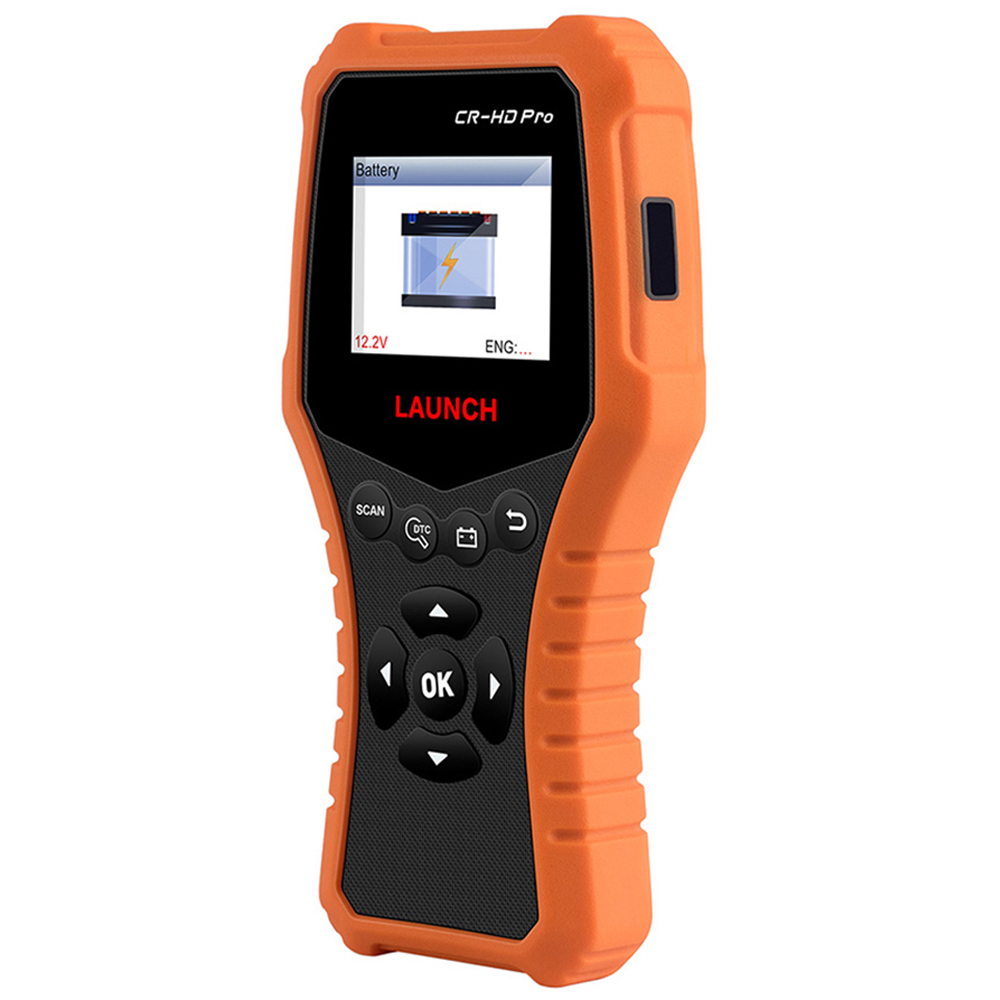

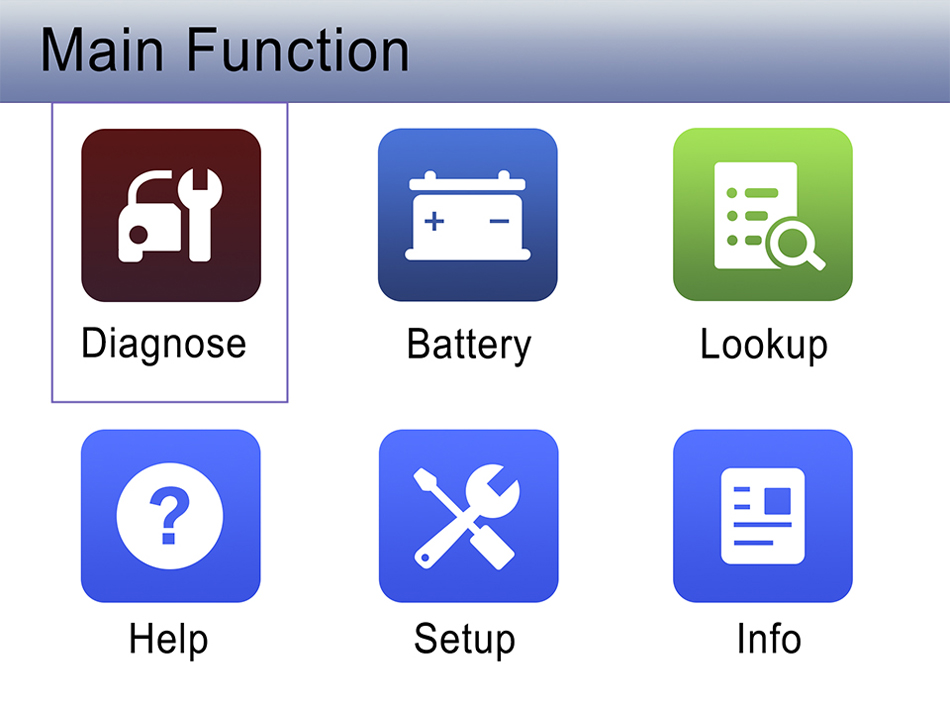

Battery: Reads the vehicle battery voltage

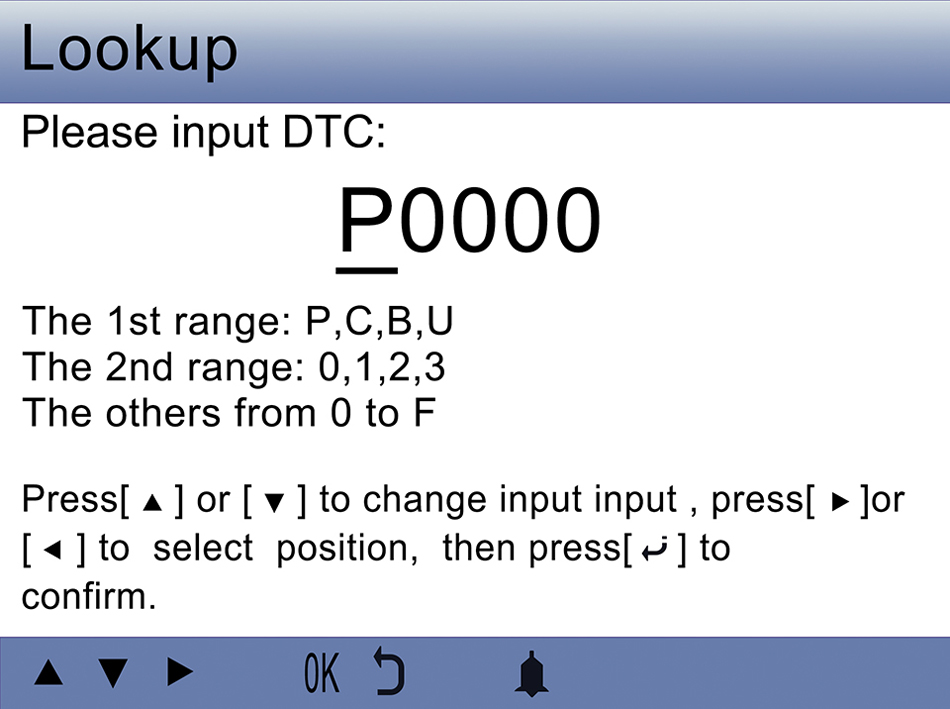

Lookup: Retrieves the desired diagnostic, trouble code (DTC) from the DTC library.
Help: Lets you have a general knowledge of the OBD-II, HD OBD and I/M readiness.
Info: Includes the tool information, including software & hardware version, and serial number etc.

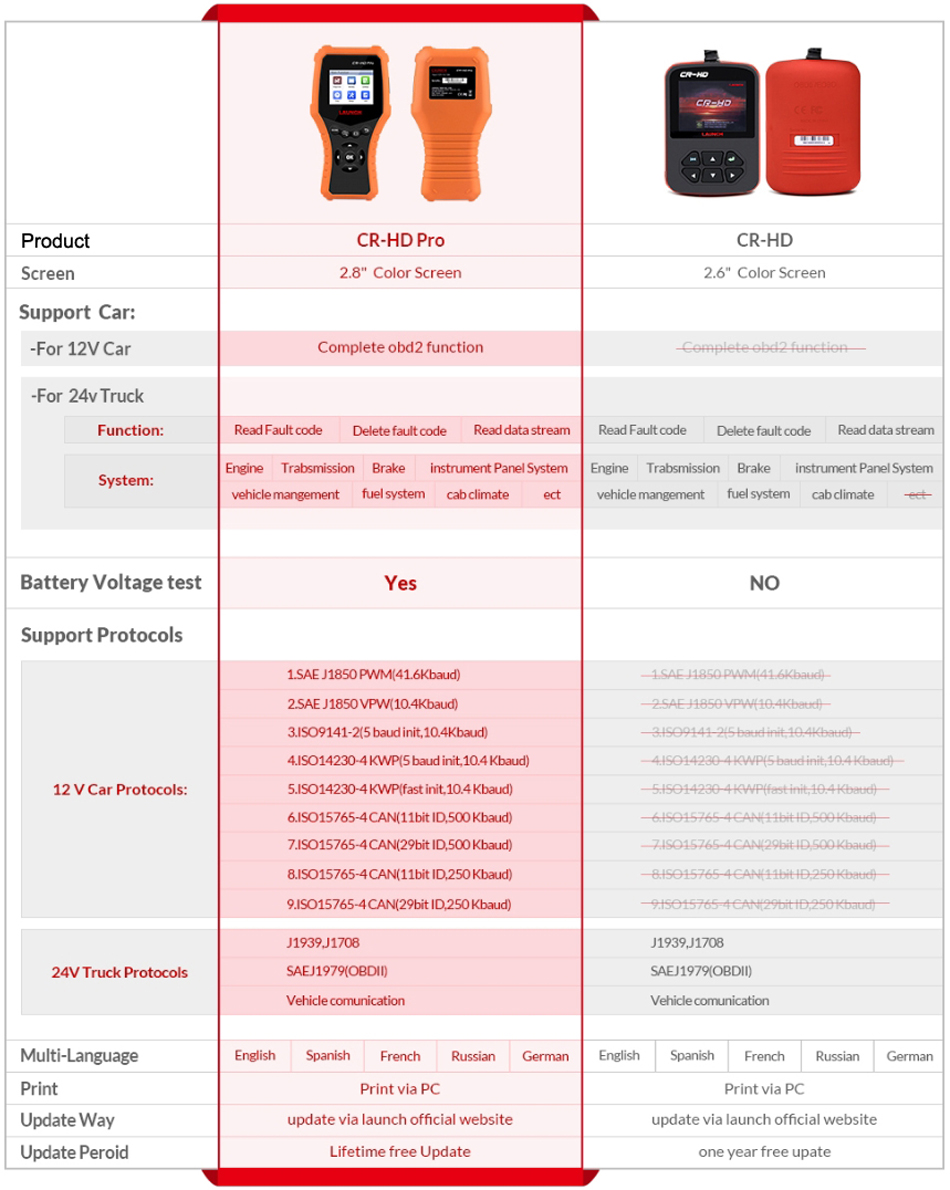

Supported OBD2 Protocols:
1. SAE J1850 PWM(41.6Kbaud)
2. SAE J1850 VPW(10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP(fast init,10.4 Kbaud)
6. ISO15765-4 CAN(11bit ID,500 Kbaud)
7. ISO15765-4 CAN(29bit ID,500 Kbaud)
8. ISO15765-4 CAN(11bit ID,250 Kbaud)
9. ISO15765-4 CAN(29bit ID,250 Kbaud)

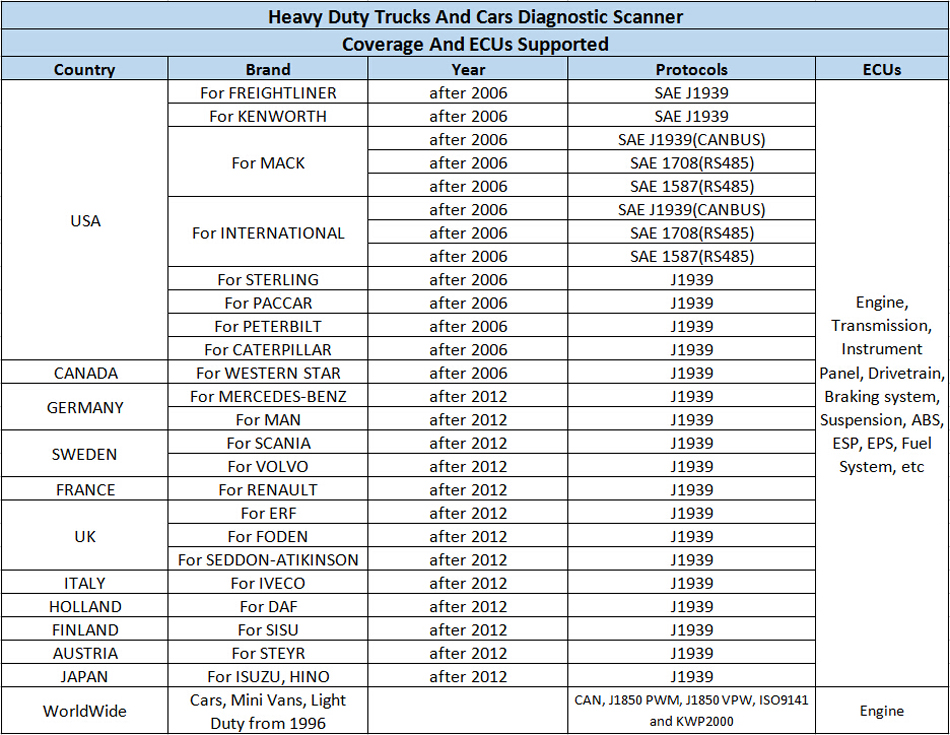

Supported Cars:
American: standard OBD2 protocols from 2000 to now
European: standard OBD2 protocols from 2003 to now
Japanese/Korean: standard OBD2 protocols from 2006 to now
Chinese Car: standard OBD2 protocols from 2009 to now
Supported Languages: English, French, German, Spanish, Russian
How to Update?
1. Go to the Launch official website and download the update tool to your computer.
2. Decompress and install it on your computer(compatible with Windows XP/7/8/10).

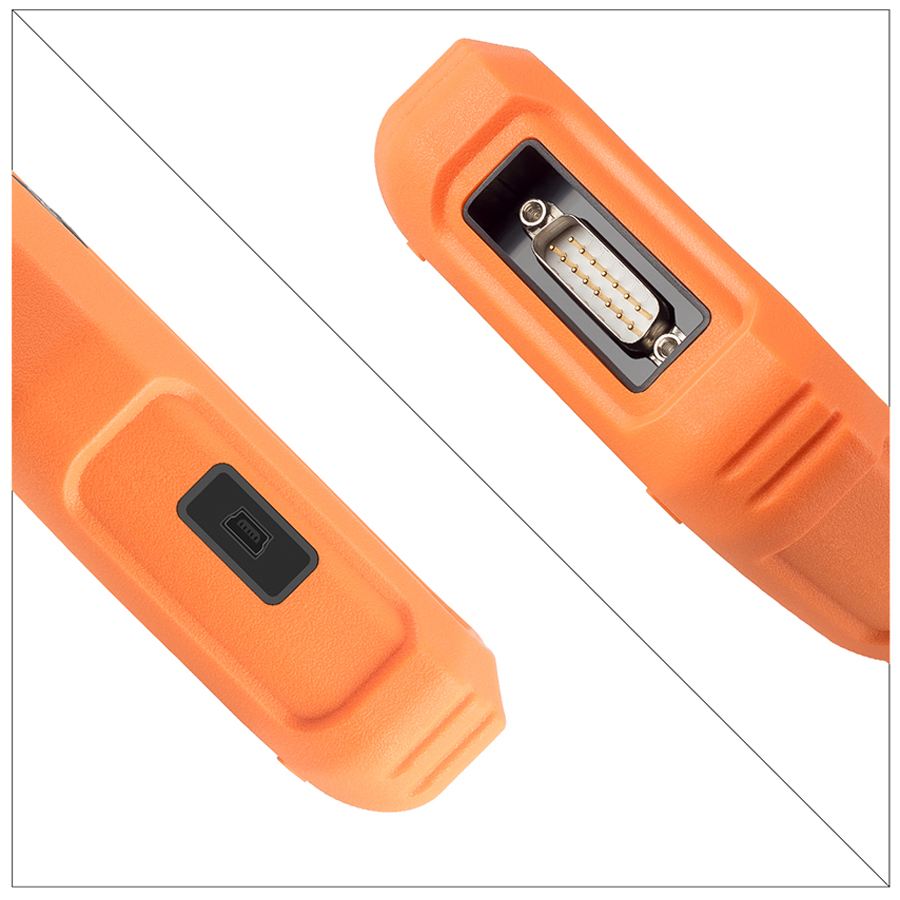

3. After installation, connect one end of the data cable to the USB port of PC, and the other end to the tool.
*Note: If the tool is properly connected to the PC, the NO DTC LED illuminates green, and the DTC LED goes out. Otherwise, the red LED illuminates and the green LED lights off.
4. Launch the update tool on your PC, the system starts to read the tool. Once it obtains the tool information, it will directly navigate to the update center.
7. Once update process is completed, your tool is now ready for use.
|
