Description:

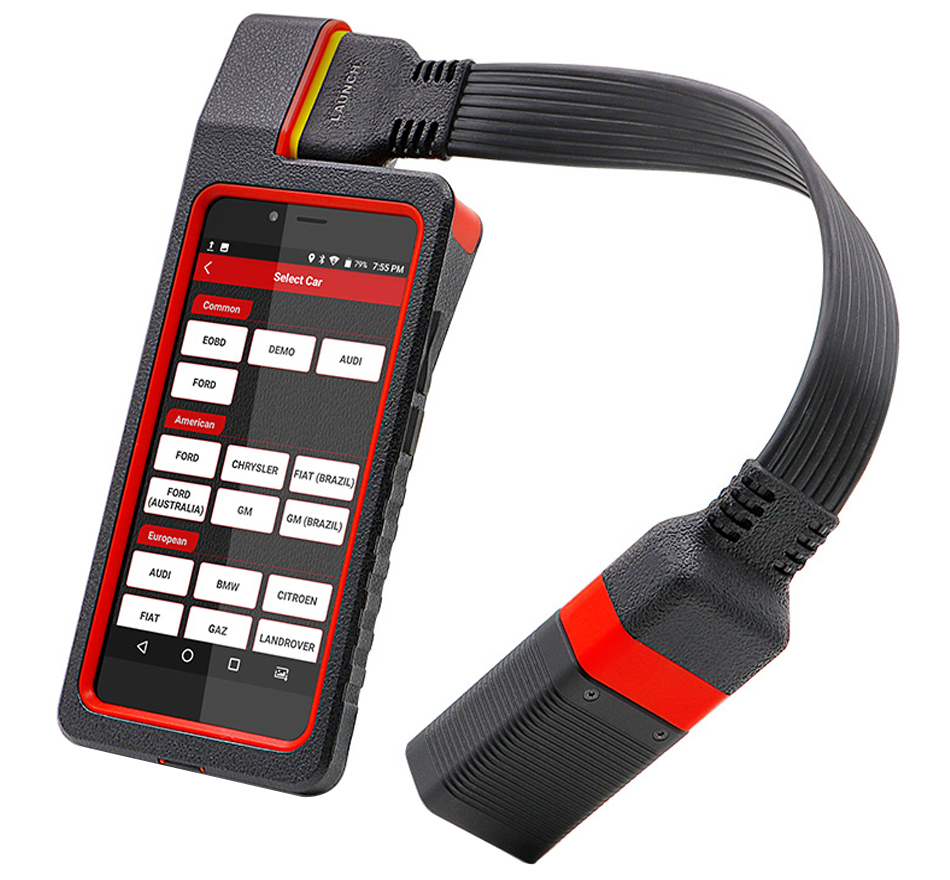

Launch X-431 Diagun IV can replace X431 Diagun III or X431 IV, is a new diagnostic tool release by Launch. It is composed of an X431 Diagun IV main unit and a DBScar Bluetooth Diagnostic Connector and many OBD1 to OBD2 connectors. It communicates with your car by Bluetooth DBScar. It reads car DTCs and does diagnose function by the Launch X431 Pro Pad computer, it achieves X431 series full car model and full system diagnostic function.



Launch X431 Diagun IV is a slim evolutionary vehicle diagnostic tool. Featuring a quad-core 1.1GHz processor, and a 5.5 inch capacitive screen, X-431 Diagun IV delivers diagnostic functionality which helps to diagnose vehicle issues more efficiently. Meanwhile, taking advantage of mobile internet, it integrates more application and service, such as creating maintenance database and case library, providing instant maintenance information, establishing public and private maintenance social circle etc. As a result, it builds a broad vehicle diagnostic community, which helps you share vehicle maintenance knowledge online, exchange vehicle maintenance experience online and provide vehicle maintenance related service support online. This will be another revolution raised by Launch in the vehicle diagnosis industry.



Supported Languages:



English, French, German, Spanish, Portuguese, Russian, Greek, Arabic, Italian, Danish, Polish, Finnish, Dutch, Czech, Swedish, Turkish, Hungarian, Romanian, Serbian, Japanese, Korean



(Notice: you can switch the language by yourself)



Software Update: 2 Years Free Update Online; USD 459/year for further update



Features:



1. Android 7.0 OS, supports one-click update

2. Handset, easy to operate, avoid broken or lost Bluetooth Adapter

3. SD card storage: 16GB big capacity

4. Add Special Function: Brake Reset, Oil Reset, SAS Reset, BAT. Reset, Bleeding, Elec.TH Tottle Rottle Rlrn, TPMS Reset, DPF REG.

5. Bluetooth Distance: 10 meter (without obstacle)

5. Includes Launch X431 Connector Kit in default Package, more convenient to use

6. Tablet with high configuration (in the last paragraph, there are technical parameters)

7. Built-in Social Network Service allows access to diagnostic community

8. One-click update online via WiFi

9. Remote diagnosis & maintenance with golo (optional)



Functions:



1. Full Functions:

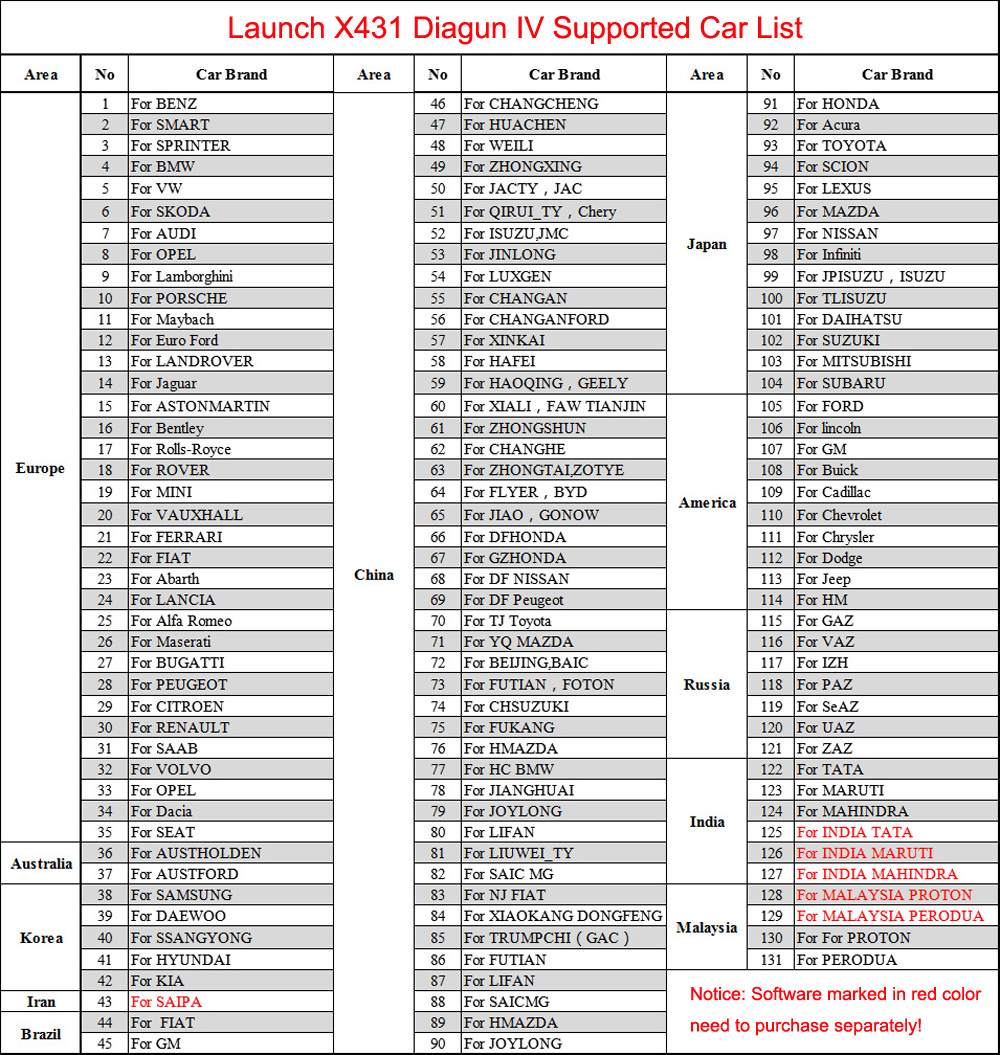

Launch X431 Diagun IV can diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and China. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.



Diagnosis Functions: Read DTCs, Clear DTCs, Read Datastream, Special Functions, etc.



Special Functions:



The Reset section is specially designed to provide you quick access to the vehicle systems for various scheduled service and maintenance performances.

All resetting operations are driven by executive commands. Just by following the on-screen prompts to select appropriate execution options, input correct values or data, and perform necessary actions, the system will guide you through the complete performance.



The most commonly performed service functions contain:

Oil Reset Service

Steering Angle Calibration

Electronic Parking Brake Reset

Battery Register / Battery Maintenance

ABS Bleeding

Electronic Throttle Position Reset / Learn

Diesel Particulate Filter (DPF) Regeneration

Tire Pressure Monitor System Reset



2. Connecting via Bluetooth:

X431 Diagun IV communication via Bluetooth, very easy to use.  X431 Diagun IV computer is specially designed for Android platform with clear and user-friendly interface (5.5 inch IPS screen with a resolution of 1280*720 pixels).X431 Diagun IV computer is equipped with an exclusive protection sleeve to prevent it from being damaged;



3. Browser:

Built-in Wi-Fi module makes surfing on the Internet freely;



4.Settings:

To configure your personalized X-431 Diagun IV through it;



5. Search:

Enables you to locate your target quickly and conveniently;



6. E-Mail:

Allows you to send and receive email. External POP3 or IMAP email account for some common Web email service provider can be added;



7. File Manager:

You can manage the files or downloaded files stored in SD card efficiently;



8. Other Additional Functions:

Alarm, calendar and calculator etc.



9. Applications:

Other android based applications can be customized to install or uninstall.



10. Software Update:

Once a newer diagnostic software version is detected, a prompt message will pop up on the screen. To keep synchronized with the latest version, tap “Update now” to enter the update center.

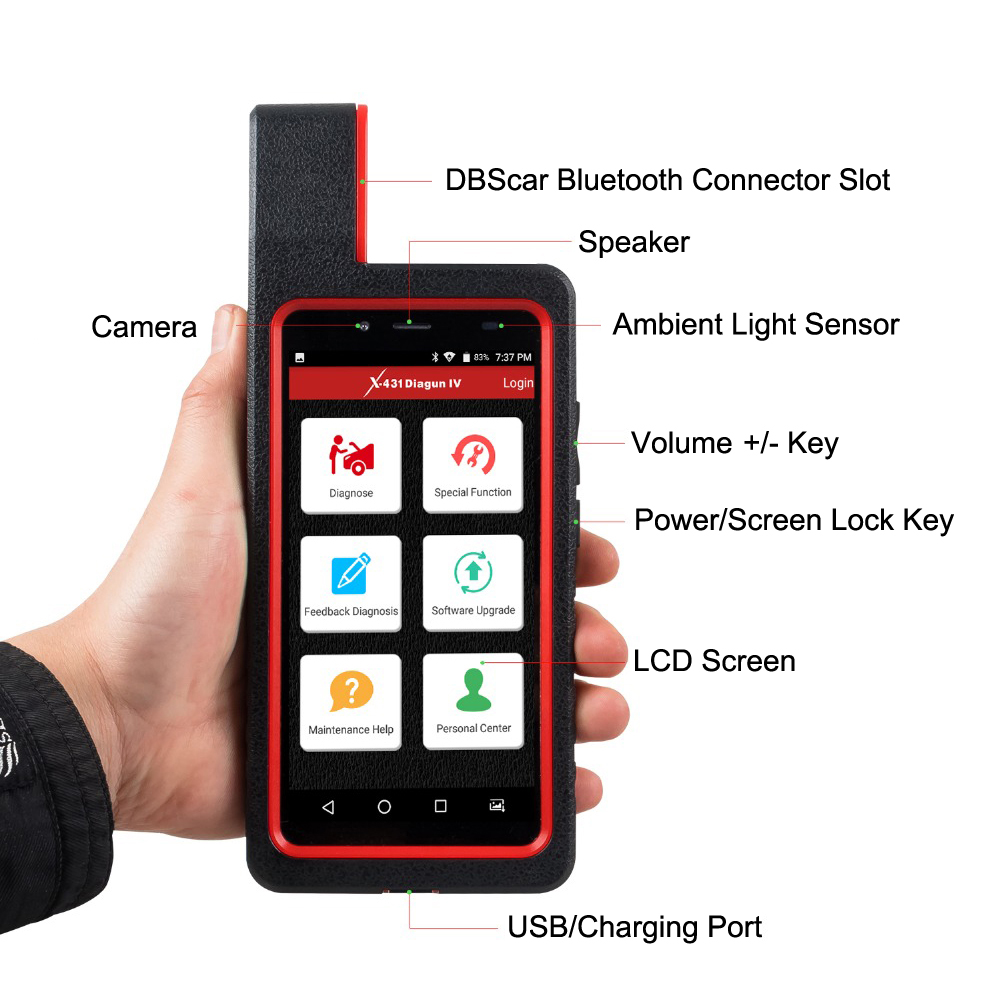

Main Unit Technical Parameters:



Operating System: Android 7.0

Processor: Quad core 1.1 GHz

Memory: 1GB

Storage: 16GB (expandable up to 64GB)

LCD Screen: 5.5 inch IPS screen with a resolution of 1280*720 pixels

Camera: front-facing 2MP camera + rear-facing 8MP camera

Battery: 2500mh rechargeable polymer lithium battery

Connectivity: WLAN 802.11b/g/n

Bluetooth: Bluetooth 4.1

Working Temperature: 0 to 45 degree centigrade

Storage Temperature: -10℃ to 50 degree centigrade



DBScar Bluetooth Connector Parameters:



Working Voltage: 9 - 18V

Working Temperature: -10 to 55 degree centigrade

Storage Temperature: -20 to 70 degree centigrade

Relative Humidity: 20% to 90 %

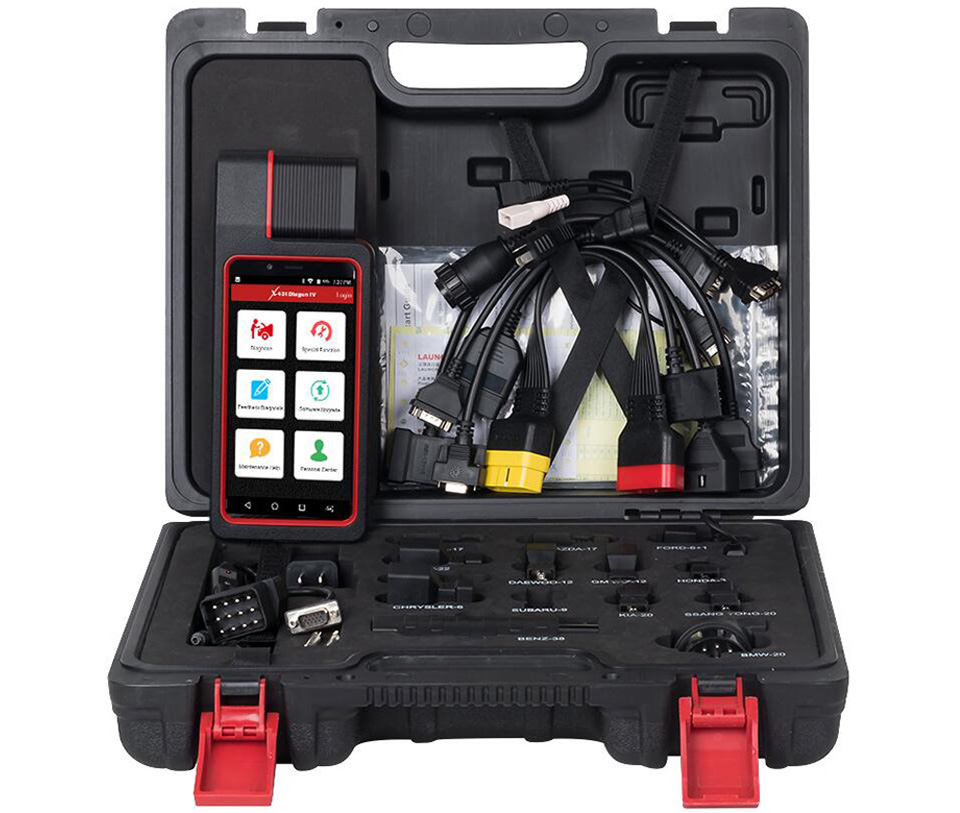

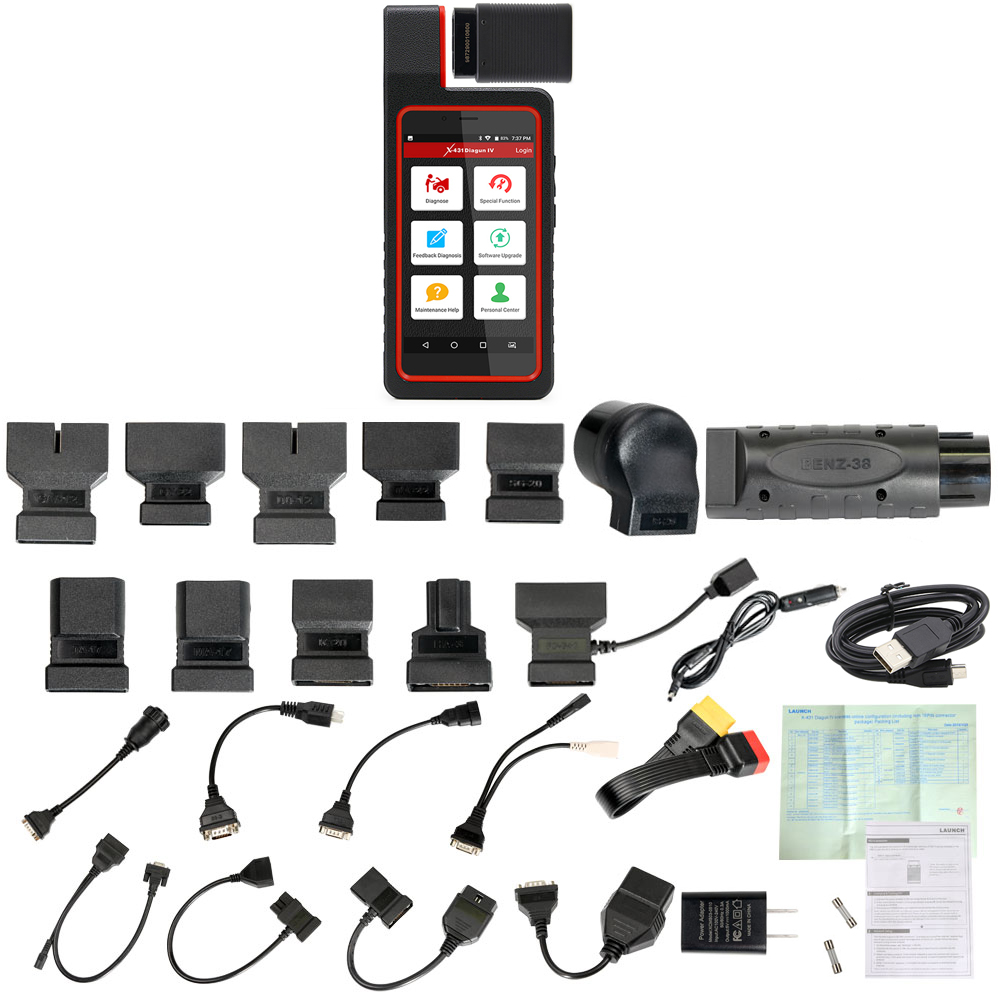

Packing List:



Launch Diagun lV

DBScar Bluetooth Diagnostic Connector

X431 OBD16 Extension Cable

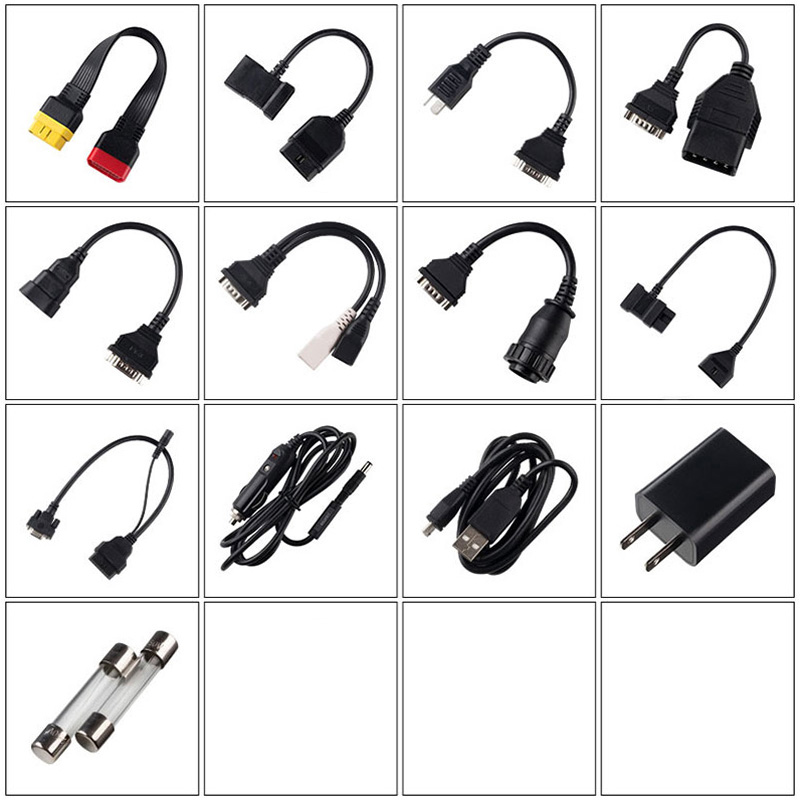

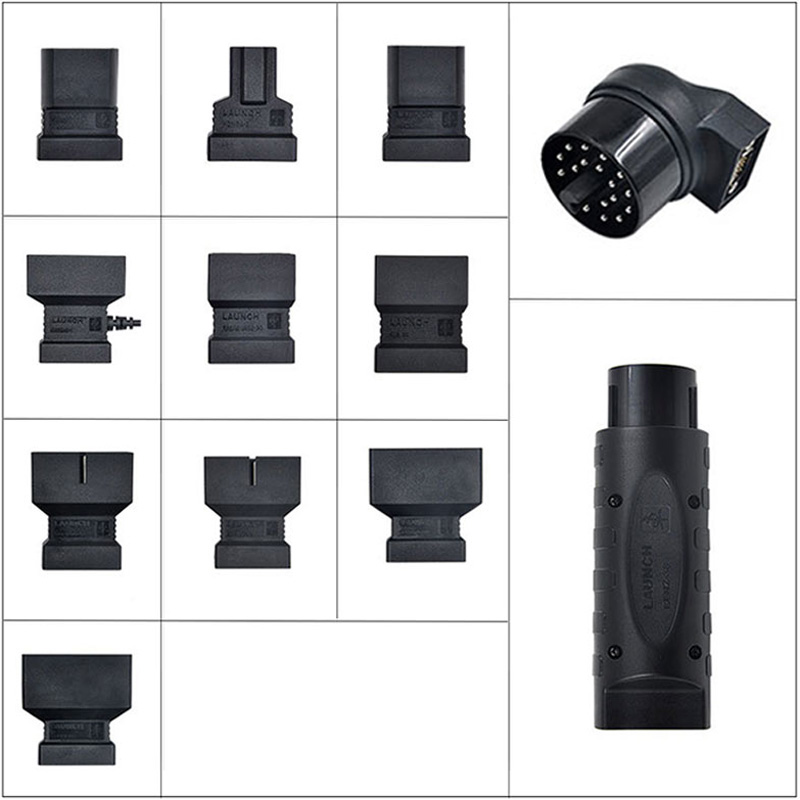

Launch X431 Connector Kit

USB Cable

Power Supply Charger

Quick Start

Password Envelope

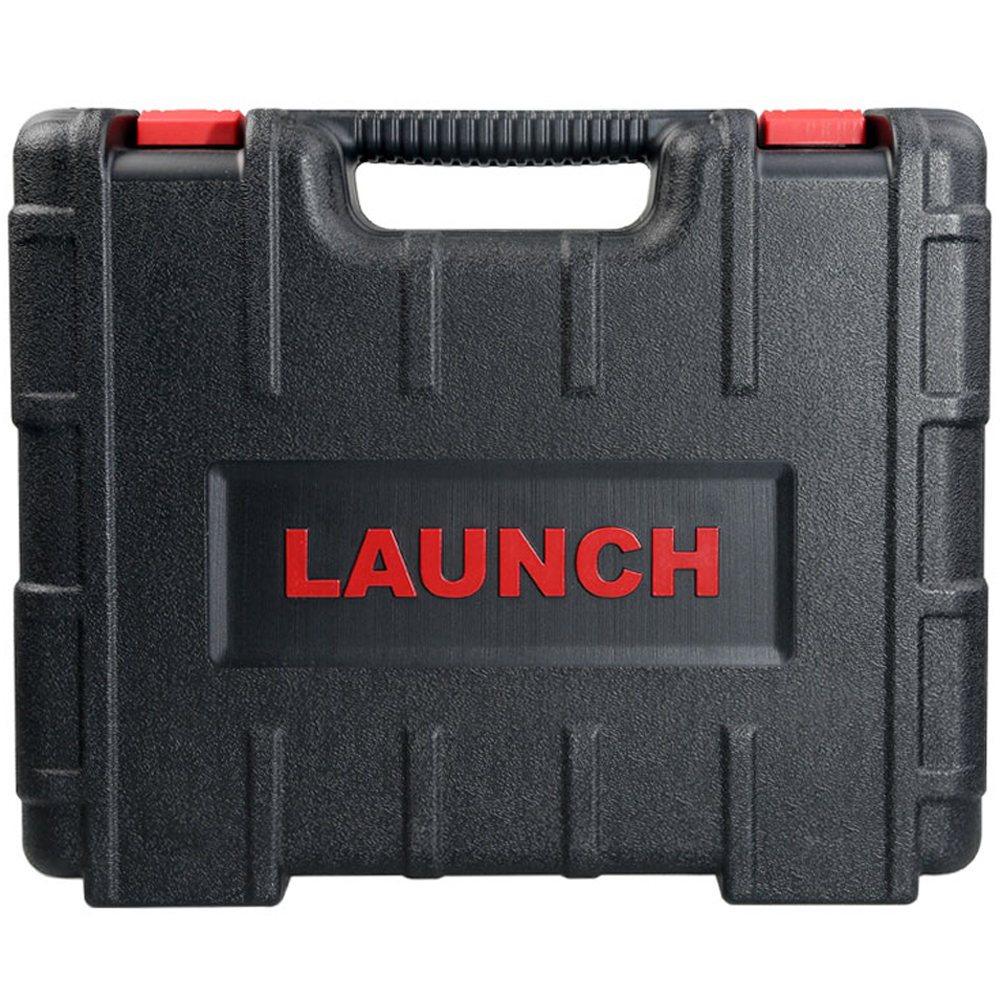

Plastic Toolbox

Packing Box
