Name: IDUTEX TPU300 Passenger Cars & Commercial Vehicle OBD2 Scanner for Android
Description:

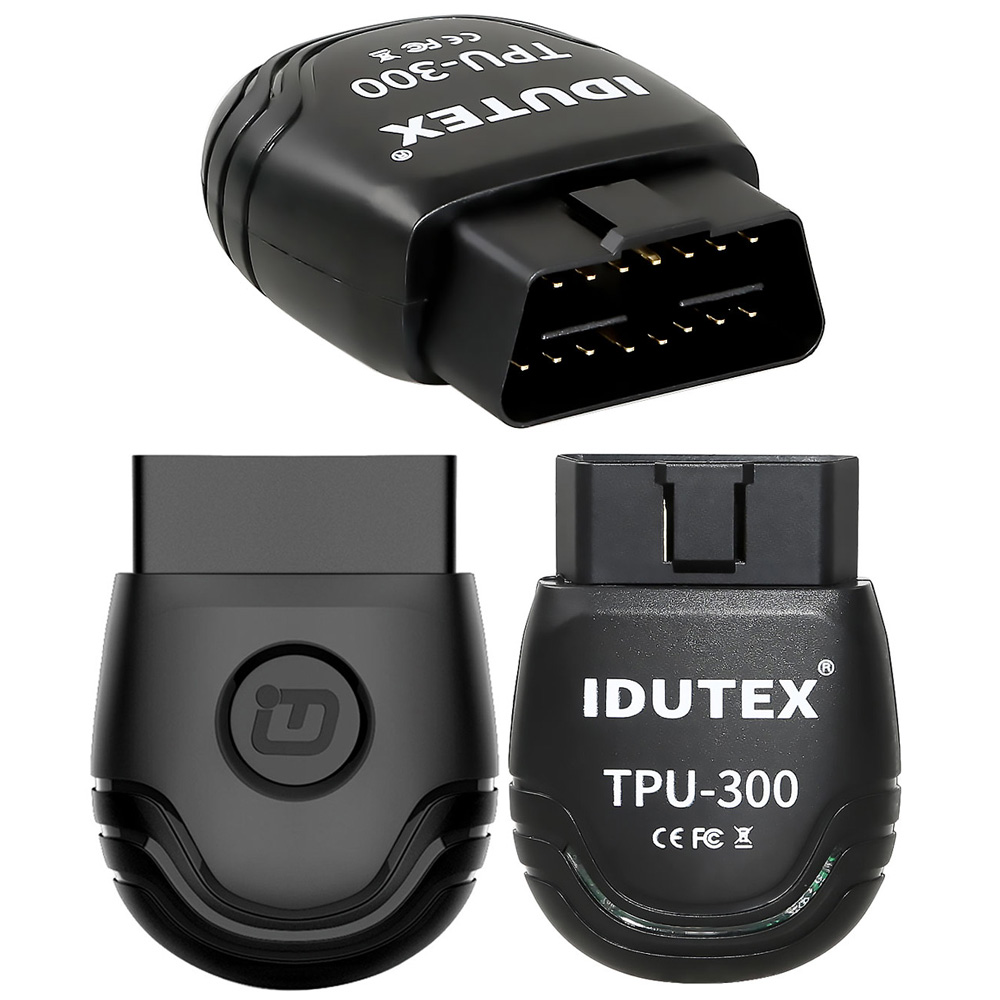

IDUTEX TPU-300 is a OBD-II scan tool based on Android system works on commercial vehicles and cars, by connecting to your phone, any users can use the small VCI to easily read and erase trouble codes, check data list, system and vehicle info etc.
IDUTEX TPU300 for Android comes with Diesel- 9 Adapter and Cumins-6 Adapters for your better communicate with any kinds of vehicles.
Functions:
Auto detected by automatic VIN.
Read ECU Information, Data Stream.
Read and erase generic codes (PO, P2, P3 and U0).
Read freeze frame data, monitor and I/M readiness status.
Read vehicle information (VIN, CIN and CVN).
Read, store and playback live 02 sensor test data.
Read PCM live data stream, with professional graphic data Display, includes waveform and instrument mode.
Software Features:
1. The heavy-duty vehicle model and engine type can be auto detected by automatic VIN.
2. OE Level Fault Code Information: display 99% of Heavy-Duty and EOBD fault codes with detailed OEM level component and trailer descriptions.
3. Read and erase generic codes(PO,P2,P3 and UO),manufacturer specific codes(P1,P3 and U1) and pending codes for cars, mini vans and light duty.
4. Display DTC definition, freeze frame data, monitor and I/M readiness status(emissions),and vehicle information(VIN,CIN and CVN).
5. Read, store and playback live O2 sensor test data.
6. Read PCM live data stream, with professional graphic data Display, includes waveform and instrument mode.
7. Support standard value of data stream for heavy duty vehicle.
8. Support online and offline DTC query. Also support online dictionary.
9. Support one-key feedback, one-key online update.
Specifications:
Supported Operating System: Android 4.0 and above
Processor: ARM 32-bit Cortex processor
Communications: Bluetooth
Operating Temperature: -10 to 70 degree centigrade, Relative Humidity: <90%
Storage Temperature: -30 to 120 degree centigrade, Relative Humidity: <90%
Input Voltage: DC 8-26V
Dimension: 108*108*55.3mm
Unit Weight: NW: 0.04Kg; GW: 0.1Kg
Supported Protocols:
SAE J1939, SAE J1708, ISO 9141-2, ISO 14230 (KWP2000), ISO 15765 (CAN), SAE J1850(PWM), SAE J1850 (VPW)

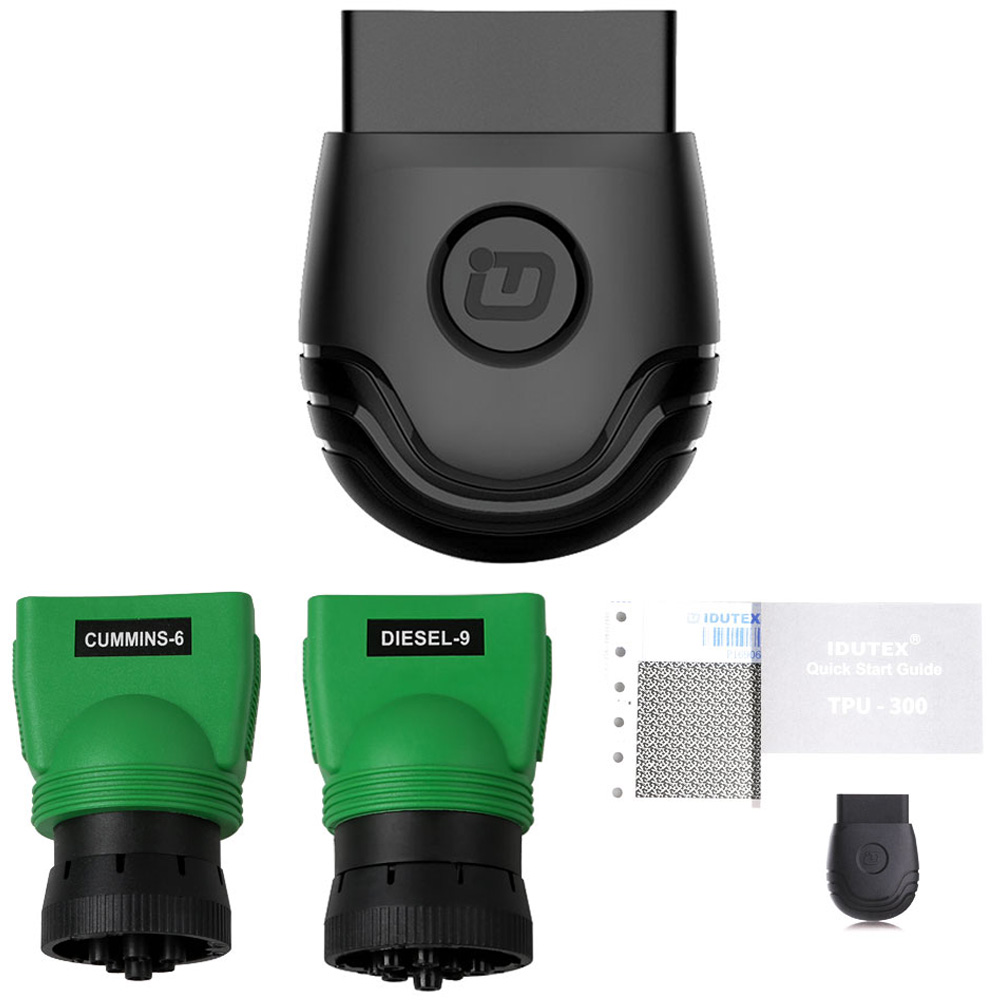

Packing List:
XTUNER TPU-300 for Android

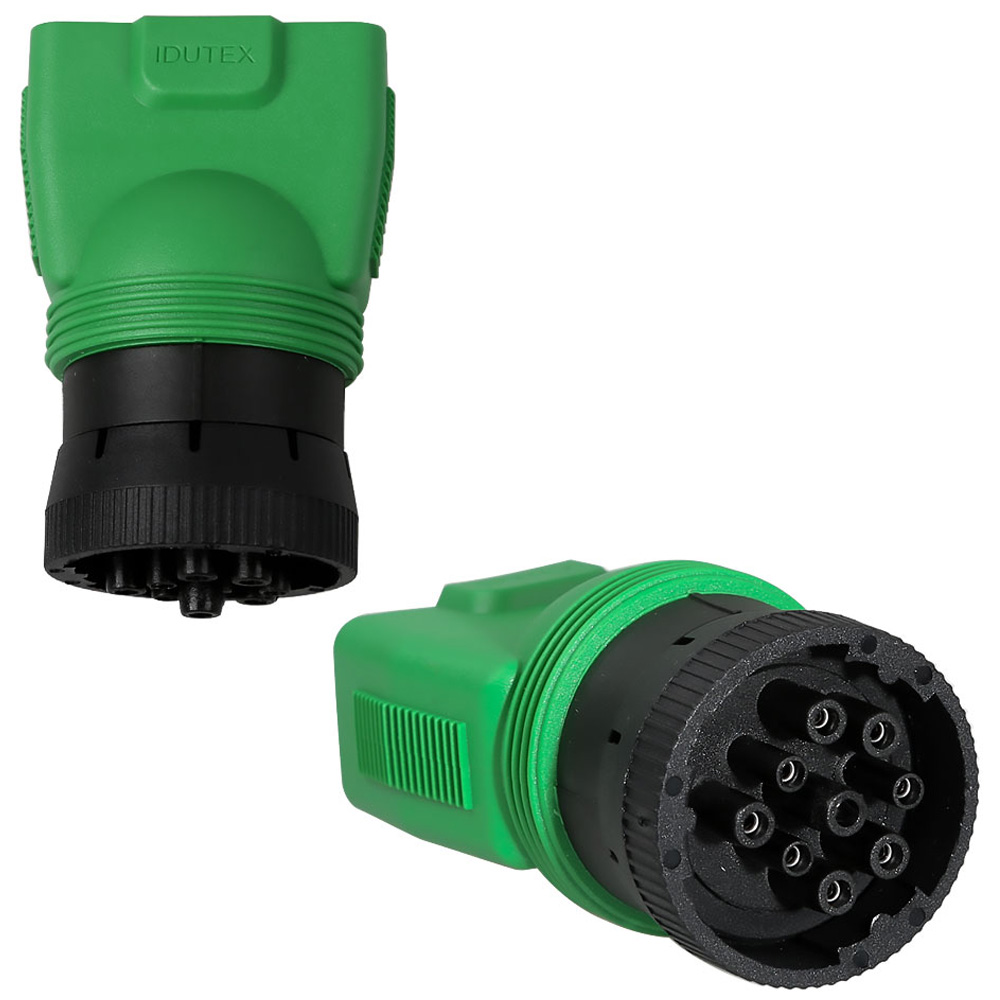

Diesel-9 to OBD2 Female Adapter

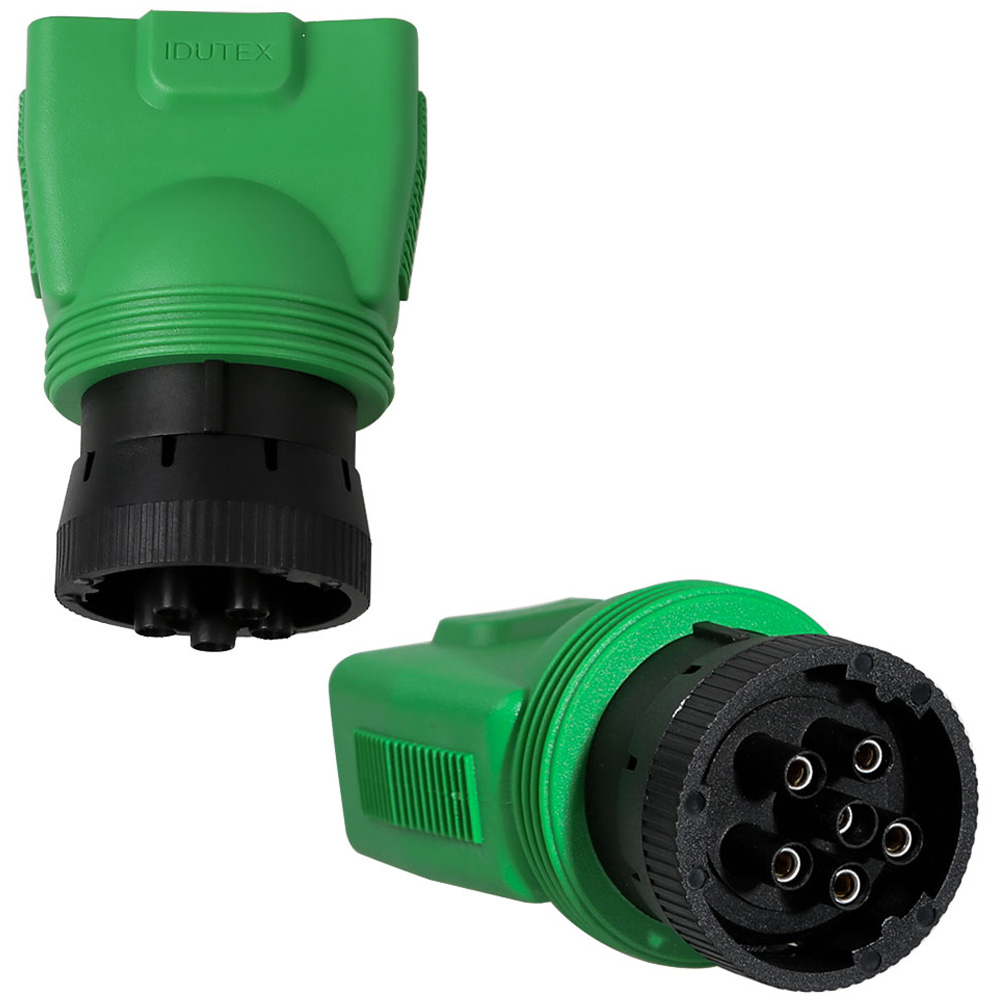

Cumming-6 to OBD2 Female Adapter
Password Envelope
User Manual
Packing Box
|
