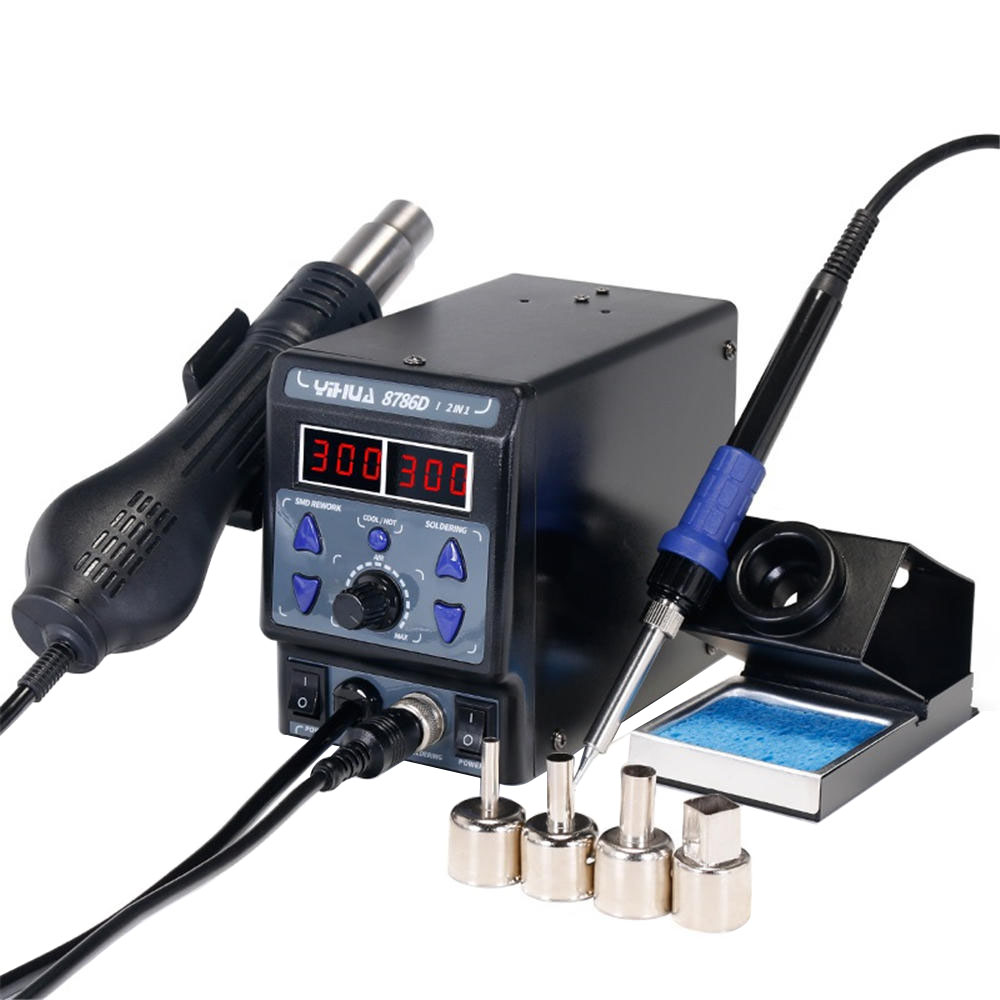

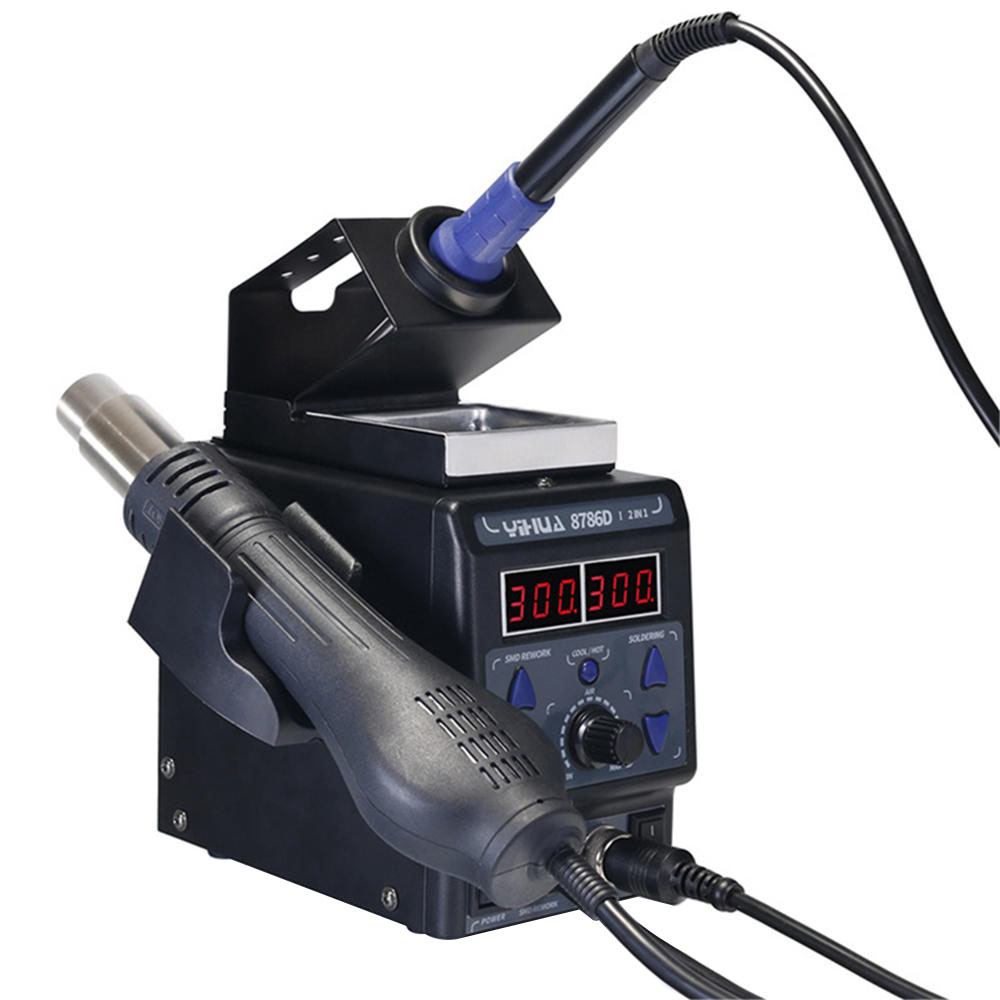

Name: YIHUA 8786D I Soldering Station Digital Display Iron
Description:
YIHUA 8786D I Upgrade Rework Station Digital Display Iron SMD Heat Hot Air Soldering Station Welding. 110V and 220V are available.
Features:
1. Digital Temperature Correction
At the same time, press and hold the air gun (soldering iron) temperature button for 2 seconds. When the air gun(soldering iron) number appears small dot, it can be corrected by the temperature button. At the same time, press and hold the air gun(soldering iron) temperature button to save and exit.
2. Cold Air Function (cold air can lower the hot air temperature faster )
3. 10 Minutes Automatic Sleep

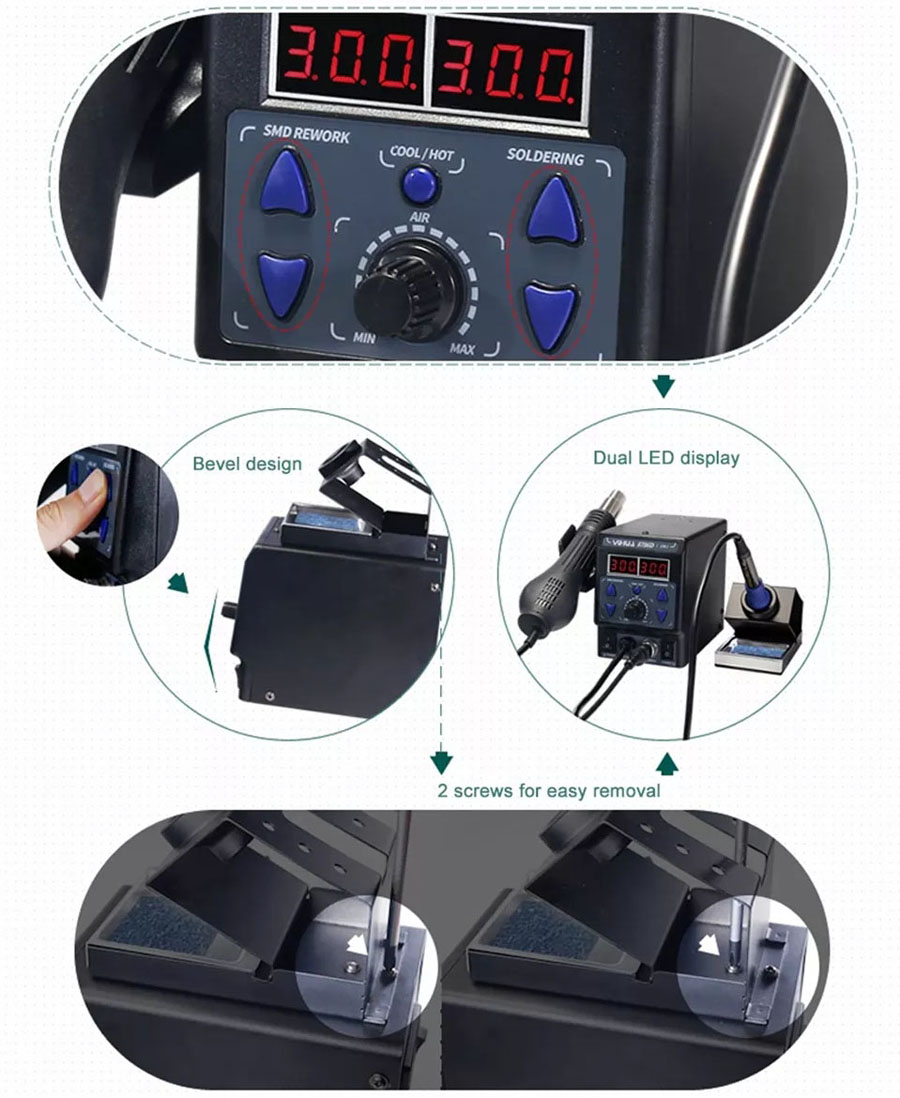

4. Design panel 85 degree tilt, more convenient to operate.

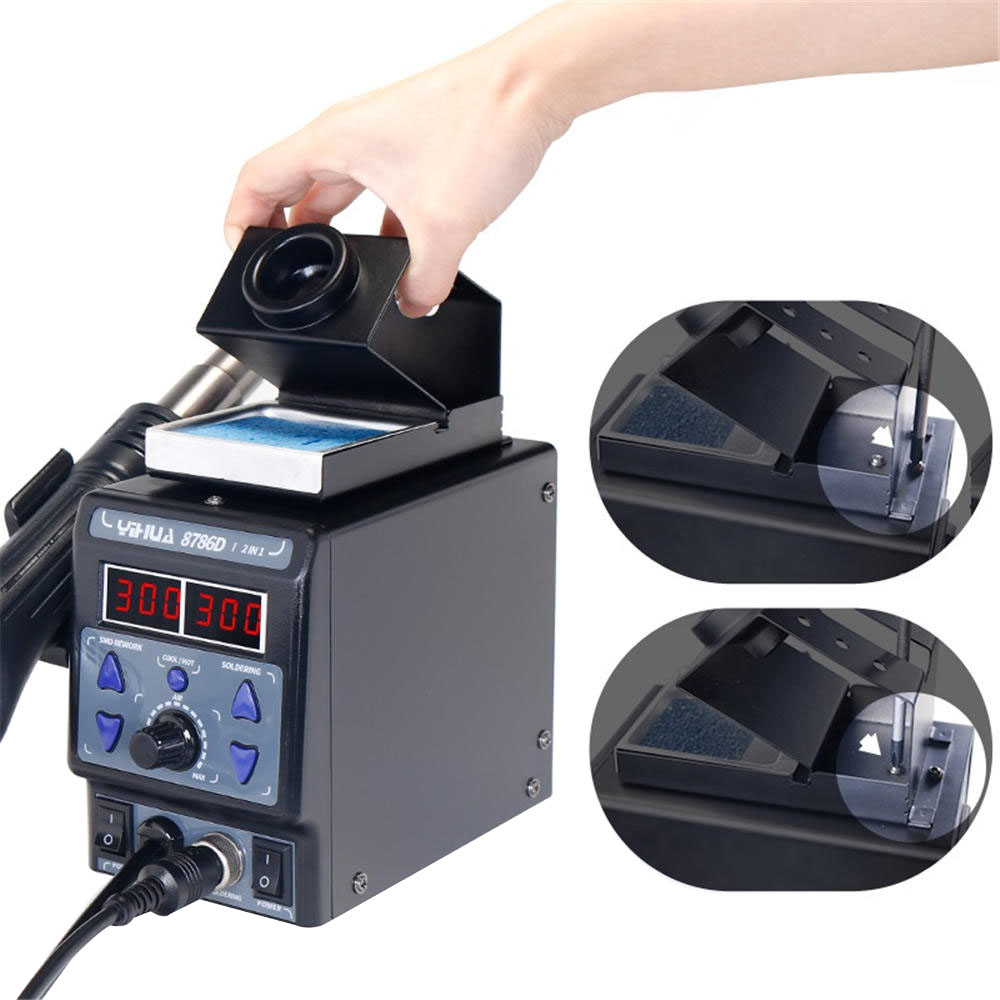

5. The iron holder can be set on machine, stable and save space on working table.
6. Hot and cold air switching. 1-Key to switch display Hot Air Gun and Soldering Iron
7. LED indicator:
Red Light is: soldering iron display status
Blue Light: hot air gun display status

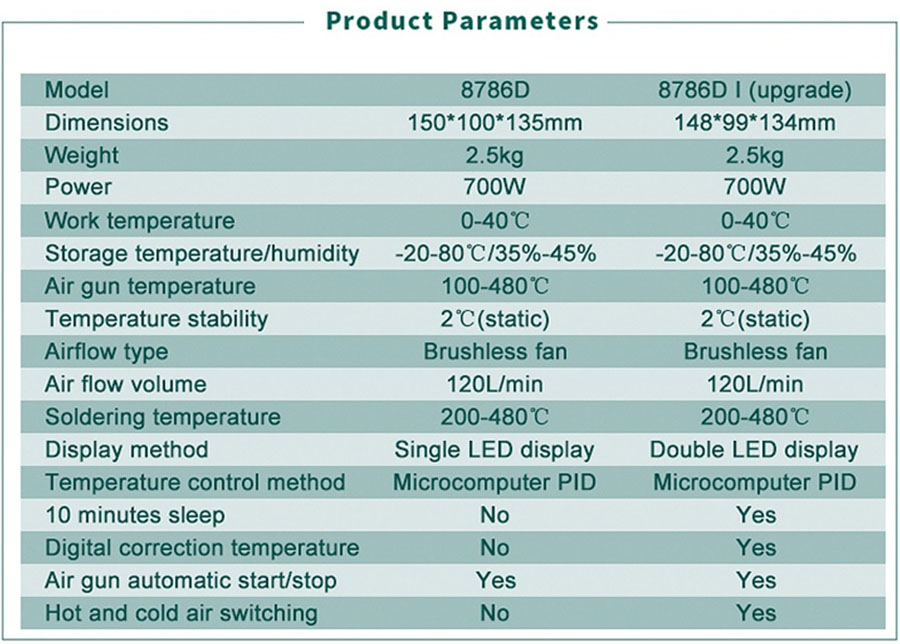

Specifications:
Model: 8786D I (upgrade)
Power: 700W
Temperature Stability: 2 degree centigrade (Static)
Airflow Type: brushless fan
Airflow Volume: 120L/min
Soldering Temperature: 200 to 480 degree centigrade
Display Method: dual LED display
Temperature Control Method: microcomputer PID
10 Minutes Auto Sleep Mode: supported
Digital Correction Temperature: supported
Air Gun Automatic Start/Stop: supported
Hot and Cold air Switching: supported
Storage Temperature: -20 to 80 degree centigrade @ Humidity: 35% to 45%
Dimensions: 148*99*134mm
Weight: 2.5Kg
Packing List:
YIHUA 8786D I Upgrade Rework Station
Iron Holder (includes sponge)
Nozzle (4 pcs)
Packing Box
|
