  OBDSOS PRODUCTS Car Key Programmer

Product ID SK274
Product Name OBDSTAR Key RT Key Renew Tool
Product Price USD180
Actual Weight (Kg) 0.5
Volumetric Weight (Kg) 0.5
Package Size (cm) 19*16*6
Related Download
Order Quantity:
No Stock



Related Products
Description
Name: OBDSTAR Key RT Key Renew Tool

Description:

OBDSTAR Key RT Key Renew Tool Supports PCF7341, PCF7345, PCF7941, PCF7945, PCF7952, PCF7953, PCF7961.

Features:

1. Supports a variety of car key chip renewing that can be repeated to renew.

2. Supports Windows7 and above operating systems with use USB2.0/3.0 communication.

3. Supported chip types: PCF7341, PCF7345, PCF7941, PCF7945, PCF7952, PCF7953 and PCF7961.

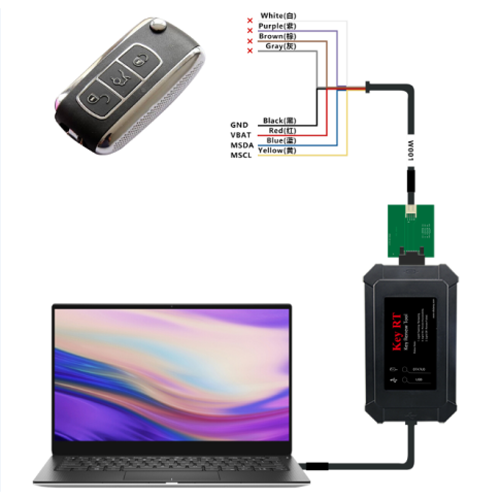

4. If renew original key, the Key RT box and the original key are connected via W001 Cable.

5. If there is no original key, the chip small board can be used to solder the chip and connect to the Key RT box to renew.

Operation Instructions:

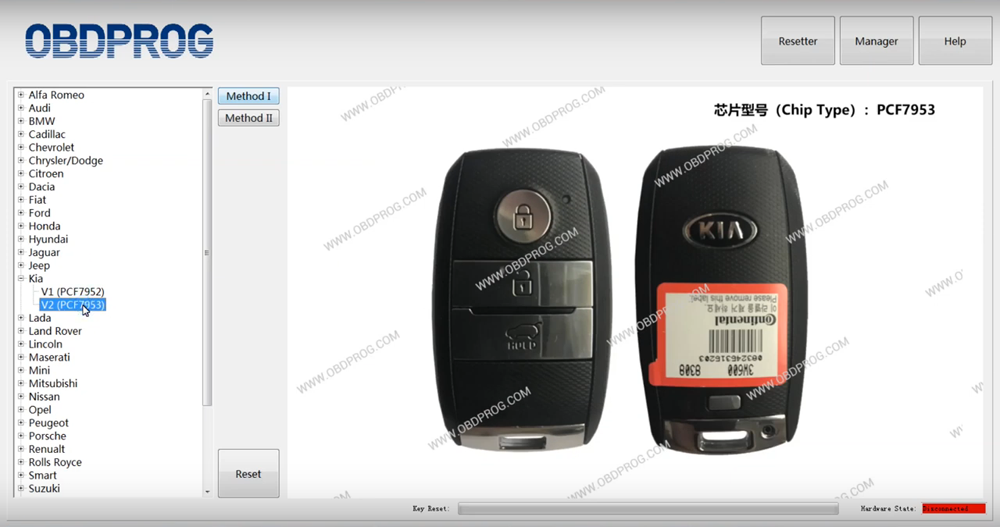

1. Select chip type (take Kia PCF7953 for example):
After selecting the vehicle model and chip type, the right side will show the appearance of the key, and select the connection method to view the specific connection method.

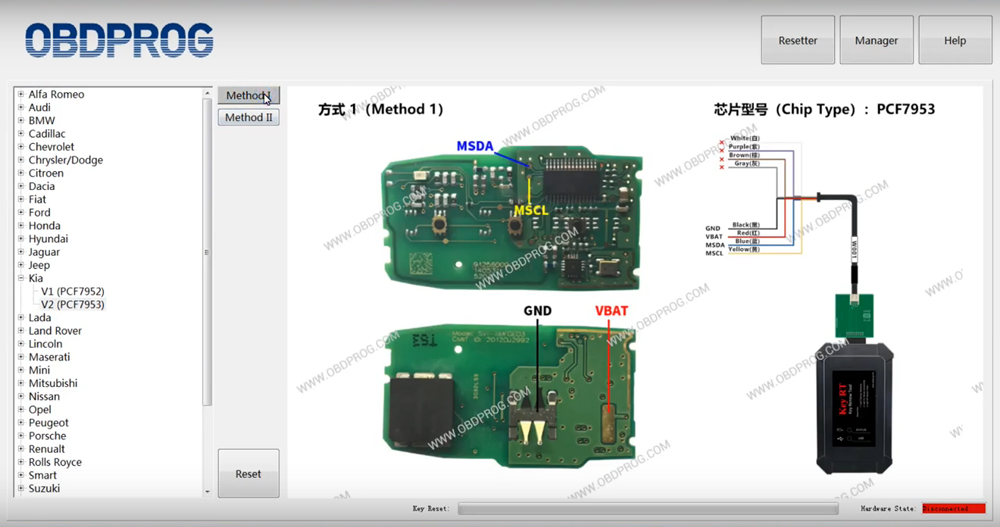

Welding Method

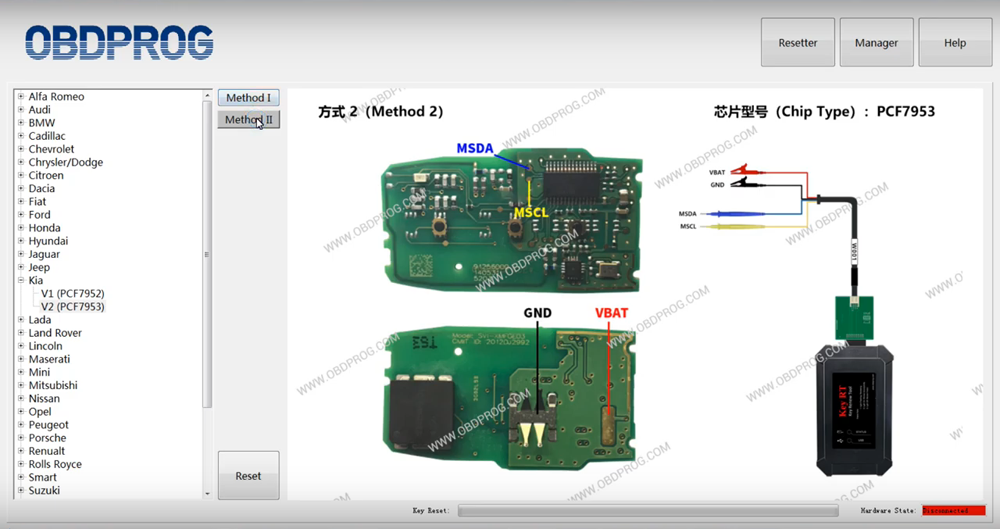

Fixture Method

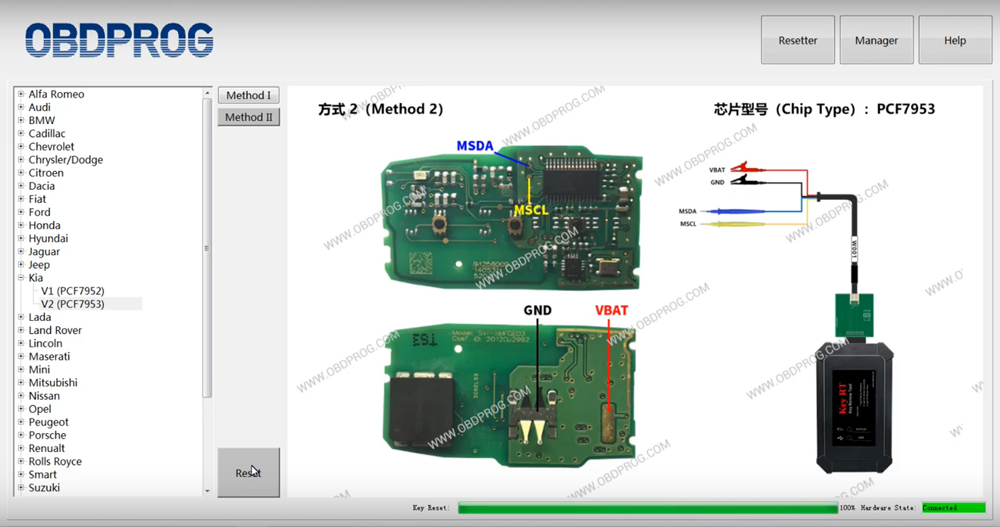

2. Execute renewing: Click the Reset button to execute the renewing. It shows following after renew successfully.

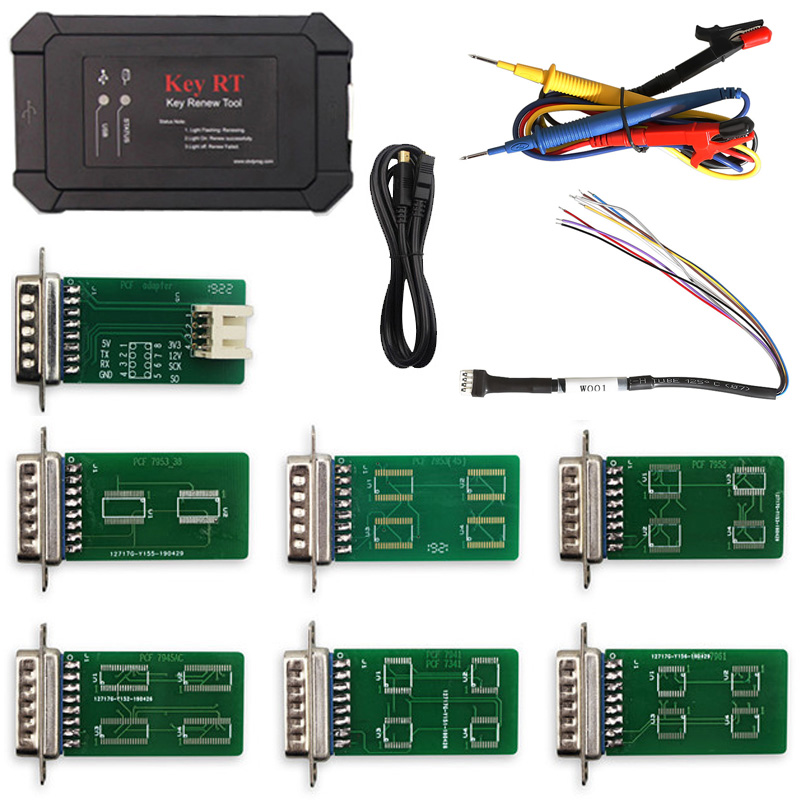

Packing List:

OBDSTAR Key RT Key Renew Tool
Main Cable

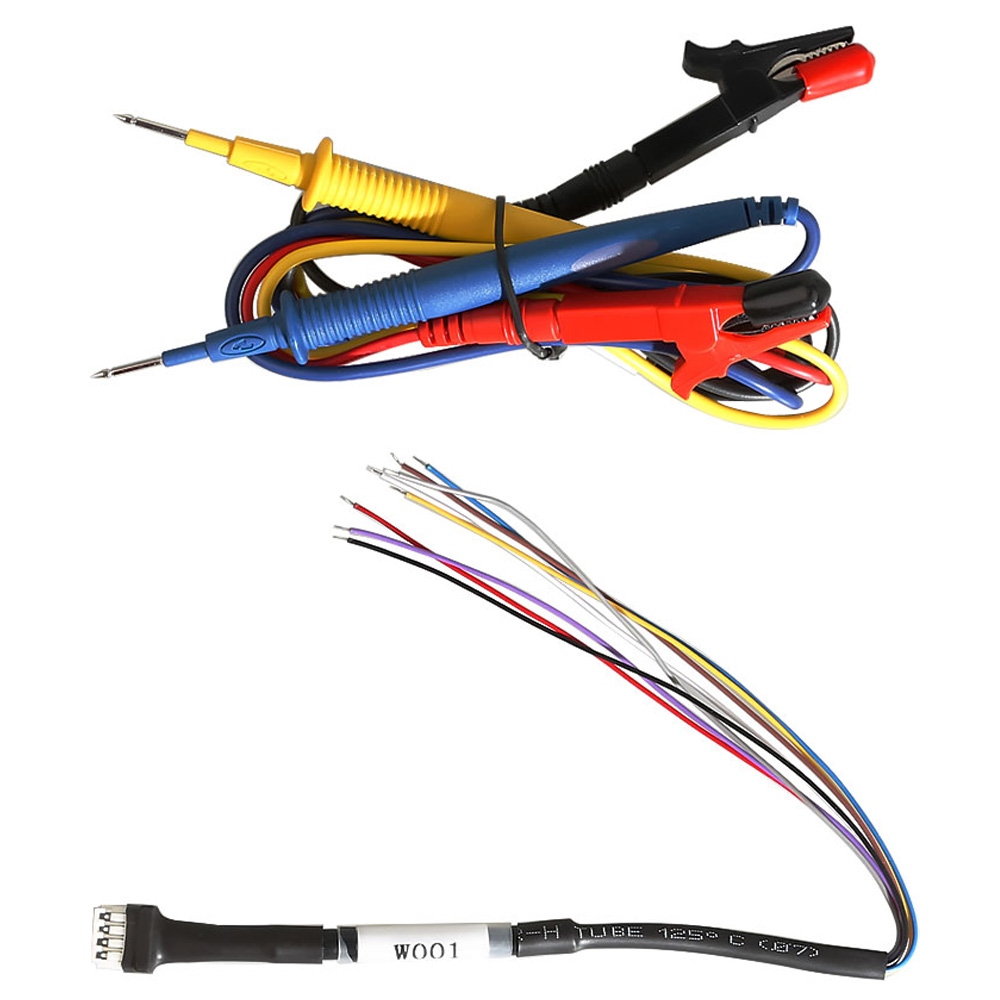

W001 Cable
W003 Cable
PCF Adapter
PCF7941/7341 Adapter
PCF7945AC Adapter
PCF7952 Adapter
PCF 7953_38 Adapter
PCF7953(45) Adapter
PCF7961 Adapter
Certificate
Packing Box

Supported Models List:

Alfa Romeo
V1 (PCF7341)
V2 (PCF7941)

Audi
V1 (PCF7945AC0902)
V2 (PCF7945AC0911)
V3 (PCF7945AC2319)
V4 (PCF7945AC0902) KeylessGo
V5 (PCF7945AC1415) KeylessGo
V6 (PCF7945AC1500) KeylessGo
V7 (PCF7945AC1411) KeylessGo
V8 (PCF7945ATJ807) KeylessGo

BMW
E-Series
Remeo (PCF7945)
KeylessGo (PCF7952)
KeylessGo (PCF7953)
F-Series

Hella
V3 433MHz 5FA 011 926-09(PCF7953VC1900)
V6 433MHz 5FA 011 226-19(PCF7953VC1900)
V7 433MHZ 5FA 011 920-15(PCF7953VC1900)
V9 433MHZ Korea(PCF7953VC1900)

HUF
V1 433MHz HUF5663(PCF7953PC1800)
V2 433MHz HUF5661(PCF7953PC1800)
V5 433MHz HUF5767(PCF7953PC1800)
V8 433MHz HUFxxxx(PCF7953PC1800)
V10 315MHz HUF5662(PCF7953PC1800)

Siemens
V4 315Mhz 5WK49663(PCF7953PC1100)
V11 315MHz 5WK49661(PCF7953PC1100)

China E-Series
V1 (PCF7952)
V2 (PCF7952)
V3 (PCF7941)
V4 (PCF7961)
V5 KeylessGo(PCF7952)

China Specific
V1 433MHz(PCF7952)(Beijing)
V2 315MHz(PCF7961)(Shanghai Buick)
V3 433MHz(PCF7952)
V4 433MHz(PCF7952)(Wagon)
V5 433MHz(PCF7952)(Trumpchi)

Cadillac
V1 315MHz (PCF7952)

Chevrolet
V1 433MHz (PCF7952)

Chrysler/Dodge
Blade
V1 (PCF7941)
Fobic
V1 (PCF7941)
V2 (PCF7941)
V3 (PCF7941)
V4 (PCF7941)
V5 (PCF7941)
V6 (PCF7941)
V7 (PCF7941)
V8 (PCF7941)
V9 (PCF7941)
V10 (PCF7941)
V11 (PCF7941)
V12 (PCF7941)

Citroen
V1 (PCF7941)
V2 (PCF7945)
V3 (PCF7341)
V4 (PCF7953)
V5 (PCF7961)

Dacia
V1 (PCF7961)

Fiat
V1 (PCF7961)
V2 (PCF7941)
V3 (PCF7941)

Ford
V1 (PCF7345)
V2 (PCF7353)

Geely
V1 (PCF7952)

Haval
V1 (PCF7952)

Honda
V1 (PCF7961)
V2 (PCF7945)

Hyundai
V1 (PCF7953)
V2 (PCF7953)
V3 KeylessGo(PCF7953)
V4 (PCF7952)
V5 (PCF7952)
V6 (PCF7952)

Jaguar
V1 433MHz(PCF7953)
V2 433MHz(PCF7945)

Jeep
V1 (PCF7953)
V2 (PCF7953)
V3 (PCF7953)
V4 (PCF7953)

Kia
V1 (PCF7952)
V2 (PCF7953)

Lada
V1 (PCF7961)
V2 (PCF7941)
V3 (PCF7941)
V4 (PCF7961)

Land Rover
V1 433MHz (PCF7953)
V2 (PCF7941) Vogue
V3 (PCF7945) Freelander
V4 (PCF7941) Discovery.Sport
V5 315MHz (PCF7953)
V6 433MHz (PCF7953)

Lincoln
V1 315MHz (PCF7952)

Maserati
V1 433MHz(PCF7953)

Mini
433MHz (PCF7953 38pin)
868MHz (PCF7945)
315MHz (PCF7945)

Mitsubishi
V1 (PCF7952)
V2 (PCF7941)
V3 (PCF7941)

Nissan
V1 (PCF7952)
V2 (PCF7952)
V3 (PCF7961)
V4 (PCF7953)
V5 (PCF7961)
V6 (PCF7953)
V7 (PCF7961)
V8 (PCF7953) Japan
V9 (PCF7953)
V10 (PCF7952)
V11 (PCF7953)
V12 (PCF7952)

Opel
V1 (PCF7341)
V2 (PCF7341)
V3 (PCF7941)
V4 (PCF7941)
V5 (PCF7341)
V6 (PCF7941)
V7 (PCF7941)
V8 (PCF7341)
V9 (PCF7941)
V10 (PCF7961)
V11 (PCF7341)
V12 (PCF7341)

Peugeot
V1 (PCF7961)
V2 (PCF7945)
V3 (PCF7341)
V4 (PCF7341)
V5 (PCF7341)
V6 (PCF7341)
V7 (PCF7941)
V8 (PCF7341)
V9 (PCF7341)

Porsche
V1 KeylessGo 315MHz (PCF7953PC1200)
V2 Remote 315MHz (PCF7953PC1800)
V3 KeylessGo 433MHz (PCF7953PC1800)

Renault
Card
V1 (PCF7952)
V2 (PCF7941)
V3 (PCF7945)
V4 (PCF7953)
V5 (PCF7952)
V6 (PCF7941)
V7 (PCF7953)
Flip
V1 (PCF7961)
V2 (PCF7961)
V3 (PCF7961)
V4 (PCF7961)

Rolls Royce
V1 (PCF7953)
Smart
V1 (PCF7941)
V2 (PCF7961)

Suzuki
V1 (PCF7961)
Toyota
V1 (PCF7953AC1500)

Volvo
V1 (PCF7945)
V2 868MHz KeylessGo (PCF7945)

VW
V1 (PCF7945AC1411)
