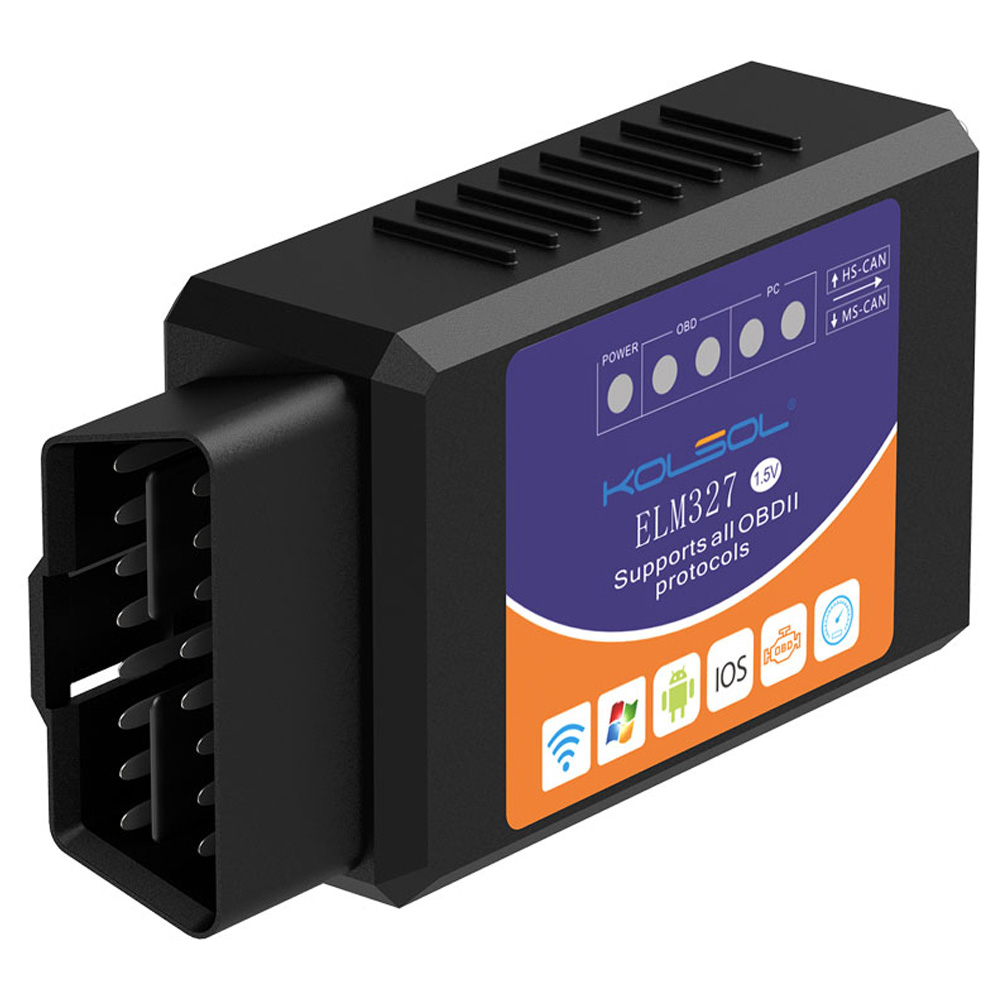

Name: KOLSOL ELM327 WiFi OBD2 Scanner V1.5
Description:
WiFi ELM327 with Switch Car Scanner is a versatile, all-round high-tech automotive electronics products, with the vehicle ECU computer interface and data synchronization, achieve the vehicle electronic control system monitoring; The internal functions of the vehicle will be setting through the vehicle ECU computer system, the driver can be more humane to use their own car.
It is not just an information display system, but also a very powerful fault detection equipment to find out whether the vehicle is faulty. The system can clearly display the text in the form of fault information to protect the interests of the owner.
Highlights:
1. Enable to read diagnostic trouble codes.
2. This high quality scan tool with switch.
3. It supports all OBD-II protocols.
4. It is compatible with much software.
Functions:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine” light)
3. Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many others...
Supported Languages: English, French, German, Spanish, Turkish, Italian, Polish, Czech, Danish, Hungarian, Croatian, Serbian
Supported Protocols:
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
Supported OS: Windows XP, Windows 7/8, iOS, Android, Symbian
Packing List:
KOLSOL ELM327 WiFi OBD2 Scanner V1.5
Software CD
|
