Description:



EUCLEIA TabScan T2 Bluetooth Full System Scan Tool for Android Phone Portable Smart Diagnostic Box comes with one FREE car brand software and you can buy two additional car brand software. One device can support at most three car brands. Each car brand cost only USD15! You can also get FREE EOBD Diagnose and Oil Light Reset function.



Advantages:



1. Comes with 1 free car brand software: 1 car brand software for free. Including: VW, AUDI, BENZ, LAND ROVER, JAGUAR, VOLVO, PORSCHE, BMW, MINI COOPER, ROLLS-ROYCE. Additional car brand only cost USD15/Brand. Maximum 3 car brands software can be added to 1 device.



2. Free EOBD Software



3. Free Oil Light Reset Function



4. Supports ISO & SAE Protocols including: ISO 15765-4 CAN, ISO 9141-2, ISO 14230-4 KWP2000, SAE J1850 VPW, SAE J1850 PWM



5. Life time free update online



Features:



1.  Supports diagnose report



2. Supports ISO &SAE protocol DTC reading and clearing



3. OBD diagnostic service

Service 0x01-request current powertrain diagnostic data

Service 0x02-request powertrain freeze frame data

Service 0x03-request emission related diagnostic trouble code

Service 0x04-clear/reset diagnostic information related to emissions

Service 0x05-request oxygen sensor monitor test results (achieved in service 0x06)

Service 0x06-request on-board monitoring test results for a specific monitored system

Service 0x07-a diagnostic trouble code related to emissions is detected in the requested driving cycle

Service 0x08-request for vehicle control system, test or components(currently not support)

Service $09-request for vehicle information

Service 0x0A-request a permanent diagnostic trouble code associated with emissions



4. Support vehicle full system diagnostic



Oil Reset Service is available for following car brands:

Acura, Audi, Bentley, Benz, BMW, Bugatti, Chrysler/Jeep/Dodge, Citroen, Dacia, DS, DF Nissan, Daewoo, Ferrari, Fiat, Ford, Buick, Cadillac, Chevrolet, GMC, Honda, Holden, Hyundai, Hummer, Infiniti, Isuzu, Jaguar, Kia, Lamborghini, Lancia, Land Rover, Lexus, Lincoln, Maserati, Mazda, MINI, Mitsubishi, Nissan, Oldsmobile, Opel, Pontiac, Peugeot, Porsche, Proton, Renault, Rolls-Royce, Romeo, Rover, Saab, Saturn, Scion, Seat, Skoda, Smart, Sprinter, Subaru, Suzuki, Toyota, Vauxhall, Volvo, Volkswagen, BAIC, Borgward, Brilliance, BYD, Changan, Changan Suzuki, Chery series, Hanteng, IVECO, JMC, Luxgen, Riich, Rely, Karry series, Chery NE, Southeast, Changhe, Cowin auto, DFFS, Emgrand, Faw, Geely, Great Wall, Liebao, Haima, JAC, Jiulong, Maxus, MG, QOROS, Roewe, GQ Trumpchi, Yema Auto, FAW Daihatsu, Zotye, ZZ Nissan



Diagnostic Function is available for following car brands:

Audi, Volkswagen, Mercedes Benz, Land Rover, Jaguar, Volvo, Porsche, BMW, MINI, Rolls-Royce etc.



Functions:



Inside the diagnostic menu there are 7 functions for customer to choose.

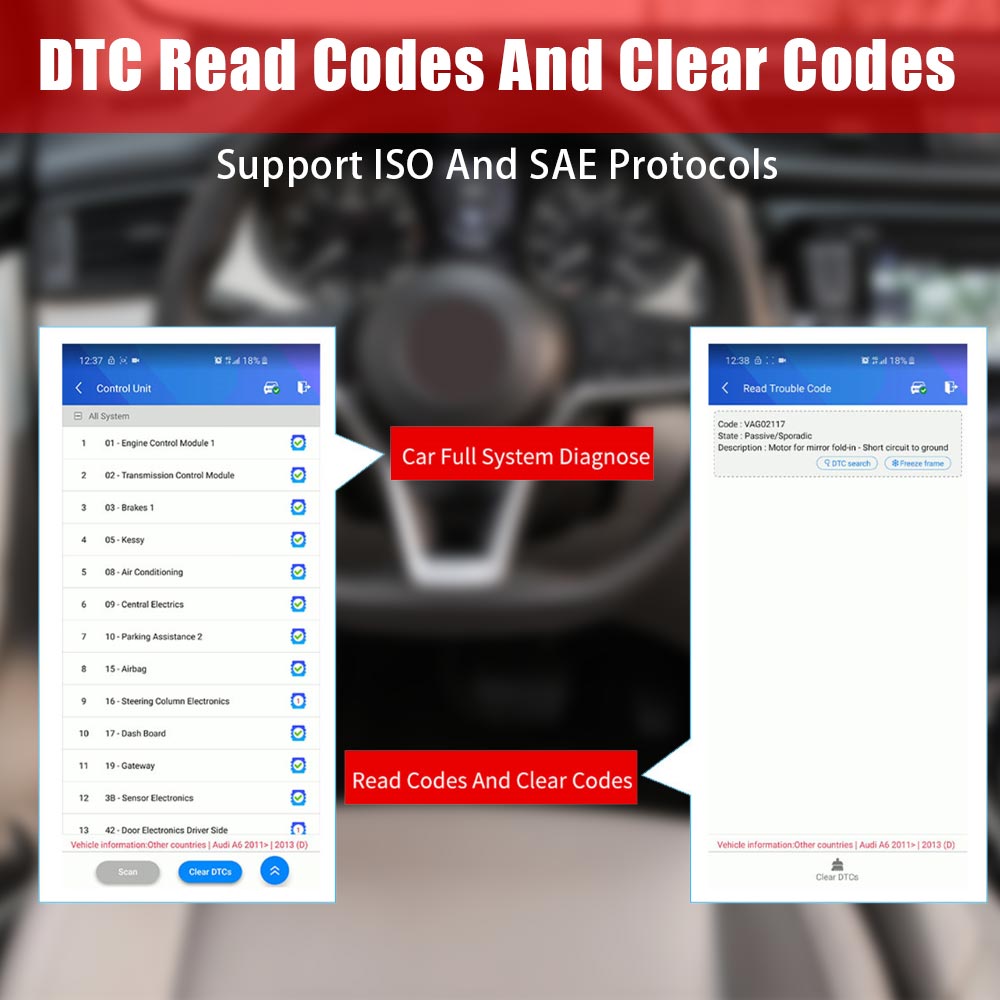

1. DTC & FFD (Mode 03/07/0A & Mode 02)

Reading DTCs and clear DTCs, freeze data stream frame.



2. I/M readiness

Inside I/M readiness, there are two options for user to choose, since DTCs cleared and from this driving cycle,



3. Live Data (Mode 01)

User can check the OBD live data stream from mode 01, it will show the data name, value, unit and range such as:



4.Onboard Monitor (Mode 06)

In this mode car device will recognize car brand manufacturer automatically, after user choose car model, on board monitor status will be shown on the screen.



5. Component Test (Mode 08)

Test each component from vehicle, including action test for components.



6.Vehicle Information (Mode 09)

1). Vehicle general information, including VIN, calibration ID, calibration verification numbers, ECU name

2). Vehicle enhance information



7. Vehicle Status

Protocol

Engine

MIL status

Codes found

Monitors N/A

Monitors OK

Monitors INC Etc



8. Instrument Lights

Give user information about the signal meaning on instrument



9. PCBU Inquiry
