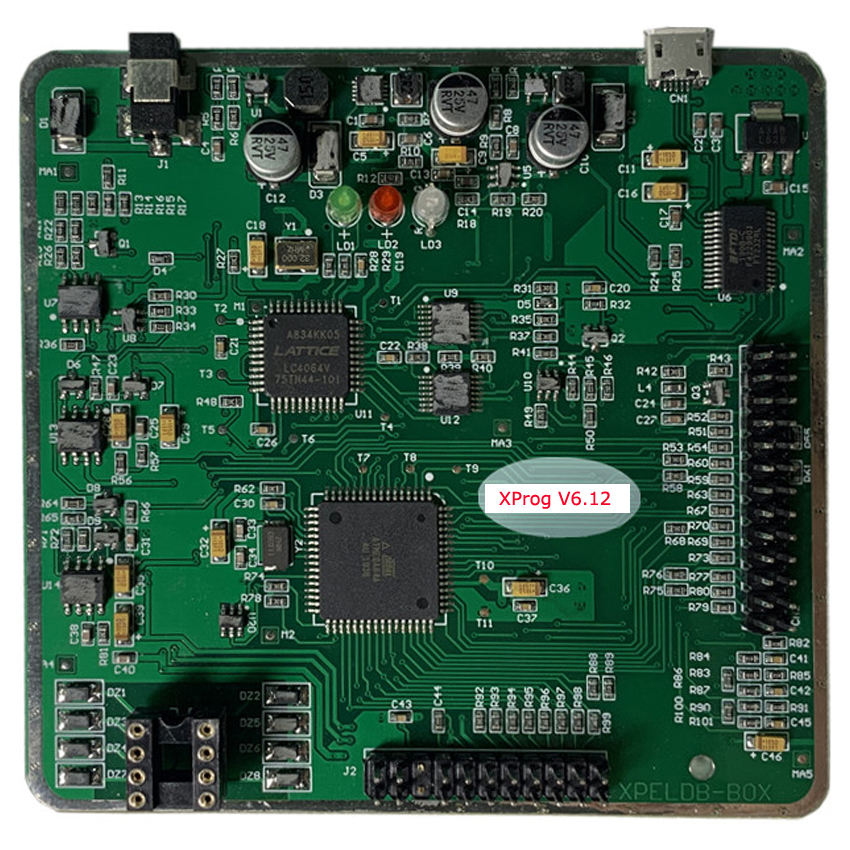

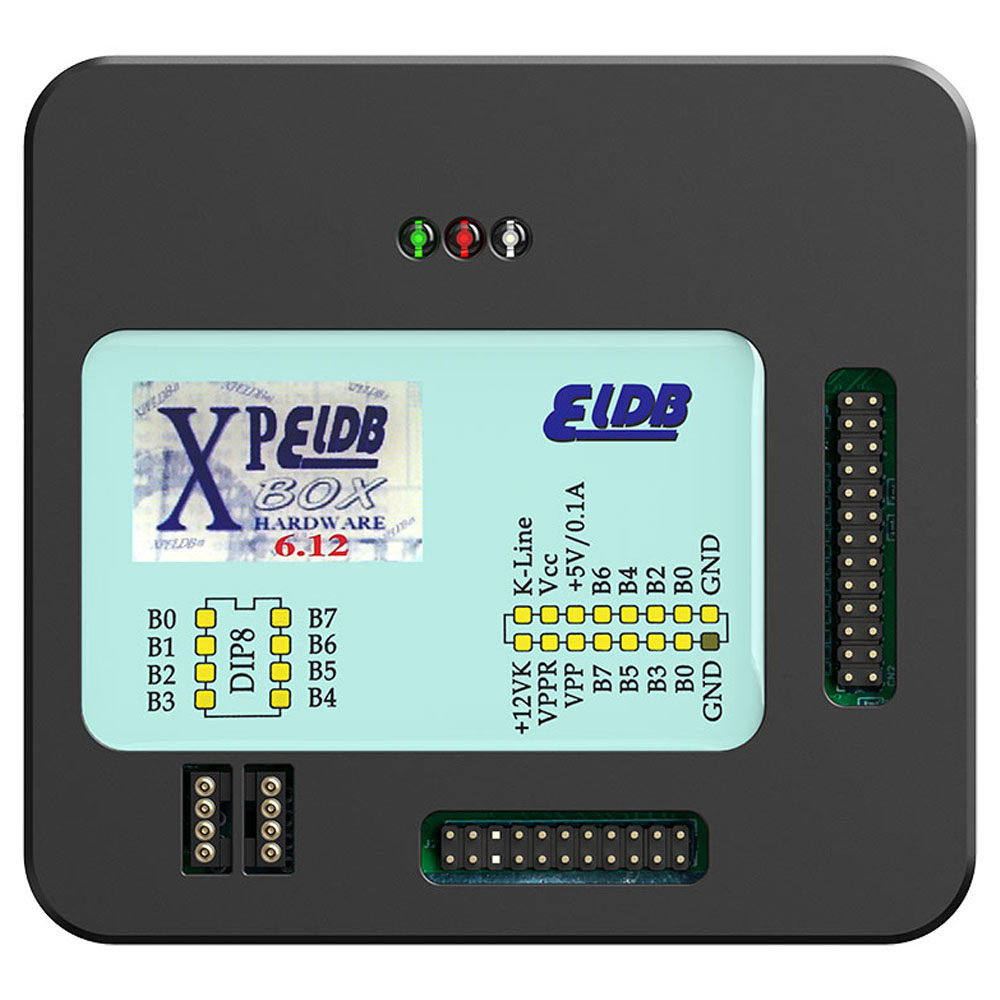

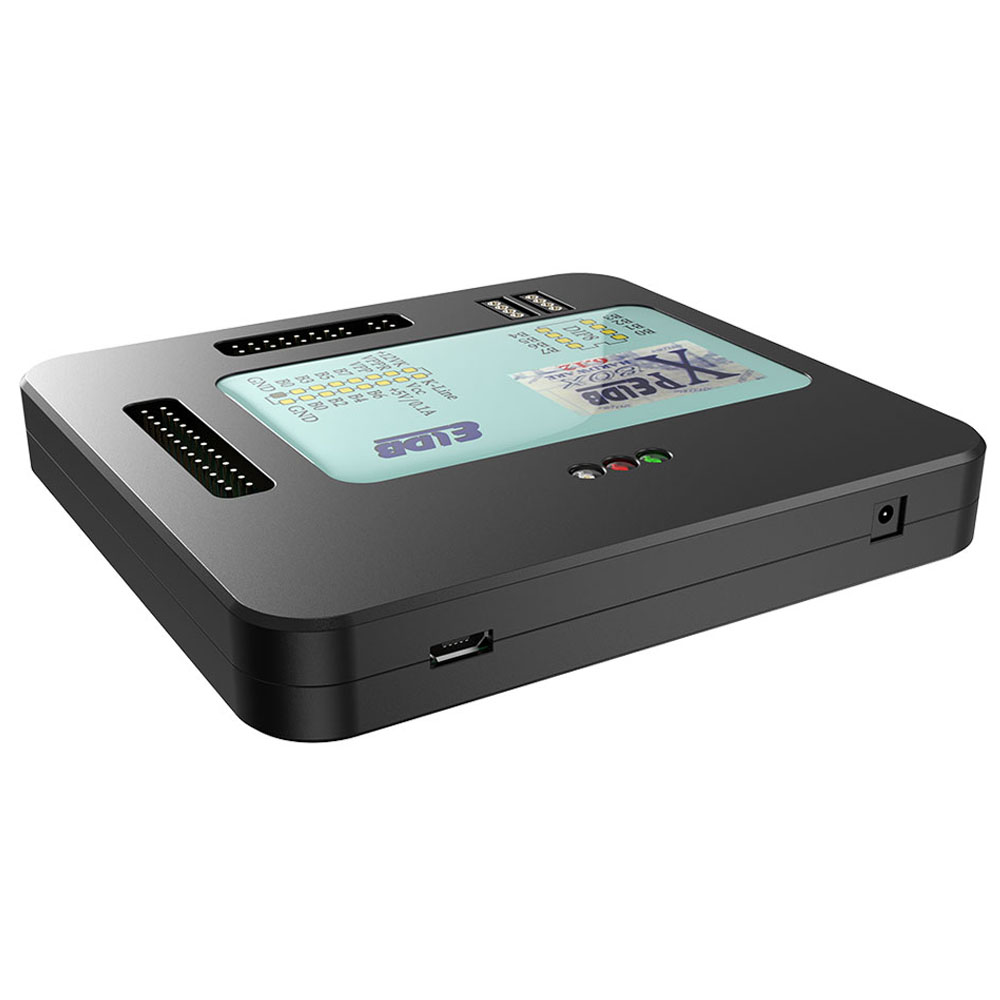

Name: XPROG-M V6.12 ECU Programmer with USB Dongle
Description:
New version XPROG-M V6.12 ECU Programmer with USB Dongle. No need activation.
XPROG-M Programmer V6.12 comes with new authorization:
AUTH-0028-3 Renesas RL78 Authorized
AUTH-0028-4 Renesas M32C Authorized
Software: V6.12
Firmware: V4.4
Supported OS: Windows 7 64bit / Windows XP 32bit
Supported Language: English only
Notice:
1. You are not allowed to update from the older version XProg V5.84 to this newest V6.12 XPROG-M with USB dongle.
2. Make sure anti-virus program closed. Otherwise X-Prog Programmer software may be killed.
3. Disconnect Internet. Otherwise V6.12 XPROG-M hardware may be damaged.
4. Uninstall all the old version of XProg-M or XProg Box software before you install V6.12 software we provide, because our XProg-Box hardware is not compatible with other lower or higher version software. Otherwise the hardware will be damaged and its warranty will be invalid.
5. Never try to UPDATE, otherwise XPROG-M hardware will be damaged; if you update it online, its warranty will be invalid.
XPROG M V6.12 Authorizations:
Newly Added Authorizations:
AUTH-0028-3 Renesas RL78 Authorized

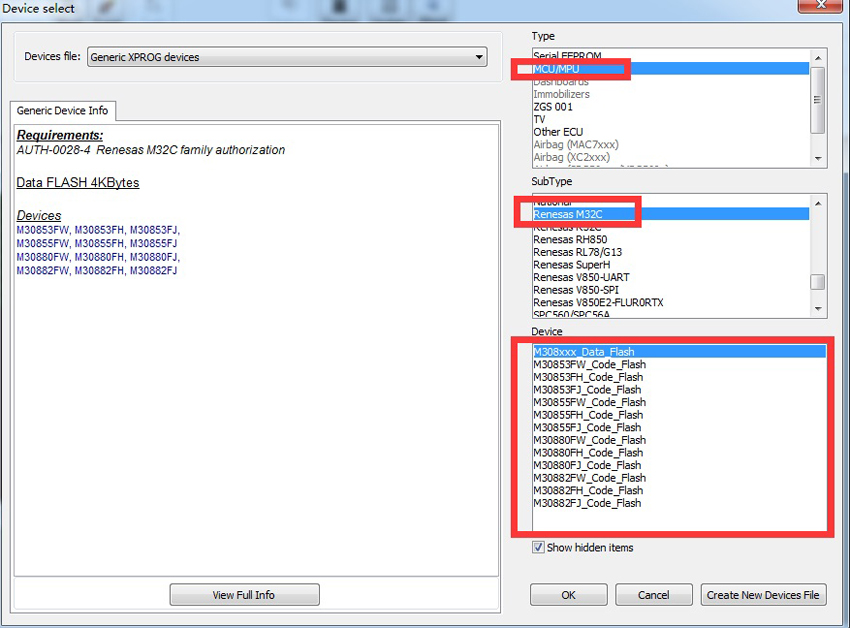

AUTH-0028-4 Renesas M32C Authorized
AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BMW EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P

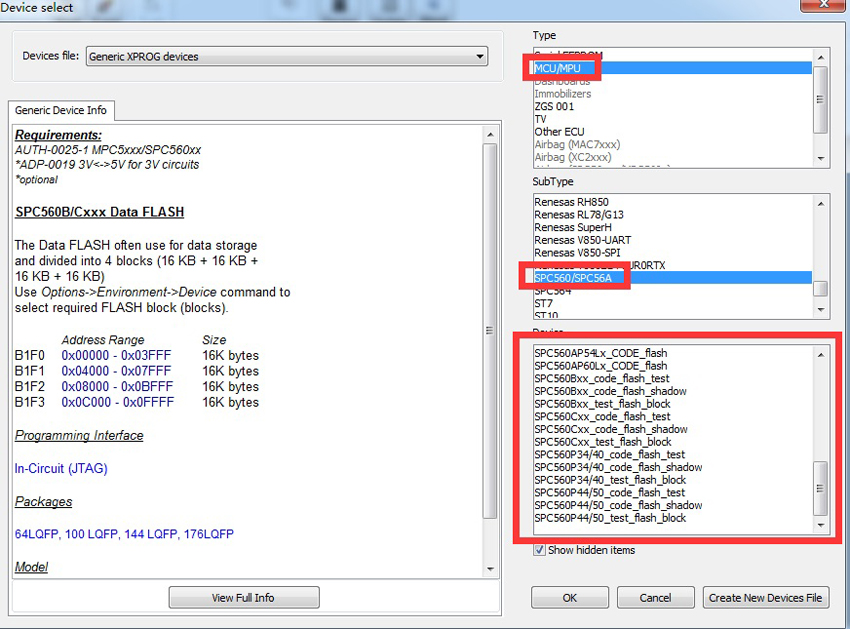

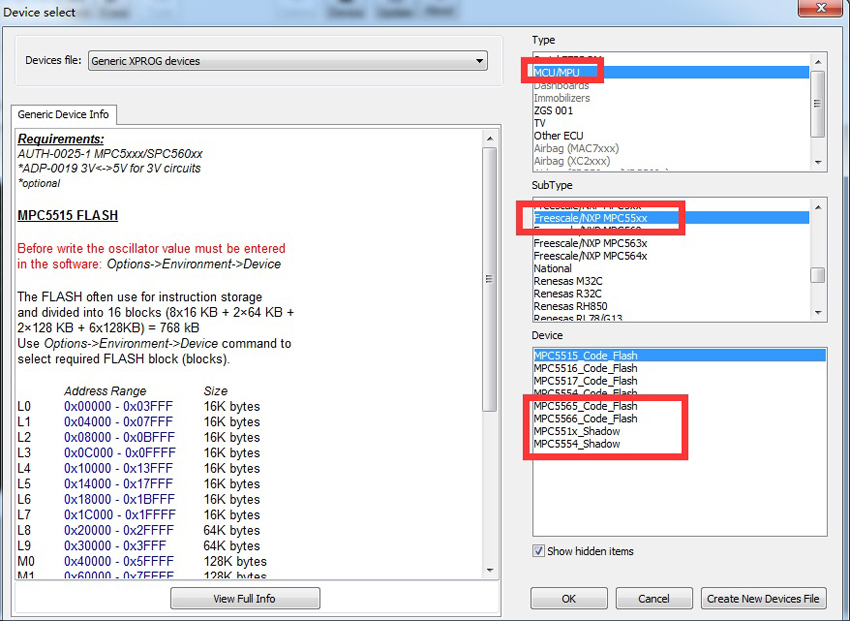

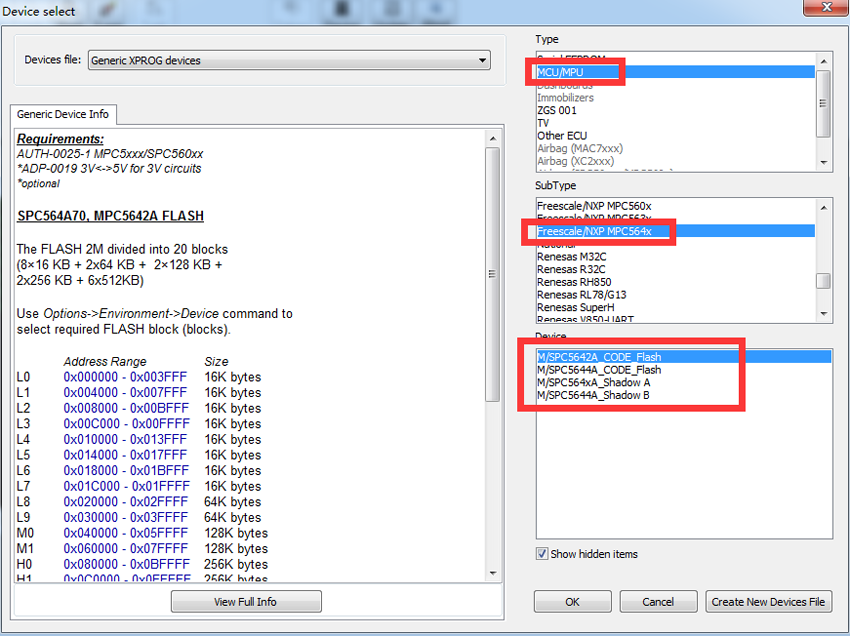

AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13

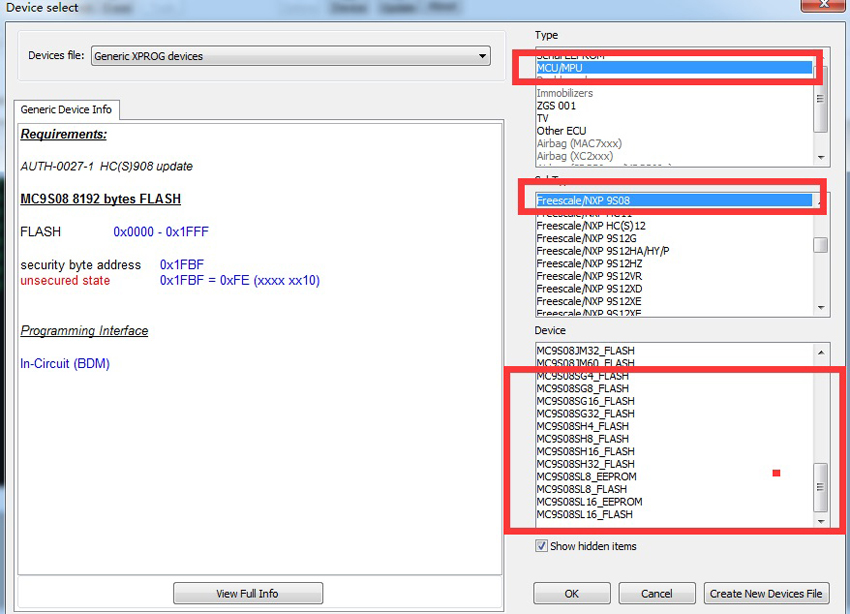

AUTH-0027-1 HC(S)908 update Authorized 2016/3/13
AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13

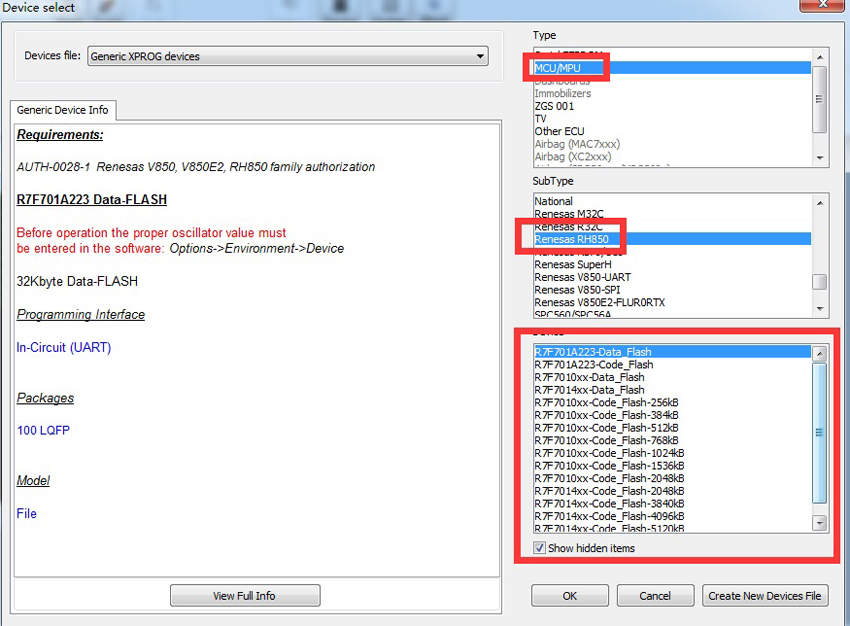

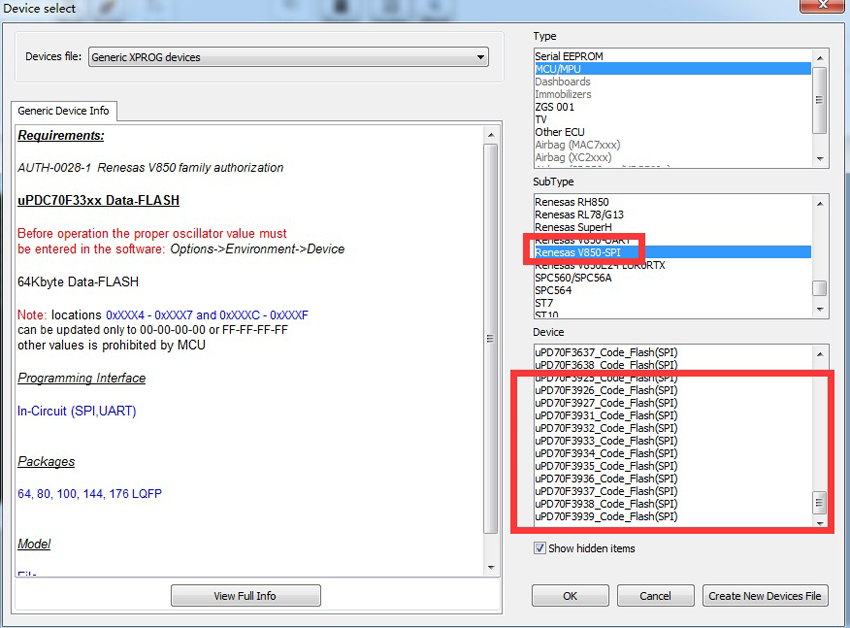

AUTH-0028-1 Renesas V850 Authorized 2017/10/9
AUTH-0028-2 Renesas SuperH Authorized 2017/10/9

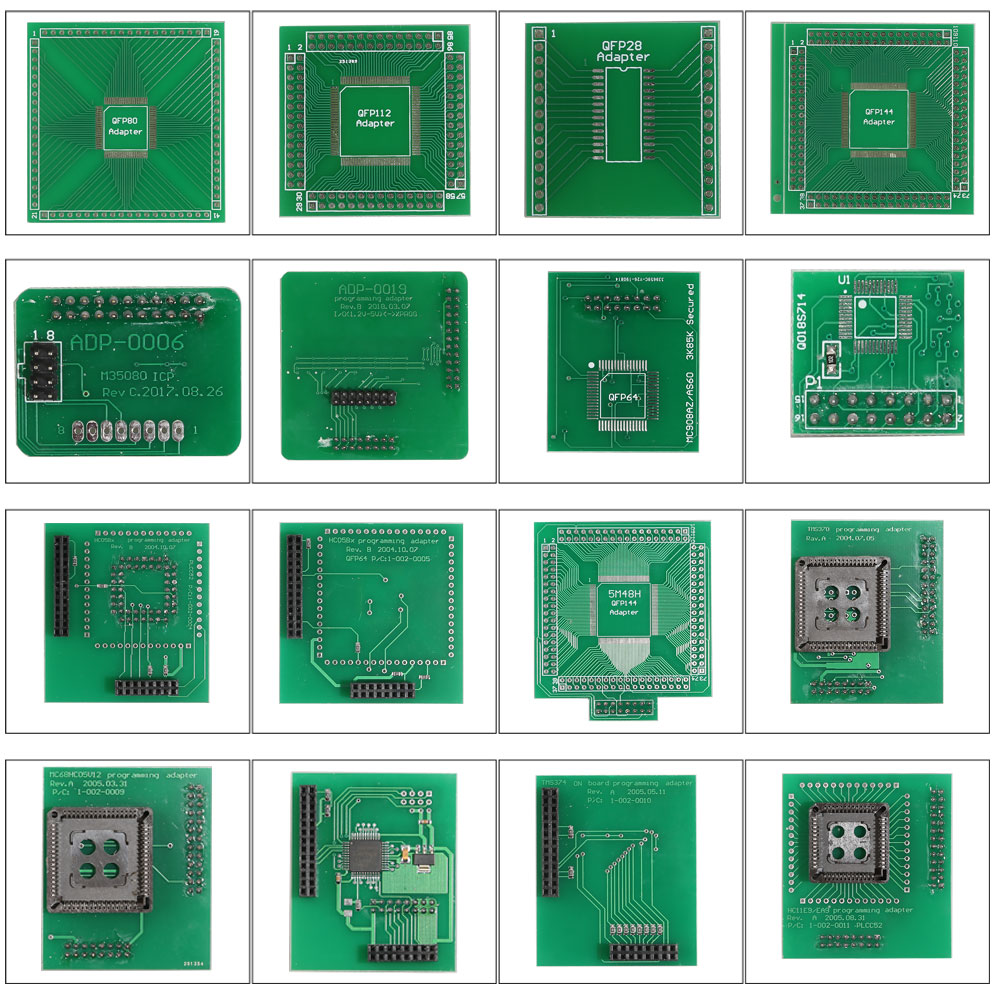

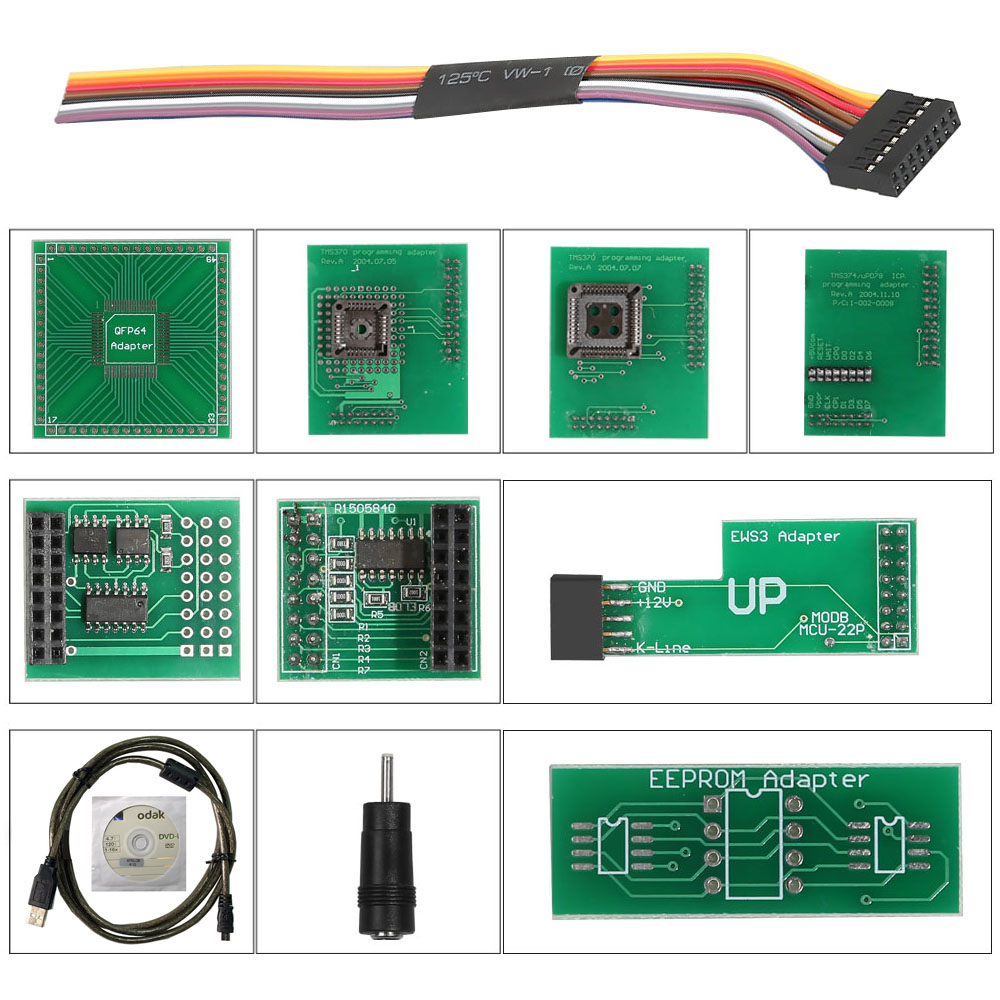

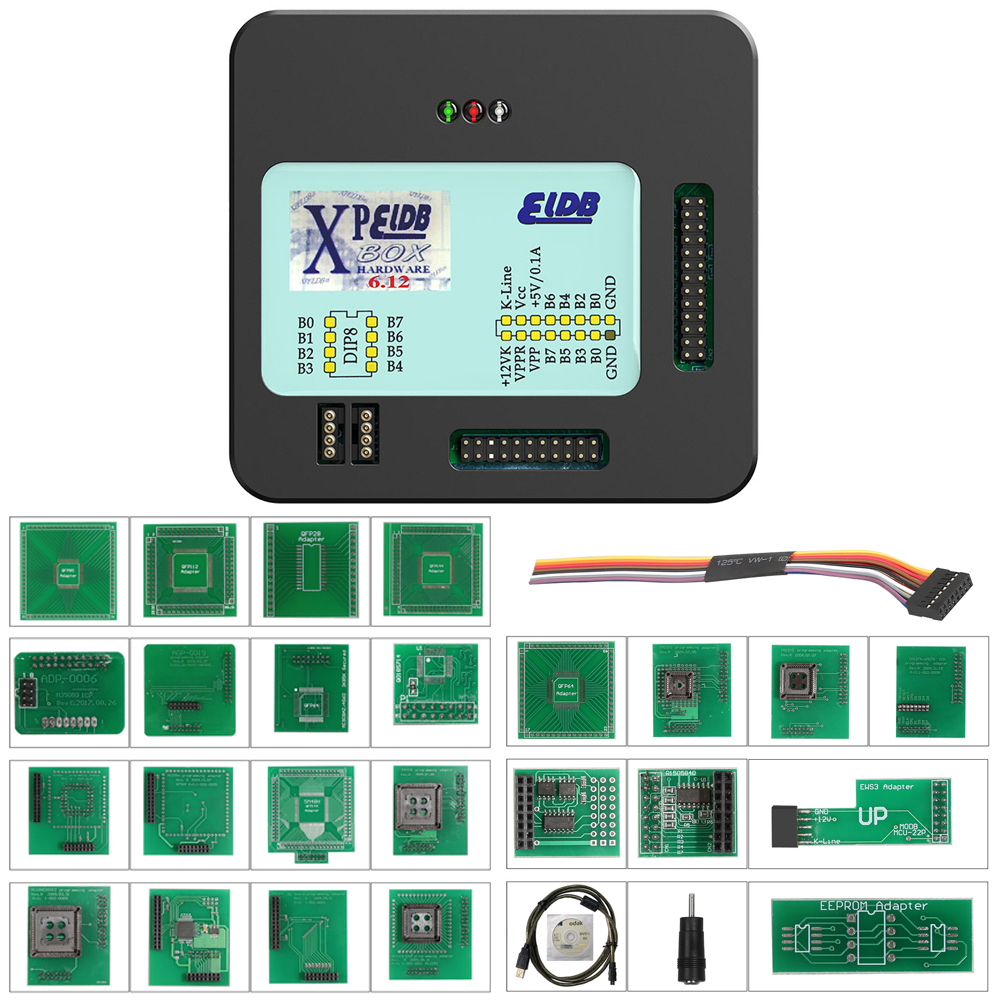

XPROG-M V6.12 Adapters:

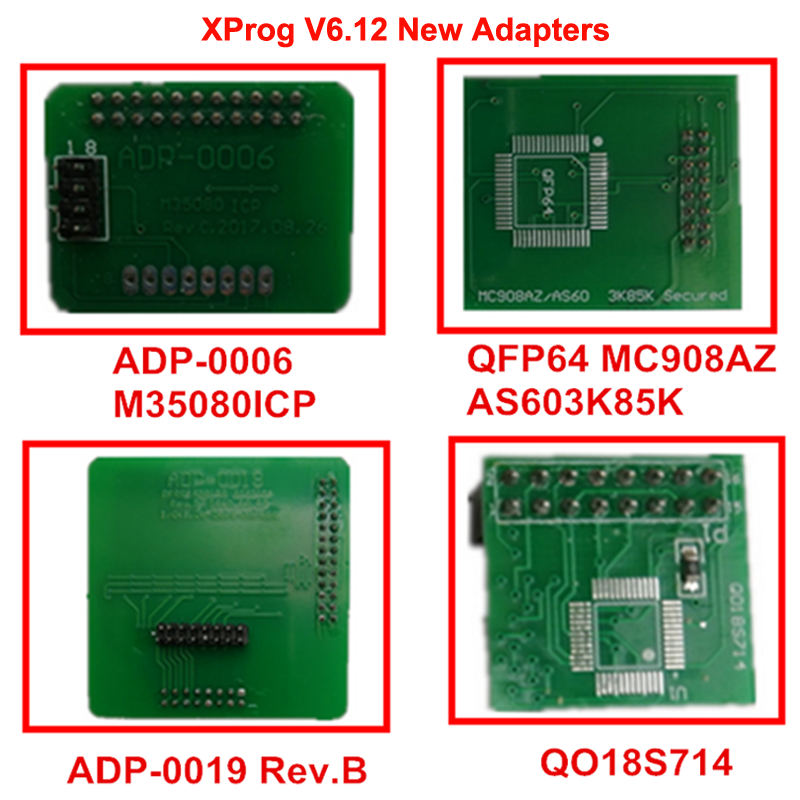

Newly Added 4 Adapters:
ADP-0019 Rev.B
ADP-0006 M35080 ICP adapter
QFP64 MC908AZ/AS60 3K85K adapter
QO18S714
ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 Motorola HC05B/X PLCC52 programming adapter
ADP-0005 Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
Additional adapter for 5M48H P-Flash
ADP-0019 Rev.A
EWS3 adapter
EEPROM adapter
QFP28 adapter
QFP64 adapter
QFP80 adapter
QFP112 adapter
QFP144 adapter
XPROG-M V6.12 Software Install Notice:
1. Windows XP 32bit or Windows 7 64bit required, all the patch software for the Windows system should be installed already and the Windows properly works well...
2. The Windows system should be with at lest 2 partitions (except the CD ROM.)
3. Can not be working with virtual hard disk.
XPROG Box 6.12 Software Installing Steps:
1. Click the file "installation.reg", get the file information to the regedit.
2. Install the file "AdbeRdr11000_zh_CN.exe", it is a must, otherwise the XProg software will not start.
3. Plug the XProg main unit to the computer, install the USB driver.
|
USD
