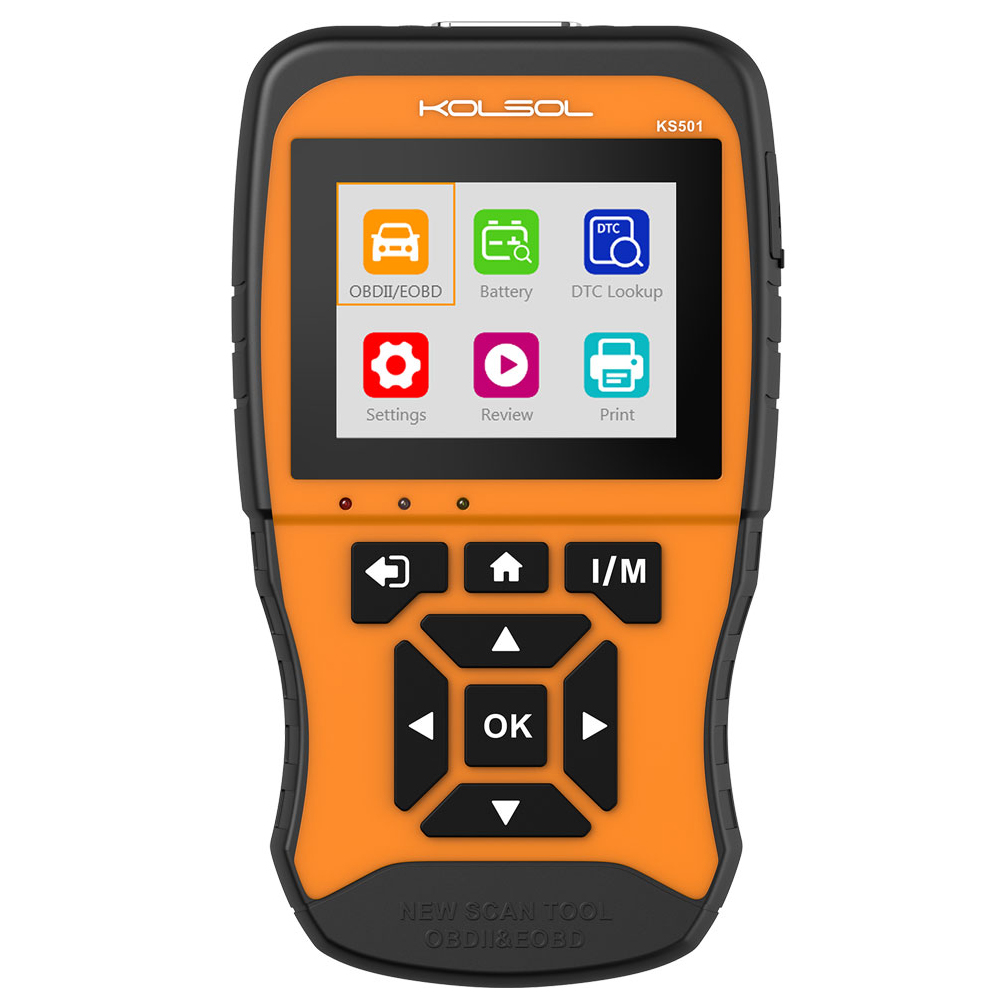

Name: KOLSOL KS501 OBD2 & EOBD Scanner
Description:
KOLSOL KS501 OBD-II & EOBD Scan Tool for universal vehicles automotive scanner diagnostic tool.
KOLSOL KS501 is easy to carry, simple to operate, fast in diagnosis, large in memory, comprehensive in code base, powerful in performance and novel in design. It is a new generation OBD-II diagnostic tool tailored for the owner.
Highlights:
1. Enhanced OBD2 Diagnosis:
Fully covers OBD2 diagnosis modes, read/clear codes, live data, freeze frame, with O2 sensor, Mode 6, Mode 8, MIL status
2. Powerful Database:
Exclusive support for 40,000 DTCs, leading the industry
3. Wide Vehicle Coverage:

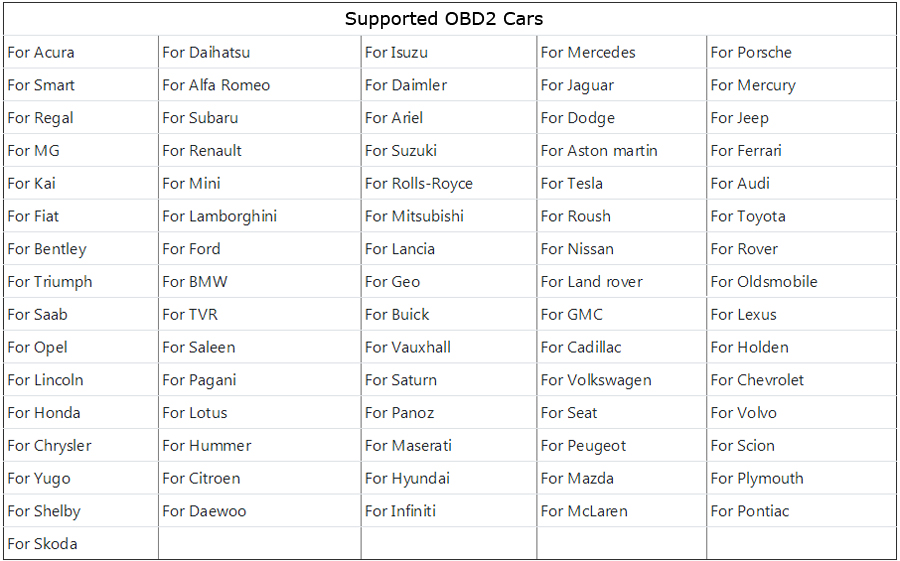

Works on almost all the gasoline cars with standard OBD2 protocols 16pin connector
4. One-Key I/M Readiness:
Independent button for quickly enter into diagnostic function
5. Live Data Visualized Comparison:
Greatly supports Four parameters comparison, record the live data for later review
6. 2.8 inch TFT Color Screen with Clear UI:
More visualized interface without reflection under sunlight
7. Maximum Chip Capacity and Fastest Diagnosis
Supported Languages: English, French, German, Spanish, Russian, Italian, Polish, Chinese
Features:
1. Supports all OBD2 functions, get one device to turn off the Check Engine Light
2. Works with almost all standard OBD2/EOBD protocols gasoline cars
3. 18 functions listed out clearly instead of repeatedly entering the sub-menu
4. 40,000 + database greatly supports DTC Query with clear code description
5. 4 parameters live data comparison, and record it for later review
6. Retrieves generic, manufacturer specific, and pending codes
7. One-click I/M Readiness quick access to diagnosis
8. Fastest diagnosis speed with the maximum chip capacity
9. Lifetime upgrade and print data via PC
Functions:
OBD2 Diagnosis:
•Read and Clear Codes: read and clear engine codes, generic, manufacturer specific, and pending codes
•Live Data: read and record live sensor data, 4 parameters comparison supported
•Freeze Frame: a snapshot of the vehicle which shows engine conditions when the MIL on
•O2 Sensor: check the vehicle O2 sensor values
•Mode 6: advanced test results (like misfire counts) for on-board diagnostic system monitors
•Mode 8(Component test): allows initiating a leak test for the vehicle's EVAP system
•I/M Readiness: check the operations of the Emission System on OBD2 compliant vehicles
•Battery Test: show battery voltage and comment battery status
•Smog Check: indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing
•MIL Status : MIL is essentially an emission warning light. If the light comes on, it means the OBD II system has detected an emissions-related problem
•Vehicle Info: check the make, years, VIN Code and other detail information of your vehicle
•Fuel Analysis: allow viewing the fuel economy of the vehicle
•Core Analysis: allow viewing the performance of the vehicle
•Engine Analysis: allow viewing the engine data of the vehicle
One-Click I/M Readiness Key:
Provide quick access to emissions readiness status, complete vehicle exhaust test.
Live Data Display:
4 parameters comparison, clearly show how they can affect each other and increase diagnostic efficiency
Review Data:
Allow viewing of data from last test recorded by the scan tool
DTC Query:
40,000 database available for DTC lookup online
Update & Print Data:
Update to the latest version and print the stored data by PC via USB cable
Supported Protocols:
SAE_J1850(PWM, VPW)
ISO_9141-2
ISO_14230-4(KWP, KWP-5BPS)
ISO_15765-4(CAN, CAN-B, CAN-C, CAN-D)
Specifications:
Display Screen: TFT Color (320*240)
Operating Temperature: 0 to 60 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Power: 8V to 18V provided by vehicle battery

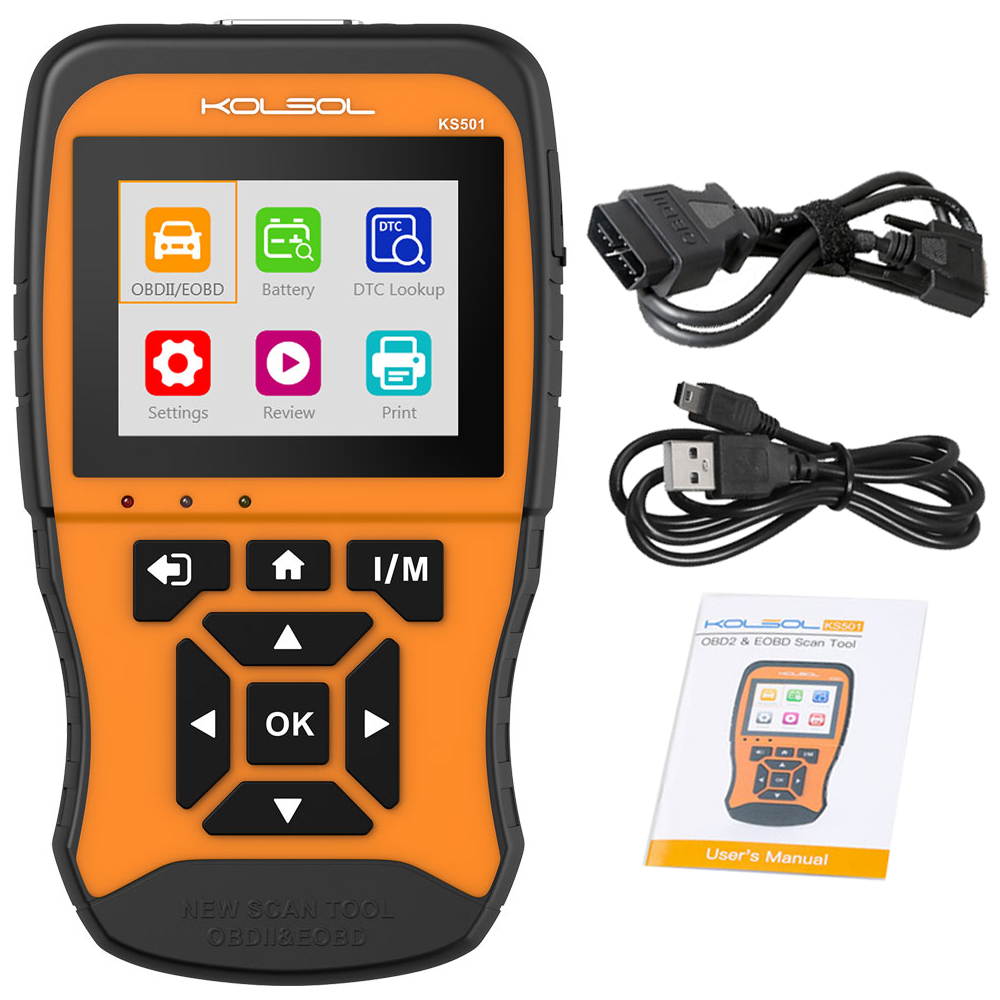

Packing List:
KOLSOL KS501 OBD2 EOBD Scanner
OBD2 Cable
USB Cable
User Manual
Packing Box
