Name: Creator C600 Professional Multi-System Scanner
Description:
Creator C600 is a unique tool that delivers OE-level diagnostics for all the electronic systems of different car brands. It supports the most commonly required service features such as Oil Light/Service Reset, Brake Deactivation, Diesel Particle Filter and so on.
Supports Languages: English, French, German, Dutch, Japanese, Simplified Chinese, Traditional Chinese
Software Update: one year free upgrade online
Highlights:
1. Available applications are BMW, Mercedes-Benz, Fiat, Volkswagen, Seat, Audi, Skoda and more.
2. ECU Information: Provides the retrieved ECU Information in detail
3. Selecting it opens and information screen.
4. Read Trouble Codes: display detailed information of DTC records retrieved from the vehicle control module Clear Trouble
5. Codes: erases DTC records and other data from the ECU
6. Read Data stream: retrieves and display living data and parameters from vehicle ECU
.7 Service Function: Oil Light, Brake Reset, Micro Filter Reset, Diesel Particulate Filter Reset, Brake Fluid etc. Each vehicle has different service.
What you can do with Creator C600:
1. Read fault codes and view live data. Such as Engine, Transmission, ABS and Instrument Clusters.
2. Clear the fault code and turn off the error indicator.
3. In addition, you can use it for oil maintenance, brake reset, diesel particulate filters, etc.
Supported Software:
1. OBD-II/EOBD
2. BMW/MINI
3. Benz
4. VAG: VW, Audi, Skoda, Seat
5. Fiat, Alfa-Romeo, Lancia, Abarth
Note:
C600 comes with OBD-II software. You can choose one car software of other four brands, and you have to pay for other software if you need more.
Functions:
1. OBD-II/EOBD Software Function:
● Works on all 2001 and later OBD-II compliant PETROL European vehicles
● Works on all 2004 and later OBD-II compliant DIESEL European vehicles
● Works on all 1996 and later OBD-II compliant US and Asian vehicles
● Easily determines the cause of the “Check Engine Light ( MIL)”
● Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3,and U1) codes
● Turns off Check Engine Light (MIL), clears codes and resets monitors
● Displays DTC definitions on unit screen
● Views freeze frame data
● Identifies pending codes
● Reads live PCM datastream
● Graph displays live PCM datastream
● Read I/M Readiness Status
● Displays live O2 sensor test data
● Performs modules present test
● Retrieves vehicle information (VIN, CIN and CVN)
● Supports CAN (Controller Area Network) and all other current OBD-II protocols
2. BMW/MINI Software Function:
Basic Functions: read trouble codes, clear trouble codes, displays live data stream and vehicle version information, short test.
CBS Reset Functions: Engine oil reset, Microfilter, Brake reset, Vehicle check, Spark plugs, Brake fluid, Vehicle inspection, Exhaust emission inspection, DPF etc.
CBS Correct Functions: Engine oil reset , Microfilter, Brake reset, Vehicle check, Spark plugs, Brake fluid, Vehicle inspection, Exhaust emission inspection, DPF etc.
Special Functions: Delete Transport mode, Set Transport mode, Throttle reset.
3. Benz Software Function:
Basic Functions: VIN code recognition, Auto Scan all systems, read trouble codes, clear trouble codes, displays live data stream and vehicle version information.
Special Functions: Engine Oil Reset , EPS Reset, SAS Reset, ETS Match etc.
4. VW, Audi, SKODA, SEAT Software Function:
Basic Functions: VIN code recognition, Auto Scan all systems, Read codes, Erase codes, ECU information, Read Data stream, Active test, Basic settings, Advanced ID match
Special Functions: Engine Oil Reset, EPB Reset, TPS Reset, SAS Reset
5. Fiat, Alfa-Romeo, Lancia, Abarth Software Function:
Read codes, Erase codes, ECU information, Live data
Supported Car Models List:
BMW:
1. Supports BMW between 2001 to 2018
1 Series: 1'_E81/E81/E87/E88,1'_F20/F21
2 Series: 2'_F22/F23,2'_F45/F46,2'_F87
3 Series: 3'_Z3_E36,3'_E46,3'_E90/E91/E92/E93,
3'_F30/F31/F34/F35,3'_F80
4 Series: 4'_F32/F33/F36,4'_F82/F83
5 Series: 5'_E39,5'_E60/E61,5'_GT(F07), 5'_F10/F11/F18
6 Series: 6'_E63/E64,6'_F06/F12/F13
7 Series: 7'_E38,7'_E65/E66,7'_F01/F02/F03/F04, 7'_G11/G12
X Series: X1_E84,X1_F48/F49,X3_E83,X5_E53,X5_70,X6_E71,
X6_E72,X3_F25,X5_F15/F85,X6_F16/F86,X4_F26
Z Series: 3'/Z3_E36,Z4_E85/E86,Z4_E89
I Series: I'_I01/I02
MINI:
MINI_R50/R52/R53, MINI_R55/R56/R57/R58/R59/R60, MINI_F55/F56
Include Drive, Chassis and Body all system
Benz:
Supports Benz between 2001 to 2018
A (177)，A (176)，A (169)，A (168)
B (242, 246)，B (245)，
C (205)，C (204)，C (203)
E (238)，E (213)，E (212)，E (211)，E (210)，E (207)
S (222)，S (221)，S (220)，S (217)
CLA (117)
CLK (209)，CLK (208)
X 290 AMG
CLS (257)，CLS (218)，CLS (219)
CL (216)，CL (215)
SLK/SLC (172)，SLK (171)，SLK (170)，SL (231)，SL (230)
AMG GT (190)，SLS (197)，GLS (167)，GLE (167)，GLE (292)
M/GLE (166)，M (164)，M (163)
G (463)，G (461)，GL/GLS (166)，GL (164)，GLC (253)，GLK (204)，GLA (156)
R (251)，SLR (199)，Maybach 240
Include : Drive , Chassis and Body all system (Engine, Auto transmission, AB-airbag, ABS, EPS, TPMS, Air condition etc. have more than 100 systems)
VAG:
Supports all vehicle of VW, Audi, SKODA, SEAT before 2020
Supports all system on the vehicle, include: Engine, Auto transmission, AB-airbag, ABS, Air conditioning, Battery management, Light control ect. More than 200 systems.
Fiat, Alfa-Romeo, Lancia, Abarth:
Supports Fiat, Alfa-Romeo, Lancia, Abarth all vehicle between 2001 to 2016
Fiat: JF-Freemont, FQ-Fiorino Qubo, MT-Mito, PE-Punto EVO, CL-500L, CM-Viaggio, FF-500, DB-Doblo, BF-Fiat 500L, NP-Panda, DC-Ducato, OT-Ottimo, FB-500X, GA-Giulia etc.
Alfa-Romeo: GU-Giulietta, QC-4C, MT-Mito, GA-Giulia, 33, 145, 146 etc.
Lancia: NY-Ypsilon, JS-Flavia, DEDRA(111, 181), LYBRA, K, MUSA etc.
Abarth: CC-Cinquecento, FF-500, 500, PUNTO EVO etc.
Technical Services & Online Consultation:
We can provide consulting services and repair assistance for common car failures. We combine industry knowledge to provide customers with high-quality products and maintenance solutions to benefit our customers. Professional, Efficiency and Quality is always our mission.
Specifications:
Display: 272*480 TFT color display with backlight
Working Temperature: 0 to 60 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Power supply: 8 to 18V vehicle power and 5V USB power
Dimensions(L*W*H): 200 * 95 * 35mm
Gross Weight: 700g
Net Weight: 500g

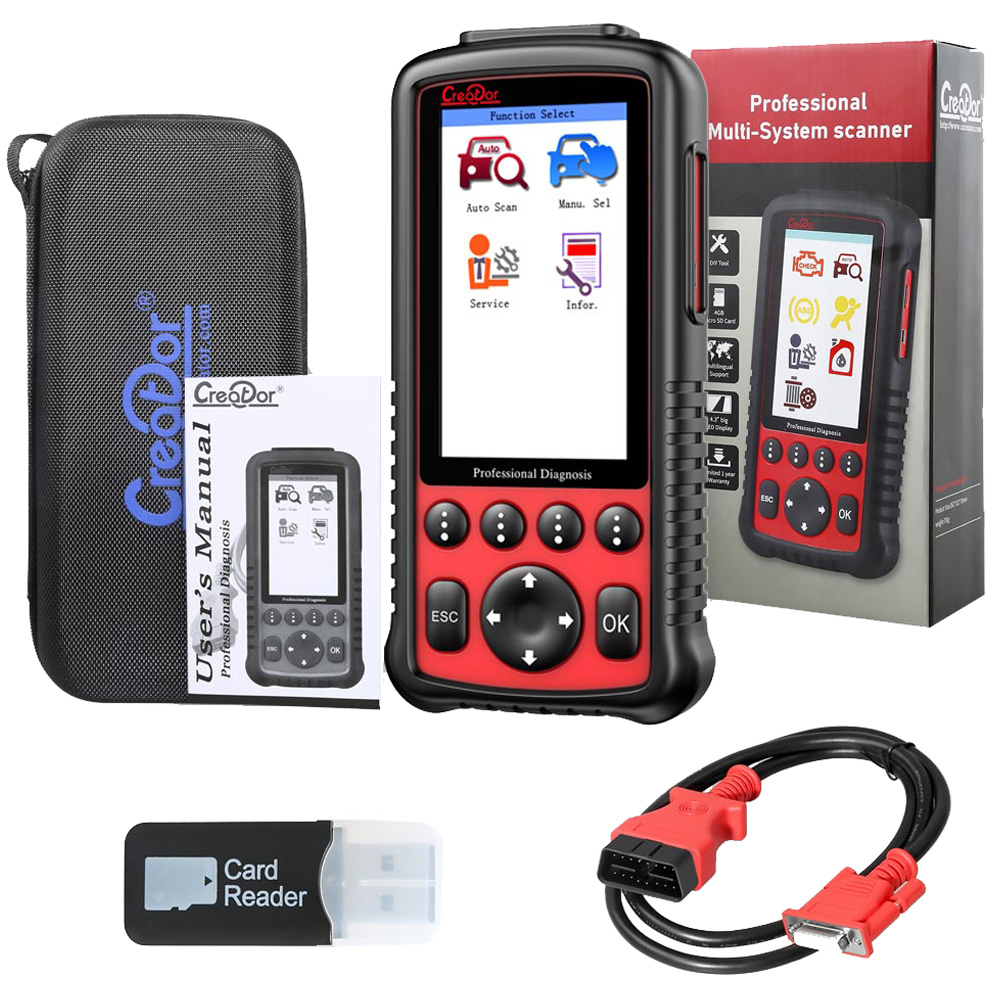

Packing List:
Creator C600 Multi-System Scanner
Main Cable
TF Memory Card
Memory Card Reader
User Guide
Nylon Carrying Bag
|
