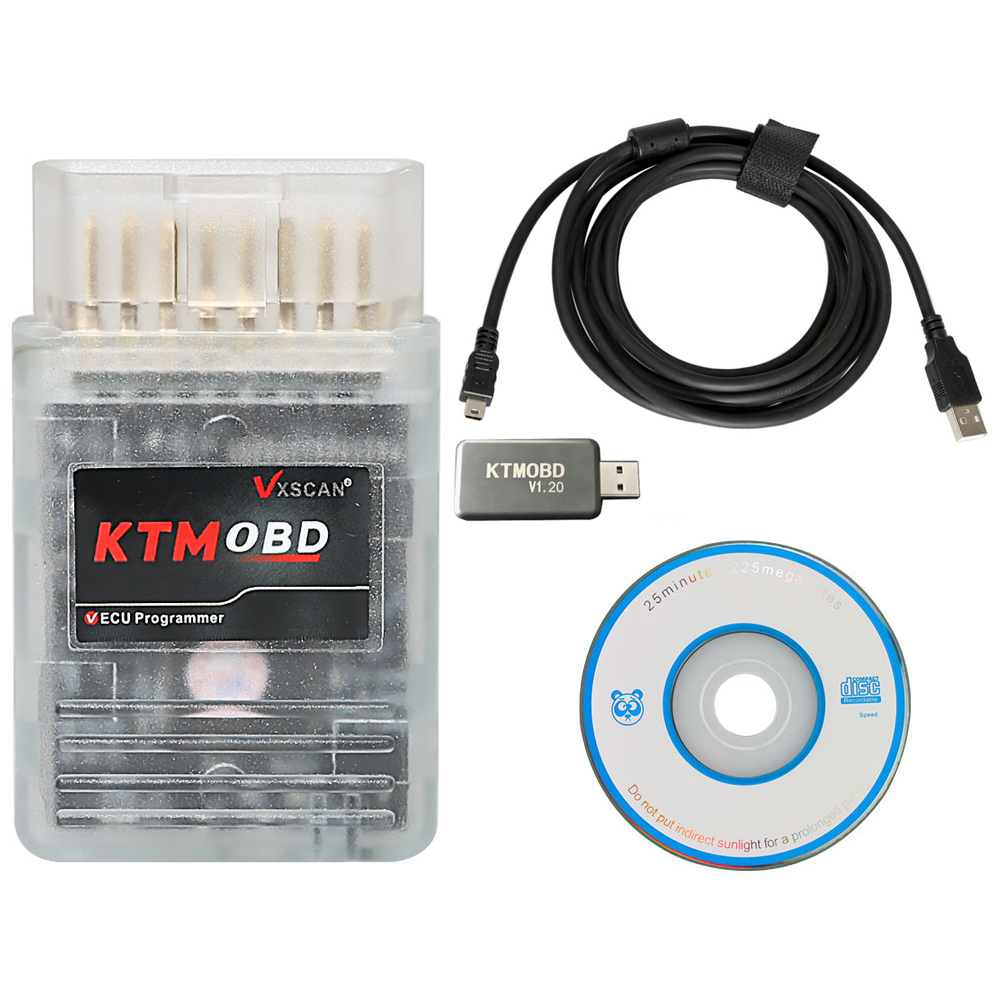

Name: KTMOBD V1.20 Supports Toyota Honda Hyundai Kia Ford VAG ECUs
Description:
KTMOBD 1.20 Supports Toyota Honda Hyundai Kia Ford VAG ECUs read / write.
Functions:
1. Read the chip data.
2. Read and write ECU data.
3. Read gearbox data etc at a high speed
4. Virtual reading, writing, checksum correction...
What are differences among KTM Bench, KTMFlash and KTMOBD?
KTM Bench Boot is the latest ECU programming tool for ECU reading and writing via boot mode or on bench.
KTMFlash ECU programmer can read the chip data, read & write ECU data. Read transmission data etc. at a high speed.
KTMOBD Programmer is for reading chip data, reading and writing data of ECUs and a few types of gearbox. Read / write data via OBD. Supports most Japanese cars.
Supported ECU List:
Module 66 (NEW)
Honda Bosch
PGM-FI (Bosch EDC17CP06/EDC17CP16/2MB)
Writing, checksum correction.
PGM-FI (Bosch EDC17CP50/4MB) [Unlocked]
PGM-FI (Bosch EDC17C58/4MB) [Unlocked]
PGM-FI (Bosch EDC17C72/2.5MB) [Unlocked]
PGM-FI (Bosch MED17.9.3/4MB) [Unlocked]
PGM-FI (Bosch ME17.9.55/1.5MB) [Unlocked]
Writing after unlocking with Module 53 or 71, checksum correction.
Module 74 (NEW)
Toyota/Lexus Gen 3
R7F701202 P5-UDS
Reading, writing, checksum correction
Toyota:
Module 35
Toyota/Lexus/Scion/Hino
76F0038/39/40/70/85, MPC565/SH72512/SH72544 CAN-BUS
76F0038/39/40/50/70/85 GearBox CAN-BUS
76F0038/39/40/50/70/85 HV Control CAN-BUS
76F0004/23/38/39/40/70/85, MPC565 K-Line
Writing, checksum correction.
Module 46
Toyota/Lexus/Scion/Hino 2 Generarion
76F0196/198/199/219 CAN-BUS
Writing, checksum correction.
76F0196/198/199/219 P5-CAN-BUS
76F0199 GearBox P5-CAN-BUS
Reading, writing, checksum correction.
Honda
Module 12
Honda/Acura CAN-BUS
Honda: Honda PGM-FI Generic Read-Only
Honda: Honda AT/CVT/DCT Generic Read-Only
PGM-FI (Keihin SH7058/1MB)
PGM-FI (Keihin SH72543/2MB)
PGM-FI (Keihin SH72546/3.75MB)
PGM-FI (Keihin MPC5566/3MB)
PGM-FI (Keihin TC1782/2.5MB)
AT/CVT/DCT (Keihin 512KB)
AT/CVT/DCT (Keihin 1MB)
PGM-FI (Matsushita SH7058/1MB)
PGM-FI (Matsushita SH72543/2MB)
PGM-FI 2013+ (Matsushita SH72543/2MB) (Test)
PGM-FI (Panasonic TC179X/4MB)
AT/CVT/DCT (Matsushita 512KB) (Test)
Honda: PGM-FI (Continental MPC5554/2MB)
PGM-FI (Hitachi SH7058/1MB) (Test)
PGM-FI (Hitachi SH7059/1.5MB) (Test)
PGM-FI (Hitachi SH72543/2MB)
PGM-FI (Hitachi MPC5554/2MB) (Test)
AT/CVT/DCT (Hitachi SH72531/1280KB)
Reading, writing, checksum correction.
Module 13
Honda/Acura K-Line
Honda: Accord 7 2003-2005 (Matsushita RBA/RBB SH7055/512KB)
Honda: Accord 7 2006-2007/TSX 2004-2005 (Matsushita RBA/RBB SH7055/512KB)
Acura: TSX 2006 (Matsushita RBB A56-A62 SH7058/1MB)
Honda: Accord/CR-V/Element/Legend/Odyssey/Ridgeline (Keihin SH7058/1MB)
Honda: Element/Inspire (Keihin SH7055/512KB)
Honda: Legend/Acura TL 2005-2007 (Keihin RJA SH7058/1MB)
Honda: CR-V 2002/2005-2007 (Keihin PPA/PNL SH7058/1MB)
Honda: Fit/Jazz/Airwave 2001-2007 (Keihin OKI ML66Q592/192KB)
Acura: MDX 2003-2007 (Motorola RDJ SH7055/512KB)
Honda: Accord 7 USA (Motorola RCA SH7055/512KB SH7058/1024K)
Only writing, checksum correction. Stock files database included!
Kia/Hyundai
Module 19
Kia/Hyundai: 1.4L, 1.6L (M(G)7.9.8)
Kia/Hyundai: 1.1L-1.6L (M(G)7.9.7)
Only writing, checksum correction.
Kia/Hyundai: 1.4L, 1.6L (ME17.9.11/12/13)
Kia/Hyundai: 1.4L, 1.6L (ME(G)17.9.21)
Kia/Hyundai: 1.6L, 3.0L (ME17.9.2/ME(D)(G)17.9.8)
Reading, writing, checksum correction.
Module 30
Kia/Hyundai SIM2K
2.0L, 2.4L (SIM2K-140)
2.0L, 2.5L (SIM2K-D160)
2.0L, 2.4L (SIM2K-141/142/341)
2.0L (SIM2K-C201)
2.0L, 2.0T (SIM2K-240/241/242/245)
Reading, writing, checksum correction.
Module 34
Kia/Hyundai EDC15/EDC16
2.0L, 2.5L CRDI K-Line (EDC15C7)
2.0L, 2.2L, 2.5L CRDI K-Line Calibration (EDC16C39)
3.0L CRDI K-Line Calibration (EDC16CP34)
Reading, writing, checksum correction.
2.0L, 2.2L, 2.5L CRDI (EDC16C39)
3.0L CRDI (EDC16CP34)
Writing, checksum correction.
Module 36
Kia/Hyundai EDC17
1.6L, 2.0L CRDI (EDC17C08/TPROT3)
2.0L, 2.2L CRDI (EDC17CP14/TPROT3)
2.0L, 2.2L CRDI (EDC17CP14/TPROT11)
1.6L, 2.0L CRDI (EDC17C53)
2.2L CRDI (EDC17C57) (after unlocking with Module 53 or 71)
Reading, writing, checksum correction.
Module 40
Kia/Hyundai SIMK
2.0L, 2.7L K-Line (SIMK-41/43)
2.0L, 2.4L CAN (SIMK-43/SIM2K-47)
Reading, writing, checksum correction.
Module 52
Kia/Hyundai Delphi MT38/86
2.7L, 3.3L, 3.8L (MT38/CAN)
Writing, checksum correction.
2.7L, 3.3L (MT38/K-Line)
2.7L, 3.3L, 3.8L (MT38/BSL)
3.3L, 3.8L, 5.0L (MT86)
Reading, writing, checksum correction.
Module 54
Delphi DCM3.7/AP (SH72513/72543/72544)
Kia/Hyundai 2.5L CRDI (DCM3.7AP)
Opel/Chevrolet 2.0L, 2.2L CDTI (DCM3.7)
SsangYong 2.0L XDI (DCM3.7AP)
VAG 1.2L TDI (DCM3.7)
Great Wall/Haval 2.0L TD (DCM3.7)
Reading, writing, checksum correction.
Module 55
Kia/Hyundai Kefico/Denso
Kia/Hyundai 2.5L CRDI (SH72546)
Reading, writing, checksum correction.
Module 61
Kia/Hyundai CPGDSH/CPEGD
1.6L (CPGDSH2.24.1/CPEGD2.20.1/UDS
Reading, writing, checksum correction.
Ford
Module 20
Ford Focus 2/Fiesta/Fusion (automatic transfer for VID area)
Ford Focus 2: 1.4L, 1.6L Duratec 85/100/115PS (SIM28/29)
Ford Focus 2: 1.8L, 2.0L Duratec HE 125/145PS (ESU131/411/418)
Ford Focus 2: 1.8L, 2.0L Duratorq Lynx/DW10C (SID202/SID206)
Ford Fiesta/Fusion: 1.4L, 1.6L Duratec 85/100PS (SIM210)
Ford Focus 2 ST: 2.5L Duratec I5 225PS (ME9.0)
Reading, writing, checksum correction.
Ford Kuga 1: 2.5L Duratec I5 200PS (ME9.0)
Writing, checksum correction.
Module 32
Ford Focus 3 2015, Ford Explorer 2016, Ford Kuga 2 2017
Ford Fiesta: 1.0L Ecoboost GTDI 100/125PS [C1BA] (MED17)
Ford Focus 3 2015: 1.0L Ecoboost 2015+ GTDI 100/125PS [DA6A] (MED17)
Ford Focus 3 2015: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)
Ford Kuga 2 2017: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)
Ford Explorer 2016: 3.5L Cyclone V6 Ti-VCT 249/294PS (2016)
Ford Mondeo 5: 1.5L Ecoboost GTDI MT 150/180PS (MED17)
Ford Mondeo 5: 2.5L Duratec Ti-VCT 150/171PS [GV6A] (EMS24XX)
Reading, writing, checksum correction.
Module 73
Ford MG1
Ford F-150: 3.5L Ecoboost V6 (MG1CS015) [HL3A]
Ford Fiesta 8: 1.5L Ecoboost MT (MG1CS016) [JX6A]
Ford Focus 4: 1.0L, 1.5L Ecoboost MT (MG1CS016) [JX6A]
Ford Focus 4: 1.5L Ecoboost AT (MG1CS017) [JX6A]
Ford Mustang 6: 2.3L Ecoboost (MG1CS017) [JR3A]
Ford Mustang 6: 5.0L Coyote V8 (MG1CS019) [JR3A]
Reading, writing, checksum correction
VAG
Module 57
SIMOS 8/10/11/PCR2.1
2.8L V6 FSI (SIMOS8.1)
3.2L V6 FSI (SIMOS8.2)
Reading, writing, checksum correction.
3.0L V6 TFSI (SIMOS8.3)
3.0L V6 TFSI (SIMOS8.4)
3.0L V6 TFSI (SIMOS8.5)
Virtual reading, writing, checksum correction.
2.8L V6 FSI (SIMOS8.6)
Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)
SIMOS8.6 (EEPROM/UNLOCK/BSL)
Reading, writing (EEPROM reading/writing, ECU unlocking)
1.2L TSI (SIMOS10)
1.2L MPI (SIMOS11)
Virtual reading, reading, writing, checksum correction.
1.6L TDI (PCR2.1)
Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)
PCR2.1 (EEPROM/UNLOCK/BSL)
Reading, writing (EEPROM reading/writing, ECU unlocking)
|
