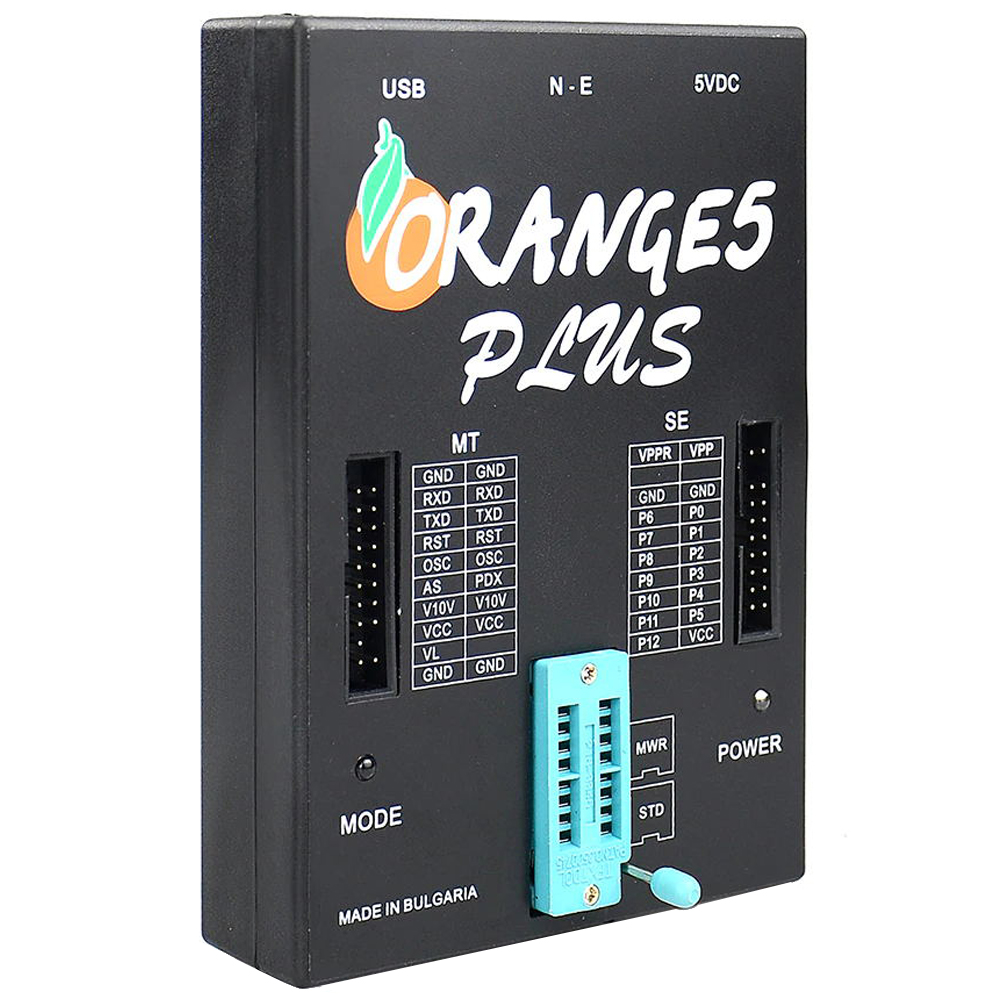

Name: Orange5 Plus Programmer with Full Adapter
Description:
2020 Orange5 Plus Programmer with Full Adapter Enhanced Functions with USB Dongle. Good quality and works stably.
Software Version: V1.35
Supported Languages: English, Russian
Supported Operating Systems: Windows 7 and Windows 8.1
Orange 5 Plus Programmer Software Licenses:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
IMMO HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
Technical Info:
* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against over current
* Overload voltage protection
* Two types of power supply: Standard (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with frequency ( up to 24MHz) and out voltage(2.0...5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is enclosed in a functional box.
Feature:
Supports any COM ports, including virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program does not need to be installed
Supports Orange5 Programmer in emulation mode.

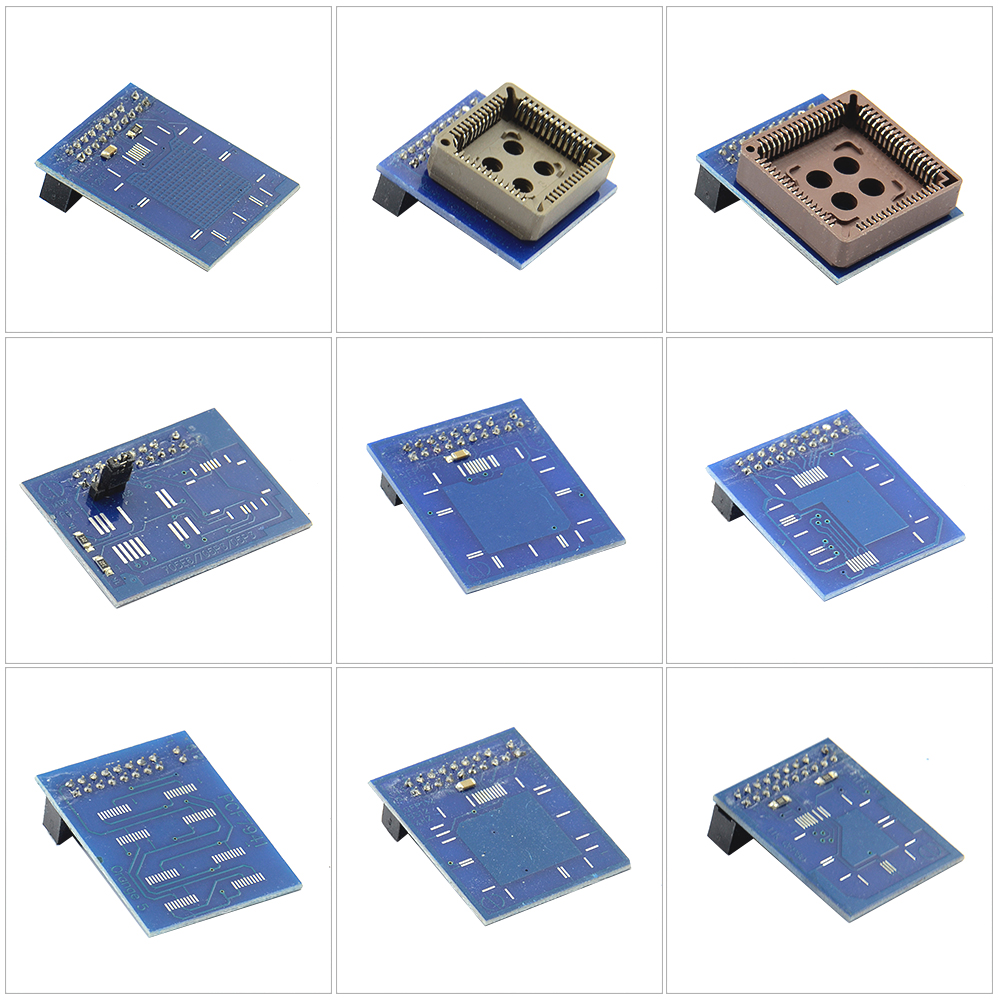

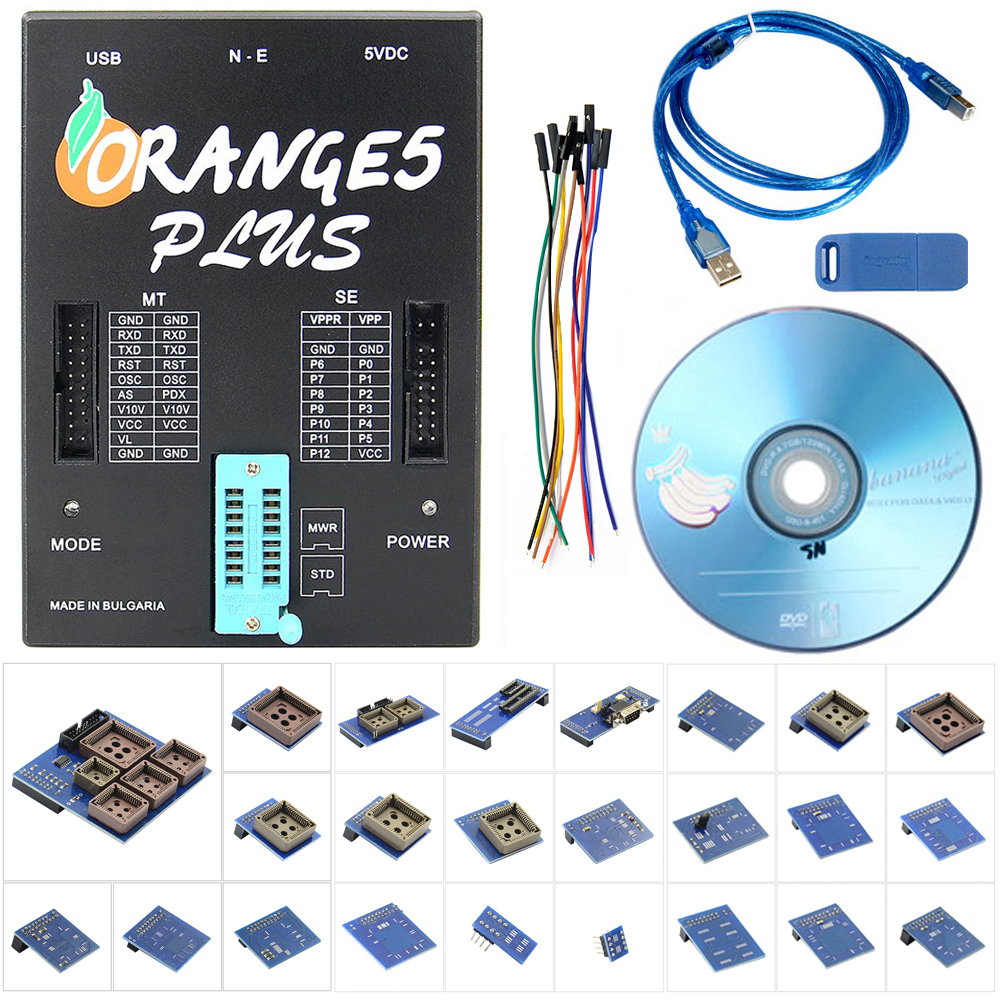

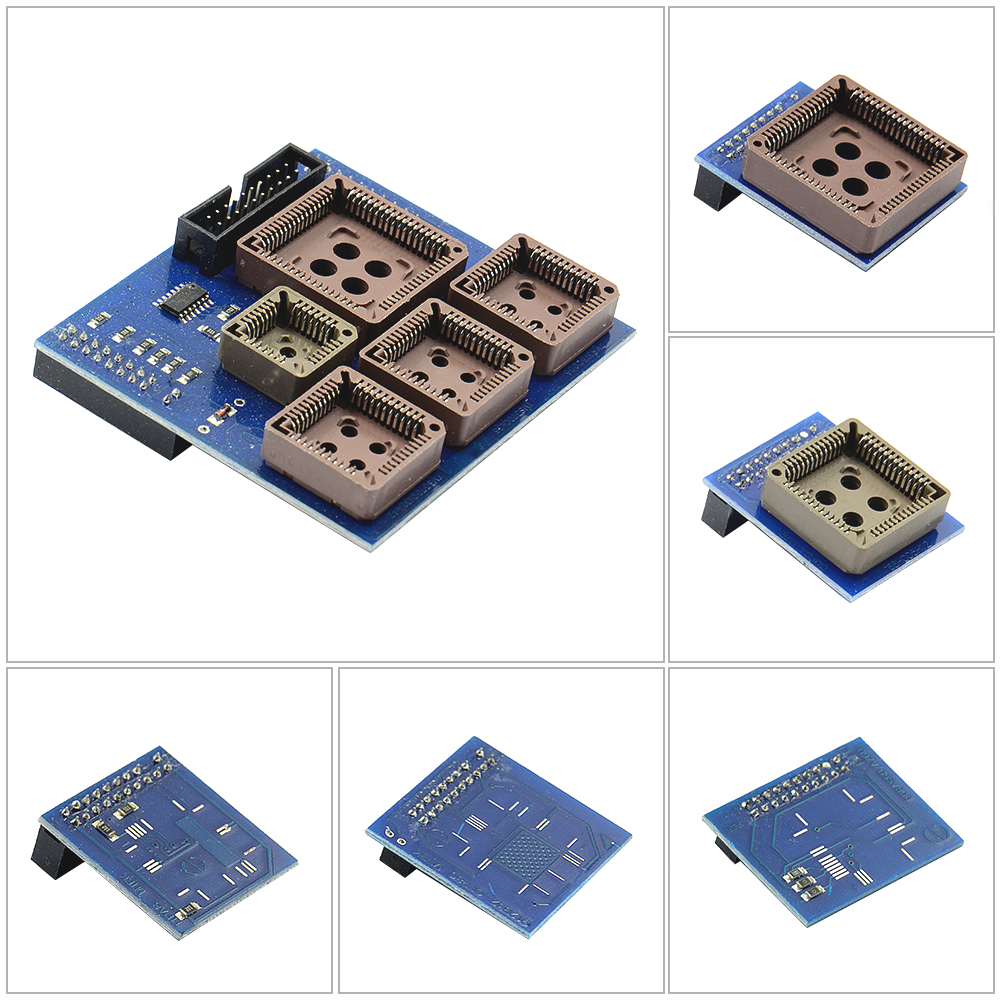

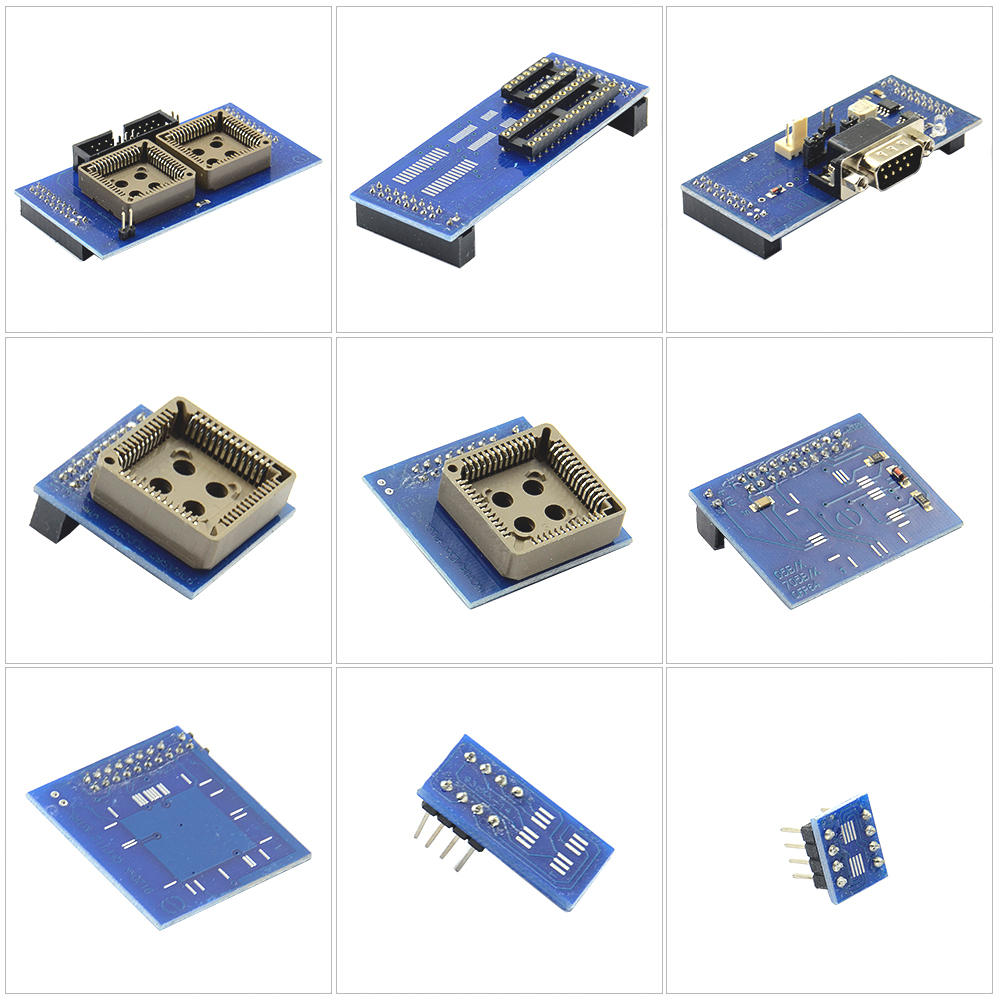

Packing List:
Orange5 Plus Programmer
USB cable
Power supply adapter
In-circuit wire (10 pcs)
Lead with clips SOIC8 & DIP8
Lead 11E9(20) with power
Lead for EWS3 mask 0D46J
Adapter SOIC8/DIP8 expert
Adapter SOIC8/DIP8 adapter
Adapter SOIC8_14_93Cxx adapter
Adapter SSOP8/DIP8
Adapter 05L28/05B
Adapter 908AS60/AZ60 QFP64
Adapter 68HC(7)05P3/E6
Adapter 05B/X_705B/X QFP64 V2
Adapter 11PA8/11E9 QFP64
Adapter 68HC05H12
Adapter 68HC11EA9
Adapter 908AS60
Adapter 9S12Dxx
Adapter 912Dxx
Adapter 9S12X
Adapter 912B32 QFP80
Adapter 68HC11F1
Adapter 68HC11L6
Adapter 68HC11KA4
Adapter TMS374C003A
Adapter MSP430F
Adapter 68HC11KA4 PLCC68
Adapter 908JL
Adapter PCF7941
Adapter 9S12XE
Software CD
Packing box
 |
