Description:



Autel MaxiLink ML529 is upgraded version of Autel AL519, with enhanced mode 6 and AutoVIN function, is all you will need to check engine faults on most 1996 and newer OBD2 compliant vehicles. The code reader can not only read the generic codes but also display the manufacturer specific codes as well as help you clear codes and display monitor and I/M readiness status.



Autel MaxiLink ML529 OBD2 Code Reader supports all 10 modes of OBD-II test for complete vehicle diagnostics. The easy-to-use tool features a TFT color display and built-in speaker for visual and audible message cues and the patented One-Click I/M Readiness Key for quick State Emissions.



Supported Languages: English, Spanish, French



Software Update: free update online for lifetime



Highlights:

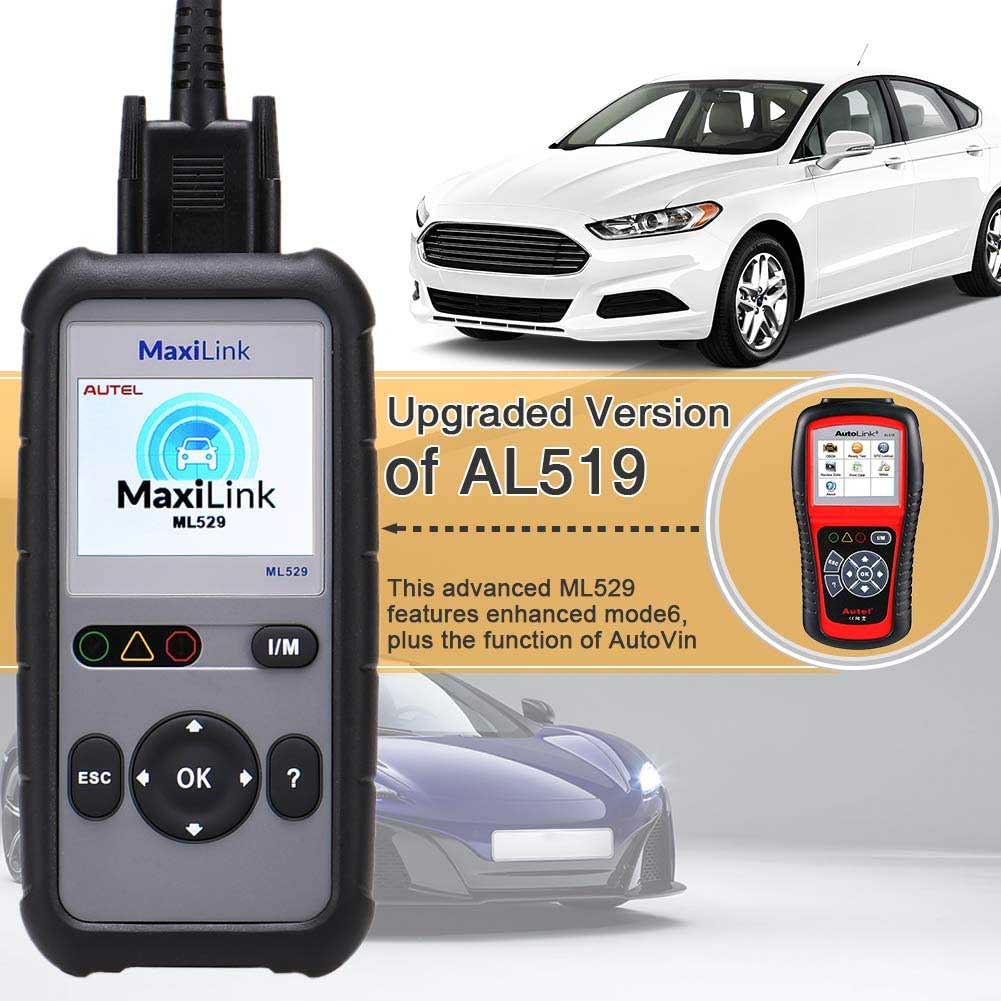

1. Updated version of Autel Code Reader AL519, Read OBD2 Codes & Enhanced Codes via AutoVIN function.



2. Enhanced Mode6: Accessing the results of On-Board Diagnostic Monitoring Tests for Specific Components / Systems

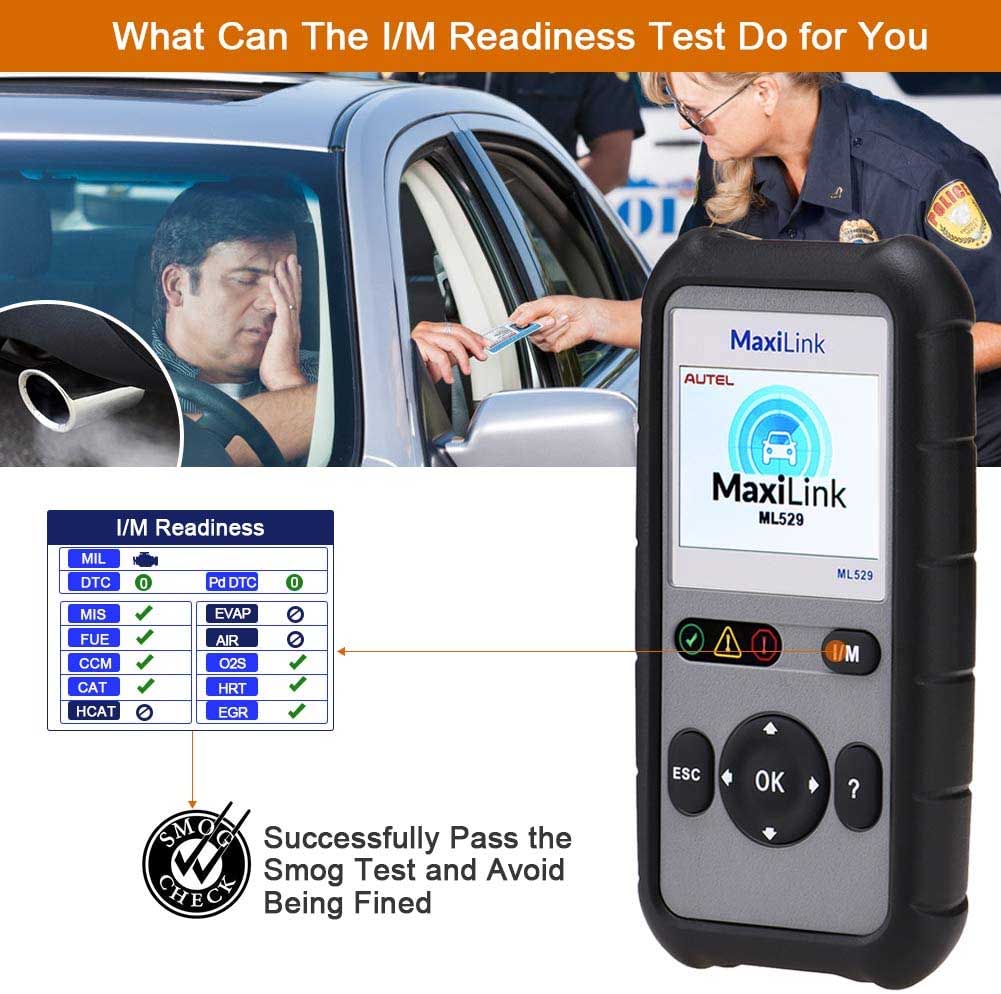

3. Emission Checking: One-Click I/M Readiness Status Checking button to check the vehicle is ready for the Emission Test.



4. Accurately Read / Erase Engine Error Codes and View Live Data and Display the Monitored Data Like I/M Readiness, O2 Sensor Test & Freeze Frame Data.



Advantages:



1. Enhanced Mode 6: Accessing the results of on-board diagnostic monitoring tests for specific components/systems, and you can easily determine if the components or the monitors are fine by comparing the monitors' current value, minimum and maximum values.



2. Accurate Testing: Code reader ML529 can accurately read and erase engine error codes and view live data on most 1996 and newer OBD-II protocols vehicles and efficiently display the monitored data like I/M Readiness, O2 Sensor Test, and Freeze Frame Data.



3. Useful Data Playback: Data Playback allows viewing and printing data from last recorded test, and you can connect the tool to a Windows-based PC with supplied USB cable to print the recorded DTC data when data-sharing is needed.



4. Built-In DTC Lookup: To shorten your diagnostic time and bring you great user experience, this code reader is equipped with a built-in DTC library that guides you directly to the faulty components via showing the definitions of the codes on the 2.8-in LCD screen.



5. Upgraded Version of AL519: Highly recommended by Autel Mechanic! Reads enhanced PCM codes in Powertrain System from original manufacture of Ford / GM / Chrysler with more accuracy. One touch of AutoVIN to obtain Vehicle Identification Number automatically, so you could start to diagnostic your Vehicle/ Light Truck in a high-efficient way to pass smog test. One Click I/M Readiness Hotkey on Emission status.



Features:



1. AutoVIN function for quickly identifying manufacturer specific codes

2. Reads enhanced codes in Powertrain System for Ford, GM, Chrysler

3. Compatible with domestic, Asian and European vehicles, 1996 and newer.

4. Retrieves generic (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1) and pending codes

5. Enhanced OBD-II Mode 6

6. Retrieves vehicle identification information (VIN, CALID and CVN)

7. Turns off Check Engine Light, clears codes and resets monitors

8. Views freeze frame data

9. Displays monitor and I/M readiness (emissions) status

10. Reads live PCM data stream

11. Displays live O2 sensor test data

12. Graphs data

13. Reads, stores and plays back live sensor data

14. Troubleshooter code tips aid technician in efficient vehicle diagnostics and vehicle repair

15. Patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification

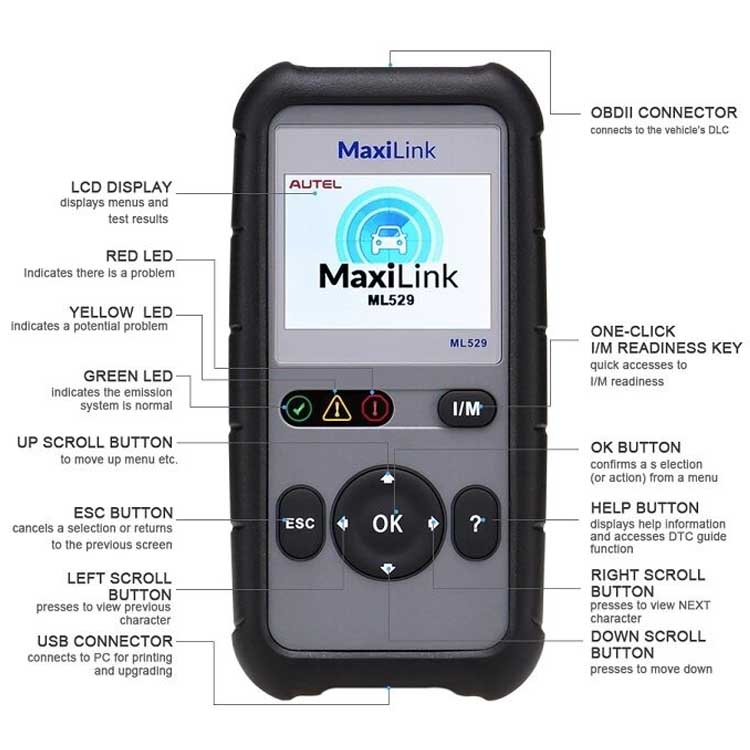

16. Bright color-coded LEDs and built-in speaker provide both visual and audible tone for readiness verification

17. Multilingual (English, Spanish, French) menu and DTC definitions

19. Prints data via Windows based PC



Extensive Range of Car & OBD2 Protocols Coverage:



Autel MaxiLink ML529 OBD-II / EOBD Scanner is specially designed to work with all OBD-II compliant vehicles, including those equipped with Control Area Network (CAN) protocols. The EPA requires all domestic, Asian and European vehicles, 1996 and newer vehicles(including light trucks), sold in the United States must be OBD-II compliant. Included but not limited J1859-41.6 / J1850-10.4 / ISO9141 / KWP2000(ISO 14230) / CAN(Control Area Network ISO 11898).



Functions:

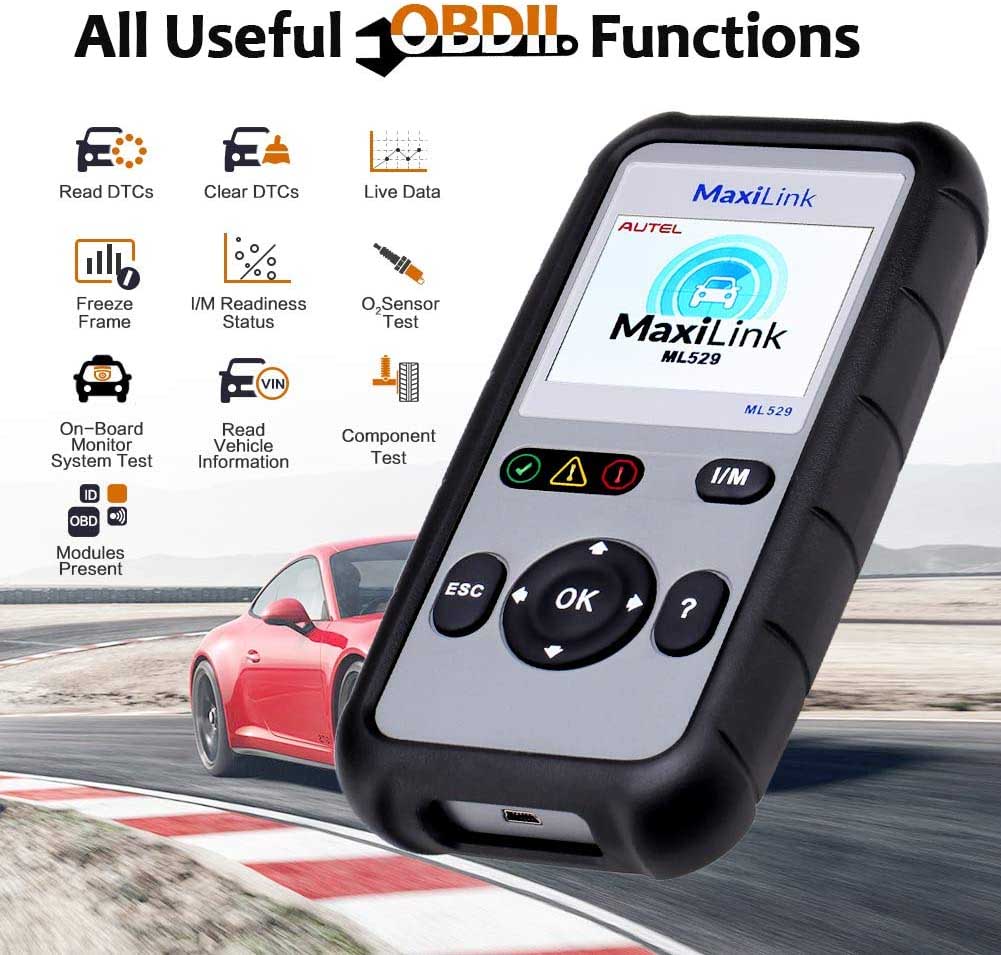

1. Full OBD-II Functions



Code reader Autel ML529 is a useful tool for enhanced OBD-II diagnosis on most 1996 and newer vehicles that are compatible with OBD-II protocols. The code reader support full 10 test modes of OBD-II diagnosis and you can use it to:



1). Read and erase engine error codes that stored in ECUs and turn off the check engine light after servicing and repairing; the codes include generic (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1) and pending codes;



2). View live data to analyze the components running status and retrieve freeze frame data that records the engine components’ running status when a fault code detected;



3). Check I/M readiness to identify if the vehicle perfectly finishes the self-test and will pass the State Emission Test;



4). Check On-board Monitor Test that accesses the results of on-board diagnostic monitoring tests for specific components/systems to determine if the components or the monitors are fine;



5). Analyze O2 Sensor Test result to know the Oxygen content in the exhaust and make adjustment for the best air-fuel ratio;



6). Retrieve vehicle information (VIN, CID and CVN) for accurate diagnosis.



2. Other Features:

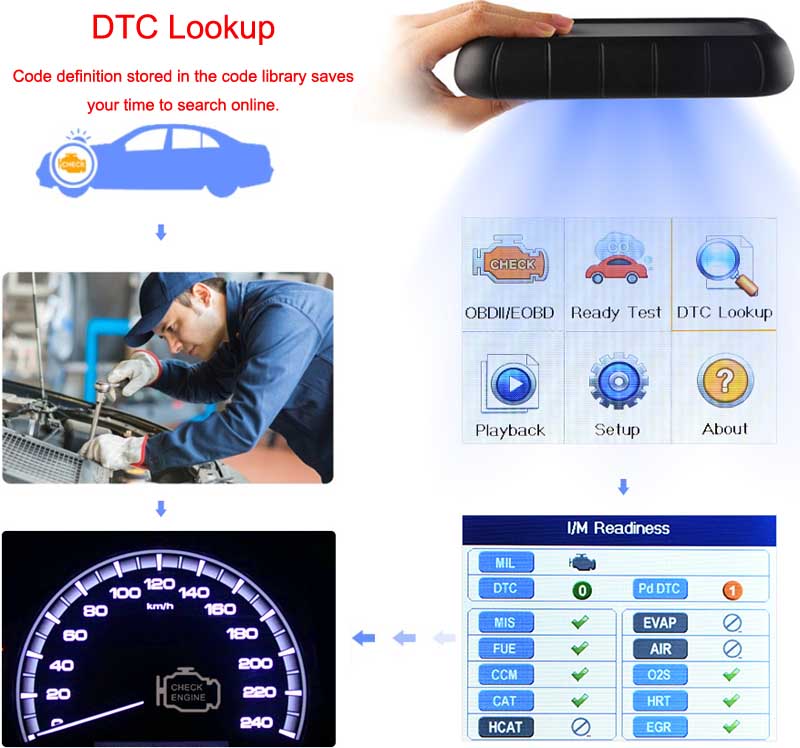

1). Built-in DTC Lookup: The code reader ML529 is designed with built-in DTC library that allows you to check the definitions of engine error codes and determine the source of the problem.

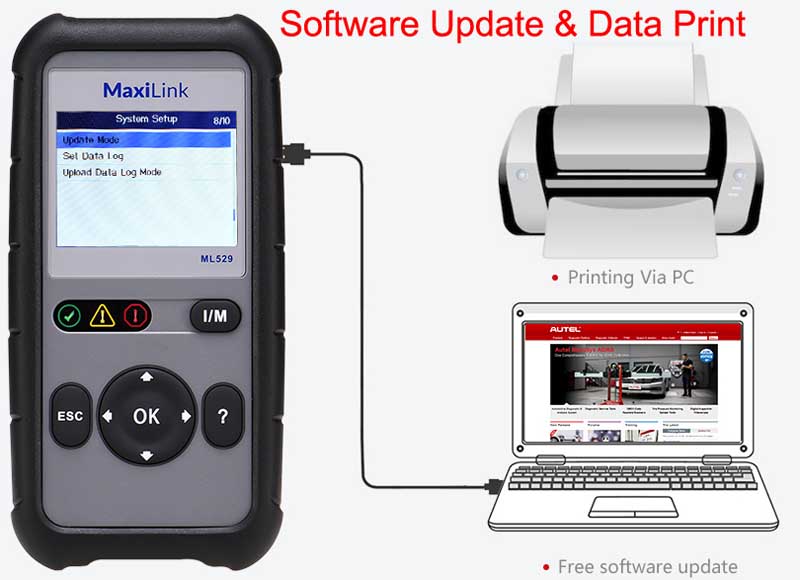

 2). Data Printing: The code reader has the function of Data Playback that allows viewing and printing of data from last recorded test. Download and install the Maxi PC Suite on your Window-based PC, and you can print the stored data via Autel Printer software that is concluded in Maxi PC Suite.



 3). Internet Update: Simply connect the tool to your PC via supplied USB cable, and you are able to update the tool to get a wider vehicle or component coverage and the latest bug fixes.

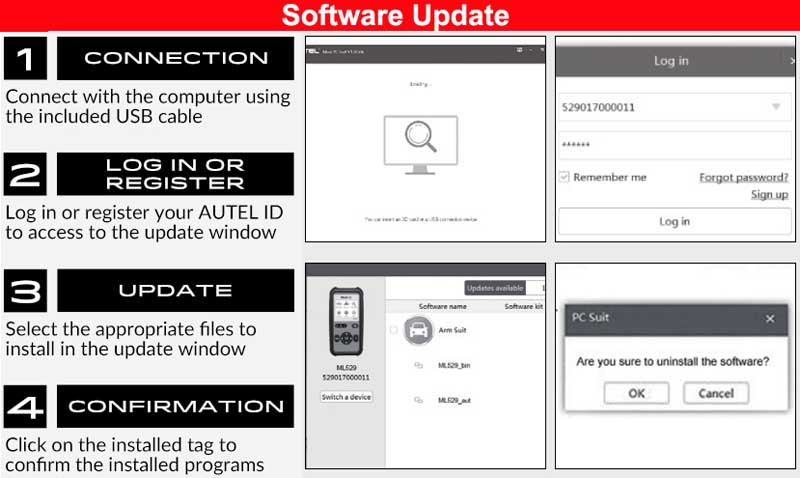

Update Procedure:



(Generally, there are 2 ways to update programs: [Batch Update] / [Single Update])



Connect the tool to a Mac-based or Windows-based computer using the USB cable. Follow the update procedure to finish updating.



1. Download "the Maxi PC Suit" from www.autel.com > Support & Updates > Firmware & Downloads > Update Client, and install on your computer.

2. Run the Maxi PC Suite. Wait for the Log In window to display.

3. Connect the scan tool to your computer with the provided USB cable.

4. From System Setup screen in the tool, select Update Mode, and press OK.

5. Enter your Autel ID and password and wait for the Update window to display. Or click Sign Up to create an Autel ID to continue.

6. Select tool and serial number, click OK to continue.

7. In the Update window, select the appropriate files to install.

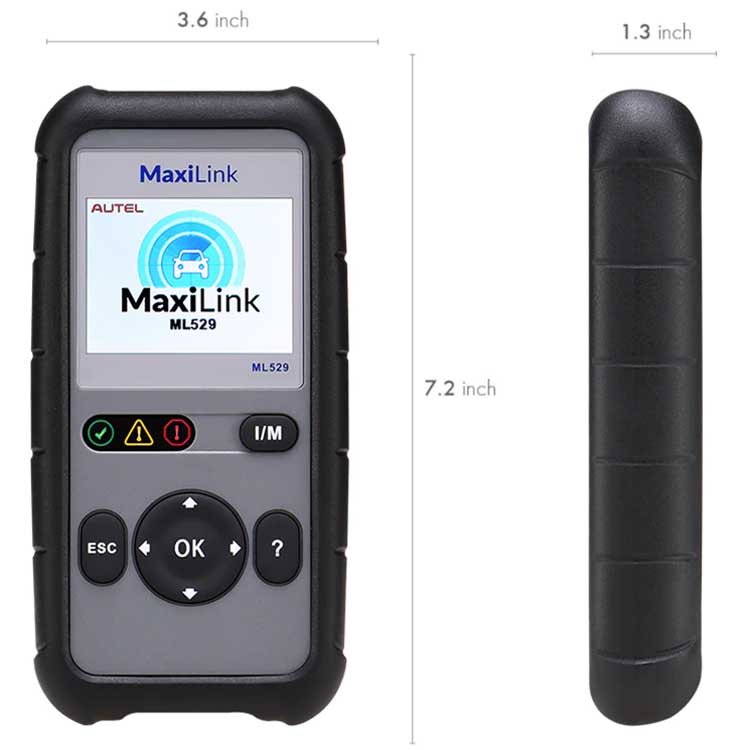

Specifications:



Display: 2.8 inch 320*240 dpi LCD

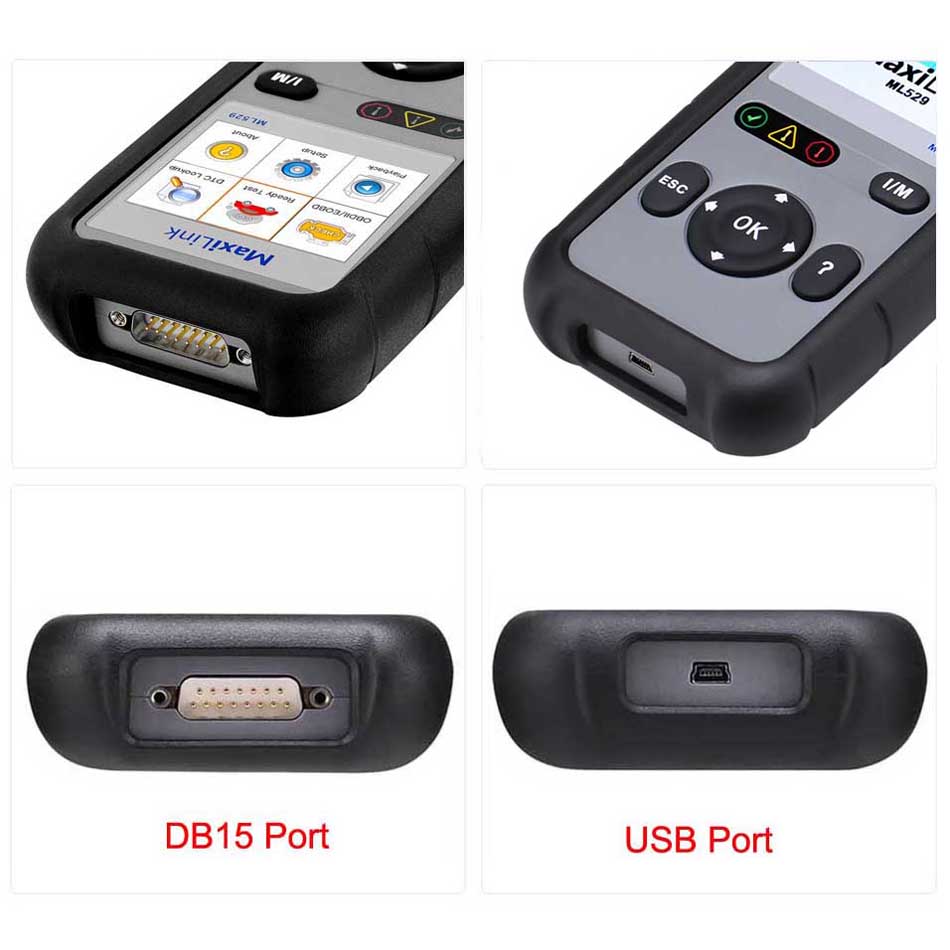

Connectivity: USB mini 2.0; DB15

Operating Temperature: 0 to 60 degree centigrade

Storage Temperature: -20 to 70 degree centigrade

External Power: 8.0 to 18.0V power provided via vehicle battery

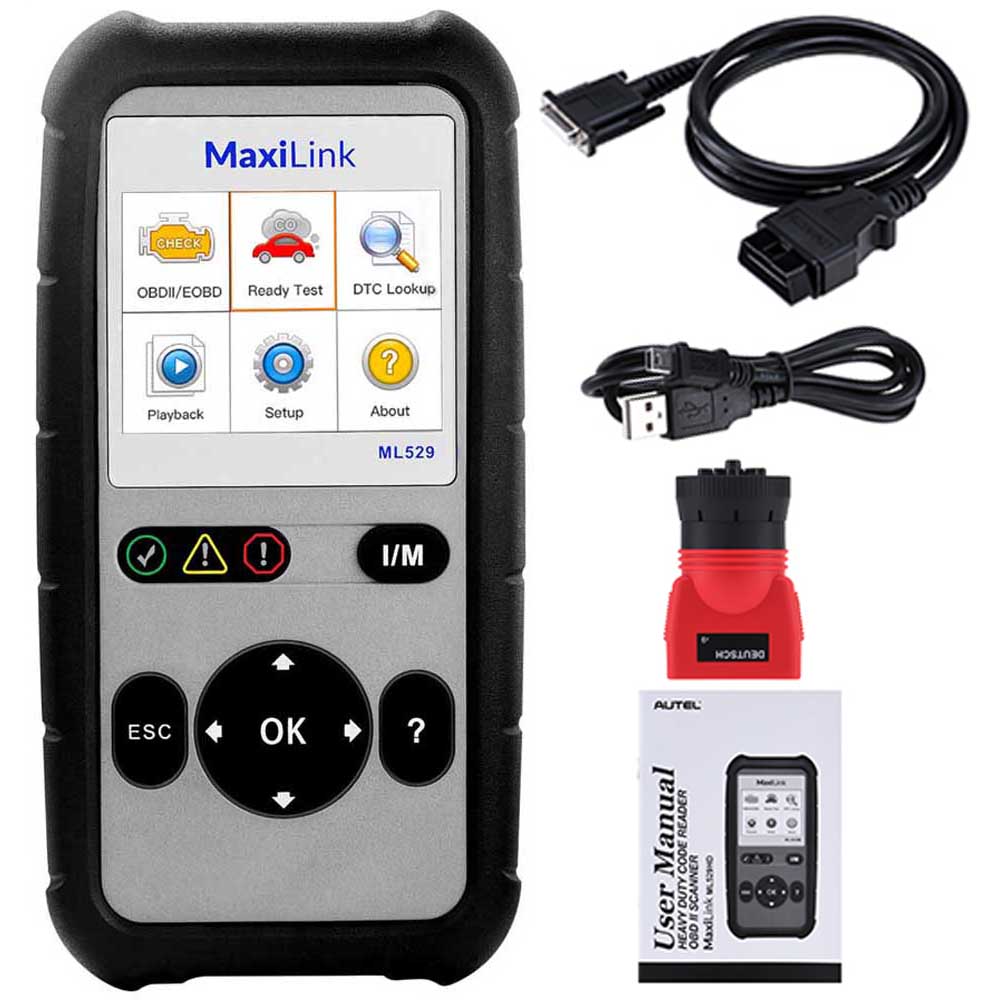

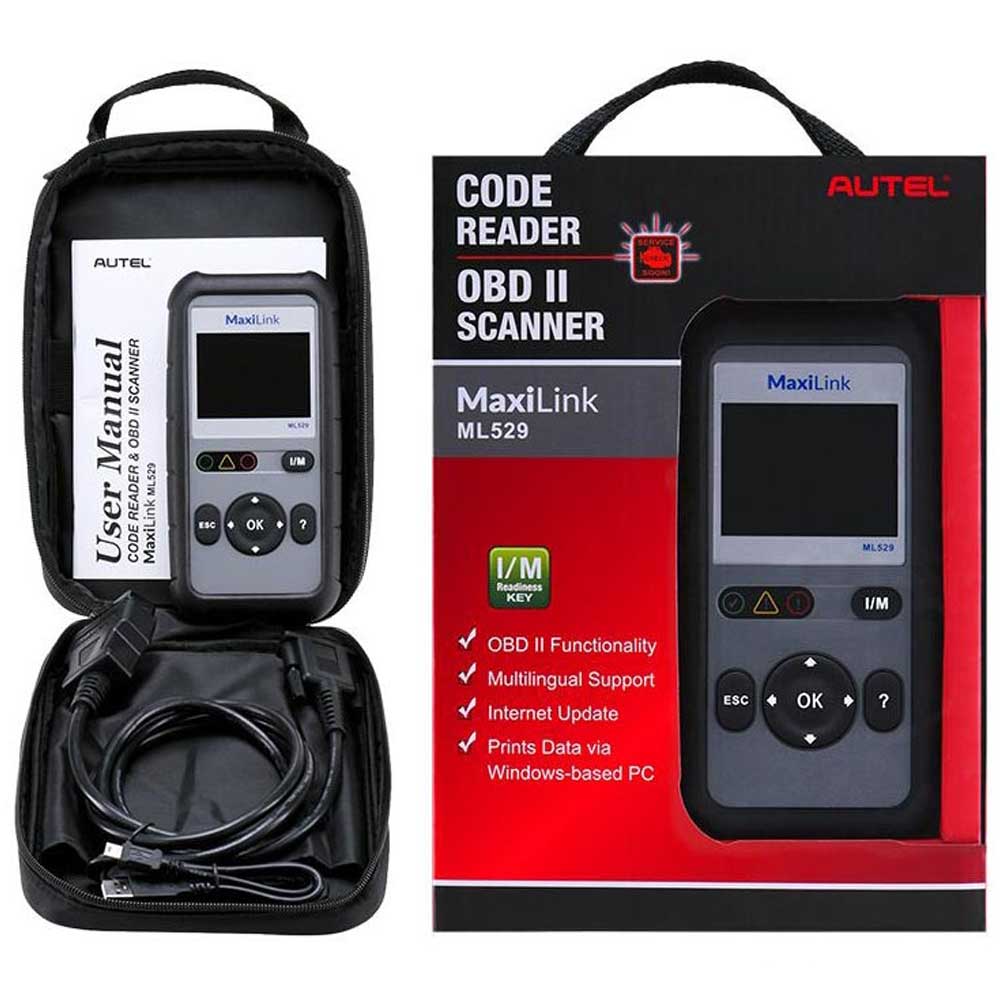

Packing List:



Autel MaxiLink ML529 OBD Scanner

OBD-II Cable

USB Cable

Deutsch-9 Adapter

User Manual

Carrying Pouch

Packing Box
