Name: FOXWELL NT301 Plus CAN OBD-II / EOBD Code Reader and 12V Battery Tester
Description:

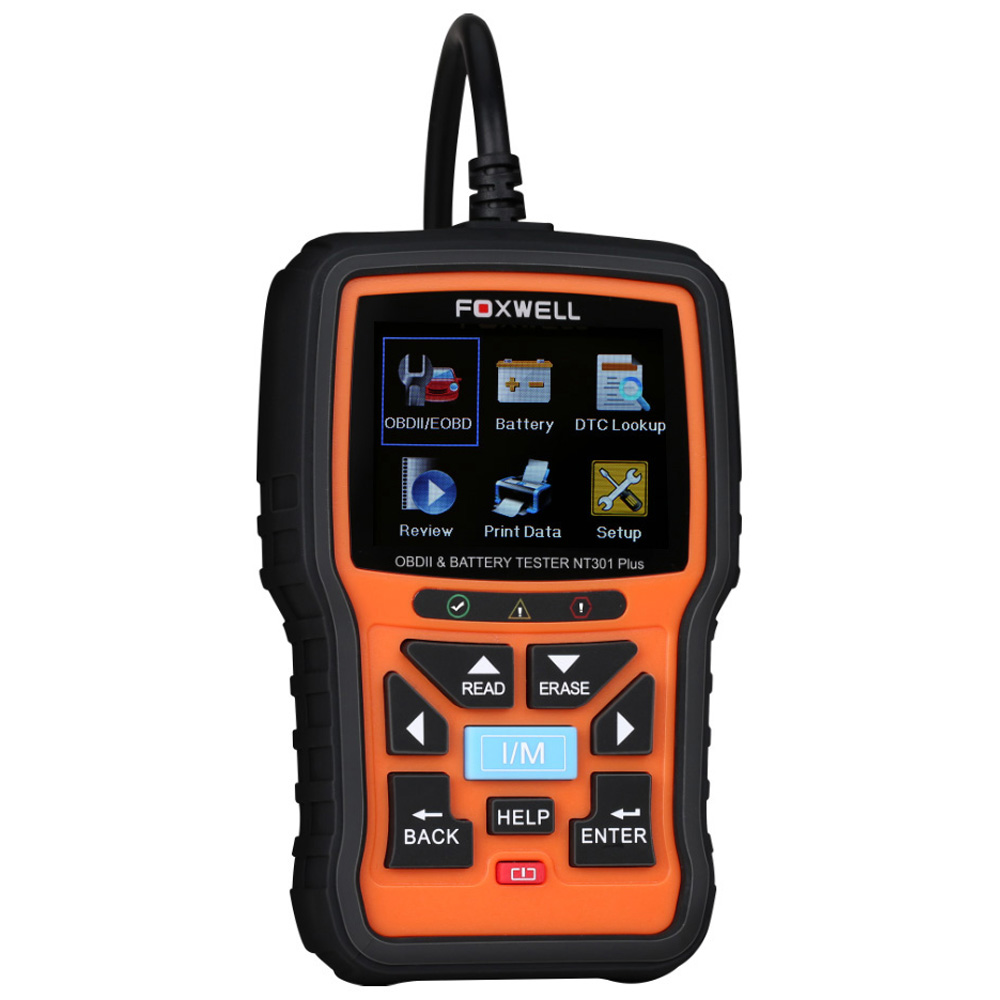

FOXWELL NT301 Plus is a CAN OBD2 / EOBD Code Reader and 12V Battery Tester.
It provides easiest and cost-effective solution for OBD faults and battery status check. In addition, its 2.8 inch TFT color screen and hot keys for I/M readiness test, and reading/clearing DTCs streamline automotive service and help ensure rapid, accurate diagnosis and timely repair.

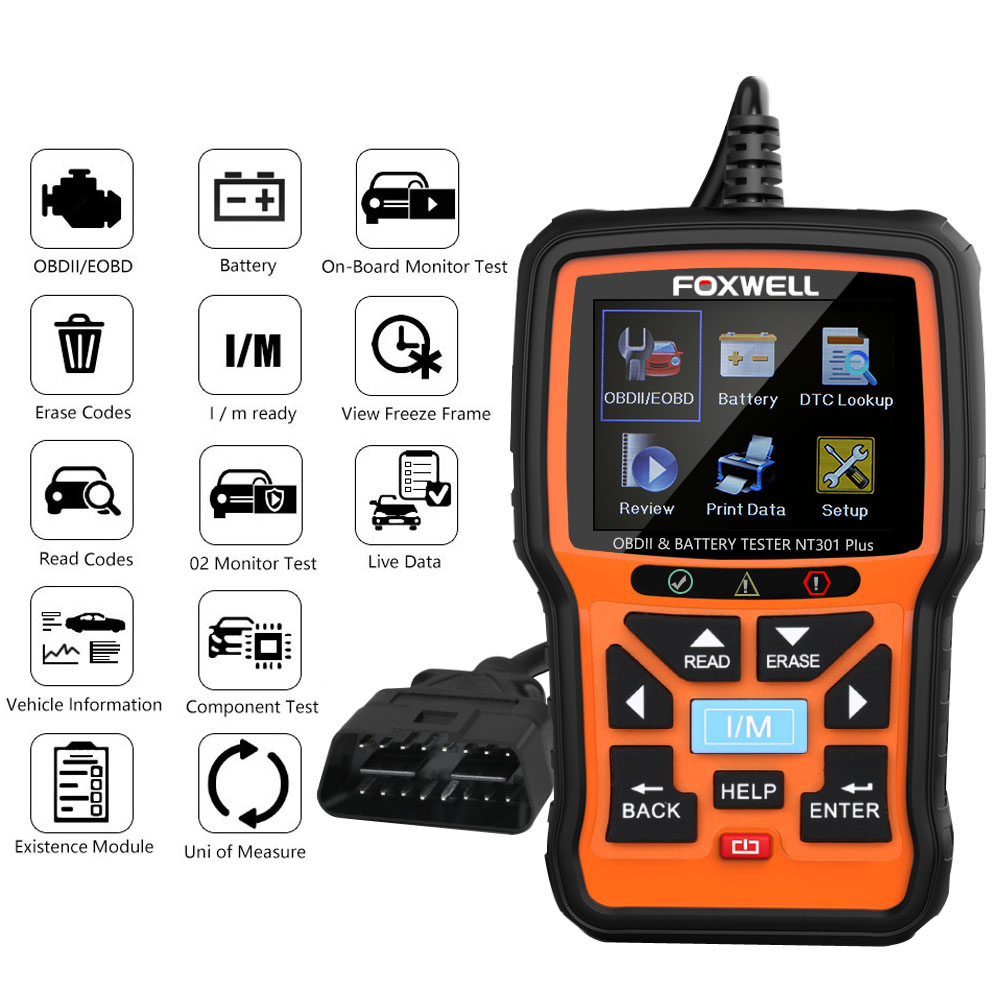

Highlights:
1. Works with all OBD-II / EOBD compliant cars, light-duty trucks, SUVs, minivans and hybrid sold worldwide.

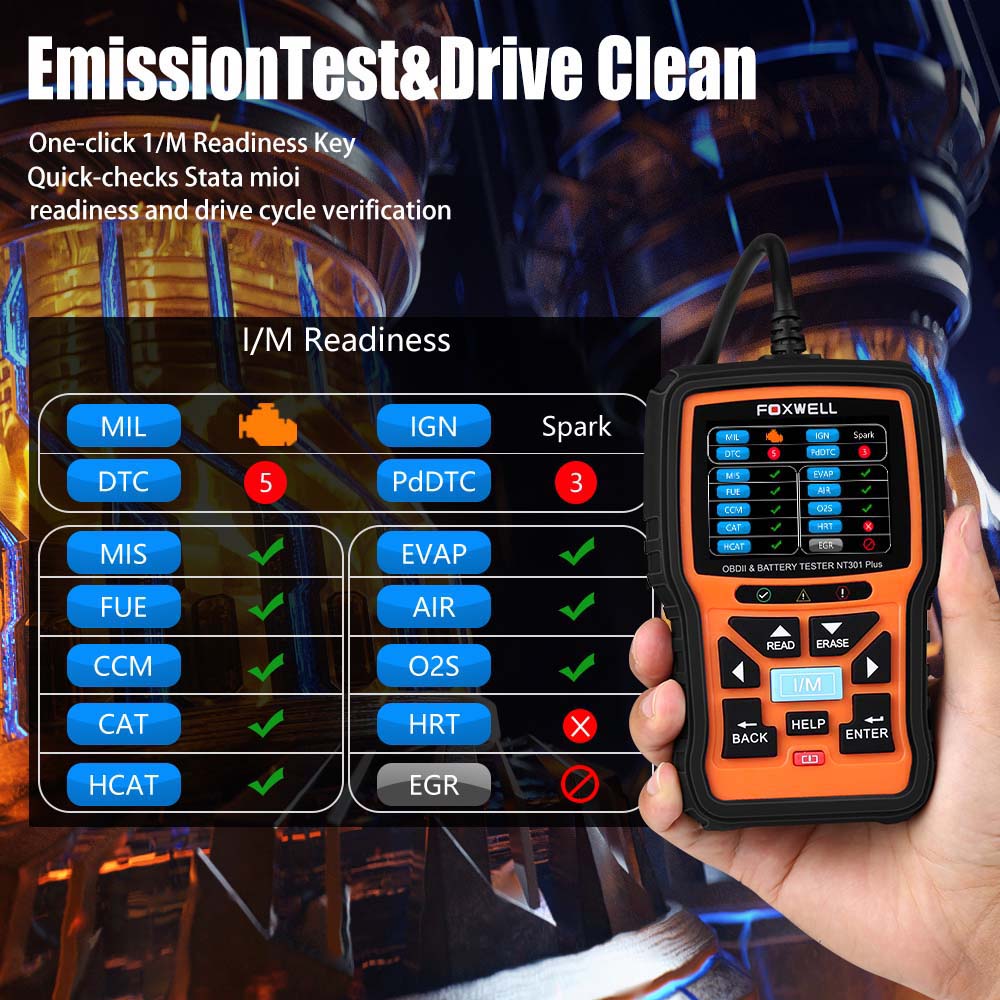

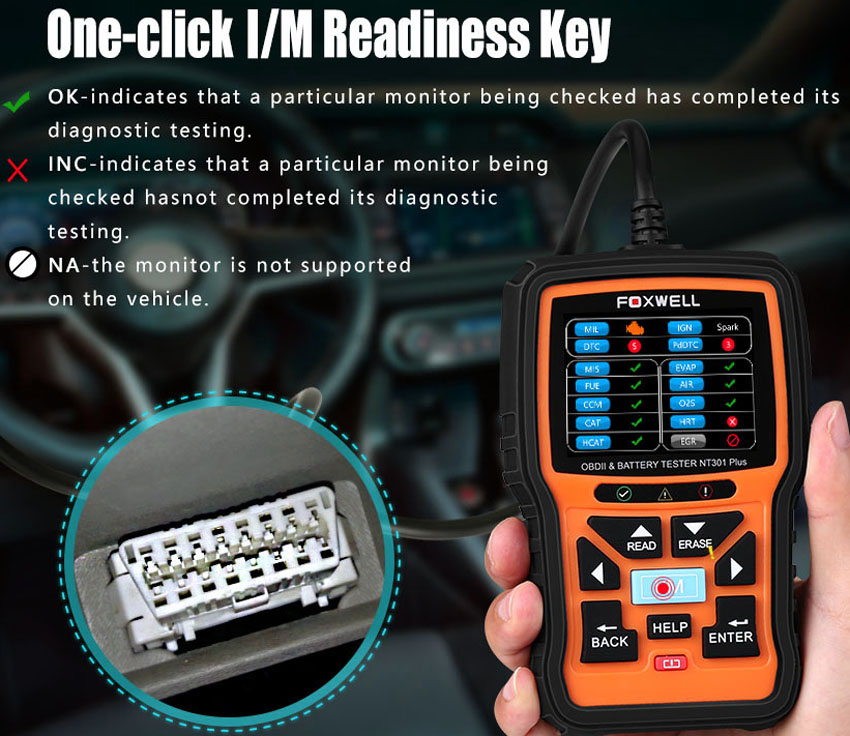

2. Features the unique patented One-Click I/M Readiness Key for quick State Emissions readiness.
3. Red-Yellow-Green LEDs and built-in speaker provide both visual and audible tone for readiness verification.

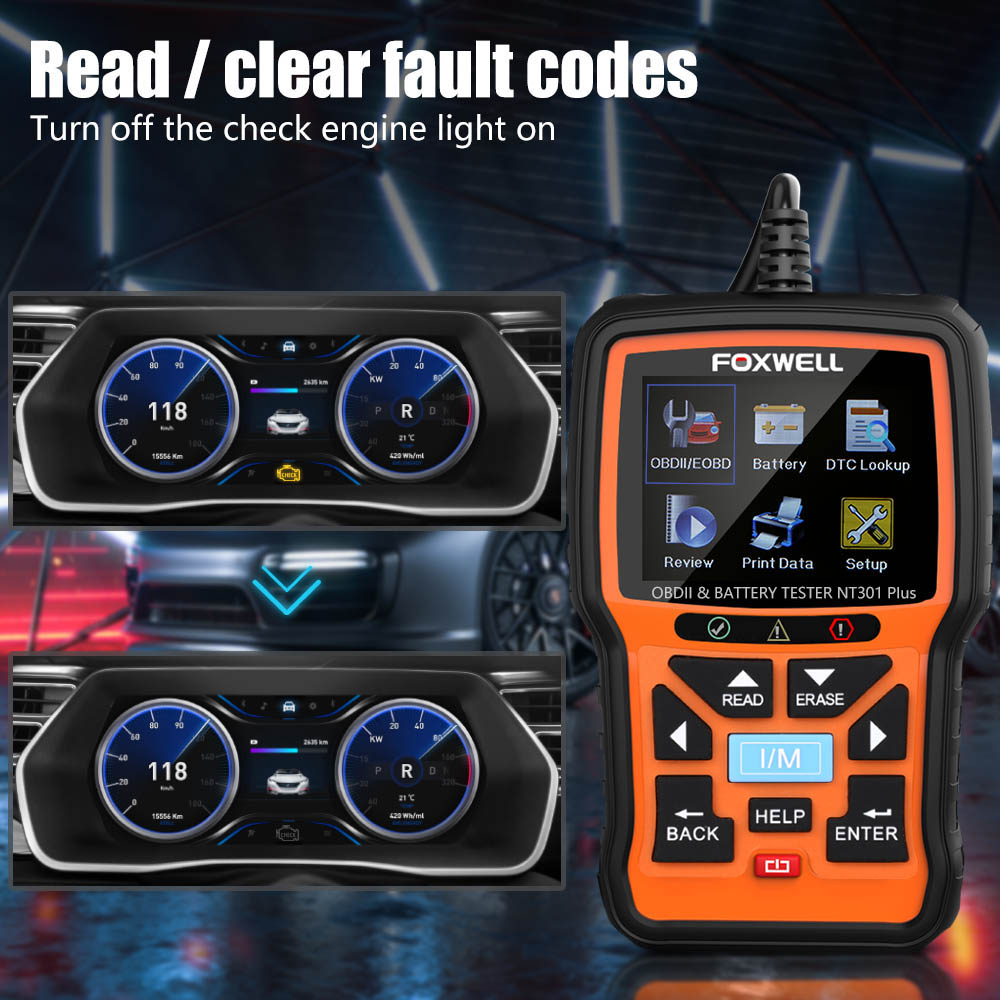

4. Turns off Check Engine Light (MIL), clears codes and resets monitors.
5. Reads live O2 sensor test data, freeze frame data, on-board monitor test data.

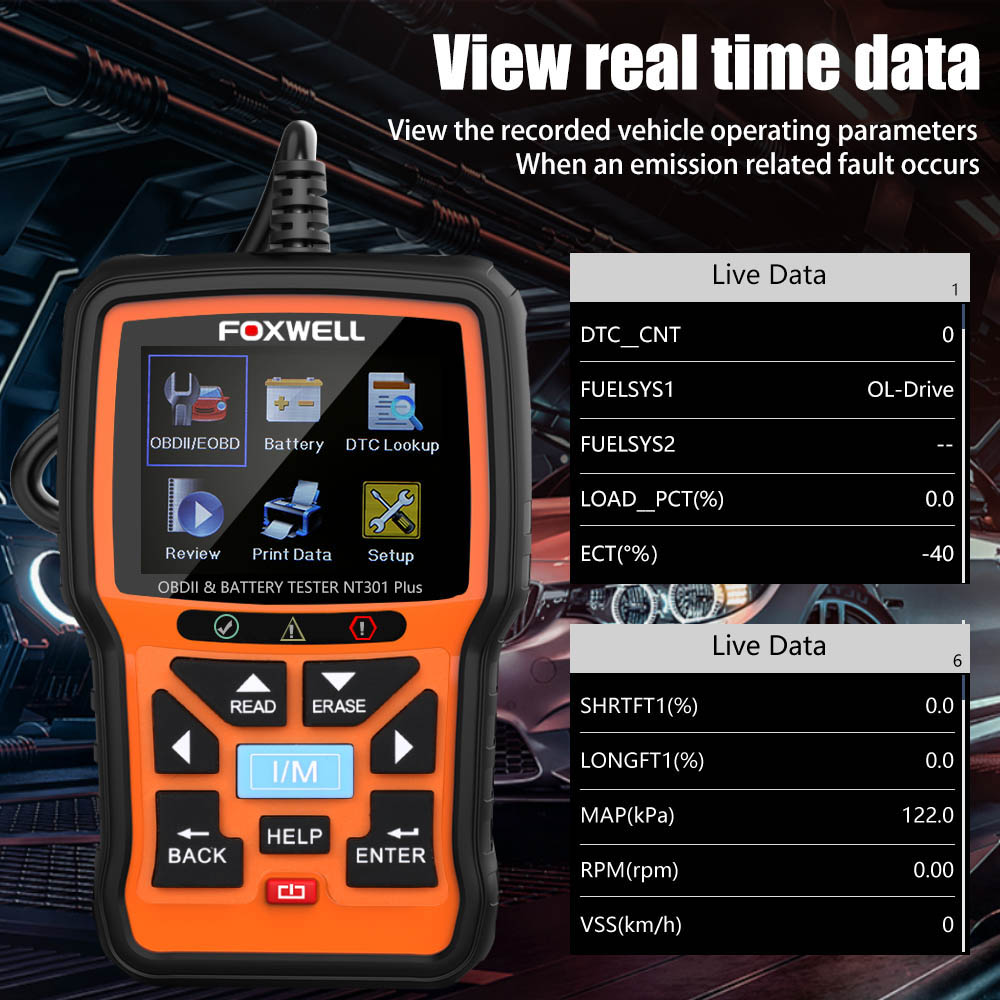

6. Shows live vehicle sensors data in text and graph formats.
7. Retrieves vehicle information (VIN, CID and CVN).
8. Multilingual menu options and code definitions

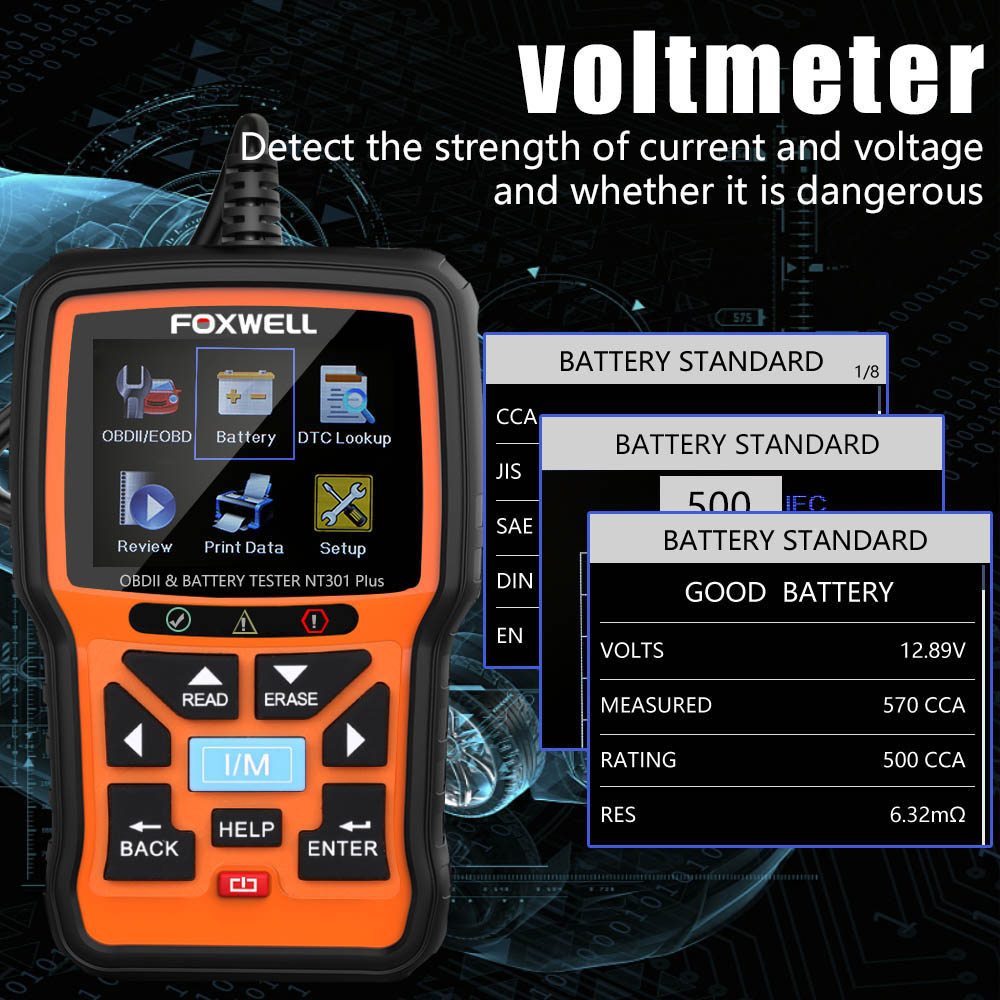

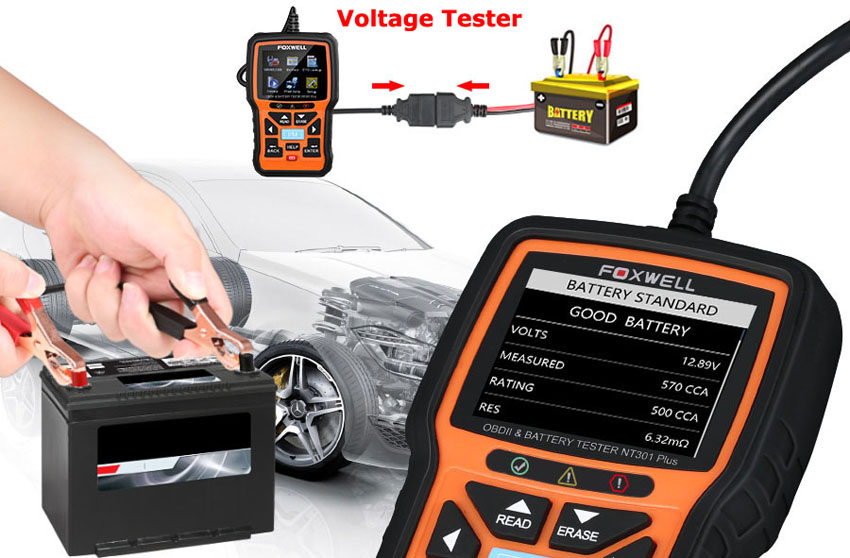

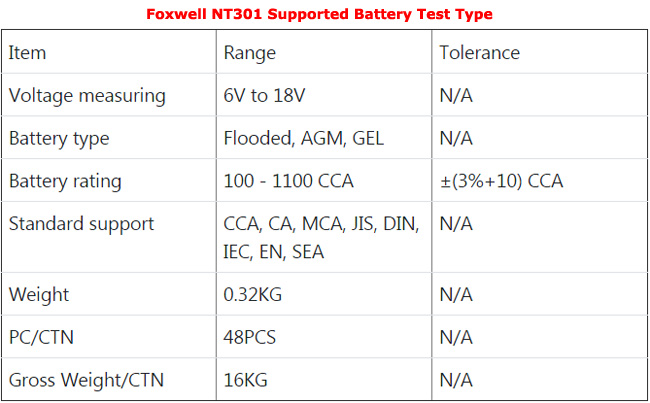

9. Provides quick and accurate testing of most types of 12V batteries, including regular flooded, AGM flat plate, AGM spiral and gel.
10. Tests batteries rated from 100 to 1100CCA.
11. Tests multiple rating systems - CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE.
11. Quick and accurate test results display in just 3 seconds.

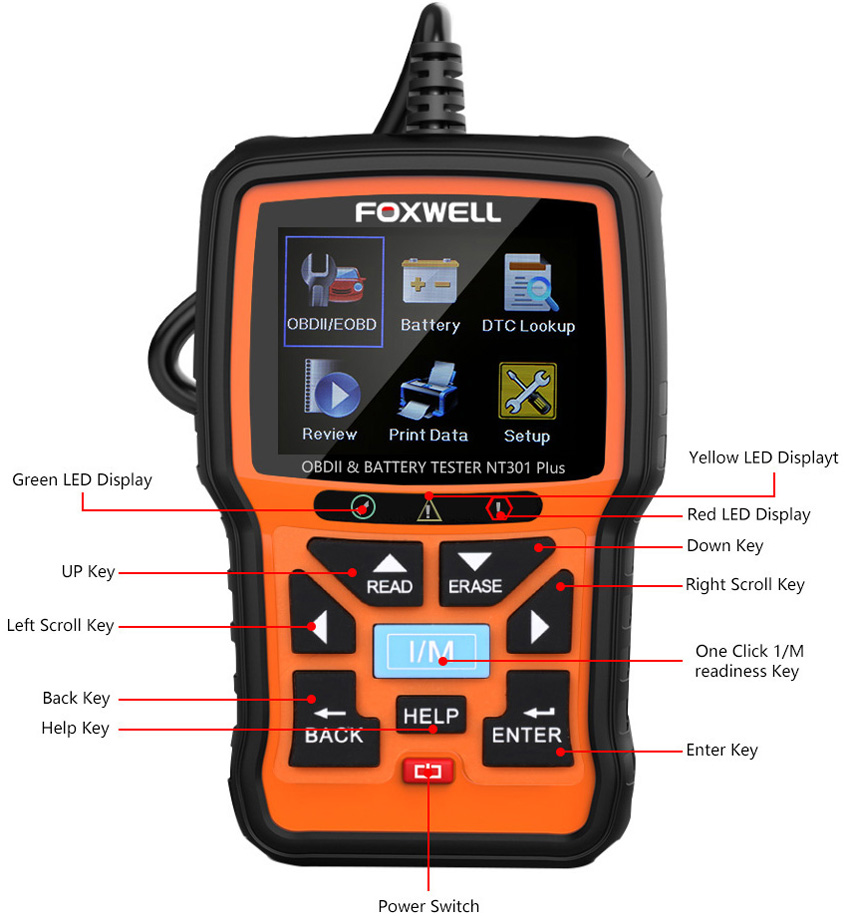

12. Extremely easy to use with clearly arranged keypad, menu-driven navigation, and hotkeys.

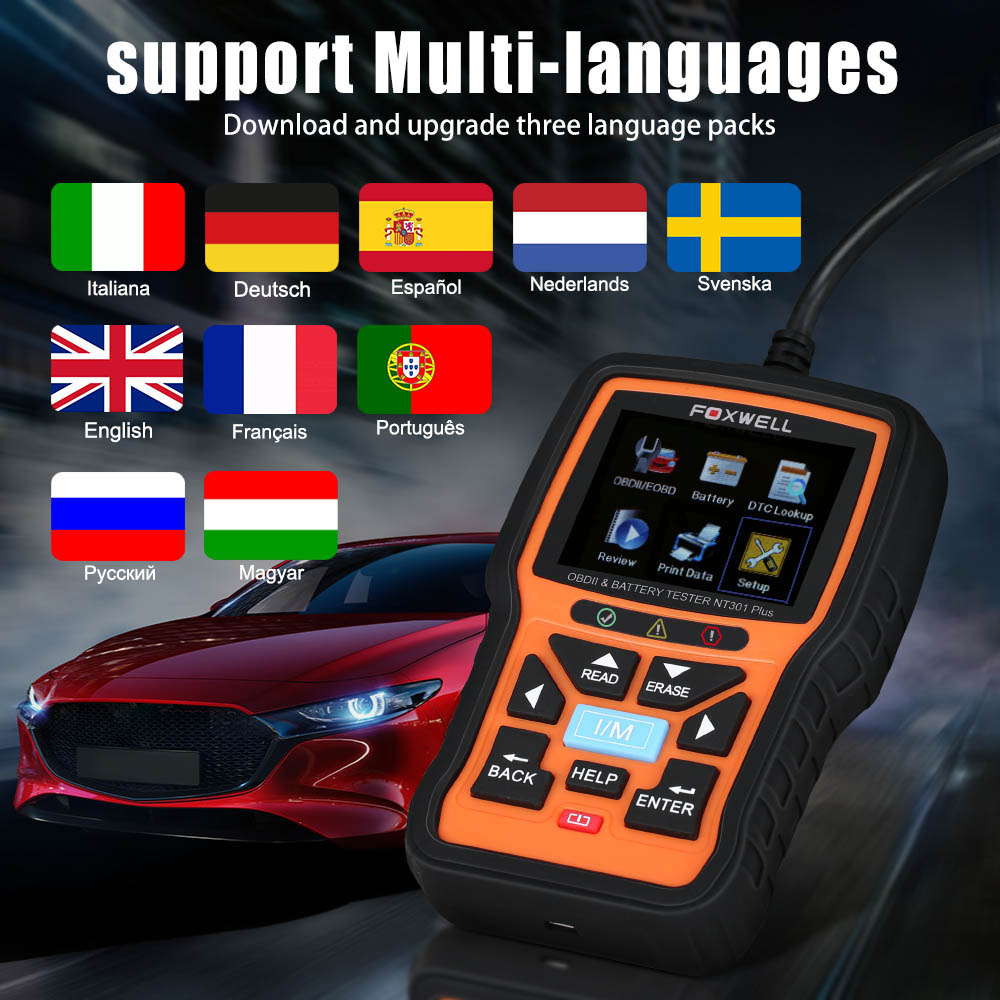

Supported Languages:
English, French, German, Spanish, Portuguese, Italian, Russian, Polish, Japanese, Korean, Chinese

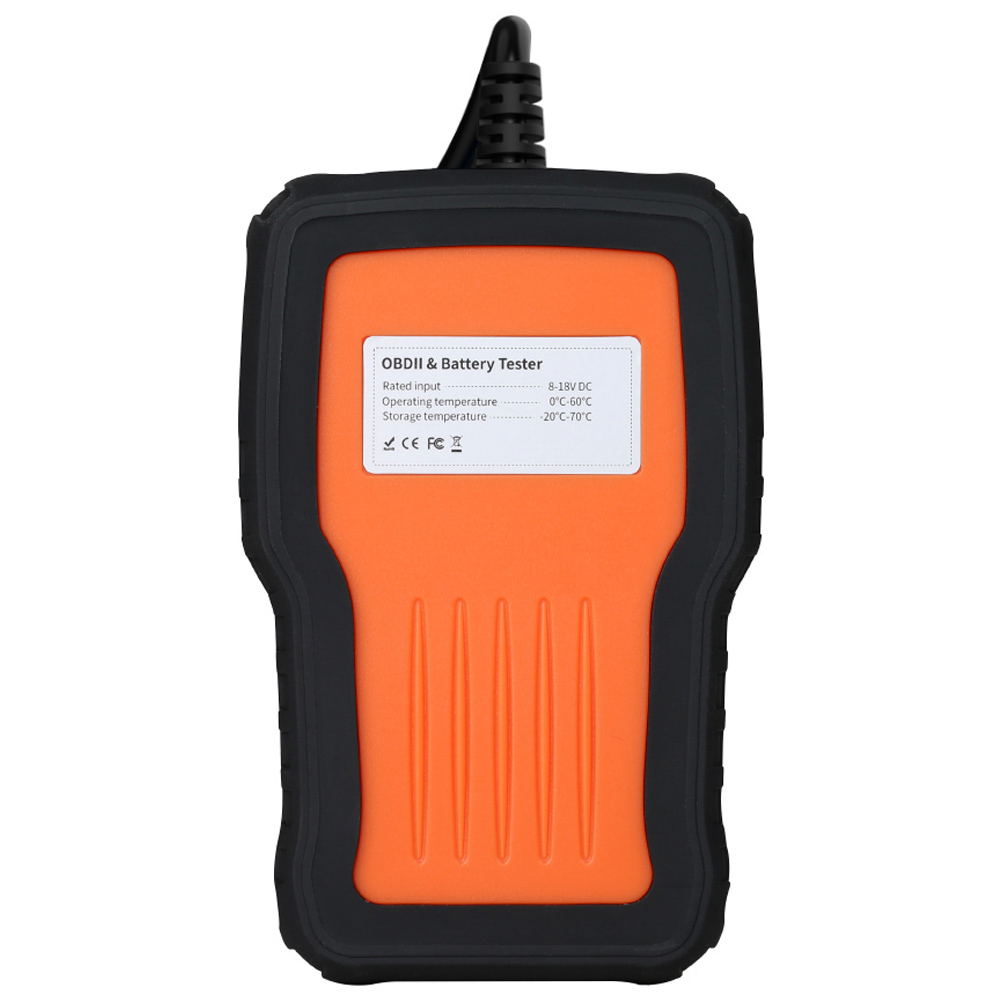

Specifications:
Display: 2.8” TFT color screen
Operating Temperature: 0 to 60 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Power: 8V to 18V provided via vehicle
Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), CAN (Control Area Network) ISO 11898

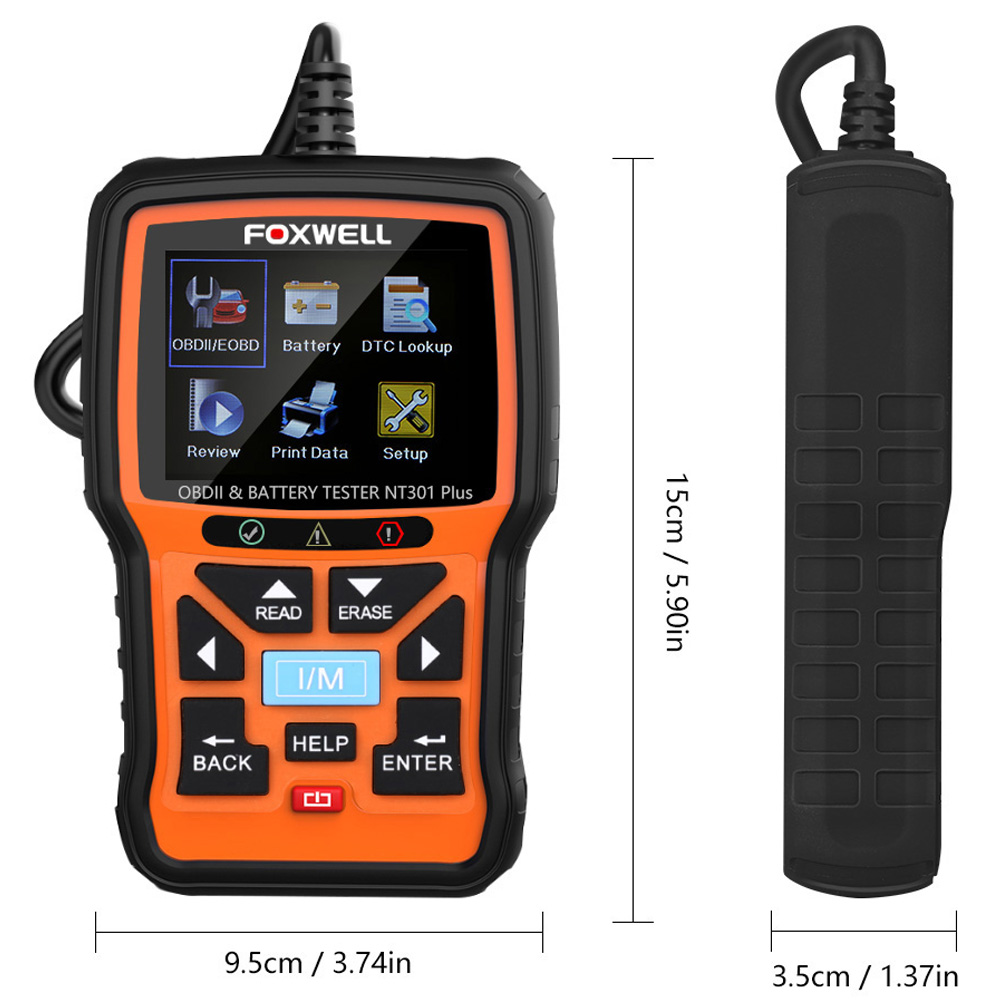

Dimensions: 145*94*32mm
Weight: 0.6Kg

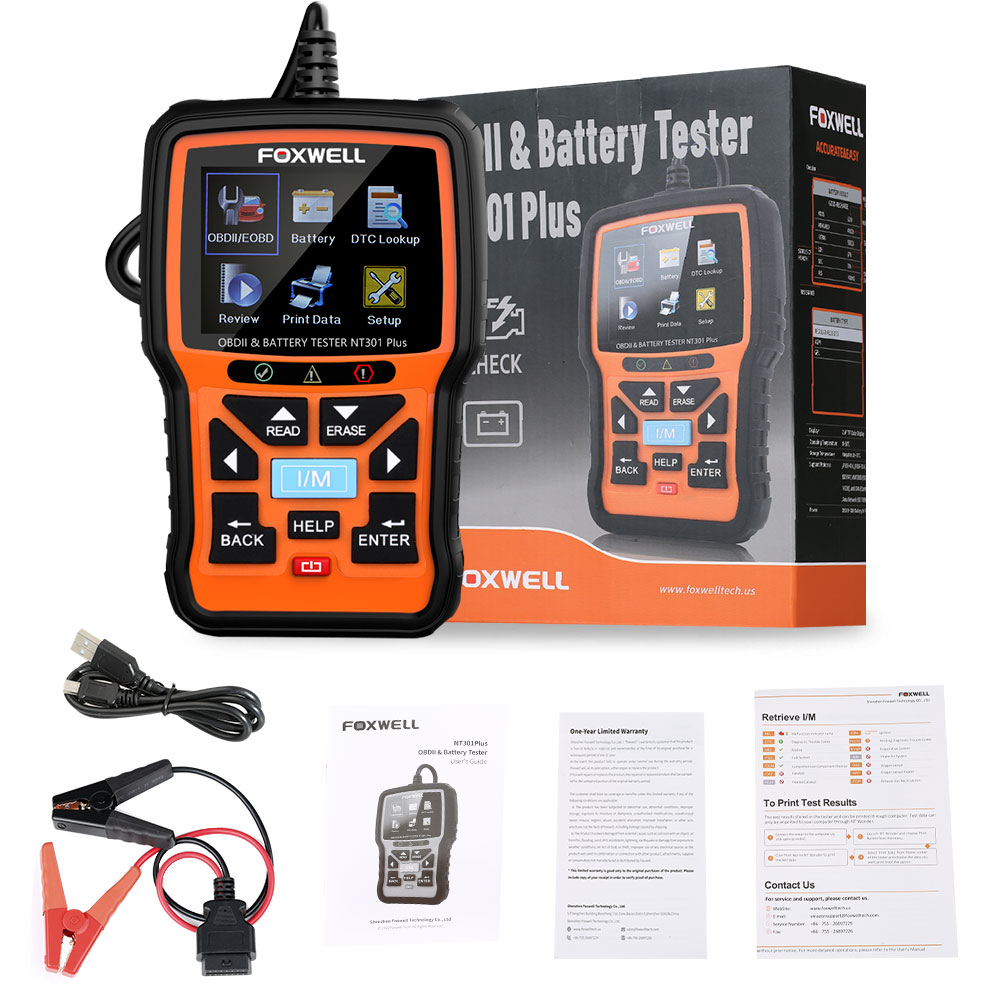

Packing List:
FOXWELL NT301Plus with OBD2 Cable
USB Cable
Battery Test Clips
Quick Start Guide
Warranty Card
|
