Name: Audi J518 ELV Module Emulator with Programming Cable
Description:

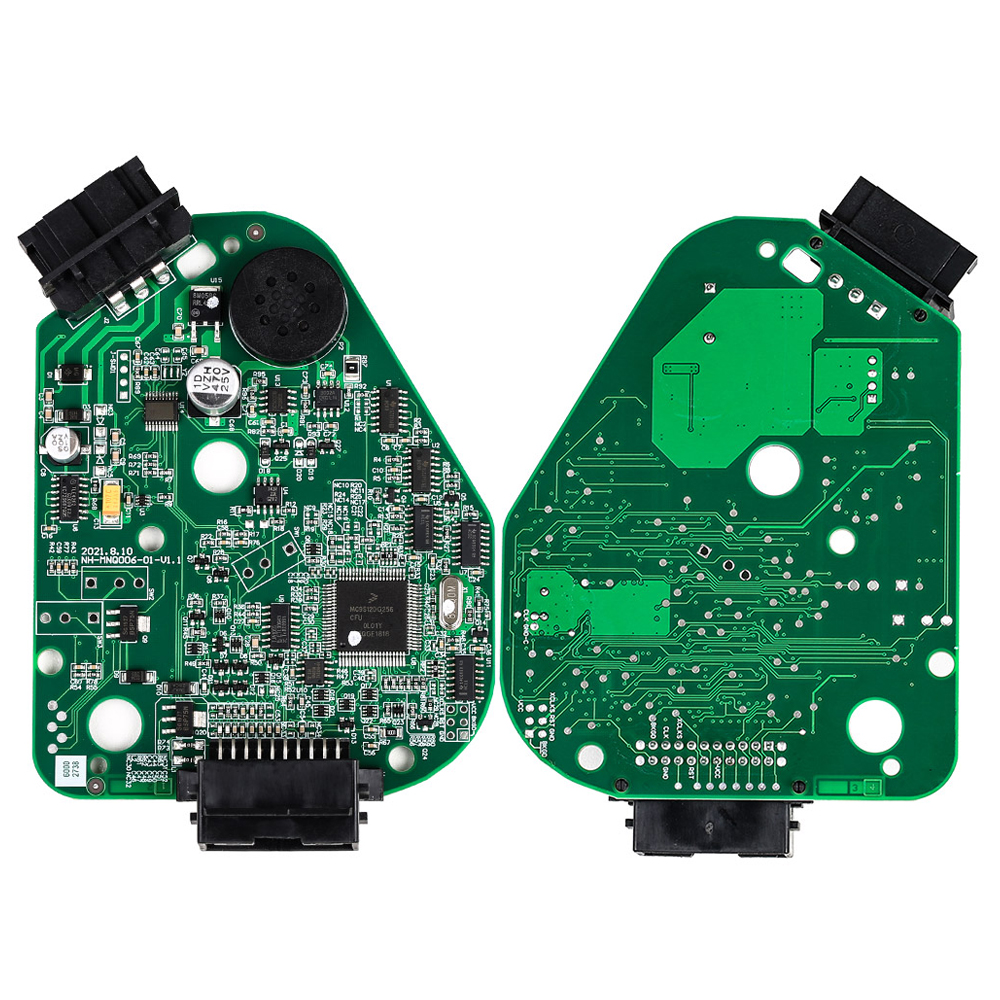

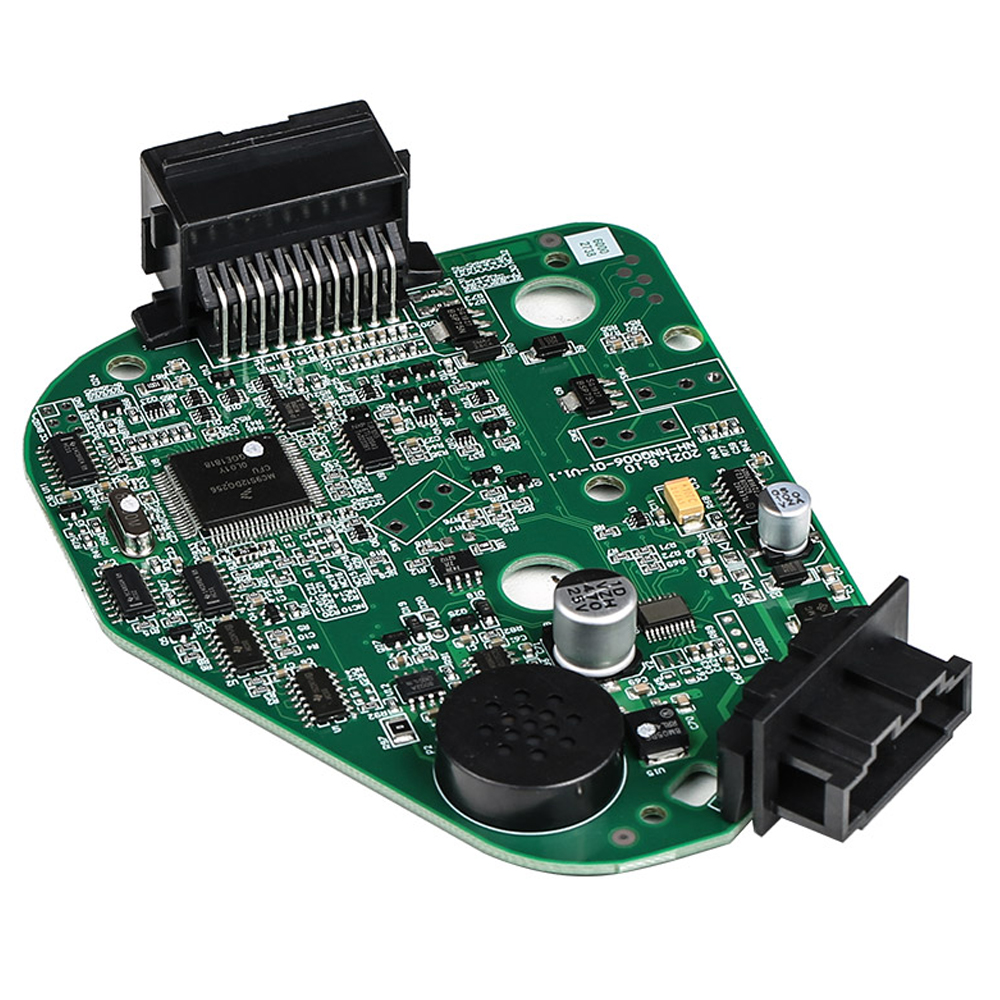

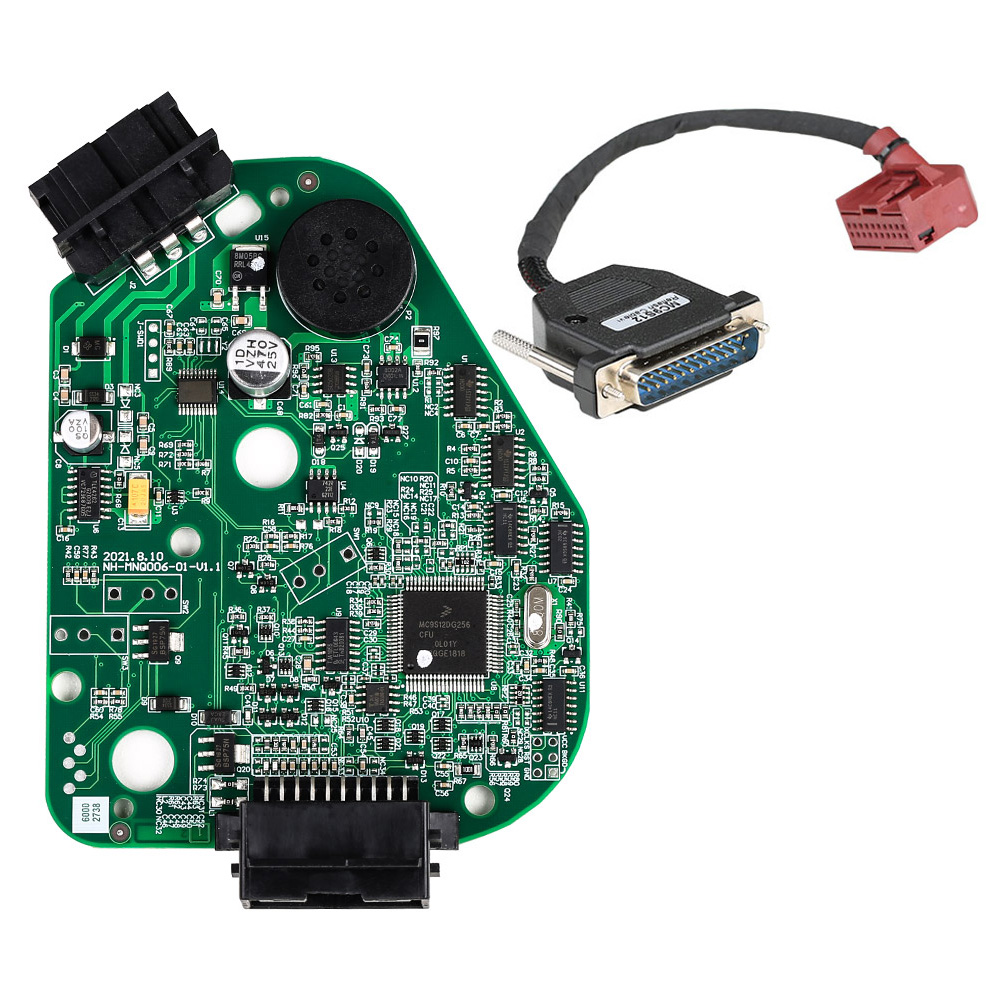

Audi C6 Q7 A6 Steer Column Module J518 ELV Module Emulator with VVDI dedicated programming cable.

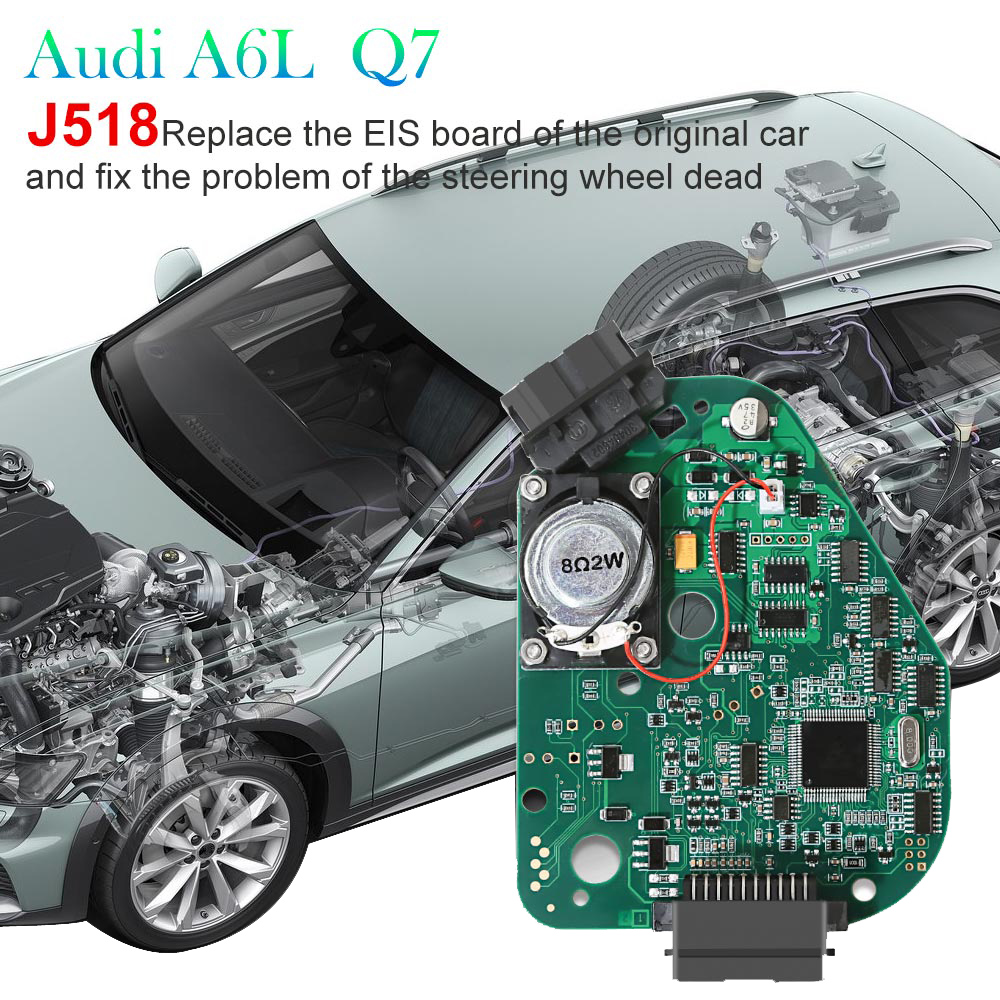

It is used to repair the Audi sixth generation A6 Q7 Audi C6 steering column lock J518 ELV module failure replacement emulator.
1. Universal solution, three types MCU all can replaced by this emulator.
(Replace MCU Mask: 1L59W, 3L40K, OL01Y directly);
2. Stable and durable! No vulnerable components such as relays, micro switch and motors on it.
3. Easy for replacing, write in the dump form original J518 Module with the VVDI Prog dedicated line directly. No need solder wire.
Note:
1. The emulator without lock or on lock function. If need the same function as the original J518 Module, please buy the J518 replacement.

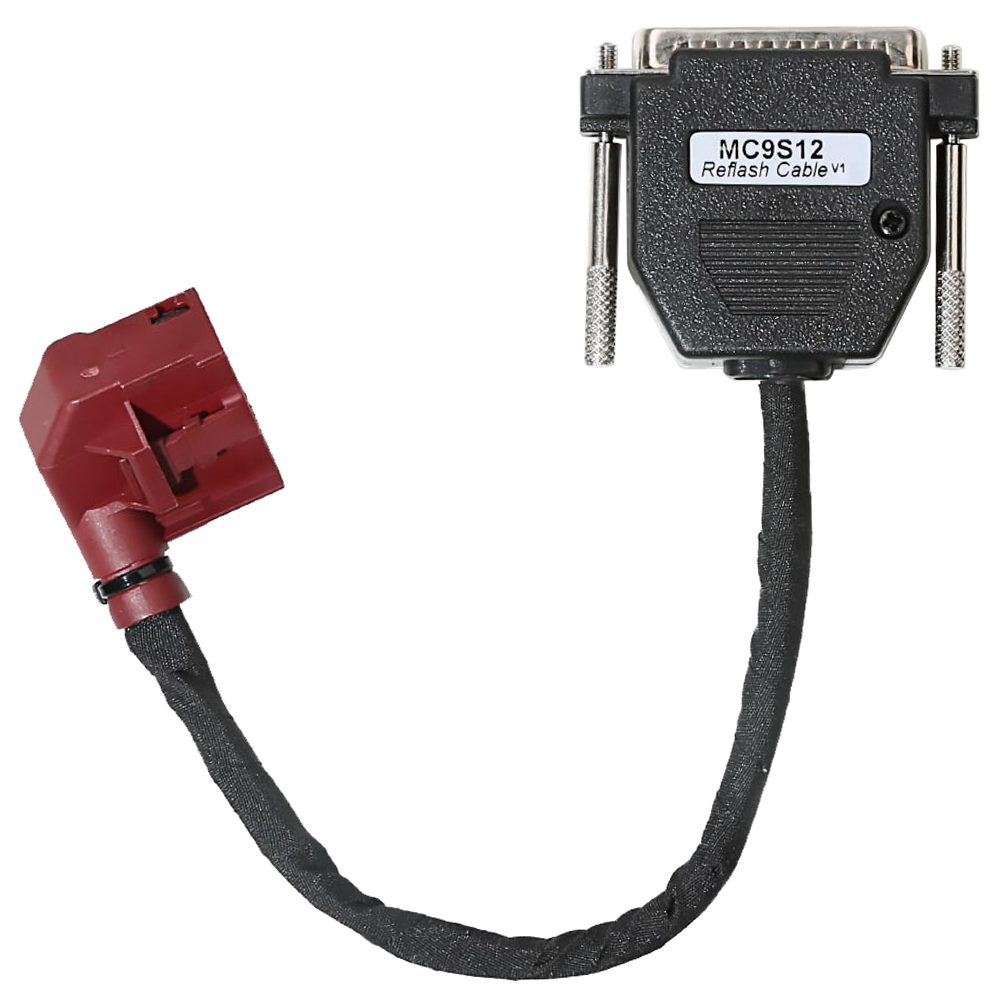

2. The XHorse VVDI PROG dedicated programming cable connector here is only for programming the emulator board, not for original J518 PCB board.
So if you have a car which needs replace the J518 module with this emulator, you need read out the data in the MCU by soldering wire or other methods, then write the data into the emulator MCU via this dedicated cable connector.
 |
