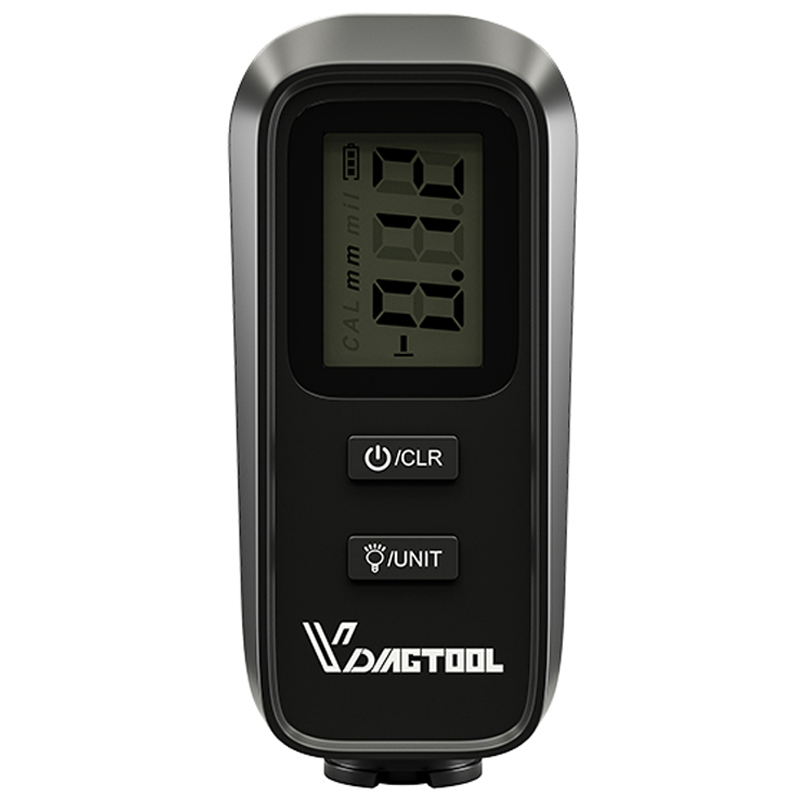

Name: VDIAGTOOL VC-100 Coating Thickness Tester
Description:
VDIAGTOOL VC100 Car Coating Thickness Gauge with Digital Backlight LCD
VC 100 Car Paint Thickness Meter is a portable coating thickness gauge which can measure the thickness of non-metallic coating (such as paint, film, etc.) on metal substrate quickly, nondestructively and accurately. It is mainly used to measure the thickness of the vehicle surface paint and other coating measurement.
Operation Instructions:
1. Measurement Preparation
Open battery cover and load 2 pcs CR2032 button batteries (not Included in package). Pay attention to positive and negative pole.
2. Turn on/off
Leave the VC100 Car Paint Thickness Gauge hang in the air and press "CLR" button to turn it on. Long press "CLR" button to turn it off.
Note: Keep it away from the substrate when starting up.
3. Measurement

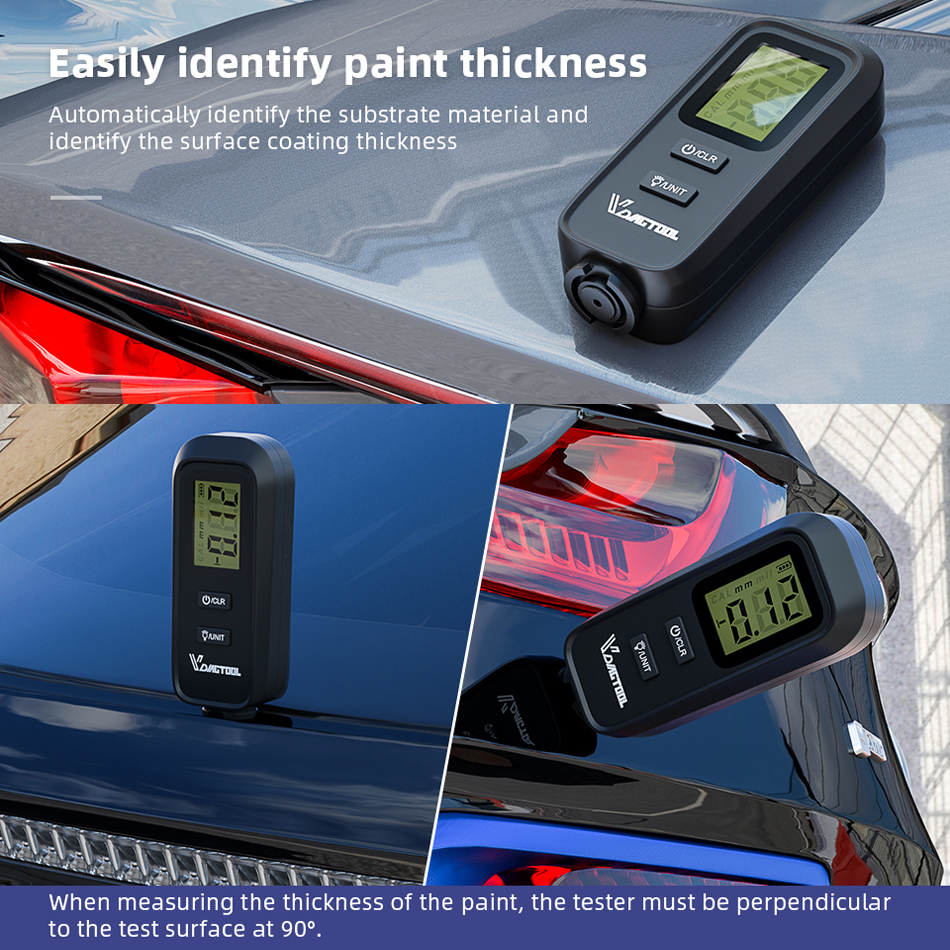

Press the probe onto the coated metal substrate lightly, ensure that the instrument should be perpendicular to the surface of the object that being measured.
Note:
When the probe was pressed on the substrate, the LCD will display "---", then you must wait unit the measurement value displayed on LCD, then remove it from the substrate. If removing before a value is displayed, it will display the last measured value.

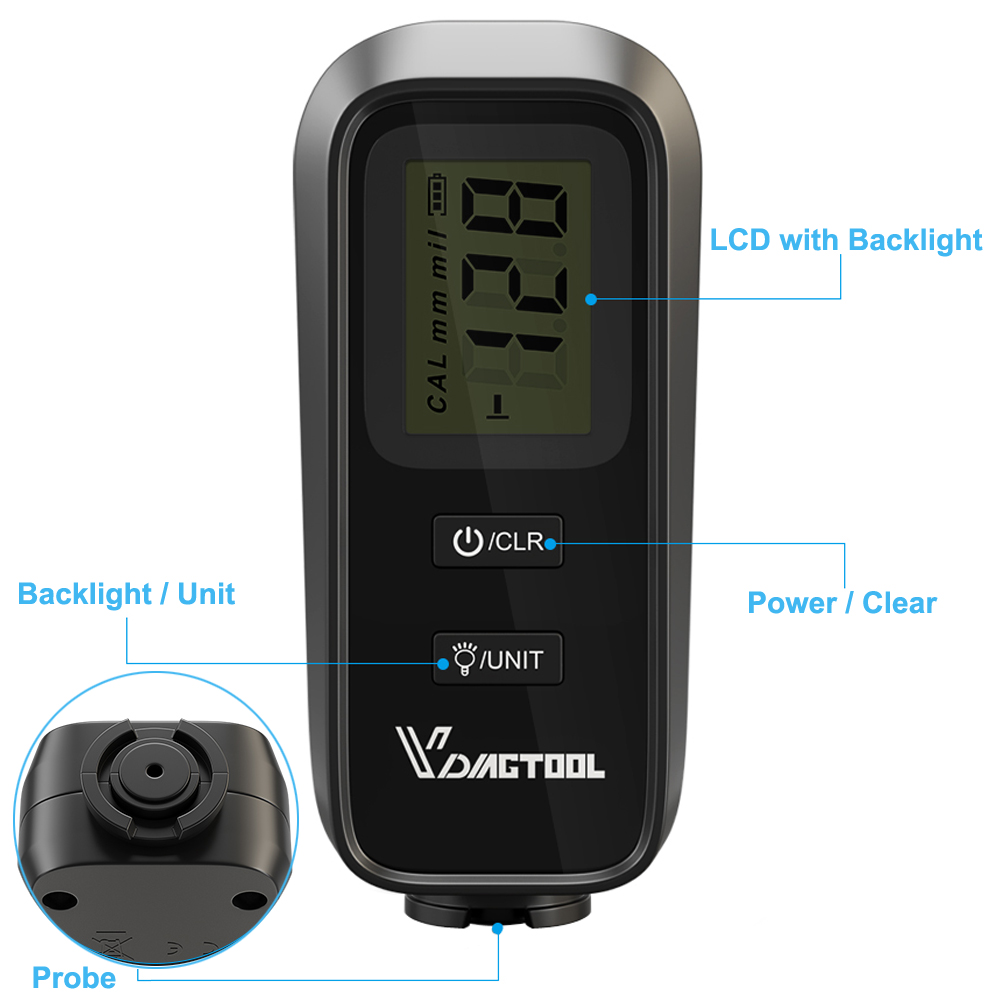

4. Unit Selection
After start-up, short press "UNIT" button to select measurement unit mm or mil.
5. LCD Backlight
After start-up, long press "UNIT" button to turn on/off the backlight.
6. Clear Screen Data
After start-up, press "CLR" button to clear the data displayed on LCD screen.
7. Power Off Automatically
VC100 Car Paint Thickness Meter will power off automatically if no operation in 2 minutes. And it will power off automatically after five minutes after start-up even if when you are operating it.
Notice: Car Paint Thickness Meter comes without battery for shipping security concern.
|
